Summary of Contents for Multitech SocketModem Cell MTSMC-LVW3

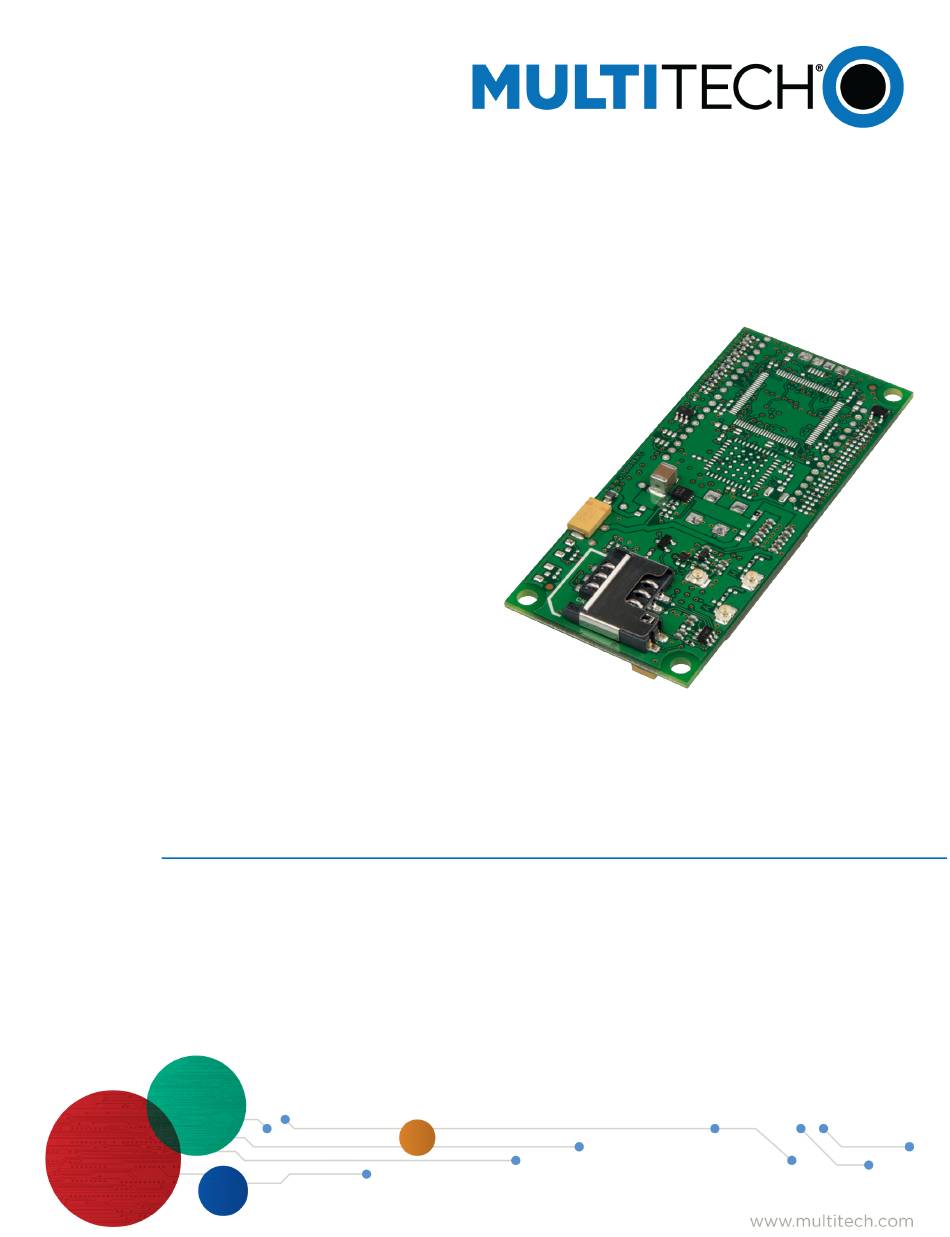

  • Page 1 ® SocketModem Cell MTSMC-LVW3 Device Guide...
  • Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
  • Page 3: Table Of Contents

    CONTENTS Contents Chapter 1 – Chapter 1 Product Overview ......................... 5 Product Overview................................5 Documentation ................................5 Product Build Options ..............................6 Chapter 2 – Chapter 2 Mechanical Drawings......................7 MTSMC-Lxx3.................................. 7 MTSMC-Lxx3-U................................8 Chapter 3 – Chapter 3 Specifications........................9 MTSMC-LVW3 and MTSMC-LVW3-U Specifications .....................
  • Page 4 CONTENTS Sécurité relative aux appareils à radiofréquence (RF)....................18 Interference with Pacemakers and Other Medical Devices ..................19 Potential interference ............................... 19 Precautions for pacemaker wearers ........................19 Vehicle Safety................................19 Device Maintenance ..............................19 User Responsibility..............................20 Chapter 6 – Chapter 6 Regulatory Information....................... 21 47 CFR Part 15 Regulation Class B Devices .........................
  • Page 5: Chapter 1 - Chapter 1 Product Overview

    LTE Cat 1 performance. These quick-to-market communications devices allow developers to add wireless communication to products with a minimum of development time and expense. SocketModem Cell models are based on industry-standard open interfaces and use MultiTech’s Universal Socket design. Documentation The following documentation is available at multitech.com/support.
  • Page 6: Product Build Options

    CHAPTER 1 PRODUCT OVERVIEW Product Build Options Product Description Carrier/Region MTSMC-LVW3 Embedded LTE Cat 1 serial modem without fallback Verizon MTSMC-LVW3-U Embedded LTE Cat 1 USB modem without fallback Verizon Developer Kits Use either of the following developer kits with MTSMC devices. MTUDK2-ST-Cell Developer Kit for SocketModem, and Dragonfly cellular devices.
  • Page 7: Chapter 2 - Chapter 2 Mechanical Drawings

    CHAPTER 2 MECHANICAL DRAWINGS Chapter 2 – Chapter 2 Mechanical Drawings MTSMC-Lxx3 ® SocketModem Cell MTSMC-LVW3 Device Guide...
  • Page 8: Mtsmc-Lxx3-U

    CHAPTER 2 MECHANICAL DRAWINGS MTSMC-Lxx3-U ® SocketModem Cell MTSMC-LVW3 Device Guide...
  • Page 9: Chapter 3 - Chapter 3 Specifications

    CHAPTER 3 SPECIFICATIONS Chapter 3 – Chapter 3 Specifications MTSMC-LVW3 and MTSMC-LVW3-U Specifications Category Description General Standards LTE FDD Cat 1, 3GPP release 9 compliant USB Interface is CDC-ACM compliant TCP/IP Functions FTP, SMTP, SSL, TCP, UDP Frequency Bands 4G: 1900 (B2) / 700 (B13) / AWS 1700 (B4) Speed Data Speed LTE: 10 Mbps downlink/ 5 Mbps uplink...
  • Page 10: Powering Down Your Device

    CHAPTER 3 SPECIFICATIONS Category Description Certifications and Compliance EMC and Radio FCC Part 15 Class B Compliance FCC Part 22 FCC Part 24 Safety Compliance UL 60950-1 2nd ED Carrier Verizon Powering Down Your Device CAUTION: Failing to properly power down the device before removing power may corrupt your device's file system.
  • Page 11: Absolute Maximum Rating

    CHAPTER 3 SPECIFICATIONS Parameter Minimum Maximum Output Low Level 0.55 Output High Level Absolute Maximum Rating All models can run with an input voltage of either 3.3V or 5V. The maximum voltage on any signal pin equals the input voltage. Electrical Characteristics Other Pins Signal VIL Min...
  • Page 12: Pin Availability By Build

    CHAPTER 3 SPECIFICATIONS Signal Name Logic Level Voltage In/Out Description –DTR Data terminal ready (active low) Ground –LED LINK Link status (active low, can sink up to 150mA) DC input power Ground A hyphen (-) indicates a range of acceptable logic levels. Pin Availability by Build Signal Name Serial Only...
  • Page 13: Power Measurements

    CHAPTER 3 SPECIFICATIONS Power Measurements Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into your power source when determining product load. Note: The following notes apply to the following tables. Tx Pulse: The average peak current during a GSM850 transmission burst period or HSDPA/LTE connection.
  • Page 14: Mtsmc-Lvw3-U Power Draw

    CHAPTER 3 SPECIFICATIONS MTSMC-LVW3-U Power Draw Radio Sleep Live Cellular Average TX Pulse (Avg) Total Inrush Protocol Mode Connection Call Box Measured Amplitude Current Charge Measured with SIM Connection Current at for GSM850 or Peak in Millicoulombs Installed, , No Data Maximum Current for No Data...
  • Page 15: Chapter 4 - Chapter 4 Antennas

    The antenna must be the same type, with similar performance and in- and out-of-band radiation patterns as the listed antenna. The antenna used must stay below the FCC/IC maximum gain. For our bundles, MultiTech may change antennas over time. The listed antenna(s) is used as a reference or was shipping when this document was last updated.
  • Page 16: Lte Antenna Diversity

    All antennas need to have a minimum flammability rating. Safety requirements depend on your final product. Unless otherwise noted, antennas certified by MultiTech are not approved for outdoor use. Do not extend these antennas outside of any building. Diversity and Power Draw There are no significant power draw differences.
  • Page 17: Oem Integration

    CHAPTER 4 ANTENNAS OEM Integration FCC & IC Information to Consumers The user manual for the consumer must contain the statements required by the following FCC and IC regulations: 47 C.F.R. 15.19(a)(3), 15.21, 15.105 and RSS-Gen Issue 3, Dec 2010; 7.1.2 and 7.1.3 FCC Grant Notes The OEM should follow all the grant notes listed below.
  • Page 18: Chapter 5 - Chapter 5 Safety Information

    CHAPTER 5 SAFETY INFORMATION Chapter 5 – Chapter 5 Safety Information Handling Precautions To avoid damage due to the accumulation of static charge, use proper precautions when handling any cellular device. Although input protection circuitry has been incorporated into the devices to minimize the effect of static build-up, use proper precautions to avoid exposure to electronic discharge during handling and mounting the device.
  • Page 19: Interference With Pacemakers And Other Medical Devices

    CHAPTER 5 SAFETY INFORMATION Éteignez votre appareil sans fil dans les hôpitaux ou dans toutes les zones où des appareils médicaux sont susceptibles d'être utilisés. Interference with Pacemakers and Other Medical Devices Potential interference Radio frequency energy (RF) from cellular devices can interact with some electronic devices. This is electromagnetic interference (EMI).
  • Page 20: User Responsibility

    Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty.
  • Page 21: Chapter 6 - Chapter 6 Regulatory Information

    CHAPTER 6 REGULATORY INFORMATION Chapter 6 – Chapter 6 Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 22: Chapter 7 - Chapter 7 Environmental Notices

    Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.
  • Page 23: Restriction Of The Use Of Hazardous Substances (Rohs)

    2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <...
  • Page 24: Chapter 8 - Chapter 8 Labels

    This device is an industry and/or carrier approved modem. In most cases, when integrated and used with an antenna system that was part of the MultiTech modem certification, additional approvals or certifications are not required for the device that you develop as long as the following requirements are met: PTCRB Requirements: The antenna system cannot be altered.
  • Page 25: Chapter 9 - Using Connection Manager

    Follow these steps in order. Attempting to plug in the device before the appropriate drivers are installed can cause the connection to fail. Go to www.multitech.com/connectionmanager.go. Click Connection Manager. Open or unzip the Connection Manager file and run the installer (.msi file).
  • Page 26: Setting Up A Serial Device

    USING CONNECTION MANAGER Setting Up a Serial Device Connect the serial device to the PC. Navigate to Control Panel > Device Manager. Make note of the COM port number for the connected device (in COM Ports). Example: COM port is COM31. In the Action drop-down menu, select Add legacy hardware to add a new device.
  • Page 27 USING CONNECTION MANAGER Click Browse and select the installation folder. Example: C:\Program Files (x86)\Multi-Tech Systems\Multi-Tech Connection Manager. The list of available TELIT models appears. Select the model number for your device, then click Next. ® SocketModem Cell MTSMC-LVW3 Device Guide...
  • Page 28: Troubleshooting

    USING CONNECTION MANAGER Select the COM port that you noted from COM ports, then click Next. Click Finish to exit the Wizard. Navigate to Device Manager > Modems and confirm that the device is added. Troubleshooting Serial COM port is not available in the Serial Modem Settings This can happen if the modem was installed while Connection Manager was running.
  • Page 29: Multiconnect Cell Usb Modem Is Not Detected

    USING CONNECTION MANAGER Restart Connection Manager. Disconnect and reconnect the device. MultiConnect Cell USB Modem is not detected Check the Power and LS LEDs on the device. If they are not continuously lit, then the problem is with the power supply. Check the cable and connections. USB device: Make sure that the device is connected to the PC and that the correct USB cable is in use.
  • Page 30: Index

    INDEX Index activation...............25 KDB 447498 Section 8 ..........17 antenna cellular devices............15 diversity..............16 LTE................15 labeling AT#SHDN ...............10 host ................17 labels ................24 antenna..............15 build options ..............6 maintenance ..............19 Class B ................21 mechanical drawings............7 8 connection manager ..........25 28 model location ..............24 mounting hardware ............14 device maintenance ............19 overview................25...
  • Page 31 INDEX troubleshooting.............28 vehicle safety ..............19 user responsibility............20 ® SocketModem Cell MTSMC-LVW3 Device Guide...
