Page 1: Dvd Player

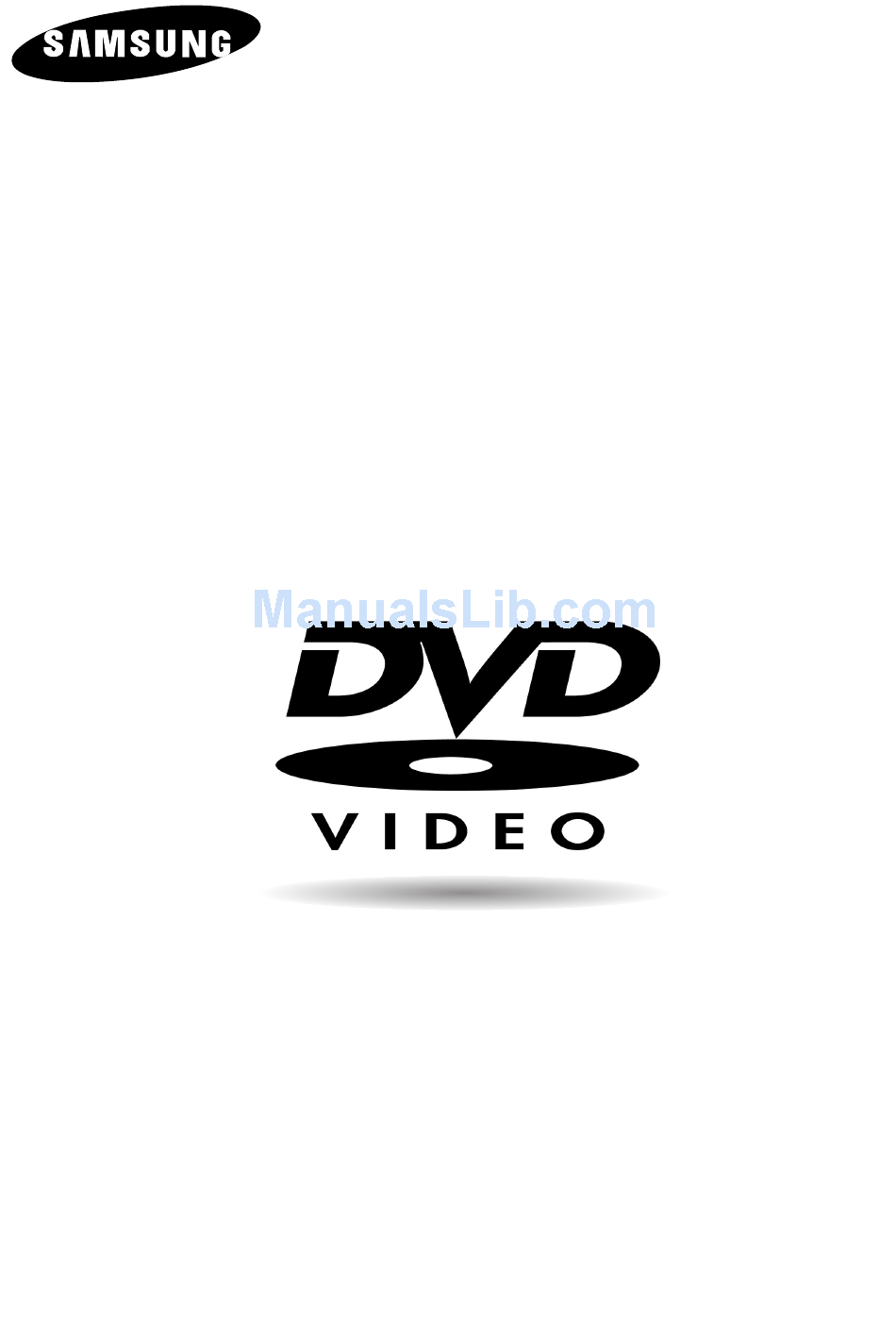

DVD Player DVD-HD755... -
Page 2: Important Safety Instructions
Important Safety Instructions... -
Page 3: Fcc Note (For U.s.a)
Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING : CAUTIONS FCC NOTE (for U.S.A): CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1... - Page 4 CAUTION Note: Handling Cautions Disc Storage Maintenance of Cabinet POWER...
-
Page 5: Before You Start
Before you start Accessories Install Batteries in the Remote control If the remote control doesn’t operate properly:... - Page 6 Chapter 1: Setup Chapter 2: Connections Chapter 3: Basic Functions Chapter 4: Advanced Functions Chapter 5: Changing Setup Menu Chapter 6: Reference...
-
Page 7: General Features
C h a p t e r 1 General Features Excellent Sound Screen Slow Motion Program Play (CD) Parental Control (DVD) Various On-Screen Menu Functions Progressive Scan EZ VIEW (DVD) Digital Photo Viewer (JPEG) Repeat REPEAT MP3/WMA Instant Replay (DVD) Instant Skip (DVD) HDMI (High Definition Multimedia Interface) -
Page 8: Disc Type And Characteristics
Disc Type and Characteristics Disc Types (Logos) Recording Types DVD-VIDEO VIDEO-CD AUDIO-CD Disc Markings STEREO DIGITAL SOUND You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the DVD player. - Page 9 Description Front Panel Controls STANDBY/ON 3 4 5 6 7 8 1. STANDBY/ON ( STANDBY/ON 2. POWER INDICATOR 3. SKIP ( ) / SEARCH 4. STOP ( 5. PLAY/PAUSE ( Front Panel Display 1. Chapter/Track number indicator 2. Total playing time/Displays various messages concerning operations such as PLAY, STOP, LOAD ...
- Page 10 Rear Panel 1. HDMI OUT JACK 2. AUDIO OUT JACKS 3. VIDEO OUT JACK Note 4. S-VIDEO OUT JACK 5. DIGITAL AUDIO OUT JACKS 6. COMPONENT VIDEO OUT JACKS...
-
Page 11: Tour Of The Remote Control
Tour of the Remote Control 1. DVD POWER Button 2. NUMBER Buttons 3. PROG Button 4. STEP Button 5. SEARCH/SKIP Buttons ( 6. STOP Button ( 7. MENU Button 8. RETURN Button 9. REPEAT A-B Button 10. SUBTITLE Button 11. OPEN/CLOSE ( 12. -
Page 12: Choosing A Connection
C h a p t e r 2 Choosing a Connection Before Connecting the DVD Player Connection to a TV (Video) (red and white) OUT VIDEO (yellow)/AUDIO (red and white) IN Note - Noise may be generated if the audio cable is placed too close to the power cable. - Page 13 Connection to a TV (S-Video) S-VIDEO IN AUDIO (red and white) and white) IN COMPOSITE/S-VIDEO Note S-VIDEO AUDIO (red Audio Cable WHITE S-Video Cable (not included) WHITE...
-
Page 14: Connection To A Tv (Interlace)
Connection to a TV (Interlace) COMPONENT VIDEO OUT COMPONENT IN and white) IN COMPONENT (I-SCAN) Note - If Video output is incorrectly set to Composite/S-Video with the Component cables connected, the screen will turn red. AUDIO (red and white) AUDIO (red BLUE GREEN WHITE... - Page 15 Connection to a TV (Progressive) COMPONENT VIDEO OUT COMPONENT IN AUDIO (red and white) and white) IN HDMI/COMPONENT (P-SCAN) To see the progressive video output, - Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s menu system.
-
Page 16: Connecting To A Tv With Dvi Jack
Connecting to a TV with DVI Jack (red and white) IN Connecting to a TV with HDMI Jack Note HDMI DVI IN AUDIO (red and white) AUDIO HDMI OUT HDMI IN WHITE HDMI-DVI cable Audio Cable (not included) WHITE HDMI cable... - Page 17 • HDMI (High Definition Multimedia Interface) • HDMI connection description • Why does Samsung use HDMI? • What is the HDCP?
- Page 18 Connection to an Audio System (2 Channel Amplifier) and white) IN COMPONENT HDMI OUT VIDEO, S-VIDEO COMPONENT input Note - Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears. AUDIO (red and white) AUDIO (red VIDEO, S-VIDEO...
- Page 19 Note - When you connect the DVD player to a DTS Amplifier and play a DTS disc, set the DTS to On in Audio Setup menu. If it is set to Off, sound will not be heard, or there will be a loud sound.
-
Page 20: Playing A Disc
C h a p t e r 3 Playing a Disc Before Play SELECT MENU LANGUAGE Playback OPEN/CLOSE PLAY/PAUSE ( OPEN/CLOSE ( ) POWER NUMBER RESUME function PLAY/PAUSE STOP Press 1 for English Touche 2 pour Français Drücken Sie 3 für Deutsch Pulsar 4 para Español Premere... - Page 21 Stopping Play STOP ( ) Removing Disc OPEN/CLOSE Pausing Play PLAY/PAUSE STEP Step Motion Play (Except STEP Slow Motion Play (Except SEARCH Note PLAY/PAUSE PLAY/PAUSE Note PLAY/PAUSE PLAY/PAUSE Note...
-
Page 22: Using The Search And Skip Functions
Using the Search and Skip Functions Searching through a Chapter or Track SEARCH Skipping Tracks SKIP SKIP SKIP Note SKIP SKIP Note DISC MENU SEARCH... -
Page 23: Using The Display Function
Using the Display Function When Playing a DVD/VCD/CD INFO … † 0:00:13 ENG 5.1CH 0:00:43 0:00:48 œ √ ENTER MENU DISC MENU... - Page 24 INFO Note...
-
Page 25: Using The Disc And Title Menu
Using the Disc and Title Menu Using the Disc Menu (DVD) MENU … † Disc Menu √ ENTER Using the Title Menu (DVD) MENU … † Title Menu √ ENTER Note Press ENTER key for Disc Menu MENU Press ENTER key for Title Menu Note DISC... -
Page 26: Using The Function Menu
Using the Function Menu Using the Function Menu (DVD/VCD) MENU … † Function √ ENTER … † √ ENTER Info Zoom Bookmark Repeat EZ View Note DISC MENU... -
Page 27: Repeat Play
Repeat Play When playing a DVD/VCD/CD REPEAT œ √ Chapter Title ENTER Using the A-B Repeat function REPEAT A-B REPEAT A-B Note REPEAT œ √ ENTER 01 A-B REPEAT ENTER 01 A-B REPEAT ENTER CLEAR 01 A-B REPEAT ENTER Note 01 A-B REPEAT ENTER DISC MENU... -
Page 28: Slow Repeat Play
Slow Repeat Play When playing a DVD/VCD PLAY/PAUSE ( SEARCH ( REPEAT œ √ ENTER ENTER CLEAR PLAY/PAUSE Using the A-B Repeat function REPEAT A-B Note DISC MENU REPEAT A-B CLEAR PLAY/PAUSE... -
Page 29: Program Play & Random Play
Program Play & Random Play Program Play (Audio CD) PROG PROGRAM œ √ PROGRAM ENTER … † œ √ Track ENTER PLAY/PAUSE Random Play (CD) PROGRAM PROG œ/√ RANDOM ENTER œ œ √ √ RANDOM RETURN PROGRAM 01 Program Order CLEAR œ... -
Page 30: Adjusting The Aspect Ratio (Ez View)
C h a p t e r 4 Adjusting the Aspect Ratio (EZ View) To play back using aspect ratio (DVD) VIEW VIEW If you are using a 16:9 TV For 16:9 aspect ratio discs WIDE SCREEN - SCREEN FIT - ZOOM FIT WIDE SCREEN EZ VIEW... - Page 31 If you are using a 4:3 TV For 16:9 aspect ratio discs - 4:3 Letter Box - 4:3 Pan & Scan - SCREEN FIT - ZOOM FIT Note For 4:3 aspect ratio discs - Normal Screen - SCREEN FIT - ZOOM FIT...
-
Page 32: Selecting The Audio Language
Selecting the Audio Language Using the AUDIO button (DVD/VCD/CD) AUDIO Stereo Right Left AUDIO CLEAR RETURN ENG DOLBY DIGITAL 5.1CH AUDIO Stereo AUDIO Note AUDIO... -
Page 33: Selecting The Subtitle Language
Selecting the Subtitle Language Using the SUBTITLE button (DVD) SUBTITLE SUBTITLE CLEAR RETURN SUBTITLE SUBTITLE Note DISC MENU... -
Page 34: Changing The Camera Angle
Changing the Camera Angle Using the ANGLE button (DVD) ANGLE ANGLE CLEAR RETURN Using the Instant Replay/Skip Function Using the Instant Replay function (DVD) INSTANT REPLAY Using the Instant Skip function (DVD) INSTANT SKIP ANGLE Note Note... -
Page 35: Using The Bookmark Function (Dvd/Vcd)
Using the Bookmark Function Using the Bookmark Function (DVD/VCD) MENU … … /† † Function √ ENTER … … /† † Bookmark √ ENTER ENTER Info Zoom Bookmark Repeat EZ View Info Zoom Bookmark Repeat EZ View Note... - Page 36 Recalling a Bookmarked Scene œ/√ PLAY/PAUSE Clearing a Bookmark œ/√ CLEAR...
-
Page 37: Using The Zoom Function
Using the Zoom Function Using the Zoom Function (DVD/VCD) MENU … … /† † Function √ ENTER … … /† † Zoom √ ENTER … … /† † œ/√ ENTER Info Zoom Bookmark Repeat EZ View Info Zoom Bookmark Repeat EZ View Note ENTER... -
Page 38: Clips Menu For Mp3/Wma/Jpeg
Clips Menu for MP3/WMA/JPEG R O O T REPEAT Folder Selection - To select the Parent Folder RETURN … … /† † ENTER - To select the Peer Folder œ/√ … … /† † ENTER - To select the Sub-Folder œ/√... -
Page 39: Mp3/Wma Playback
MP3/WMA Playback R O O T … … /† † œ/√ ENTER 0 0 : 0 0 : 2 3 R O O T W M A J P E G M P 3 Repeat/Random playback REPEAT Off Track Folder Random CLEAR R O O T... - Page 40 CD-R MP3/WMA file When you record MP3 or WMA files on CD-R, please refer to the following. - Your MP3 or WMA files should be ISO 9660 or JOLIET format. - When naming your MP3 or WMA files, do not exceed 8 characters, and enter “.mp3, .wma”...
-
Page 41: Picture Cd Playback
Picture CD Playback … … /† † R O O T ENTER … … /† † R O O T W M A J P E G M P 3 ENTER INFO œ √ ENTER Album Screen Rotation ENTER Zoom …... - Page 42 CD-R JPEG Discs...
-
Page 43: Using The Setup Menu
C h a p t e r 5 Using the Setup Menu Language Setup MENU Audio Setup Display Setup Parental Setup : EZ Setup … … /† † Setup Setup √ ENTER Œ ´ ˇ ¨ ˆ … … /† † √... -
Page 44: Setting Up Ez-Setup
Setting Up EZ-Setup MENU … … /† † Setup √ ENTER … … /† † EZ Setup √ ENTER EZ Setup start? EZ Setup … … /† † Player Menu Language ENTER TV Aspect PCM Down Sampling Player Menu Language …... - Page 45 TV Aspect … … /† † ENTER PCM Down Sampling … … /† † ENTER ENTER Settings Complete Press ENTER EZ SETUP 4:3 Letter Box 4:3 Pan&Scan 16:9 Wide EZ SETUP EZ SETUP to exit MENU...
-
Page 46: Setting Up The Language Features
Setting Up the Language Features Using the Player Menu Language MENU … … /† † Setup √ ENTER … … /† † Language Setup √ ENTER Player Menu … … /† † Disc Menu Player Menu Audio Subtitle √ ENTER Player Menu …... -
Page 47: Using The Disc Menu Language
Using the Disc Menu Language MENU … … /† † Setup √ ENTER Setup … … /† † Language Setup √ ENTER Setup Player Menu … … /† † Disc Menu Disc Menu Audio Subtitle √ ENTER … … /† † Disc Menu √... -
Page 48: Using The Audio Language
Using the Audio Language MENU … … /† † Setup √ ENTER … … /† † Language Setup √ ENTER Player Menu … … /† † Disc Menu Audio Audio Subtitle √ ENTER … … /† † Audio √ ENTER √... -
Page 49: Using The Subtitle Language
Using the Subtitle Language MENU … … /† † Language Setup Audio Setup Setup Display Setup √ ENTER Parental Setup : EZ Setup Setup … … /† † Language Setup Audio Setup Language Setup Display Setup √ Parental Setup : ENTER EZ Setup Setup... -
Page 50: Setting Up The Audio Options
Setting Up the Audio Options MENU … … /† † Setup √ ENTER … … /† † Audio Setup √ ENTER Dolby/DTS Digital Out … … /† † Dynamic Compression PCM Down Sampling √ ENTER √ √ Language Setup √ √ Audio Setup √... - Page 51 Œ Note ´ ˇ Note HDMI - If your TV is not compatible with compressed multi-channel formats (Dolby Digital, DTS, MPEG), you should set Digital Audio to PCM. - If your TV is not compatible with LPCM sampling rates over 48kHz, you should set PCM Down sampling to On.
-
Page 52: Setting Up The Display Options
Setting Up the Display Options MENU … … /† † Setup √ ENTER … … /† † Display Setup √ ENTER TV Aspect … … /† † Still Mode Screen Messages √ Video Output ENTER HDMI Picture Quality √ √ Language Setup √... -
Page 53: Video Output
TV Aspect Œ TV ASPECT 4:3 Lettre Box 4:3 Pan & Scan 16:9 Wide Still Mode ´ Screen Messages ˇ Video Output ¨ DISPLAY SETUP √ √ TV Aspect : Wide Still Mode : Auto Screen Messages : On : COMPOSIT/S-VID √ √ Video Output √... -
Page 54: Resolution Setting
HDMI ˆ Resolution Setting Resolution Format HDMI SETUP Resolution Setting : Auto Resolution : 720p Format : RGB-Normal Picture Quality Ø PICTURE QUALITY Black Level : Off Sharpness : Level 3 Brightness : Level 3 Color Saturation : Level 3 •... -
Page 55: Setting Up The Parental Control
Setting Up the Parental Control MENU … … /† † Setup √ ENTER Setup … … /† † Parental Setup √ ENTER Setup Use Password √ ENTER Re-enter Password √ √ Language Setup √ √ Audio Setup √ √ Display Setup √... -
Page 56: Setting Up The Rating Level
Setting Up the Rating Level MENU … … /† † Setup √ ENTER … … /† † Parental Setup √ ENTER Use Password … … /† † Rating Level Rating Level Change Password √ ENTER … … /† † Level 8 Adult Level 7 Level 6 Level 5... -
Page 57: Changing The Password
Changing the Password MENU … … /† † Setup √ ENTER Setup … … /† † Parental Setup √ ENTER Setup … … /† † Use Password Rating Level Change Password Change Password √ ENTER Enter New Password Re-enter Password √... -
Page 58: Troubleshooting
C h a p t e r 6 Troubleshooting Action Problem Page... - Page 59 Action Problem Page...
-
Page 60: Specifications
Specifications... -
Page 61: Warranty
Warranty One (1) Year Parts / Ninety (90) days Labor... - Page 62 ELECTRONICS AK68-00846A-00...
