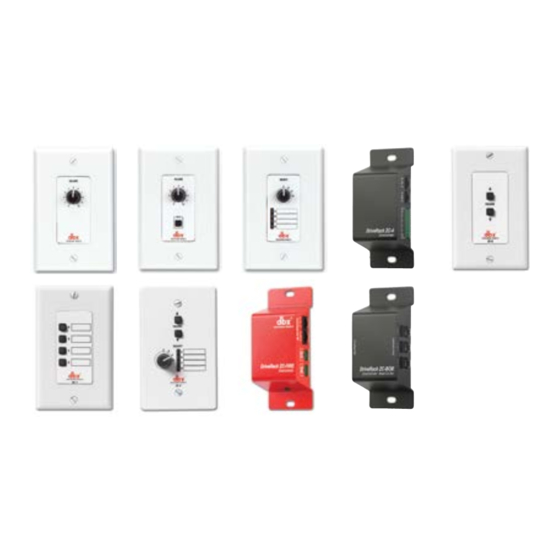

- Page 1 ZC SERIES W a l l - M o u n t e d Z o n e C o n t r o l l e r s ZC-1-4 ZC-6-9 ZC-Fire ZC-BOB User Guide...
-
Page 2: Important Safety Instructions
Opening the chassis for any reason Product name: dbx Zone Controllers Models 1, 2, 3, 4, 6, 7, 8, 9; FIRE and will void the manufacturer’s warranty. Do not get the unit wet. If liquid Note: Product name may be suffixed by a combination of the letters EU, M, or V. -
Page 3: Consignes De Sécurité Importantes
Confier toute réparation à du personnel qualifié. Ouvrir la structure Nom du produit : dbx Zone Controllers Models 1, 2, 3, 4, 6, 7, 8, 9; FIRE and de l’appareil pour quelque raison que ce soit annulera la garantie du fabricant. - Page 4 USER GUIDE ZC Series Wall Controllers Zone Controller Wiring The Zone Controllers, (ZC-1, ZC-2, ZC-3, ZC-4, ZC-6, ZC-7, ZC-8, ZC-9 and ZC-Fire) can be wired serially or in parallel. To wire in series, each Zone Controller must have an identification or zone number chosen using the DIP switches on the side of the controller (see diagram A).
- Page 5 USER GUIDE ZC Series Wall Controllers Diagram C RS-232 Diagram D ZC-4 Binary Appnotes Setting Switches SW1-SW4 correspond to switch inputs 1-4 on the ZC-4’s EuroBlock connector. Each switch connected to the ZC-4 must be a Single-Pole Double-Throw (SPDT). One pole of each switch ®...
- Page 6 • Cable runs of up to 1,000 feet may be achieved using “Home Run” wiring. An example of this is shown in Diagram H. A dbx Zone Controller Break Out Box (dbx ZC-BOB) is used to parallel several ® cable runs. It should be noted that a 1,000 foot cable with a single Zone Controller may be connected directly to the controlled device.
- Page 7 USER GUIDE ZC Series Wall Controllers Diagram F RS-232 Diagram G RS-232 Diagram H RS-232 ® ® ® ® ® ®...
- Page 8 USER GUIDE ZC Series Wall Controllers Cat 5 Cable / 4-Twisted Pairs of 24 AWG Wire Cable Spec: Cat5 Cable - 4-Twisted Pairs of 24AWG wire RJ-45 RJ-45 (8-Position) (8-Position) White / Orange Voltage Reference Orange Controller 1/7 1 2 3 4 5 6 White / Green Controller 2/8 1 2 3 4 5 6...
-
Page 9: Safety Warning
USER GUIDE ZC Series Wall Controllers Safety Warning The installation of the Zone Controllers MUST be accomplished with the use of cable which is rated VW-1 or higher. Common NEC designations which meet this rating include: CMP, CMR, CMG, CM and CMX. Specifications Connections: ZC-1, ZC-2, ZC-3, ZC-6, ZC-7, ZC-8 and ZC-9 Connectors: (2) RJ-45... - Page 10 USER GUIDE ZC Series Wall Controllers Dimensions ZC-1, ZC-2, ZC-3, ZC-6, ZC-7 [7.11] [15.52] [33.0] [83.31] [105.7] [96.77] [66.29] [24.46] ZC-8 and ZC-9 [83.31] [114.3] ® ® [22.86] [20.07] [69.85] ®...
- Page 11 USER GUIDE ZC Series Wall Controllers ZC-4, ZC-BOB and ZC-Fire [40.89] [53.34] [120.7] [133.1] ZC-1, ZC-2, ZC-3, ZC-6, ZC-7, ZC-8 and ZC-9 EU Models ® ® ® ® ® ®...
- Page 12 Phone: (801) 566-8800 Website: dbxpro.com Support: dbxpro.com/en-US/support ZC Series User Guide PN: 5081469-A dbx Professional Products is a registered trademark of HARMAN © 2016 HARMAN All rights reserved...
