Samsung SyncMaster 711LT User Manual

Samsung monitor safety precautions
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
!
!
!
!
SyncMaster 711LT/ 911LT
Install drivers
Install programs

Advertisement

Table of Contents
loading

Related Manuals for Samsung SyncMaster 711LT

Summary of Contents for Samsung SyncMaster 711LT

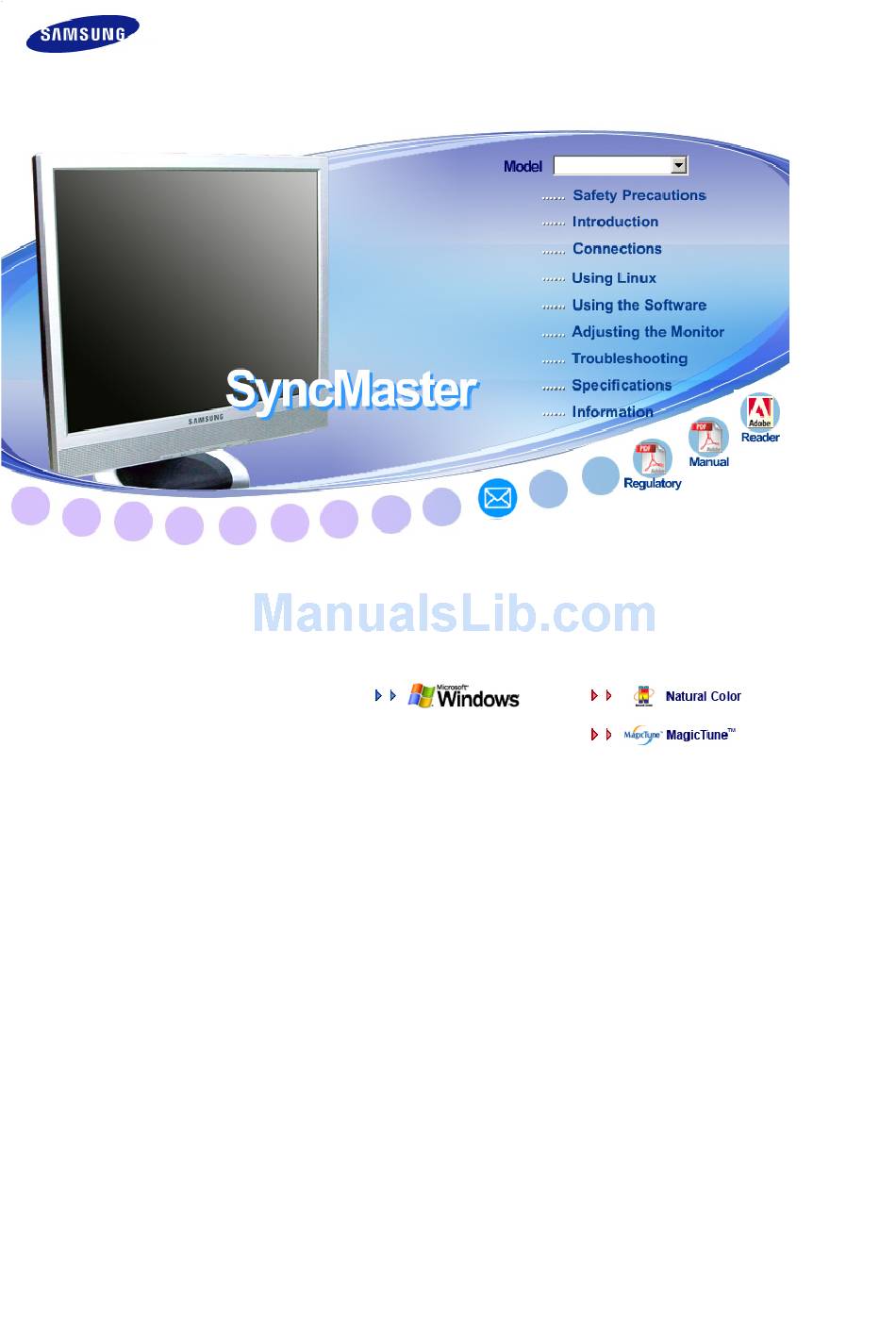

  • Page 1 SyncMaster 711LT/ 911LT Install drivers Install programs...
  • Page 2 Notation Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment. Prohibited Do not disassemble Do not touch Power When not used for extended period of time, set your computer to DPM. If using screen saver, set it to active screen mode.
  • Page 3 Otherwise, this may result in electric shock or fire. Do not touch the power plug with wet hands when removing or plugging the plug into the outlet. Otherwise, this may result in electric shock. Make sure to connect the power cord to a grounded power outlet. Otherwise, it may result in electric shock or personal injury.
  • Page 4 Installation Be sure to contact an authorized location with heavy dust, high or low temperatures, high humidity, and exposed to chemical substances and where it operates for 24 hours such as at airports, train stations etc. Failure to do so may cause serious damage to your monitor. Do not drop the monitor when moving it.

  • Page 5: Cleaning And Using

    Put down the monitor carefully. Failing to do so may damage the monitor. Do not place the front of the product on the floor. Otherwise, this may result in damage to the screen display. Ensure that an authorized installation company installs the wall mount. Otherwise, it may fall and cause personal injury.
  • Page 6 cleaner other than the monitor cleaner, dilute it with water at a ratio of 1:10. When cleaning the power plug pins or dusting the power outlet, clean it with a dry cloth. Otherwise, it may result in fire. When cleaning the product, make sure to disconnect the power cord. Otherwise, it may result in electric shock or fire.
  • Page 7 Do not place this product in a location exposed to moisture, dust, smoke, water, or in a car. Otherwise, this may result in electric shock or fire. When you drop the product or the case is broken, turn the power off and disconnect the power cord.
  • Page 8 If water or foreign material enters the product, disconnect the power cord and contact a Service Center. Otherwise, this may result in electric shock or fire. When using a fixed screen for a long time, an afterimage or stain may occur. If you are not using your product for a long period of time, put it into sleep mode or use a moving screen saver.
  • Page 9 If you do not use the product for a long period of time, disconnect the power cord from the power outlet. Otherwise, this may result in overheating or fire due to dust, and may result in fire due to electric shock or leakage. Do not place any heavy items or toys or confectionery, such as cookies etc.
  • Page 10 Be careful when adjusting the angle of the product or the height of the stand. This may result in personal injury as your hand or fingers may become caught. Also, if you tilt the product too far, it may fall and cause personal injury. Do not install the product in a location low enough for children to reach.
  • Page 11 conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

  • Page 12: Package Contents

    Features Tuning the power off while booting up a Client may damage the monitor In addition, exit all running programs before turning the monitor off. What is Client Monitor? Client Monitor is a new type of monitor that can be used as a general monitor and can also be used as a terminal by connecting it to a host PC with a LAN connection so that you can use a Client Monitor to access the Internet, create a document and edit an image file.

  • Page 13: Your Monitor

    Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Without stand With Stand Manual Warranty Card User's Guide, Monitor Driver, Quick Setup Guide (Not available in all Natural Color software, locations)
  • Page 14 MENU button [ ] Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu. MagicBright™ button MagicBright™ is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently six different modes are available : Custom, Text, Internet, Game, Sport and Movie.
  • Page 15 mode -- Analog or Client input signal.) >> Click here to see an animation clip AUTO button Use this button for auto adjustment. >> Click here to see an animation clip Use this button for turn the monitor on and off. Power button [ Be careful as pressing the Power button in client mode will shut down Windows XPe.
  • Page 16 and turn it in the locking direction ( ). 2. Connect the Kensington Lock cable. 3. Fix the Kensington Lock to a desk or a heavy stationary object. Cable Fix Ring When connecting the cable is finished, fix the cables to the Cable Fix Ring.

  • Page 17: Connecting Cables

    Connecting Cables Connecting Cables (When used as a normal monitor) Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. Use appropriate connection for your computer. Using the D-sub (Analog) connector on the video card.

  • Page 18: Using The Stand

    Connect USB devices such as a mouse, keyboard and external storage devices (DSC, MP3, external storage, etc.). (USB Connection Terminal) Connect the LAN cable. (LAN Connection Terminal) RS-232C Connection Connect a RS-232C cable to this terminal. Terminal D-sub 15-pin port Use it by connecting it to another monitor.
  • Page 19 Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
  • Page 20 10cm away from the wall surface. Contact the nearest Samsung Service Center for more information. Samsung Electronics will not be responsible for damages caused by using a base other than those specified. Please use Wall Mount according to the International standards.
  • Page 21 Thin Clients are composed of state-of-the-art hardware and an operating system based on the Samsung Flash Linux Technology. We have done our best to deliver an excellent product and we promise to provide support and service of the same quality.

  • Page 22: Boot Procedure

    PXE Network Boot Support DHCP DPMS Screen Saver USB Mass Storage File Browser Smart Card Support Icewm Thin Print Boot Procedure System BIOS The BIOS looks for extensions in the appropriate memory area. The next step is the execution of the master boot record, which starts a secondary stage loader.
  • Page 23 Control Center (Global Settings) Starting the Control Center Once the STC boots up, you have the option to set the STC as per your choice using the settings provided in the Control Panel. The Control Panel can be accessed using two methods. From the start menu Select the Settings option from the Start Menu.
  • Page 24 The mouse pointer speed can be changed using this option. The default speed is set as 5. It can be set as to be anywhere between 0.0 and 20.0, with the pointer tip speed increasing with increasing value. Keyboard The keyboard settings can be used to configure the keyboard attached to the Samsung Thin Client.
  • Page 25 NFS (Network File System) enables you to share files via the network. The NFS server exports a file system, and the NFS client (Samsung Thin Client) associates this to a mount point of its own file system. So afterwards the exported file system will be a logical part of the Samsung Thin Client's file system, while it physically remains on server side.
  • Page 26 Session Name: - Enter the name for the session to be saved or loaded. Load / Save / Delete: - For loading, saving or deleting a saved session from memory. It is possible to select/create a new/existing mount point using the Control Centre dialog boxes itself.
  • Page 27 It is possible to select/create a new/existing mount point using the Control Centre dialog boxes itself. The process is described here along with figures. First the IP address of the Samba server is given. It automatically lists all the directories shared on that Samba server which can be seen as shown in the figure below.
  • Page 28 ICA Global Settings Citrix® Independent Computing Architecture (ICA)® allows users to connect remotely to servers running Citrix MetaFrame. ICA Client offers quick, secure access to applications, content, and entire desktops published on servers running MetaFrame. ICA separates the user interface from the application while keeping the logic on the server.
  • Page 29 accessible on the network and using the chosen browsing protocol. TCP/IP If your network configuration uses routers or gateways, or to eliminate additional network traffic by the broadcasts, you can set specific server addresses for the Citrix servers from which the list of available servers and/or published applications should be requested. You can place more than one address in the "Address List"...
  • Page 30 and over again. Set the maximum size of local system memory (in kilobytes) to be used for caching and the minimum size of bitmaps to be cached and the directory the files should be stored locally. A too high setting might leave the Thin Client with too low memory for its system and other applications! In doubt, you have the possibility of adding RAM to your Thin Client.
  • Page 31 You can perform bi-directional mapping between serial devices that are attached to the Thin Client (e.g. scanners, serial printers) and the Citrix Server's COM ports. This enables programs running on the server to exchange data with the local devices. COM Port Devices Select the COM port your device is attached to from this drop-down box: /dev/ttyS0 stands for the local COM1 and /dev/ttyS1 stands for the local COM2.
  • Page 32 PNAgent This “PNAgent” (Program Neighborhood Agent) page allows you to configure and search for published applications by Metaframe servers. Server: You need to provide the IP address of server with which you want to connect. The “Refresh Settings” or “Change->Update” settings will update the settings published by Metaframe server.
  • Page 33 If you come across any issue with Samsung Connection Manager while configuring ICA settings, you can also use Citrix Connection Manager by running wfcmgr on command line.
  • Page 34 This menu allows time settings for the STC to be configured. The available options to be set are Date This menu section allows you to configure the date settings for the STC. The available options are Year: - Enter the year you want to set the date to. Month: - Enter the month you want to set the date to.
  • Page 35 Apart from these options, there also is a Factory Reset option available that is used to reverse any unnecessary changes being made by the user knowingly/unknowingly. It replaces the main settings and configuration files in the system with the default files that were present at the time of installing the Upgrade It is used to upgrade the STC OS.

  • Page 36: Application Programs

    password has to be provided. Upgrade Using NFS The firmware file is present in the location specified by the NFS share address. No username or password is needed. The upgrading process displays a warning message before starting the process. This warning message is used to remind the user that once the upgradation process starts, there is no way that the user can access the STC or the files present on it.
  • Page 37 Automatic Logon : Select if you want to logon automatically. User Name: User Name to be used for connection. Password: Password to be used for connecting to the system. Domain: Domain name in which the system is present on the network. Display The Display tab of the Connection Manager has the following display properties to be set while connecting to the remote desktop / server...
  • Page 38 Screen Size: - Size of the window when connection is established. Color Depth: - Color depth to be used while connecting to the server. Input "View Only" Specifies that no keyboard or mouse events should be sent to the server. It is a useful feature if you want to view a desktop without interfering.
  • Page 39 Xterm Xterm is the terminal used in STC wherein we can execute local commands using a shell. It is the basic busybox shell that is used in the Xterm as the command prompt. The X-term can be used to perform all the functionalities that we can do from the various application GUIs. The terminal can be invoked from the start menu, desktop icon, mouse right click or from shortcut provided on the taskbar.
  • Page 40 fdisk Used for getting or altering partition table information free Displays the amount of free and used system memory halt To halt/shutdown the system ifconfig To get IP information for the system insmod Insert a kernel module kill Kills a specified application killall Kills a specified process lsmod...
  • Page 41 command prompt using the commands "shutdown" or "reboot", or using the shutdown interface as shown below. This interface is accessible using the start menu, mouse right click and from the power button of the thin client. The available options are as shown here The suspend button will make the system to suspend state.

  • Page 42: Monitor Driver

    Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown below. Internet web site :http://www.samsung.com/ http://www.samsung.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ Installing the Monitor Driver (Automatic) Insert the CD into the CD-ROM drive.
  • Page 43 This monitor driver is under certifying MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage http://www.samsung.com/ Monitor driver installation is completed. Installing the Monitor Driver (Manual) Windows Vista Windows XP Windows 2000 Microsoft®...
  • Page 44 "Continue". This monitor driver is under certifying MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage http://www.samsung.com/ Click "Update Driver…" in the "Driver" tab. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".
  • Page 45 Select the model that matches your monitor from the list of monitor models on the screen, and click "Next". Click "Close"→ "Close" → "OK" → "OK" on the following screens displayed in sequence. ® ® Microsoft Windows XP Operating System Insert the CD into the CD-ROM drive.
  • Page 46 Click "Display" icon and choose the "Settings" tab then click "Advanced." Click the "Properties" button on the "Monitor" tab and select "Driver" tab. Click "Update Driver." and select "Install from a list or." then click the "Next" button. Select "Don't search ,I will." then click "Next" and then click "Have disk". Click the "Browse"...
  • Page 47 "OK" button. This monitor driver is under certifying MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage http://www.samsung.com/ Click the "Close" button then click the "OK" button continually. Monitor driver installation is completed.
  • Page 48 How to install Click "Start," "Setting," and then "Control Panel." Double click the "Display" icon. Select the "Settings" tab and click the "Advanced Properties" button. Choose "Monitor." Case1 : If the "Properties" button is inactive, it means your monitor is properly configured. Please stop installation Case2 : If the "Properties"...

  • Page 49: Natural Color

    Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This is only available for Samsung monitors and ensures that the color of the images on the monitor are the same as the printed or scanned images.
  • Page 50 MagicTune™ execution icon may not appear depending on specification of computer system or monitor. If that happens, press F5 Key. Installation Problems (MagicTune™) The installation of MagicTune™ can be affected by such factors as the video card, motherboard and the network environment.

  • Page 51: Control Buttons

    Control Buttons ] Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu. ] These buttons allow you to adjust items in the menu. [ ] Press this button to Activates a highlighted menu item. [AUTO] When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center.
  • Page 52 Menu When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center. The values of fine, coarse and position are adjusted automatically. Available in analog Mode Only AUTO If auto adjustment does not work properly, press 'AUTO' button again to adjust picture with more accuracy.
  • Page 53 In case of pushing MENU button after locking OSD Menu This is the function that locks the OSD in order to keep the current states of settings or prevent others from adjusting the current settings. Lock : Hold down the menu button for more than five (5) seconds to activate the OSD adjustment lock function.
  • Page 54 Push the MagicBright™ button to circle through available preconfigured modes. MagicBright™ - Six different modes (Custom/Text/Internet/Game/Sport/Movie) Volume Menu When OSD is not on the screen, push [▲/ Volume SOURCE Menu SOURCE Selects the Video signal while the OSD is off. (Analog/Client) Description ] the button to adjust volume.

  • Page 55: Osd Function

    OSD Function Brightness Picture Color MagicColor Image Coarse Language Setup Image Reset Information Picture Menu You can use the on-screen menus to change the brightness according to personal preference. Brightness MENU → You can use the on-screen menus to change the contrast according to personal preference.
  • Page 56 Menu MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality. Returns to the original mode. Demo The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left.
  • Page 57 Not available in MagicColor mode of Full and Intelligent. Color Tone MENU → → → Adjusts individual Red, Green, Blue color balance. - Red, Green, Blue Color Control Not available in MagicColor mode of Full and Intelligent. MENU → → →...
  • Page 58 Changes the horizontal position of the monitor's entire display. H-Position Available in analog Mode Only MENU → → Changes the vertical position of the monitor's entire display. V-Position Available in analog Mode Only MENU → → Menu You can choose one of the nine languages. The language chosen affects only the language of the OSD.
  • Page 59 turned off. - 5 Sec, 10 Sec, 20 Sec, 200 Sec Display Time MENU → → → Setup Menu Image parameters are replaced with the factory default values. Image Reset MENU → Color parameters are replaced with the factory default values.
  • Page 60 Menu Description Shows a video source, display mode on the OSD screen. Information MENU →...

  • Page 61: Check List

    Check List Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the Symptom Check List No images on the Is the power cord screen.
  • Page 62 I cannot see the On Have you locked the Screen Display. On Screen Display (OSD) Menu to prevent changes? The screen shows Is the screen strange colors or displaying only one just black and color as if looking at white. the screen through a cellophane paper? Have the screen...
  • Page 63 Some graphic cards may not support your monitor. When you have a problem with the graphic card, visit our website to check the compatible graphic card list provided. http://www.samsung.com/monitor/magictune Download the latest program. The program can be downloaded http://www.samsung.com/monitor/magictune Reboot the computer after installing the program for the first time.
  • Page 64 digital device such an additional driver installation. Check if the device you want to connect to is a as a digital camera, device that supports the removable disk function without an additional driver camcorder or USB installation. memory to the USB port, but they do not work.
  • Page 65 Self-Test Self-Test Feature Check Warning Messages Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly. Self-Test Feature Check Turn off both your computer and the monitor. Unplug the video cable from the back of the computer. Turn on the monitor.
  • Page 66 Video mode not supported, etc. In this case, first check the source of the problem, and then contact the Service Center or your dealer. Judging the monitor's working condition If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode 1280 x 1024 60 Hz"...

  • Page 67: Specifications

    Specifications General Model Name SyncMaster 711LT LCD Panel Size 17 inch (43 cm ) Display area 337.92 mm (H) x 270.336 mm (V) Pixel Pitch 0.264 mm (H) x 0.264 mm (V) Synchronization Horizontal 30 ~ 81 kHz Vertical 56 ~ 75 Hz Display Color 16.7 M...
  • Page 68 AC 100 - 240 V ~ (+/- 10 %), 50/60 Hz Signal Cable 15pin to 15pin D-sub cable, Detachable Dimensions (W x H x D) / Weight 370.0 x 342.3 x 69 mm / 14.6 x 13.5 x 2.7 inch (Without Stand) 370.0 x 404.3 x 200 mm / 14.6 x 15.9 x 7.9 inch (With Basic Stand), 6.2 Kg / 13.7 (lbs) VESA Mounting Interface 100 mm x 100 mm (For use with Specialty(Arm) Mounting hardware.)

  • Page 69: Preset Timing Modes

    P4 3.2 GHz 2 Gbyte Power saving mode EPA/ENERGY 2000 Green, Blinking Less than 4.7 W ® compliant and ENERGY2000 ® Partner, SAMSUNG has determined that this ® guidelines for energy efficiency. Vertical Pixel Clock Frequency (MHz) (Hz) 70.086 25.175 59.940...
  • Page 70 VESA, 800 x 600 35.156 VESA, 800 x 600 37.879 VESA, 800 x 600 48.077 VESA, 800 x 600 46.875 VESA, 1024 x 768 48.363 VESA, 1024 x 768 56.476 VESA, 1024 x 768 60.023 VESA, 1152 x 864 67.500 VESA, 1280 x 960 60.000 VESA, 1280 x 1024...
  • Page 71 Specifications General Model Name SyncMaster 911LT LCD Panel Size 19 inch(48 cm) Display area 376.32 mm(H) x 301.056 mm(V) Pixel Pitch 0.294(H) x 0.294(V) Synchronization Horizontal 30 ~ 81 kHz Vertical 56 ~ 75Hz Display Color 16.7 M Resolution Optimum resolution 1280x1024@60 Hz Maximum resolution 1280x1024@75 Hz...
  • Page 72 AC 100 - 240 V ~ (+/- 10 %), 50/60 Hz Signal Cable 15pin-to-15pin D-sub cable, Detachable Dimensions (W x H x D) / Weight 416.6 X 375.2 X 74.7 mm / 16.4 x 14.8 x 2.9 inch (Without Stand) 416.6 X 420.9 X 200.0 mm / 16.4 x 16.6 x 7.9 inch (With Stand) / 6.8 Kg / 15.0 (lbs) VESA Mounting Interface 100 mm x 100 mm (For use with Specialty(Arm) Mounting hardware.)
  • Page 73 P4 3.2 GHz 2 Gbyte Power saving mode EPA/ENERGY 2000 Green, Blinking Less than 4.7 W ® compliant and ENERGY2000 ® Partner, SAMSUNG has determined that this ® guidelines for energy efficiency. Vertical Pixel Clock Frequency (MHz) (Hz) 70.086 25.175 59.940...
  • Page 74 VESA, 640 x 480 37.500 VESA, 800 x 600 35.156 VESA, 800 x 600 37.879 VESA, 800 x 600 48.077 VESA, 800 x 600 46.875 VESA, 1024 x 768 48.363 VESA, 1024 x 768 56.476 VESA, 1024 x 768 60.023 VESA, 1152 x 864 67.500 VESA, 1280 x 960...
  • Page 75 Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. North America U.S.A 1-800-SAMSUNG (726-7864) CANADA 1-800-SAMSUNG (726-7864) MEXICO 01-800-SAMSUNG (726-7864) Latin America ARGENTINE 0800-333-3733 0800-124-421 BRAZIL 4004-0000 CHILE...
  • Page 76 0032 (0)2 201 24 18 CZECH REPUBLIC 844 000 844 DENMARK 70 70 19 70 EIRE 0818 717 100 FINLAND 030-6227 515 3260 SAMSUNG (€ 0,15/Min) FRANCE 08 25 08 65 65 (€ 0,15/Min) 01805-SAMSUNG(726-7864) (€ GERMANY 0,14/Min) HUNGARY 06-80-SAMSUNG(726-7864) ITALIA...
  • Page 77 THAILAND 1800-29-3232, 02-689-3232 TAIWAN 0800-329-999 VIETNAM 1 800 588 889 Middle East & Africa SOUTH AFRICA 0860-SAMSUNG(726-7864 ) TURKEY 444 77 11 800-SAMSUNG (726-7864) U.A.E 8000-4726 Terms Dot Pitch The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution.

  • Page 78: For Better Display

    Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

  • Page 79: Product Information (Image Retention Free)

    PRODUCT INFORMATION (Image Retention Free) LCD Monitors and TVs may have an image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate a correct usage of LCD products in order to protect them from Image retention.
  • Page 80 The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it. Image retention may not occur when a LCD panel is operated under normal conditions. Normal conditions are defined as continuously changing video patterns.
