Installation Manual
READ AND SAVE THESE
INSTRUCTIONS

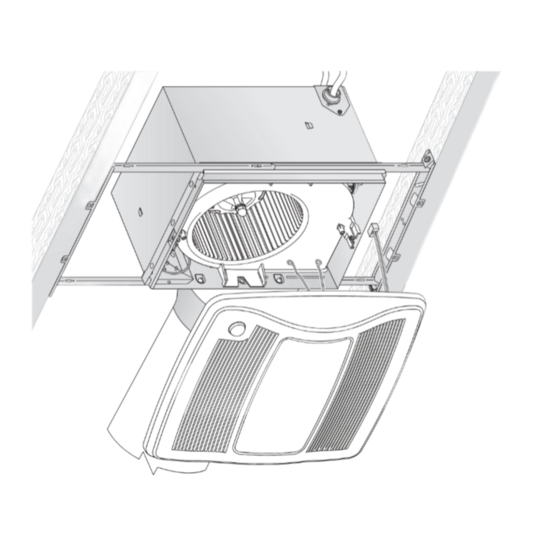

Easy installation in both
new construction and retrofit
© 2017 Broan
ZN80ML
ZN110ML
n
X2 | Multi-Speed Ventilation
Fan with Light, Night Light
and Motion Sensor
INSTALLATION GUIDE
Table of Contents
2
2
3
7
12
13
13
14
Advertisement
Related Manuals for NuTone ZN80ML
Summary of Contents for NuTone ZN80ML
-
Page 1: Table Of Contents
ZN80ML ZN110ML READ AND SAVE THESE X2 | Multi-Speed Ventilation INSTRUCTIONS Fan with Light, Night Light and Motion Sensor INSTALLATION GUIDE Table of Contents Warnings and Cautions Typical Installation New Construction Installation Easy installation in both Retrofit Installation Operation new construction and retrofit... -
Page 2: Warnings And Cautions
Page 2 ZN80ML n ZN110ML Installation Guide WARNING CAUTION TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR . For general ventilating use only. Do not use to exhaust INJURY TO PERSONS, OBSERVE THE FOLLOWING: hazardous or explosive materials and vapors. -
Page 3: New Construction Installation
Page 3 ZN80ML n ZN110ML Installation Guide New Construction Installation Tools needed Materials needed • Power screwdriver with a Phillips bit • 6" round metal ducting recommended for best performance. Use of other ducting is acceptable but may impact performance. - Page 4 Page 4 ZN80ML n ZN110ML Installation Guide New Construction Installation Snap-in and Secure Housing Position Housing between joists and crimp channel on both sides of Mounting Frame to lock Housing in place. Do not crimp Housing. Screws from Parts Bag...
- Page 5 Page 5 ZN80ML n ZN110ML Installation Guide New Construction Installation Connect Wires and Install Knockout Plate • Run 120VAC electrical wiring to the installation location. • Use proper UL-approved connectors to secure wiring to the Knockout Plate provided in Parts Bag.
- Page 6 Page 6 ZN80ML n ZN110ML Installation Guide New Construction Installation Insert Mask and Finish Ceiling • Install ceiling material. • Cut out around Housing. CAUTION IN ORDER TO PREVENT MOTOR/CONTROL DAMAGE: Mask protects unit If the blower was unplugged, power must during construction.
-
Page 7: Retrofit Installation
Page 7 ZN80ML n ZN110ML Installation Guide Retrofit Installation Tools needed Materials needed • Power screwdriver with a Phillips bit • Ruler • Tape to seal duct connections • Phillips screwdriver • Pencil • Existing rigid duct will require the addition of a short length of flexible duct •... - Page 8 Page 8 ZN80ML n ZN110ML Installation Guide Retrofit Installation Remove Blower Assembly Set aside Blower Assembly Both sides Remove Wiring Panel Set aside Wiring Panel Set aside screw Insert Mounting Frame Remove screws from Mounting Frame Bend up and set aside...
- Page 9 Page 9 ZN80ML n ZN110ML Installation Guide Retrofit Installation Secure Mounting Frame Screws set aside in Step 7 Snap-in Housing Pull existing wiring into Housing as it is inserted into Mounting Frame Attach Ducting and Duct Connector Screw from Parts Bag...
- Page 10 Page 10 ZN80ML n ZN110ML Installation Guide Retrofit Installation Install Knockout Plate, Connect Wires and Reinstall Wiring Panel • Use proper UL-approved connectors to secure wiring to the Knockout Plate provided in Parts Bag. • Connect wires as shown in wiring diagram.
- Page 11 Page 11 ZN80ML n ZN110ML Installation Guide Motion Controlled Light along with Fan LIGHT STANDARD OR MULTI-FUNCTION NIGHT WALL SWITCHES LIGHT NIGHT MASTER LIGHT 14/3 SENSOR/ CONTROL 120 VAC LINE IN Retrofit Installation Reinsert and Secure Blower Assembly CAUTION IN ORDER TO PREVENT MOTOR/CONTROL DAMAGE: Power must be disconnected (see page 2, WARNING item 2) before inserting motor plugs into control assembly.
-
Page 12: Operation
Page 12 ZN80ML n ZN110ML Installation Guide Install Bulbs Night Light (purchase separately) WARNING To Set the User-Adjustable Motion Light Timed-Off** Before servicing or cleaning unit, 1. This adjustment should only be made if, during installation, light switch power off at service panel and lock the service was wired to motion sensor along with the fan. -
Page 13: Cleaning And Maintenance
Page 13 ZN80ML n ZN110ML Installation Guide Cleaning and Maintenance Troubleshooting Before continuing, turn off power as previously noted in CAUTION WARNING section on the previous page and CAUTION section at the top of this page. IN ORDER TO PREVENT MOTOR/CONTROL DAMAGE: DO NOT remove motor plug to stop spinning motor. -
Page 14: Service Parts
Blower Wheel 97019371 Scroll Assembly (ZN80ML) 97018768 Scroll Assembly (ZN110ML) 97018780 Grille Assembly (includes 12, 13) 99140208 Grille Spring (2 req’d) 99111542 Lens 99271381 Bulb, GU24 18W 3500K Fluorescent (2 req’d) View other RV hardware made by NuTone on our website.
