Summary of Contents for Samsung SAM-21M
-
Page 2: Installation
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS MONITOR TO RAIN OR MOISTURE.DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION Explanation of Graphical Symbols. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltages within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 3: Location Controls

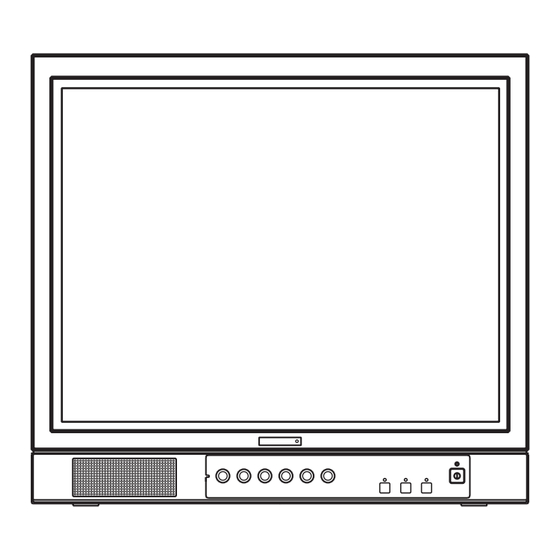

LOCATION CONTROLS Front View Rear View Side View 1. TINT 2. SHARPNESS 3. COLOR 4. BRIGHTNESS 5. CONTRAST 6. VOLUME 7. VIDEO 1 8. VIDEO 1 LED LAMP 9. VIDEO 2 10. VIDEO 2 LED LAMP 11. Y/C 12. Y/C LED LAMP 13. - Page 4 LOCATION AND OPERATION OF CONTROLS 1. TINT Adjust the TINT control for the proper color phase or flesh tones. When turned counterclockwise, the skin tone becomes reddish. When turned clockwise, skin tone becomes greenish. 2. SHARPNESS Adjust the SHARPNESS control to obtain the clearest picture. 3.
-
Page 5: Possible Connections
POSSIBLE CONNECTIONS Read the installation/operation manual thoroughly before connecting equipment. Turn off the power source before connecting the monitor and external equipment. VIDEO 1 Connection (Select input VIDEO 1 button) Audio Audio signal cable Video Video camera Video signal cable Video Monitor VIDEO 2 Connection (Select input VIDEO 2 button) Audio... -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS All the safety and operating instructions should be read before the monitor is operated. Retain the instructions for future reference. 1. HEED WARNINGS All warnings on the monitor and in the operating instructions should be adhered to. 2. -
Page 7: Specifications
SPECIFICATIONS Picture Tube Power Source Power Consumption System Sound output Resolution Speaker Terminals Dimensions(W H D) Weight Operating Temperature Design and specifications are subject to change without notice. Warning This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. - Page 8 Samsung Haus, Am Kronberger Hang 6, 65824, Schwalbach, TS. Germany TEL: 49(0)6196-667500 FAX: 49(0)6196-667566 SAMSUNG OPTO-ELETRÔNICA DO BRASIL LTDA. Rua Professor Manoelito de Ornellas 303 • 2º andar Chácara Santo Anto ˆnio • CEP : 04719-040 São Paulo • SP • Brasil...
