First Alert CO615 User Manual

INST LL TION, Continued
USER'S MANUAL
Recommended Placement

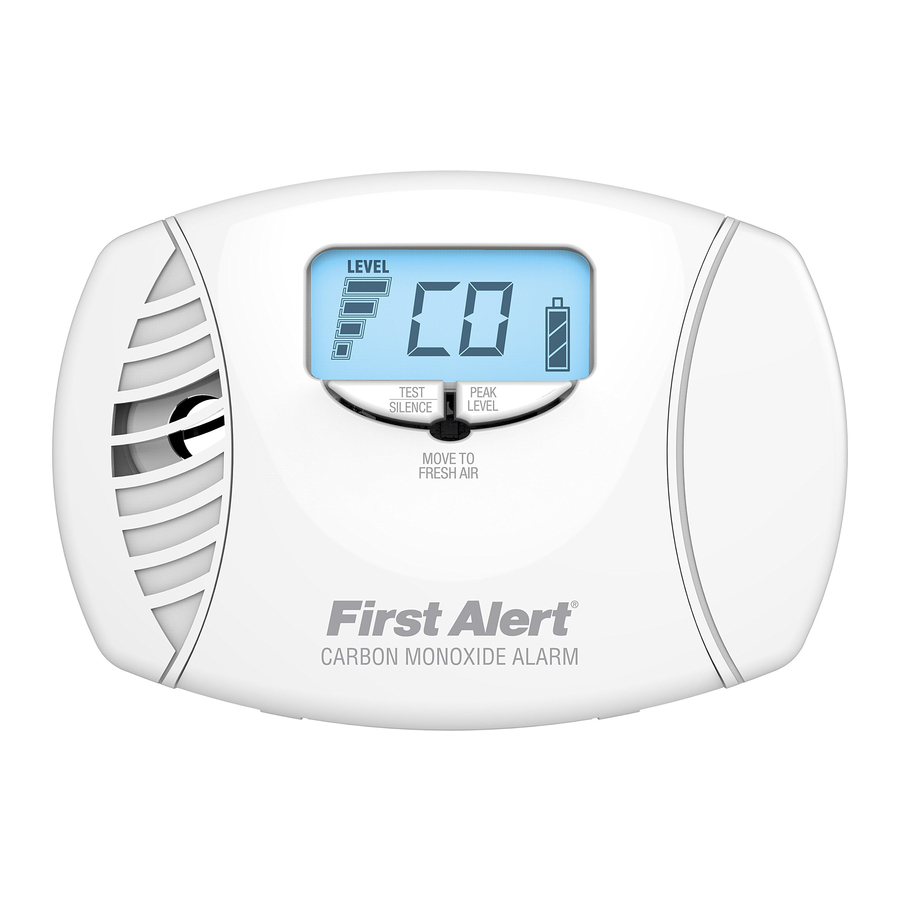

PLUG-IN CARBON MONOXIDE ALARM
WITH BATTERY BACK-UP AND SILENCE FEATURES
BEDROOM
LIVING ROOM
REQUIRED TO MEET NFPA RECOMMENDATIONS
~
120V C 60Hz, 0.09
SUGGESTED AREAS FOR INSTALLING ADDITIONAL CO ALARMS
IMPORT NT! PLE SE RE D C REFULLY ND S VE. NOTE: For any location, make sure no door or other obstruction could keep
This unit was shipped with a user's manual that contains important carbon monoxide from reaching the larm.
information about its operation. If you are installing this unit for use by others,
you must leave this manual—or a copy of it—with the end user.
WHERE THIS ALARM SHOULD NOT BE INSTALLED
CONFORMS TO To avoid causing damage to the unit, to provide optimum protection, and
Printed in Mexico
Model CO615 to prevent unnecessary alarms, Do NOT locate this larm:
UL STD 2034
M08-0150-014 Q 07/12
• In garages, kitchens, crawl spaces and unfinished attics. void extremely
dusty, dirty or greasy areas. Installation in these areas could lead to
nuisance alarms, may expose the sensor to substances that could damage
or contaminate it, or the larm may not be heard by persons in other areas
TABLE OF CONTENTS
of the home, especially if they are sleeping.
Basic Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 • In the garage, vehicle exhaust can contain some carbon monoxide. These
levels are higher when the engine is first started. Within hours of starting a
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
vehicle and backing it out of the garage, the levels present over time can
Where To Install This larm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
activate the larm and become a nuisance.
Where This larm Should Not Be Installed . . . . . . . . . . . . . . . . . . . . . . . . .2
• In the kitchen, some gas appliances can emit a short burst of CO upon
Before You Begin Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
start-up. This is normal. If your CO larm is installed too close to these
How To Install This CO larm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
appliances, it may alarm often and become a nuisance.
How Your larm Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
• Keep units at least 20 feet (6 meters) from the sources of combustion
If Your CO larm Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
particles (stove, furnace, water heater, space heater) if possible. In areas
What To Do if CO is Detected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 where a 20-foot (6m) distance is not possible – in modular, mobile, or
smaller homes, for example – it is recommended the larm be placed as
Using the Silence Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
far from these fuel-burning sources as possible. The placement recom-
Using the Peak CO Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
mendations are intended to keep these larms at a reasonable distance
Understanding the Light, Horn, and Display Patterns . . . . . . . . . . . . . . .3-4 from a fuel-burning source, and thus reduce "unwanted" alarms. Unwanted
alarms can occur if an larm is placed directly next to a fuel-burning
Weekly Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
source. Ventilate these areas as much as possible. If you must install the
Regular Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
larm near a cooking or heating appliance, install at least 5 feet (1.5
What You Need To Know bout CO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6 meters) from appliance.
What is CO? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
• In extremely humid areas. This larm should be at least 10 feet (3 meters)
Symptoms of CO Poisoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
from a shower, sauna, humidifier, vaporizer, dishwasher, laundry room,
Finding the Source of CO fter an larm . . . . . . . . . . . . . . . . . . . . . . . . . .5 utility room, or other source of high humidity.
Potential Sources of CO in the Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 • In direct sunlight.
How Can I Protect My Family From CO Poisoning? . . . . . . . . . . . . . . . . .6
• In turbulent air, like near ceiling fans or open windows. Blowing air may
Regulatory Information For CO larms . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 prevent CO from reaching the sensors.
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
• In areas where temperature is colder than 40˚ F (4.4˚ C) or hotter than
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7 100˚ F (37.8˚ C). These areas include non-airconditioned crawl spaces,
unfinished attics, uninsulated or poorly insulated ceilings, porches, and
General Limitations Of CO larms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
garages.
© 2012 BRK Brands, Inc. ll rights reserved.
• Less than 12 inches (305 mm) away from fluorescent lights. Electrical
Distributed by BRK Brands, Inc.
"noise" can interfere with the sensor.
3901 Liberty Street Road, urora, IL 60504-8122
Consumer ffairs: (800) 323-9005 • www.firstalert.com
VOIDING DE D IR SP CES
"Dead air" spaces may prevent CO from reaching the larm. To avoid dead
air spaces, stay at least 4 inches (102 mm) away from corners where walls or
BASIC SAFETY INFORMATION ceilings and walls meet.
• Dangers, Warnings, and Cautions alert you to important operating BEFORE YOU BEGIN INSTALLATION
instructions or to potentially hazardous situations. Pay special
attention to these items.
• Make sure the alarm is not receiving excessively noisy power.
Examples of noisy power could be major appliances on the same
• The CO larm is not designed to detect fire or any other gas. It will
circuit, power from a generator or solar power, light dimmer on the
only indicate the presence of carbon monoxide gas at the sensor. same circuit or mounted near fluorescent lighting. Excessively noisy
Carbon monoxide gas may be present in other areas. power may cause damage to your larm.
• Do not stand too close to the unit when the alarm is sounding. It is Find the pair of self-adhesive labels included with this CO larm.
loud to wake you in an emergency. Exposure to the horn at close
• On each label write in the phone number of your emergency responder
range may harm your hearing.
(like 911) and a qualified appliance technician.
• Do not paint over the unit. Paint may clog the openings to the sensing
• Place one label near the CO larm, and the other label in the "fresh air"
chambers and prevent the unit from operating properly.
location you plan to go if the alarm sounds.
• This unit must be powered by a 24-hour circuit. Be sure the circuit
HOW TO INSTALL THIS CO ALARM
cannot be turned off by a switch, dimmer, or ground fault circuit
IMPORT NT! Read all instructions before using this product.
interrupter. Failure to connect this unit to a 24-hour circuit may
Tools you will need: Screwdriver, drill.
prevent it from providing constant protection.
1. Determine the best location for your CO larm.
• This larm must have C or battery power to operate. If C power
fails and the battery is dead or missing, the alarm cannot operate.
2. Your larm is equipped to be mounted as a corded unit or a direct plug
unit. The unit can be plugged directly into a wall outlet. If your outlets are
• Test the larm once a week. If the larm ever fails to test correctly,
mounted horizontally, refer to "If Outlet is Mounted Horizontally (Sideways)".
have it replaced immediately! If the larm is not working properly, it
cannot alert you to a problem.
If the adapter is taken out of the unit, the larm can be installed high on
the wall, while the adapter is plugged into a wall outlet.
• This Carbon Monoxide larm is intended for residential use and is
not suitable for use in hazardous locations as defined in the National
Electrical Code. CTIV TING THE B TTERY B CK-UP
• This product is intended for use in ordinary indoor locations of family
living units. It is not designed to measure CO levels in compliance with
ctivate the battery back-up by installing the two
Occupational Safety and Health dministration (OSH ) commercial or
industrial standards. Individuals with medical conditions that may (2) batteries. The battery is for back-up only
and is not intended to power the larm for an
make them more sensitive to carbon monoxide may consider using
extended period of time in the absence of C.
warning devices which provide audible and visual signals for carbon
monoxide concentrations under 30 ppm. For additional information on
The larm will light-up the display briefly to indicate the unit is receiving power.
carbon monoxide and your medical condition contact your physician.
DIRECT PLUG L RM INTO N OUTLET
FCC Compliance
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
This larm can be plugged directly into a wall outlet located close to the floor.
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
1. Choose a standard UNSWITCHED 120V C outlet.
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. 2. Plug larm in.
However, there is no guarantee that the interference will not occur in a
particular installation. If this equipment does cause harmful interference to IF OUTLET IS MOUNTED HORIZONT LLY (SIDEW YS)
radio or television reception, which can be determined by turning the equip-
If you are going to use your larm as a direct plug into an outlet that is
ment off and on, the user is encouraged to try to correct the interference by
mounted horizontally (sideways), you may want to rotate the adapter 90º,
one or more of the following measures:
as follows:
• Reorient or relocate the receiving antenna.
1. With back of unit facing you ( C blades on your left), place your left thumb
• Increase the separation between the equipment and receiver.
on adapter release and grab C blades with your right hand to release the
• Connect the equipment into an outlet on a circuit different from that of
left side.
the receiver.
2. Repeat for the other side adapter thumb release. This will allow adapter to
• Consult the dealer or an experienced radio or TV technician for help.
slide out.
Warning: Changes or modifications to the product, not expressly approved
3. Remove adapter.
by First lert / BRK Brands, Inc., could void the user's authority to operate
the equipment.
4. Rotate the adapter 90º and snap firmly back into place.
This device complies with Part 15 of the FCC Rules. Operation is subject
5. Plug larm into C outlet.
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
W LL MOUNTED L RM
including interference that may cause undesired operation.
Installation tips for power cord models: The power cord option provides
INSTALLATION more flexibility in mounting locations and allows the larm to be easily
installed at or above eye level.
WHERE TO INSTALL THIS ALARM
NOTE: If you mount the larm high on a wall, make sure it is at least 4 inches
The National Fire Protection ssociation (NFP ) recommends that a CO larm
(102 mm) down from the ceiling. ny higher than this, it will be in "dead air"
should be centrally located outside of each separate sleeping area in the
space and carbon monoxide may not reach the sensor.
immediate vicinity of the bedrooms. For added protection, install additional
NOTE: Do not cover the larm with a curtain.
CO larms in each separate bedroom, and on every level of your home.
To install for a wall-mount, you will need to pull out the removable adapter and
In general, install Carbon Monoxide larms:
power cord, as follows:
• WHERE YOU C N HE R THE L RM FROM LL SLEEPING RE S
1. Repeat steps 1 to 3 as described above in "to rotate the adapter".
• In or near bedrooms and living areas or wherever you suspect a CO
2. With adapter out, pull out power cord and unwrap it.
exposure is likely.
3. Insert the screws provided until head is approx. 1/8 inch (3 mm) from wall
• On each level of a multi-level home.
(if mounting in plaster board or drywall, drill 3/16 inch (5 mm) hole and use
plastic anchor provided).
Improper location can affect the sensitive electronic components in this larm.
4. Hook the larm over the screw onto the keyhole in back of unit.
Please see "Where this larm Should Not Be Installed".
5. Plug power cord into C outlet.
1
TEST THE L RM
1. Make sure the larm is receiving C power. Under normal operation, the
Green indicator light will shine continuously. If the Green power indicator
light does not light, recheck connections. If connections are correct and
the Green power indicator still does not light, the unit should be replaced
immediately.
2. Press and hold the test button until the alarm sounds. You will hear the
signal that indicates the presence of carbon monoxide.
When testing the larm, have someone else check that the larm can be
heard easily from the sleeping areas. The unit should be located where it
BEDROOM BEDROOM
can wake you if it alarms at night.
KITCHEN GARAGE
HALL HOW YOUR ALARM WORKS
THE COVER OF YOUR ALARM
1. Test/Silence Button:
BASEMENT 7
Press and hold to
4
activate test, or to
silence the alarm.
2. Display Button: Press
to recall highest CO
level recorded
3. POWER Light (GREEN)
4. Display
2
1
5. (Behind the Cover)
3 larm Horn: 85 dB
audible alarm for
test, alarm, and unit
malfunction warning.
6. Battery Compartment
6
5 (Behind the Door)
7. Open door here
IF YOUR CO ALARM SOUNDS
WHAT TO DO IF CARBON MONOXIDE IS DETECTED
ctuation of your CO larm indicates the presence of carbon monoxide
(CO) which can kill you. In other words, when your CO larm sounds, you
must not ignore it!
IF THE CO L RM SOUNDS:
1. Operate the Test/Silence button.
2. Call your emergency services, fire department or 911. Write down the
number of your local emergency service here:
_______________________________________________________________
3. Immediately move to fresh air—outdoors or by an open door or window.
Do a head count to check that all persons are accounted for. Do not re-
enter the premises, or move away from the open door or window until the
emergency services responder has arrived, the premises have been aired
out, and your CO larm remains in its normal condition.
4. fter following steps 1-3, if your CO larm reactivates within a 24-hour
period, repeat steps 1-3 and call a qualified appliance technician to
investigate for sources of CO from fuel-burning equipment and appliances,
and inspect for proper operation of this equipment. If problems are identi-
fied during this inspection have the equipment serviced immediately. Note
any combustion equipment not inspected by the technician, and consult
the manufacturers' instructions, or contact the manufacturers directly, for
more information about CO safety and this equipment. Make sure that
motor vehicles are not, and have not, been operating in an attached
garage or adjacent to the residence. Write down the number of a qualified
appliance technician here:
_______________________________________________________________
UNDERSTANDING THE LIGHT, HORN, AND DISPLAY PATTERNS
Condition LED
NORM L C POWER LED is Green.
B TTERY B CK-UP POWER Green LED is flashing once every 45
seconds.
DURING TESTING LED flashes Red in sync with the
horn, simulating an larm condition.
LOW OR MISSING B TTERY Green LED On if C power is present
C RBON MONOXIDE L RM LED flashes Red in sync with horn
PRE- L RM CONDITION Green power LED On if C power is
CO IS PRESENT present
M LFUNCTION SIGN L LED flashing Green 3 times in sync
with 3 chirps
LOW B TTERY SILENCE LED is Green.
END OF LIFE LED flashing Green 5 times in sync
with 5 chirps
2 3
USING THE SILENCE FEATURE REGULAR MAINTENANCE
This unit has been designed to be as maintenance-free as possible, but there
are a few simple things you must do to keep it working properly:
NEVER disconnect the power to your larm to silence the horn—use the
Silence Feature. Disconnecting the larm removes your protection! • Test it at least once a week.
• The Silence Feature is intended to temporarily silence the horn while • Clean the larm at least once a month; gently vacuum the outside of the
you identify and correct the problem.
larm using your household vacuum's soft brush attachment. Test the
larm. Never use water, cleaners or solvents since they may damage the
• To use the Silence Feature, press the Test/Silence button until the horn
unit.
is silent.
• Relocate the unit if it sounds frequent unwanted alarms. See "Where This
• If the Test/Silence button is pressed while the larm is in the silence
larm Should Not Be Installed" for details.
mode, the alarm will start sounding again.
• When the battery back-up becomes weak, the larm will "chirp" about
WHEN THE CO L RM IS SILENCED... once a minute (the low battery warning). You should replace the battery
immediately to continue your protection. This larm must have C or
The CO larm will remain silent for up to 4 minutes. While the larm is
battery power to operate. If C power fails, and the battery is dead
silenced, it will continue to monitor the air for CO. fter 4 minutes, if CO levels
or missing, the larm cannot operate.
remain potentially dangerous the horn will start sounding again.
DO NOT spray cleaning chemicals or insect sprays directly on or near the
The Silence Feature is intended to temporarily silence the larm horn. It will
not correct a CO problem. larm. DO NOT paint over the larm. Doing so may permanently damage the
larm.
SILENCING THE LOW BATTERY WARNING
CHOOSING REPL CEMENT B TTERY:
This Silence Feature can temporarily quiet the low battery warning "chirp" for
This CO larm requires two standard
up to 8 hours if C power is present. You can silence the low battery warning
are acceptable as replacements: Duracell MN1500. These batteries are
"chirp" by pressing the Test/Silence button on the larm cover until you see
available at many local retail stores.
the Green LED flicker, acknowledging the button-press.
The display will flash "SILENCE" for 8 hours while the low battery warning
• lways use the exact batteries specified by this User's Manual.
"chirp" silence feature is activated. fter 8 hours, the low battery "chirp" will
DO NOT use rechargeable batteries. Clean the battery contacts and
resume. The larm will continue to operate as long as C power is supplied.
also those of the device prior to battery installation. Install batteries
However, replace the battery as soon as possible, to maintain protection in
correctly with regard to polarity (+ and -).
event of a power outage.
• Please dispose of or recycle used batteries properly, following any
local regulations. Consult your local waste management authority
SILENCING THE END OF LIFE SIGNAL
or recycling organization to find an electronics recycling facility in
your area. DO NOT DISPOSE OF B TTERIES IN FIRE. B TTERIES
This silence feature can temporarily quiet the End of Life warning "chirp" for
up to 2 days. You can silence the End of Life warning "chirp" by pressing the M Y EXPLODE OR LE K.
Test/Silence button. The horn will chirp, acknowledging that the End of Life
feature has been activated.
• Keep battery out of reach of children. In the event a battery is
fter approximately 2 days, the End of Life "chirp" will resume.
swallowed, immediately contact your poison control center, your
physician, or the National Battery Ingestion hotline at 202-625-3333
as serious injury may occur.
USING THE PEAK CO MEMORY
The CO Memory Feature lets you check the highest level of CO recorded.
ctual battery service life depends on the larm and the environment in which
it is installed. ll the batteries specified above are acceptable replacement
To check CO Memory:
batteries for this unit. Regardless of the manufacturer's suggested battery life,
1. Press the Display button until the peak CO level is displayed.
you MUST replace the battery immediately once the unit starts "chirping" (the
"low battery warning").
To clear CO Memory:
1. utomatically resets after 24 hours.
2a. While checking CO memory, press or hold the Display WHAT YOU NEED TO KNOW ABOUT CO
button until "CLE R" is displayed.
b. Press or hold the Display button until the CO Memory is WHAT IS CO?
cleared.
CO is an invisible, odorless, tasteless gas produced when fossil fuels do not
burn completely, or are exposed to heat (usually fire). Electrical appliances
3. Remove all power; unplug the larm and remove the batteries.
typically do not produce CO.
NOTE: The highest CO level will be saved for 24 hours. DO NOT clear the
These fuels include: Wood, coal, charcoal, oil, natural gas, gasoline, kerosene,
CO Memory reading if you plan to call someone to investigate a CO problem!
and propane.
Clear the CO Memory reading only after the investigator has checked your
home. If the investigator will not arrive within the 24 hour time period before
Common appliances are often sources of CO. If they are not properly main-
the unit automatically resets, be sure to write down the peak level. tained, are improperly ventilated, or malfunction, CO levels can rise quickly.
CO is a real danger now that homes are more energy efficient. " ir-tight"
homes with added insulation, sealed windows, and other weatherproofing
can "trap" CO inside.
WEEKLY TESTING
SYMPTOMS OF CO POISONING
• NEVER use an open flame of any kind to test this unit. You might These symptoms are related to CO POISONING and should be discussed
accidentally damage or set fire to the unit or to your home. The with LL household members.
built-in test switch accurately tests the unit's operation as required
Mild Exposure: Slight headache, nausea, vomiting, fatigue ("flu-like" symptoms).
by Underwriters Laboratories, Inc. (UL). NEVER use vehicle exhaust!
Exhaust may cause permanent damage and voids your warranty. Medium Exposure: Throbbing headache, drowsiness, confusion, fast heart rate.
Extreme Exposure: Convulsions, unconsciousness, heart and lung failure.
• DO NOT stand close to the larm when the horn is sounding.
Exposure to Carbon Monoxide can cause brain damage, death.
Exposure at close range may be harmful to your hearing. When
testing, step away when horn starts sounding.
This CO larm measures exposure to CO over time. It alarms if CO levels
are extremely high in a short period of time, or if CO levels reach a certain
It is important to test this unit every week to make sure it is working
minimum over a long period of time. The CO larm generally sounds an alarm
properly. Press the Test/Silence button on the larm cover until alarm sounds.
before the onset of symptoms in average, healthy adults. Why is this impor-
tant? Because you need to be warned of a potential CO problem while you
If the larm does not test properly:
can still react in time. In many reported cases of CO exposure, victims may be
1. Make sure the C power is applied and batteries are fresh and installed
aware that they are not feeling well, but become disoriented and can no longer
correctly.
react well enough to exit the building or get help. lso, young children and
2. Test the unit again.
pets may be the first affected. The average healthy adult might not feel any
If the larm is still not working properly, replace it immediately. Refer to the symptoms when the CO larm sounds. However, people with cardiac or
respiratory problems, infants, unborn babies, pregnant mothers, or elderly
"Limited Warranty" at the end of this manual.
people can be more quickly and severely affected by CO. If you experience
even mild symptoms of CO poisoning, consult your doctor immediately!
If there is still a problem, do not try to fix the larm yourself. This will
void your warranty!
FINDING THE SOURCE OF CO AFTER AN ALARM
Carbon monoxide is an odorless, invisible gas, which often makes it difficult to
locate the source of CO after an alarm. These are a few of the factors that can
make it difficult to locate sources of CO:
• House well ventilated before the investigator arrives.
• Problem caused by "backdrafting."
• Transient CO problem caused by special circumstances.
Because CO may dissipate by the time an investigator arrives, it may be difficult
to locate the source of CO. BRK Brands, Inc. shall not be obligated to pay
for any carbon monoxide investigation or service call.
POTENTIAL SOURCES OF CO IN THE HOME
Horn Display
Silent ll segments
of display are
turned on for
a short time
upon initial
power. Then
the battery level icon is displayed.
Silent Flashing battery icon.
The CO alarm horn pattern During the simulated Fuel-burning appliances like: portable heater, gas or wood burning fireplace,
(4 beeps, pause, 4 beeps) is issued. CO alarm, "CO" is
gas kitchen range or cooktop, gas clothes dryer.
displayed along with
Damaged or insufficient venting: corroded or disconnected water heater
a full alarm level.
vent pipe, leaking chimney pipe or flue, or cracked heat exchanger, blocked
Several ppm CO
or clogged chimney opening.
levels are also
displayed and Improper use of appliance/ device: operating a barbecue grill or vehicle in
the alarm level is an enclosed area (like a garage or screened porch).
shown increasing.
Transient CO Problems: "transient" or on-again-off-again CO problems can
be caused by outdoor conditions and other special circumstances.
chirp is issued about every Battery icon will
minute. show either 1 bar The following conditions can result in transient CO situations:
or an empty icon.
1. Excessive spillage or reverse venting of fuel appliances caused by outdoor
conditions such as:
Repeating 4 beeps, pause "CO" alternating
• Wind direction and/or velocity, including high, gusty winds. Heavy air in
with the ppm
the vent pipes (cold/humid air with extended periods between cycles).
number, a full level,
and "EV CU TE". • Negative pressure differential resulting from the use of exhaust fans.
• Several appliances running at the same time competing for limited fresh
Silent "CO" alternating with the ppm number. air.
The level will indicate relative CO
• Vent pipe connections vibrating loose from clothes dryers, furnaces, or
exposure level.
water heaters.
• Obstructions in or unconventional vent pipe designs which can amplify
3 chirps every minute "Err" is displayed.
the above situations.
2. Extended operation of unvented fuel burning devices (range, oven, fireplace).
Silent "bat" and 3. Temperature inversions, which can trap exhaust close to the ground.
"SILENCE"
4. Car idling in an open or closed attached garage, or near a home.
are displayed.
These conditions are dangerous because they can trap exhaust in your home.
Since these conditions can come and go, they are also hard to recreate during
5 chirps every minute "End" is displayed.
a CO investigation.
4
HOW CAN I PROTECT MY FAMILY FROM CO
POISONING?
CO larm is an excellent means of protection. It monitors the air and sounds
a loud alarm before Carbon Monoxide levels become threatening for average,
healthy adults.
CO larm is not a substitute for proper maintenance of home appliances.
To help prevent CO problems and reduce the risk of CO poisoning:
• Clean chimneys and flues yearly. Keep them free of debris, leaves, and
nests for proper air flow. lso, have a professional check for rust and
corrosion, cracks, or separations. These conditions can prevent proper
air movement and cause backdrafting. Never "cap" or cover a chimney
in any way that would block air flow.
• Test and maintain all fuel-burning equipment annually. Many local gas
or oil companies and HV C companies offer appliance inspections for
a nominal fee.
• Make regular visual inspections of all fuel-burning appliances. Check
appliances for excessive rust and scaling. lso check the flame on the
burner and pilot lights. The flame should be blue. yellow flame means
fuel is not being burned completely and CO may be present. Keep the
blower door on the furnace closed. Use vents or fans when they are
available on all fuel-burning appliances. Make sure appliances are
vented to the outside. Do not grill or barbecue indoors, or in garages
batteries. The following batteries
or on screen porches.
• Check for exhaust backflow from CO sources. Check the draft hood on
an operating furnace for a backdraft. Look for cracks on furnace heat
exchangers.
• Check the house or garage on the other side of shared wall.
• Keep windows and doors open slightly. If you suspect that CO is
escaping into your home, open a window or a door. Opening windows
and doors can significantly decrease CO levels.
In addition, familiarize yourself with all enclosed materials. Read this
manual in its entirety, and make sure you understand what to do if your
CO larm sounds.
REGULATORY INFORMATION FOR CO ALARMS
WHAT LEVELS OF CO CAUSE AN ALARM?
Underwriters Laboratories Inc. Standard UL2034 requires residential CO
larms to sound when exposed to levels of CO and exposure times as
described below. They are measured in parts per million (ppm) of CO over
time (in minutes).
UL2034 Required larm Points*:
• If the alarm is exposed to 400 ppm of CO, IT MUST L RM BETWEEN
4 and 15 MINUTES.
• If the alarm is exposed to 150 ppm of CO, IT MUST L RM BETWEEN
10 and 50 MINUTES.
• If the alarm is exposed to 70 ppm if CO, IT MUST L RM BETWEEN
60 and 240 MINUTES.
* pproximately 10% COHb exposure at levels of 10% to 95% Relative
Humidity (RH).
The unit is designed not to alarm when exposed to a constant level of 30 ppm
for 30 days.
CO larms are designed to alarm before there is an immediate life threat.
Since you cannot see or smell CO, never assume it's not present.
• n exposure to 100 ppm of CO for 20 minutes may not affect average,
healthy adults, but after 4 hours the same level may cause headaches.
• n exposure to 400 ppm of CO may cause headaches in average, healthy
adults after 35 minutes, but can cause death after 2 hours.
Standards: Underwriters Laboratories Inc. Single and Multiple Station carbon
monoxide alarms UL2034.
ccording to Underwriters Laboratories Inc. UL2034, Section 1-1.2: "Carbon
monoxide alarms covered by these requirements are intended to respond to
the presence of carbon monoxide from sources such as, but not limited to,
exhaust from internal-combustion engines, abnormal operation of fuel-fired
appliances, and fireplaces. CO larms are intended to alarm at carbon
monoxide levels below those that could cause a loss of ability to react to the
dangers of Carbon Monoxide exposure." This CO larm monitors the air at
the larm, and is designed to alarm before CO levels become life threatening.
This allows you precious time to leave the house and correct the problem.
This is only possible if larms are located, installed, and maintained as
described in this manual.
Gas Detection at Typical Temperature and Humidity Ranges: The CO
larm is not formulated to detect CO levels below 30 ppm typically.
udible larm: 85 dB minimum at 10 feet (3 meters).
TROUBLESHOOTING GUIDE
If your larm does this... It means...
Green light is OFF. Unit will not alarm when you Unit may not be receiving any power.
press the Test/Silence button.
Green light flashes ON, once a minute (horn is silent). larm is not receiving C power. Unit is operating on
battery back-up.
The horn "chirps" once a minute. Low battery warning. Battery is low or missing.
Once a minute, the alarm sounds 3 "chirps", and M LFUNCTION SIGN L. Based on its Self Test
the Green light flashes three times. diagnostics, the unit has detected a malfunction.
The unit needs to be replaced.
The light flashes (Green) and the horn sounds END OF LIFE SIGN L.
5 "chirps" every minute. CO larm needs to be replaced.
The horn sounds constantly with no pattern and Unit malfunction. Unit needs to be replaced.
cannot be silenced.
larm goes back into alarm after you pressed the CO levels are still potentially dangerous.
Test/Silence button.
larm sounds frequently even though no high levels The larm may be improperly located. Refer to
of CO are revealed in an investigation. "Where to Install This larm."
*For a list of acceptable replacement batteries, see "Regular Maintenance."
If you have any questions that cannot be answered by reading this manual, call Consumer ffairs: 1-800-323-9005.
BRK Brands, Inc., ("BRK") the maker of First lert ® brand products warrants that for a period of seven years from the date of purchase, this product will be free from
defects in material and workmanship. BRK, at its option, will repair or replace this product or any component of the product found to be defective during the warranty
period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar
product of equal or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is
required to obtain warranty performance. BRK dealers, service centers, or retail stores selling BRK products do not have the right to alter, modify or any way change
the terms and conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or
current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than BRK or an authorized service center. Further, the warranty
does not cover cts of God, such as fire, flood, hurricanes and tornadoes or any batteries that are included with this unit.
BRK shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Except to the extent prohibited by
applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty. Some states,
provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the
above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or
province to province.
How to Obtain Warranty Service
Service: If service is required, do not return the product to your retailer. In order to obtain warranty service, contact the Consumer ffairs Division at 1-800-323-9005,
7:30 M - 5:00 PM Central Standard Time, Monday through Friday. To assist us in serving you, please have the model number and date of purchase available when
calling. 25 Spur Drive, El Paso, TX 79906
Battery: BRK Brands, Inc. make no warranty, express or implied, written or oral, including that of merchantability or fitness for any particular purpose with respect
to battery.
For your records, please record:
Date Purchased: _______________________________
Where Purchased: ____________________________________________
Date Installed: ____________/____________Month/Year
Replace alarm 7 years after installation. Please write the date in the
space provided:
_____________/____________Month/Year
The alarm will also provide an audible End-of-Life Signal approximately
7 years after installation to remind you to replace the unit.
The End-of-Life Signal can be silenced for up to 2 days. Do not unplug
the alarm or remove the batteries until you get replacement.
5 6
GENERAL LIMITATIONS OF CO ALARMS
This CO larm is intended for residential use. It is not intended for use in
industrial applications where Occupational Safety and Health dministration
(OSH ) requirements for Carbon Monoxide larms must be met. This device
is not intended to alert hearing impaired residents.
CO larms may not waken all individuals. If children or others do not readily
waken to the sound of the CO larm, or if there are infants or family members
with mobility limitations, make sure that someone is assigned to assist them
in the event of an emergency.
This CO larm will not sense CO that does not reach the sensors. It will
only sense CO at the sensor. CO may be present in other areas. Doors or
other obstructions may affect the rate at which CO reaches the sensors.
CO larms may not be heard. The alarm horn loudness meets or exceeds
current UL standards of 85 dB at 10 feet (3 meters). However, if the CO larm
is installed outside the bedroom, it may not wake up a sound sleeper or one
who has recently used drugs or has been drinking alcoholic beverages. This
is especially true if the door is closed or only partly open. Even persons who
are awake may not hear the alarm horn if the sound is blocked by distance or
closed doors. Noise from traffic, stereo, radio, television, air conditioner, or
other appliances may also prevent alert persons from hearing the alarm horn.
This CO larm is not intended for people who are hearing impaired.
This CO larm is not a substitute for life insurance. Though this CO larm
warns against increasing CO levels, BRK Brands, Inc. does not warrant or
imply in any way that they will protect lives. Homeowners and renters must
still insure their lives.
This CO larm is not foolproof. Like all other electronic devices, this CO
larm has limitations. It can only detect CO that reaches the sensors. It may
not give early warning if the source of CO is in a remote part of the home,
away from the alarm device.
This CO larm has a limited life. lthough this CO larm and all of its
parts have passed many stringent tests and are designed to be as reliable as
possible, any of these parts could fail at any time. Therefore, you must test this
device weekly. The unit should be replaced immediately if it is not operating
properly.
You should...
Check the C power supply. Make sure fresh
batteries are installed to power the battery back-up*.
Check the C power supply.
Replace the battery. void interrupting C power.
Units under warranty should be returned to
manufacturer for replacement. See "Limited
Warranty" for details.
Immediately replace the CO larm.
Units under warranty should be returned to
manufacturer for replacement. See "Limited
Warranty" for details.
Refer to "If Your CO larm Sounds" for details on
how to respond to an alarm. If anyone is feeling ill,
EV CU TE your home immediately and call 911.
Relocate your alarm. If frequent alarms continue,
have home rechecked for potential problems. You
may be experiencing an intermittent CO problem.
LIMITED WARRANTY
First lert ® is a registered trademark of the First lert Trust.
Printed in Mexico M08-0150-014 Q 07/12
7
