Thank you for purchasing this Panasonic product.
■ To ensure correct use of this lens, please read the operating instructions supplied with the lens and the
projector carefully.
■ Before using this product, be sure to read "Read this first!" (
■ Please save this manual for future use.

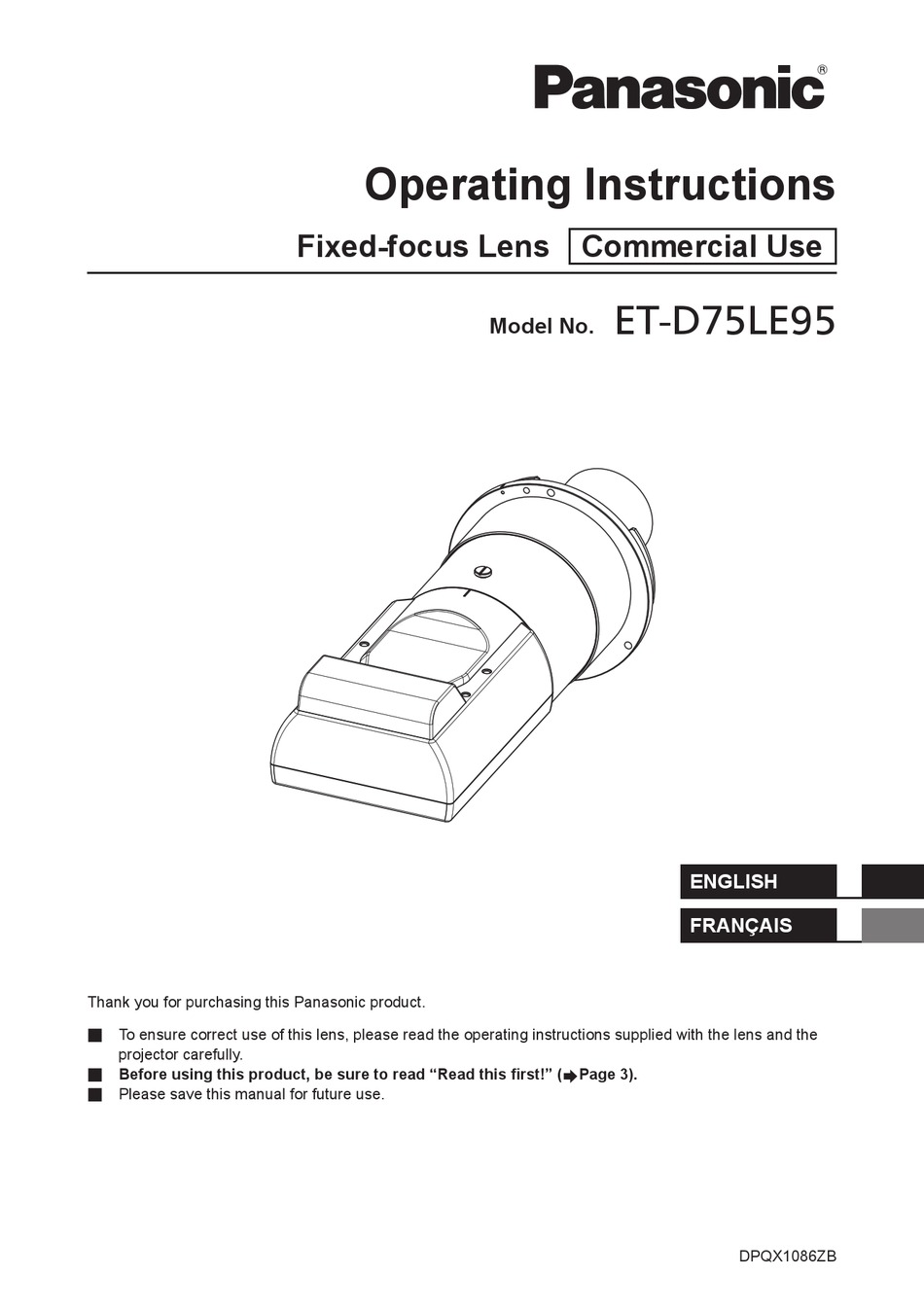

Operating Instructions
Fixed-focus Lens
Commercial Use
ET-D75LE95
Model No.
Page 3).
ENGLISH
FRANÇAIS
DPQX1086ZB
Advertisement
Table of Contents
Related Manuals for Panasonic ET-D75LE95
Summary of Contents for Panasonic ET-D75LE95
- Page 1 Model No. ENGLISH FRANÇAIS Thank you for purchasing this Panasonic product. ■ To ensure correct use of this lens, please read the operating instructions supplied with the lens and the projector carefully. ■ Before using this product, be sure to read “Read this first!” ( Page 3).
-
Page 2: Table Of Contents
█ Contents Read this first! ..................3 Before Use.....................4 Attaching the Lens / Detaching the Lens ...........4 Before replacing the projection lens ............4 Attaching the Lens................... 5 Detaching the Lens ................. 6 Projection relationships...............7 Lens position setup and focus adjustment ........9 Lens position setup ................. -
Page 3: Read This First
This product cannot be used if an optional frame (ET-PFD510 / ET-PFD310) is attached and used with the projector. Information for users in the European Union Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany... -
Page 4: Before Use
Before Use Supported projectors PT-RZ31K / PT-RS30K / PT-RQ13K / PT-RZ12K / PT-RS11K / PT-DZ21K2 / PT-DS20K2 / PT-DW17K2 / PT-DZ16K2 / PT-DZ13K / PT-DS12K / PT-DW11K / PT-DZ10K Note z Models other than the above may also be supported. Refer to the operating instructions of the projector you are using. z In this document, the alphabet letters at the end of the projector part numbers are omitted. -
Page 5: Attaching The Lens
Attaching the Lens / Detaching the Lens (continued) Attaching the Lens The illustration for this procedure uses PT-DZ21K2 as an example. 1) Remove the projection lens cover.* Projection lens cover (ii) 2) Align the mark on the projection lens (orange color) with the mark Orange color on the projector (O on the left side of the LOCK) and insert;... -
Page 6: Detaching The Lens
Attaching the Lens / Detaching the Lens (continued) Detaching the Lens The illustration for this procedure uses PT-DZ21K2 as an example. 1) Remove the projection lens cover.* 2) Remove the lens drop prevention screw. Projection lens cover zRemove the first screw on the right side of the projection lens mark (orange color) using a (ii) Phillips screwdriver. -
Page 7: Projection Relationships
Projection relationships The dimensional relationship between the screen and the projector is shown below. Dimensional relationship diagram Projected image Screen Note z The indications of this illustration are premised on aligning the projected image size and position to the full screen. z This illustration is not drawn to scale. - Page 8 Projection relationships (continued) Dimensional relationship z When using one of PT-RZ31K / PT-RS30K / PT-RQ13K / PT-RZ12K / PT-RS11K / PT-DZ21K2 / PT-DS20K2 / PT-DW17K2 / PT-DZ16K2 / PT-DZ13K / PT-DS12K / PT-DW11K / PT-DZ10K For details on projection distance (L1), and A1, A2, L2, L3 and L4 values, refer to "Projected image size and Projection distance"...
-
Page 9: Lens Position Setup And Focus Adjustment
Select this item when replacing or removing the projection lens. Select this item [NORMAL] when the Fixed-focus Lens (Model No.: ET-D75LE50) is used for projection. Moves the lens to the ET-D75LE95 lens standard position. [D75LE95] Select this item when the Fixed-focus [D75LE90] Lens (Model No.: ET-D75LE95) is used for... - Page 10 → [PROJECTOR SETUP] → [STATUS] or by pressing the <STATUS> button on the remote control. *1: See software download page on Panasonic website (https://panasonic.net/cns/projector/pass/). You must be a registered PASS user to use the site described above. PASS: Panasonic Professional Display and Projector Technical Support Website Note z The lens position set here may not match the intended standard position exactly.
-
Page 11: Focus Adjustment Function
Lens position setup and focus adjustment (continued) Focus Adjustment Function After setting the lens position, adjust the focus. The focal balance between the center and periphery of the projected image changes depending on the size of the projected image. The lens is equipped with a focus balance adjustment function for the screen periphery. Adjusting the Focus ... -
Page 12: Adjustment Range By The Lens Position Shift (Optical Shift)
Adjustment range by the lens position shift (optical shift) Even after setting the lens position using "Lens position setup" noted on pages 9 and 10, the projection position can be adjusted within respective ranges using the optical axis shift function on the projector based on the projected image position for this lens position. - Page 13 Adjustment range by the lens position shift (optical shift) (continued) Projected image width H 0.12H 0.12H PT-DZ21K2 / PT-DZ13K / PT-DZ10K Standard projection position 0.19H Projected image width H 0.19H 0.06H 0.06H PT-DZ16K2 Standard projection position Projected image width H 0.08H 0.08H PT-DS20K2 / PT-DS12K...
-
Page 14: Specifications
Specifications F value Focal Length (f) 7.5 mm (9/32") Width 154 mm (6-1/16") Dimensions Height 154 mm (6-1/16") Depth 463.5 mm (18-1/4") Net Weight Approx. 5.7 k g (12.57 lb) Dimensions (Unit: mm) 463.5 (18-1/4") 463.5 (18-1/4") 14-ENGLISH... - Page 15 MEMO ENGLISH-15...
- Page 16 Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ © Panasonic Corporation 2016 HS0916AM1047 -PS Printed in Japan...
-
Page 17: Dimensional Relationship
Appendix / Annexe ■ Dimensional relationship ■ Relations dimensionnelles The dimensional relationship between the screen and the projector is shown below. Les relations dimensionnelles entre l’écran et le projecteur sont indiquées ci-dessous. Projected image / Image projetée Screen / Écran Projected image height / Hauteur de l'image projetée SW Projected image width / Largeur de l'image projetée Diagonal length of the projected image / Diagonale de la zone de projection... - Page 18 The dimensions of the following table contain a slight error. Periods are used to represent decimal points in the calculation formulas in the following table. Les dimensions du tableau suivant peuvent présenter un léger écart. Les points sont utilisés pour indiquer les décimales dans les formules de calcul dans le tableau suivant. z PT-RZ31K (Unit / Unités : m) When the screen aspect ratio is 16:10...
- Page 19 z PT-RS30K (Unit / Unités : m) When the screen aspect ratio is 4:3 (Throw ratio : [0.39:1]) Lorsque le rapport d’aspect de l'écran est 4:3 (Rapport de projection : [0.39:1]) 3.05 (120") 1.829 2.438 0.96 –0.37 0.18–0.25 3.81 (150") 2.286 3.048 1.20...
- Page 20 z PT-RQ13K (Unit / Unités : m) When the screen aspect ratio is 16:10 (Throw ratio : [0.39:1]) Lorsque le rapport d’aspect de l'écran est 16:10 (Rapport de projection : [0.39:1]) 3.05 (120") 1.615 2.585 1.01 –0.01 0.19–0.42 3.81 (150") 2.019 3.231 1.26...
- Page 21 z PT-RZ12K (Unit / Unités : m) When the screen aspect ratio is 16:10 (Throw ratio : [0.36:1]) Lorsque le rapport d’aspect de l'écran est 16:10 (Rapport de projection : [0.36:1]) 3.05 (120") 1.615 2.585 0.94 –0.07 0.17–0.33 3.81 (150") 2.019 3.231 1.18...
- Page 22 z PT-RS11K (Unit / Unités : m) When the screen aspect ratio is 4:3 (Throw ratio : [0.39:1]) Lorsque le rapport d’aspect de l'écran est 4:3 (Rapport de projection : [0.39:1]) 0.18–0.25 3.05 (120") 1.829 2.438 0.96 –0.05 0.25–0.34 3.81 (150") 2.286 3.048 1.20...
- Page 23 z PT-DZ21K2 / PT-DZ13K / PT-DZ10K (Unit / Unités : m) When the screen aspect ratio is 16:10 (Throw ratio : [0.36:1]) Lorsque le rapport d’aspect de l'écran est 16:10 (Rapport de projection : [0.36:1]) PT-DZ13K / PT-DZ13K / PT-DZ21K2 PT-DZ21K2 PT-DZ10K PT-DZ10K...
- Page 24 z PT-DZ16K2 (Unit / Unités : m) When the screen aspect ratio is 16:9 (Throw ratio : [0.36:1]) Lorsque le rapport d’aspect de l'écran est 16:9 (Rapport de projection : [0.36:1]) 3.05 (120") 1.494 2.657 0.97 –0.05 0.14–0.44 3.81 (150") 1.868 3.321 1.21...
- Page 25 z PT-DS20K2 / PT-DS12K (Unit / Unités : m) When the screen aspect ratio is 4:3 (Throw ratio : [0.39:1]) Lorsque le rapport d’aspect de l'écran est 4:3 (Rapport de projection : [0.39:1]) PT-DS20K2 PT-DS12K PT-DS20K2 PT-DS12K 3.05 (120") 1.829 2.438 0.96 –0.06...
- Page 26 z PT-DW17K2 / PT-DW11K (Unit / Unités : m) When the screen aspect ratio is 16:9 (Throw ratio : [0.40:1]) Lorsque le rapport d’aspect de l'écran est 16:9 (Rapport de projection : [0.40:1]) PT-DW17K2 PT-DW11K PT-DW17K2 PT-DW11K 3.05 (120") 1.494 2.657 1.07 0.05...
- Page 27 z Projection distance formulas z Formules de distance de projection If you are using a projection screen size not listed in these Operating Instructions, measure the diagonal screen size SD (m). Then use the calculation methods provided to determine projection distance (L1) and the distance from the top of the projector to the bottom edge of the screen (A1).
- Page 28 z PT-DZ21K2 / PT-DZ13K / PT-DZ10K (Unit / Unités : m) Aspect ratio Rapport Min. / Mini Max. / Maxi d’aspect PT-DZ21K2 = 0.154 × SH – 0.114 = 0.283 × SH – 0.114 16 : 10 = 0.303 × SD + 0.020 PT-DZ13K / PT-DZ10K = 0.154 ×...
- Page 29 z Calculation method for L2, L3, L4 and A2 Méthode de calcul pour L2, L3, L4 et A2 (Unit / Unités : PT-RZ31K / PT-RS30K = L1 + 0.0287 = L1 – 0.262 = L1 – 1.332 = A1 + 0.419 PT-RQ13K / PT-RZ12K / = L1 –...
- Page 30 MEMO Appendix / Annexe...
- Page 31 MEMO Appendix / Annexe...
- Page 32 Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ © Panasonic Corporation 2016 HS0916AM1047 -PS Printed in Japan...
