Fluke 1630-2 Quick Reference Manual

Quick Reference Guide
1630-2/1630-2 FC

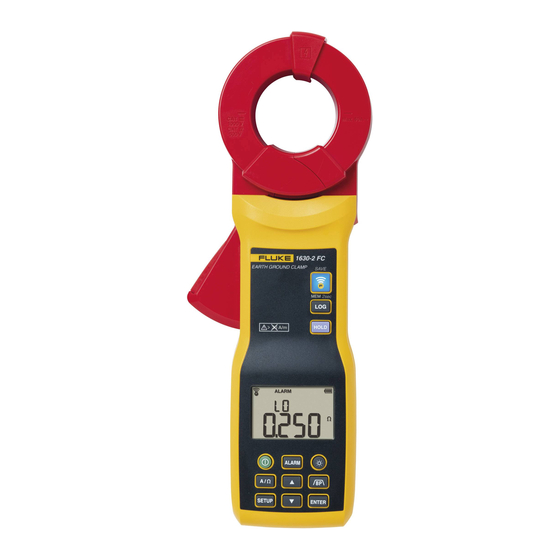

Earth Ground Clamp
 Warning
To prevent possible electrical shock, fire, or personal injur y, read
the "1630-2/1630-2 FC Safety Information" before you use this
Product.
 Consult user documentation.
Go to www.fluke.com to register your product and find more
information.
Install Fluke Connect App
®
iOS
Android
Be ready with measurement data. With the
Fluke Connect ® Measurements app, you can
save equipment measurements to the cloud and share them or
reference them at any time. Connect with your team using Fluke
Connect wireless tools and the Fluke Connect Measurement app.
®
For more information about Fluke Connect, contact us at
844-427-2296 or visit www.flukeconnect.com.
PN 4830595 October 2016
© 2016 Fluke Corporation. All rights reserved.
Wireless Radio Setup
(1630-2 FC)
1 2
3
iOS Android
Settings Settings Bluetooth
>
/
On
4 5
Fluke Connect
®
Connect
6 7
Blink = 4-5 s
Clamp Functions
4
5
1
6
2
3
1
Power ON/OFF
= ON >2 s = OFF
>20 m (no use) = Auto-Off
2
Function Switch
Toggle between Current and
Resistance function.
3
Setup
>
• Log interval
• Alarm threshold
• Time
• Clamp settings
For complete instructions go to
www.fluke.com to view or download
the users manual.
4
Log Measurements
=
on the display.
>2000
View Memory
>2 s
Clear Memory
>2 s >
to confirm
5
Hold
the displayed value
6
Backlight
= ON/OFF
Backlight Auto-Off Setup
1. until shows
2. 2. /
When on,
>2 m (no use) = Backlight Auto-Off
3.
to confirm
4.
>
Measurement Mode
