CNET CAR-854 Quick Installation Manual

What's Included in the box

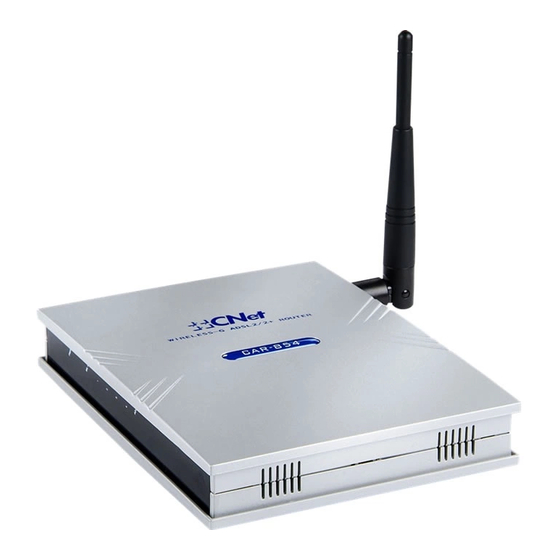

CAR-854 Modem Router
Power Adapter
Quick Installation Guide
Ethernet Cable
Phone Cable
Product CD
Connect one end of the Ethernet cable to
an Ethernet ports on the back of Modem
Router. Then connect the other end to a
computer.
Connect one end of the phone cable to the
DSL port on the back. Connect the other
end of the phone cable to the wall jack
with ADSL service or microfilter.
Connect the power adapter's cord to the
back of the Modem Router and then plug
the adapter into a power source (such as a
wall socket or power strip).
Power on the Modem Router by pushing
the ON/OFF button.
The PWR, ADSL LED should light up. And
the active Ethernet port's corresponding
LED will light up on the front panel.
Open your web browser. Enter
http://192.168.1.1 in the web browser's
Address field. Press Enter
user name & password to login (
the default user name and password).
From the left navigation window, click
WAN , then Channel Config WAN
Configuration page will appear.
Quick Installation Guide
. Then, enter Access the Web-based Utility
admin is
.
Wireless-G ADSL 2/2+ Modem Router
Quick & Easy Wireless Sharing

PPPoE Setup

Connect the Computer
Connect the DSL
Connect the Power
Login Screen
CAR-854
