Installation Instructions
The PC5108 module can be used to add up to 8 additional hardwired
zones to the PC5010, PC5015 & PC5020 control panels (see the control
panel Installation Manual for complete installation instructions).

Specifications

• Module Current Draw: 35 mA
• Auxiliary Current: 100 mA (PTC protected - fuseless design)

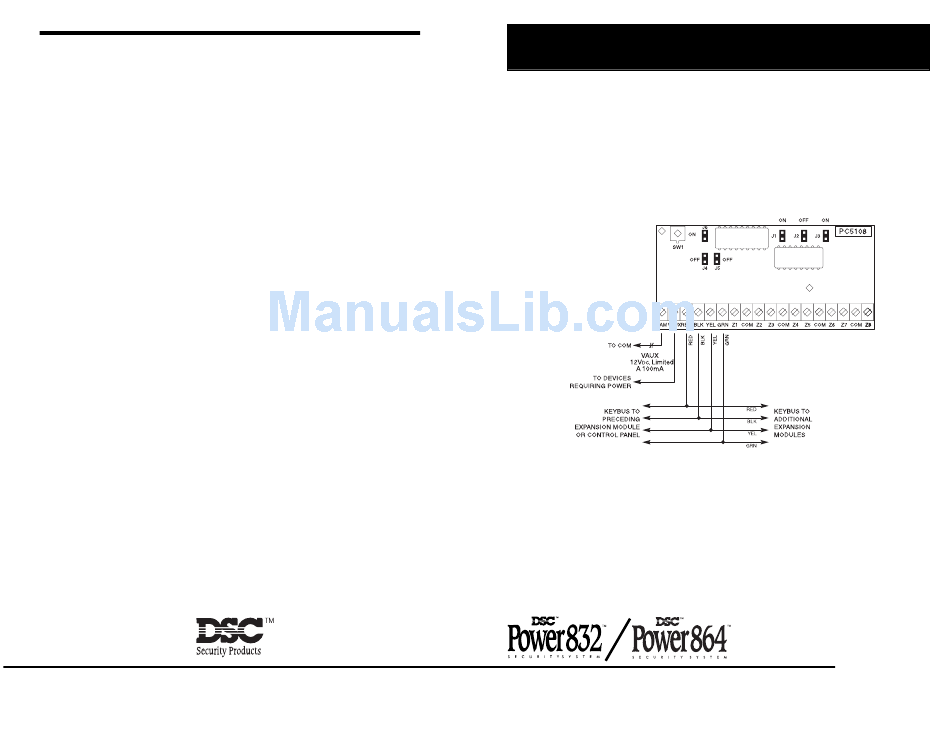

Terminal Description
TAM - This can be used to tamper the cabinet in which the PC5108 is
mounted. Connect a normally closed (NC) switch across TAM and BLK. If
the tamper is not being used connect a piece of wire across TAM and BLK
to remove the trouble condition.

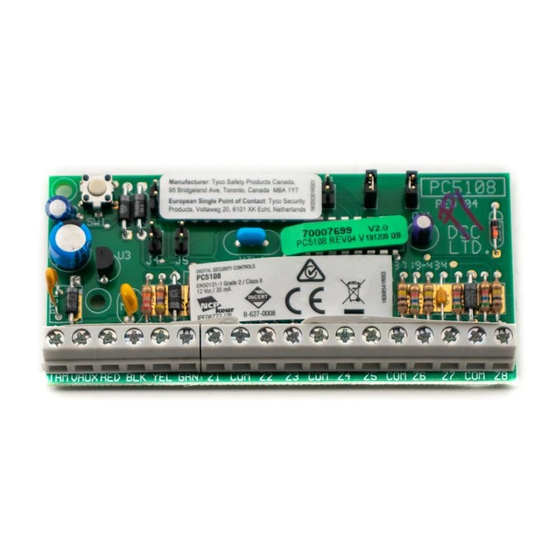

PC51O8
8 Zone Expander
Version 2.O
