Advance Planning - Monogram ZVB36 Installation Instructions Manual

The installation of these downdraft vents with
Advance
any Monogram cooktop requires careful
Planning
consideration. For accurate planning, this
book provides individual dimension drawings
for the vent and the Monogram cooktop
installation.
Countertop Requirements:
The countertop must have a deep flat surface
to accommodate the cooktop and the vent.
Countertops with a rolled front edge and
backsplash may not provide the flat surface
area required.
Base Cabinet Requirements:
The base cabinet must be deep enough to
accommodate the min. clearance to the front
edge of the countertop, the cooktop burner
box and the vent.

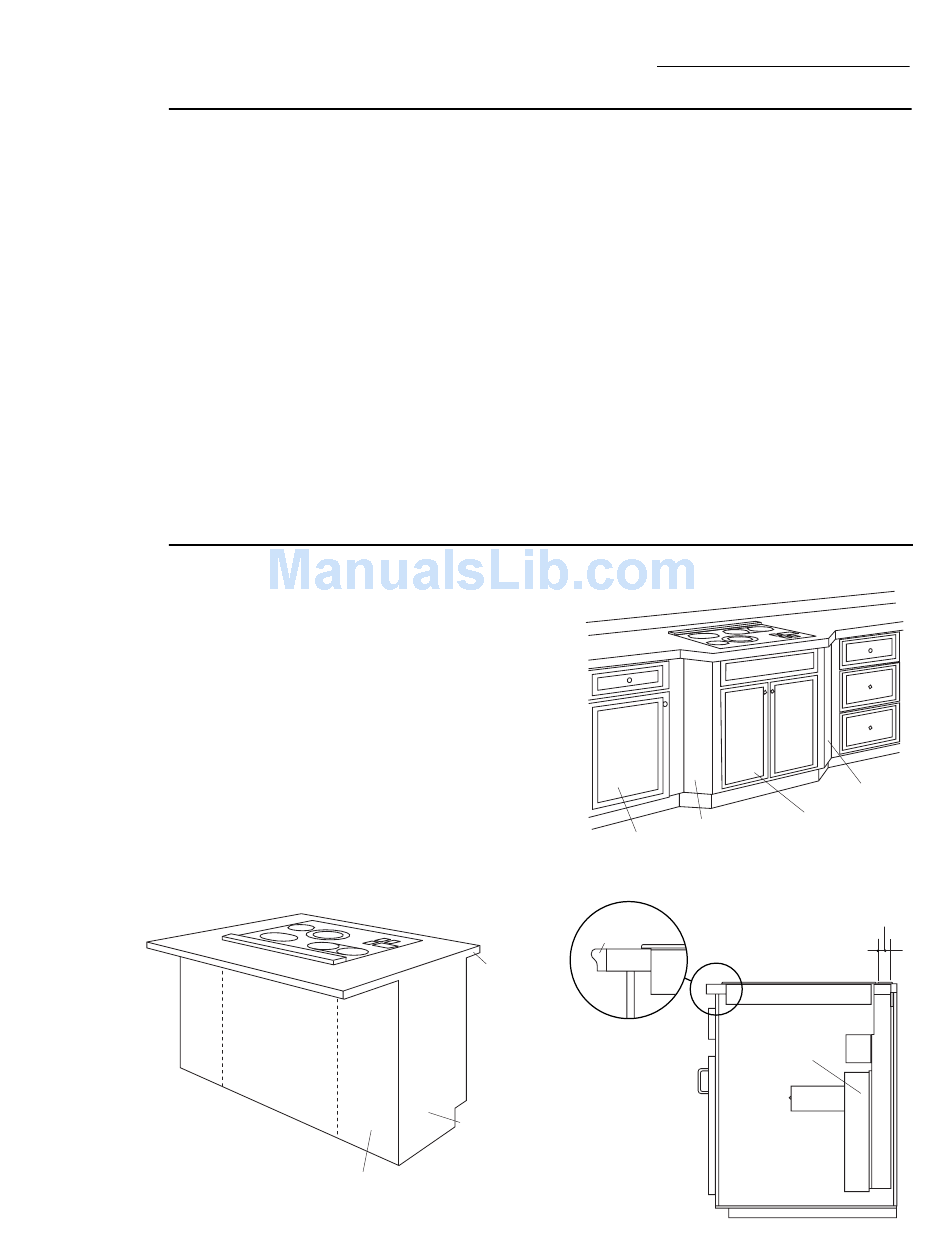

Creative Solutions
√ When the kitchen design calls for an against the wall
√ In an island or pennisula, use an extra deep
√ When the cutout to front edge of the countertop
B18
4
installation, move the base cabinet forward, 3" to 5".
Filler panels or complimentary moldings can be
added to the exposed cabinet sides.
countertop. The countertop overhang at the front can
be adjusted to meet setback to cutout requirements.
requirement is more than 2", add a bullnose trim to
the front edge of the countertop. Include the trim
thickness when measuring front edge to cutout
requirement. By adding the trim, the cooktop can be
moved forward, providing additional countertop depth
and interior cabinet space.
Base Sink
BS30 to BS42
B18
Cover Panel
Design Information
Before you begin you must:
1. Review countertop dimension illustrations
to be sure you will have enough flat
countertop surface.
2. Check to be sure that the total countertop
depth required (including min. cutout to
front edge depth) allows enough space for a
backsplash.
3. Review the cabinet illustration. Check to be
sure that the interior cabinet depth will
house the cooktop burner box, the vent and
the cutout clearance from the front.
4. When countertop and cabinet depth
present a problem, review Creative Solutions.
5. Read this book completely to accurately
plan the installation location, clearances and
ductwork requirements.
With careful planning you can achieve a
custom look with minimal adjustments.
Base
Cabinet
Trim
Countertop
Overhang
per Cooktop
Clearances
Must be
Add a Bullnose Trim
Maintained
or Other Decorative
Molding to Increase
Countertop Depth
and to Maintain
Required Clearance
End
From Front Edge to
Panel
Cutout.
Downdraf t Vent Systems
Maintain Cutout Clearances
to Front Edge as Specified
Filler Panel
Base Sink
Filler Panel
BS30 Min. For ZVB30
BS36 Min. For ZVB36
DOWNDRAFT
VENT
1-7/8"
