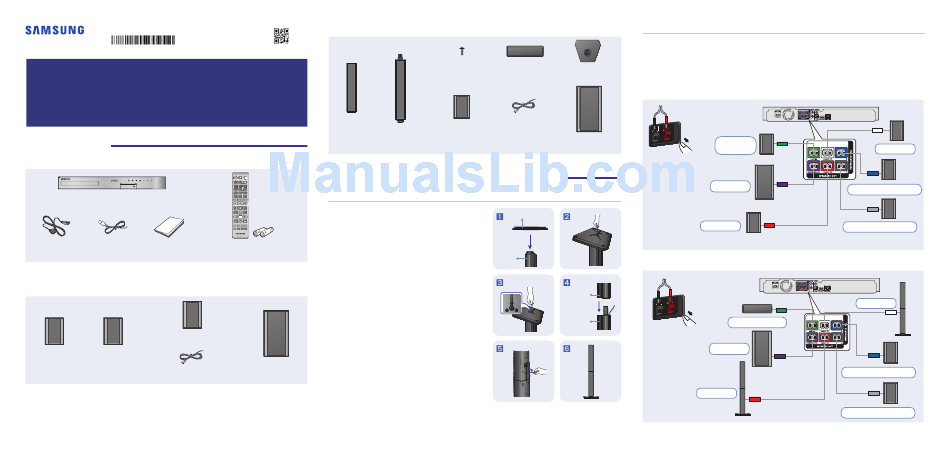

Samsung Blu-ray HT-J4500 Quick Installation Manual

AH68-02796L-02
Quick Installation Guide
5.1CH Blu-ray™ Home Entertainment System
HT-J4500/HT-J4530
1
Unpacking
Accessories
Main Unit
Power Cable FM Antenna User Manual Remote Control / Batteries (AAA size)
Speaker Components
HT-J4500
Center
Front x 2 Surround x 2 Speaker Cable x 6
1-
English
HT-J4530
AH68-02796L-02
Front x 2 Stand x 2
2
Installing and Connecting the Speakers
FUNCTION
VOLUME MUTE
- +
1 2 3
4 5 6
7 8 9
Installing the Speakers on the Tallboy Stand
DISC MENU TITLE MENU
0
POPUP
SUBTITLE HOME REPEAT
* HT-J4530 only - Front Speakers
TOOLS INFO
RETURN EXIT 1
Turn the Stand Base upside-down and connect it to the
TUNER
MEMORY MO/ST
A B C D
TV SOUND DSP/EQ TUNING
DOWN UP Stand.
2
Use the driver to combine the screws on the
3 marked holes.
3
Straighten a supplied speaker wire to the gravity
direction and put in the hole on the center of Stand
Base.
4
Connect the upper Speaker to the assembled Stand.
5
Insert a screw clockwise into the hole on the rear of the
speaker using a screwdriver.
And then connect a speaker cable.
6
This is the appearance after the speaker is installed.
Subwoofer
Follow this steps to install other speaker.
Screw (5x20) x 8 Center Stand Base x 2
Surround x 2 Speaker Cable x 6 Subwoofer
Stand Base
Stand
Speaker
Stand
2-
English
Speaker Cable Connections
1
Match each speaker cable bundle to the correct speaker by matching the colored band on each bundle
to the colored sticker on the bottom of each speaker.
2
Connect the speaker wire plugs from each speaker to the back of the product by matching the colored
band on each cable to the colors of the speaker jacks. When connecting, make sure to match label
color on the back of speaker.
HT-J4500
SURROUND SURROUND
SURROUND SURROUND
Center
Speaker
Back of the
speakers.
Match polarity.
Subwoofer
Front (R)
HT-J4530
Back of the
SURROUND SURROUND
SURROUND SURROUND
speakers.
Match polarity.
Center Speaker
Subwoofer
Front (R)
3-
English
Front (L)
SURROUND
SURROUND
Surround Speaker (L)
Surround Speaker (R)
Front (L)
SURROUND
SURROUND
Surround Speaker (L)
Surround Speaker (R)
