Crown 14M Quick Start Manual

CROWN COMMERCIAL AUDIO SERIES MIXER

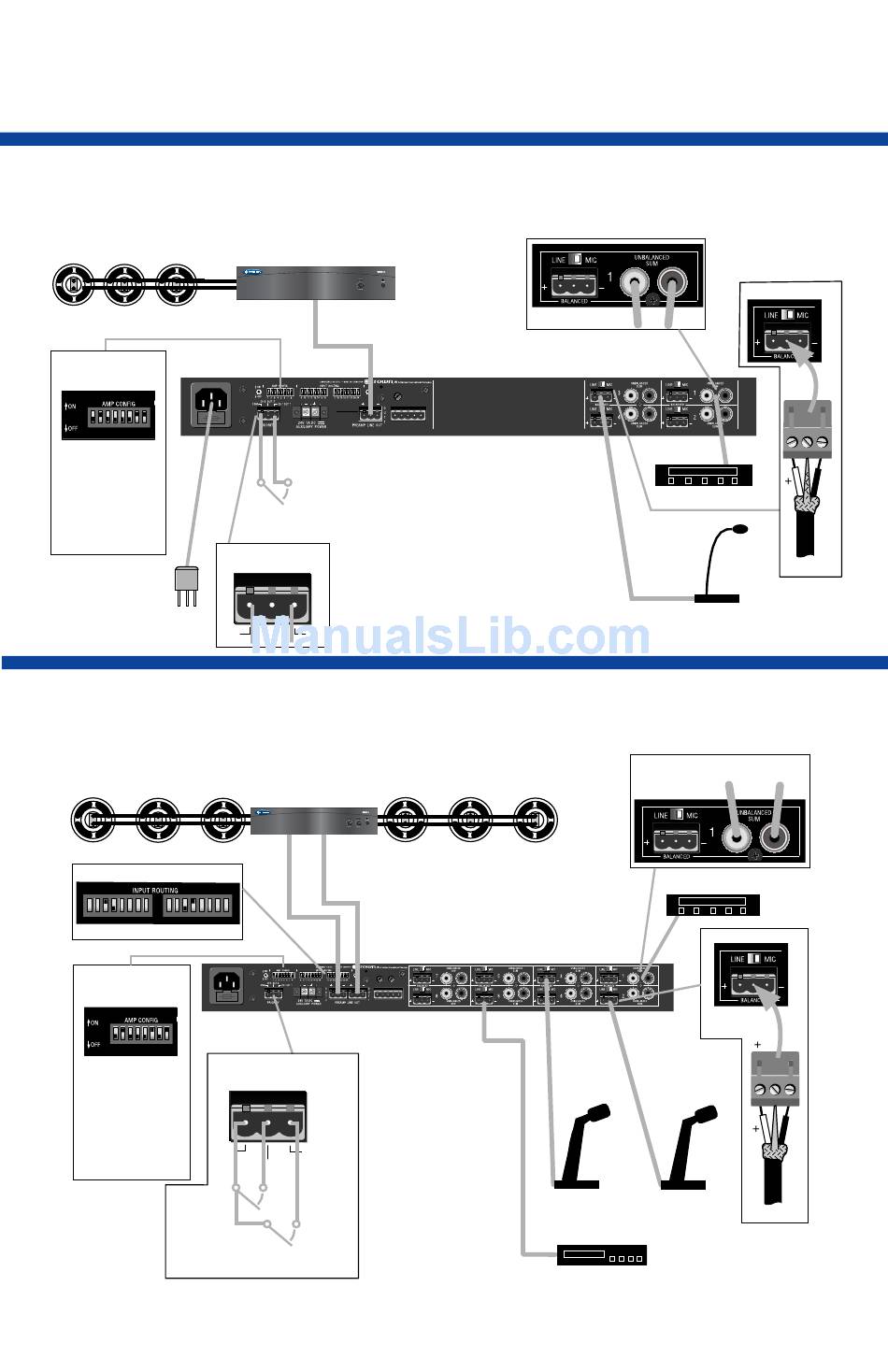

ONE ROOM WITH A PAGING MICROPHONE using 14M
Speakers with 70V transformers
Config
DIP switch detail
1 OFF
2 ON
3 OFF
4 OFF
5 OFF
6 OFF
7 PHANTOM ON
8 NO FUNCTION
To AC power
COM
TWO ROOMS WITH INDEPENDENT PAGING using 28M
Room 2
Speakers with 70V transformers
Input Routing switch detail
11 on, 12 off, 19 off, 20 on
Config
DIP switch detail
1 OFF
2 ON
3 OFF
4 OFF
5 OFF
6 ON
7 PHANTOM OFF
COM
8 NO FUNCTION
Switch in
room-2 mic
mutes CD
player
®
QUICK-START GUIDE
Paging mic mutes CD player.
Power amplifier
Amplifier input
Switch in mic
mutes CD player
Priority-switch
detail
CH 1
Mic 1 mutes room-1 TV tuner. Mic 2 mutes room-2 CD player.
Two mono power amps
Speakers with 70V transformers
or one dual-mono power amp
Amplifier
inputs
Priority-Switch
detail
CH 1 OUT 1
CH 5 OUT 2
Switch in room-1
mic mutes TV tuner
Detail
Room 1
Room 1
paging mic
(dynamic)
(OVER)
Detail
CD player
audio cable
CD player
To mic
Paging mic
(phantom-powered shown)
TV tuner
audio cable
Detail
TV tuner
Detail
–
–
Room 2
paging mic
To mic
(dynamic)
CD player
–
