English

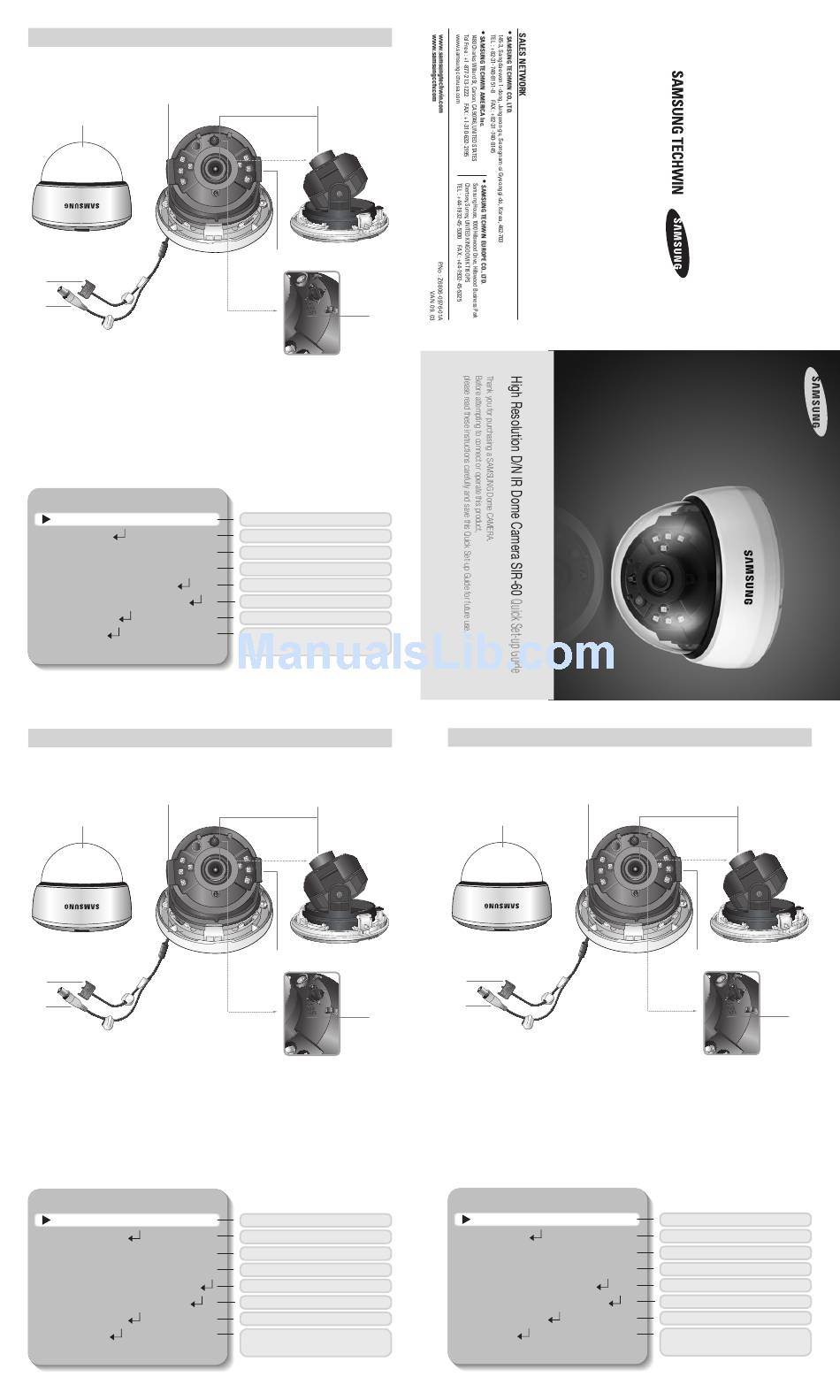

SIR-60 Quick Set-up Guide
❶
7
4
5
Pan Base : Control panning angle of camera.
❶
Tilt Base : Control tilting angle of camera.
2
3
Lens Module : f=3.6mm,F2.0(IR LENS)
Power Input Connector : Connect the Power(DC 12V)
4
Video Output Jack : Video signals are output through this port. Connect this port to the Video IN port of a monitor.
5
Function Setup Switch : Display the menu on the screen and move the cursor to four directions to
6
confirm or after changing a selected item.
Dome Cover
7
MAIN SETUP
1.LENS SHADE
ON
2.EXPOSURE
3.WHITE BAL
ATW
4.BACKLIGHT
OFF
5.SSNR
ON
6.DAY/NIGHT
AUTO
7.IMAGE ADJ
8.SPECIAL
9.EXIT
Français
SIR-60 Quick Set-up Guide
❶
7
4
5
Pan Base : Control panning angle of camera.
❶
Tilt Base : Control tilting angle of camera.
2
Lens Module : f=3.6mm,F2.0(IR LENS)
3
Power Input Connector : Connect the Power(DC 12V)
4
Video Output Jack : Video signals are output through this port. Connect this port to the Video IN port of a monitor.
5
Function Setup Switch : Display the menu on the screen and move the cursor to four directions to
6
confirm or after changing a selected item.
Dome Cover
7
CONFIG PRINCIPALE
1.LENS SHADE
ARRET
2.EXPOSITION
3.BAL BLC
ATW
4.CONTRE-JOUR
ARRET
5.SSNR
MARCHE
6.JOUR/NUIT
AUTO
7.REG IMAGES
8.SPECIAL
9.QUITTER
3
2
6
▶
ON / OFF
▶
SHUTTER / AGC / SENS-UP / RETURN
▶
ATW/MANUAL / AWC-SET / OUTDOOR / INDOOR
▶
BLC / HLC / OFF
ON / OFF
▶
▶
COLOR / B/W / AUTO
V-REV / H-REV / D-ZOOM / SHARPNESS / RETURN
▶
▶
CAMTITLE / SYNC / MOTION DET / PRIVACY / DIS /
LANGUAGE / IR MODE / RESET / RETURN
3
2
6
ARRET / MARCHE
▶
▶
OBTURATEUR / AGC / SENS-UP / RETOUR
▶
ATW / MANUEL / AWC-SET / EXTER / INTER
▶
BLC / HLC / ARRET
▶
MARCHE / ARRET
▶
COULEUR / N/B / AUTO
▶
V-REV / H-REV / D-ZOOM / NETTETE / RETOUR
▶
TITRE CAM / SYNC / DET MOUVE / MASQUAGE /
DIS / LANGUE / IR MODE / REINIT / RETOUR
Español
SIR-60 Quick Set-up Guide
❶
7
4
5
Base de Paneo : Controla el ángulo de paneo de la cámara.
❶
Base de Inclinación : Controla el ángulo de inclinación de la cámara
2
Módulo de la Lente : f=3,6mm, F2,0 (LENTE IRIS)
3
Conector de Alimentación : Permite la conexión de alimentación (12V DC)
4
Puerto de Salida de Video : Permite la salida de las señales de video. Conecte este puerto al puerto de entrada de un monitor.
5
Mando de Configuración de Funciones : Muestra el menú en la pantalla y permite el desplazamiento del
6
cursor en las cuatro direcciones ya sea para confirmar una
selección o luego de haber cambiado un elemento seleccionado.
Tapa de la Cámara Domo
7
CONFIG PRINCIPAL
1.LENS SHADE
ON
2.EXPOSIC
3.BAL BLAN
ATW
4.CONTRALUZ
OFF
5.SSNR
ON
6.DIA/NOCHE
AUTO
7.AJUST IMAG
8.EXPEC
9.SALIR
3
2
6
ON / OFF
▶
▶
SHUTTER / AGC / SENS-UP / VOLVER
▶
ATW / MANUAL / AWC-SET / EXTER / INTER
▶
BLC / HLC / OFF
▶
ON / OFF
▶
COLOR / N/B / AUTO
▶
V-REV / H-REV / D-ZOOM / NITIDEZ / VOLVER
▶
TITULO CAM / SYNC / DET MOV / PRIVACIDAD /
DIS / IDIOMA / IR MODE / RESET / VOLVER
