Summary of Contents for Electrolux EFC 9530X

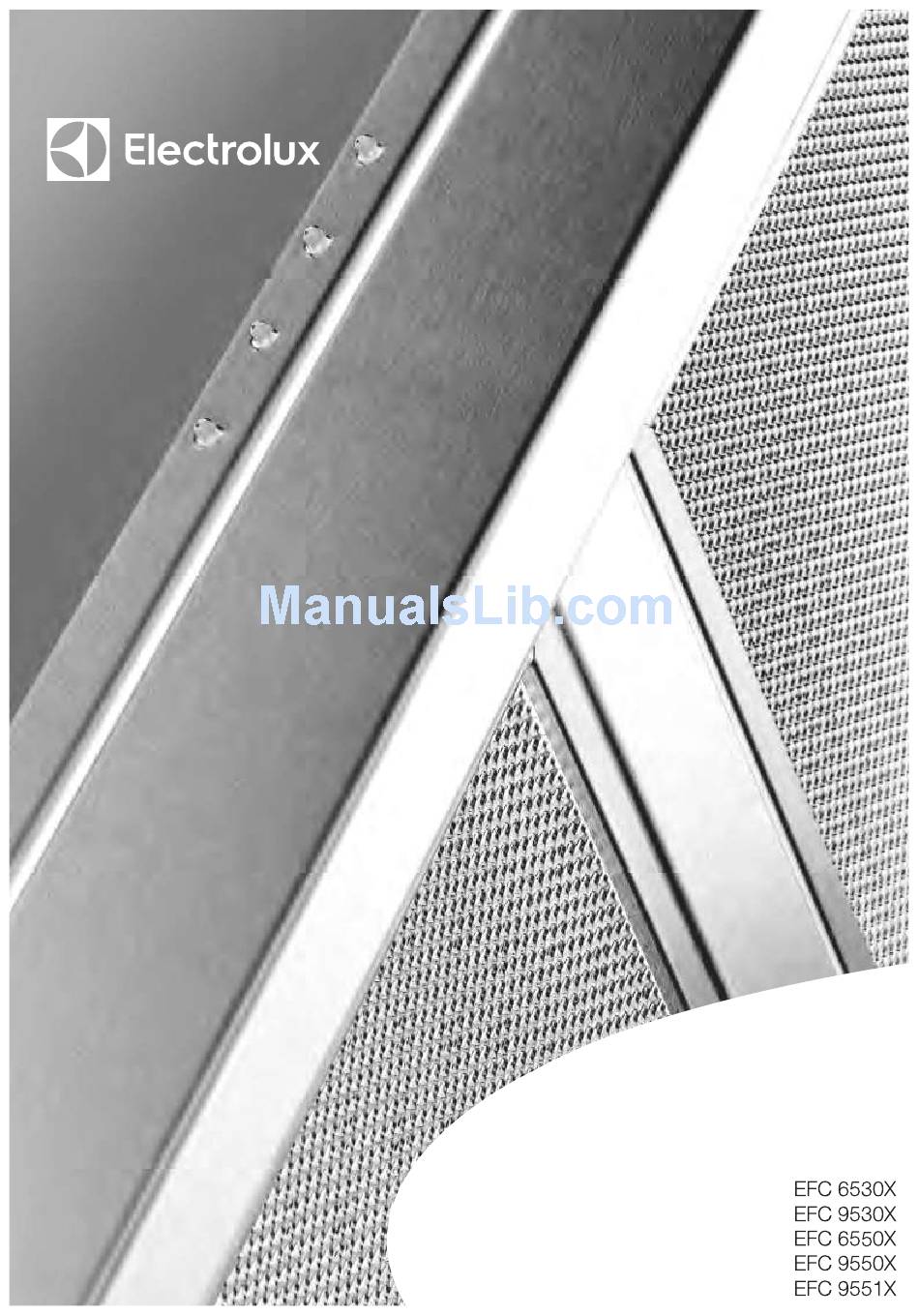

- Page 1 USERS MANUAL - COOKER HOOD MANUAL BAGI PENGGUNA - TUDUNG ASAP...
- Page 2 "Let's provide you with a superior User Experience delivering Ease-of-Mind." "lzinkan kami menyediakan bagi anda Pengalaman Pengguna yang memberikan Ketenangan Pikiran."...
-
Page 4: For The Installer
safety warnings For the installer - the length should be no more than: • When used as an extractor unit, the hood must be fitted with a 120mm diameter hose. Attention: The hose is not 3 metres with one 90° bend 2 metres with two 90°... - Page 5 EFC 9550X / Model EFC 6530X EFC 9530X EFC 6550X EFC 9551X...
-
Page 6: Electrical Connection (Not For Uk)
installation Unpacking Check that the cooker hood has no damages. Transportation damages should immediately be reported to the company responsible for the transportation. Damages, faults and eventually missing details should immediately be reported to the retailer. Take care of the packing materials so that small children cannot play with them. -
Page 7: Components List
installation Dimensions are in millimetres. Components list • 1 body assembly with grease filters (900-3 grease filters / 600-2 grease filters • 1 telescopic flue cover set • 2 cover flue mounting brackets • 1 instruction book 470(max) • 1 plastic bag containing screws for fixing telescopic flue covers •... -
Page 9: Removing The Metal Grease Filters
maintenance and care IMPORTANT:- WARNING:- The hood must always be disconnected from the Failure to observe the instructions on cleaning the unit electricity supply before beginning any maintenance and changing the filters will cause a fire hazard. You work. are therefore strongly recommended to follow these instructions. -
Page 10: Charcoal Filter
maintenance and care Charcoal filter • The charcoal filter should only be used if you want to use the hood in the recirculation function. • This filter cannot be cleaned or reused. • As a general rule, the activated charcoal filter should be changed once every four months. - Page 11 Standard warranty conditions We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same...
