Technics SL-1200GR Operating Instructions Manual

Adjusting the turntable startup/brake speed
Startup speed
You can select from three time options for the turntable
to reach constant speed after [START-STOP] is pressed.
Press the H button to increase the torque (the power
required to rotate) and shorten the time to stabilise
rotation. (The factory setting is [3]: highest.)

The confirmation lamp blinks the
specified number of times according to
the current setting when you press the
H or L torque button.

To change the setting, press the H or L
torque button while the lamp is lit for
two seconds.
(Lit two seconds)

After you press the torque button, the
confirmation lamp blinks the specified
number of times showing the new
setting, stays lit for two seconds and
then goes off.
Example) When the setting is [1].
→
( Blinks
one time)
English
Example)
When the setting is [3].
→
(Blinks three times)
→
→
( Lit two (Off/end)
seconds)

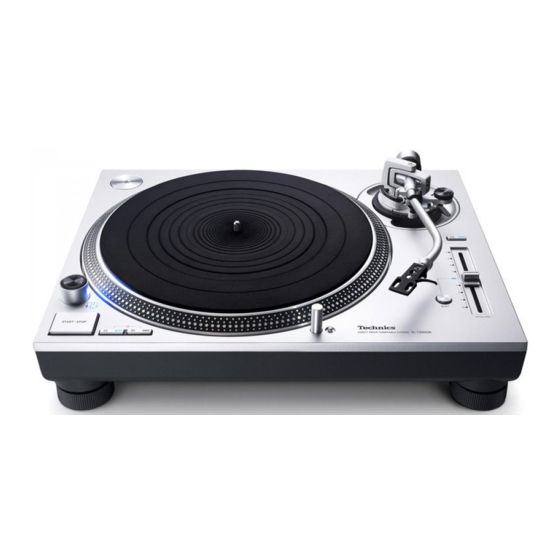

Direct Drive Turntable System
SL-1200GR / SL-1210GR
Model No.
BRAKE button ([1] - [5])
S (Slow) .............. Reduce the brake speed(-1)
F (Fast) ................ Increase the brake speed(+1)
Confirmation lamp
Torque button ([1] - [3])
L (Low) ............... Reduce the torque(-1)
H (High) ............. Increase the torque
Press the centre of the button lightly.
Brake speed
You can select from five time options for the turntable
to stop after [START-STOP] is pressed.
(You can change the brake power.)
(The factory setting is [5]: fastest.)

The confirmation lamp blinks the
specified number of times according to
the current setting when you press the F
or S brake button.

To change the setting, press the F or
S brake button while the lamp is lit for
two seconds.
(Lit two seconds)

After you press the brake button, the
confirmation lamp blinks the specified
number of times showing the new
setting, stays lit for two seconds and
then goes off.
Example) When the setting is [3].
→
( Blinks
three times)
(+1)
Example)
When the setting is [5].
→
(Blinks five times)
→
→
( Lit two (Off/end)
seconds)
TQBM7058
S047AK0
