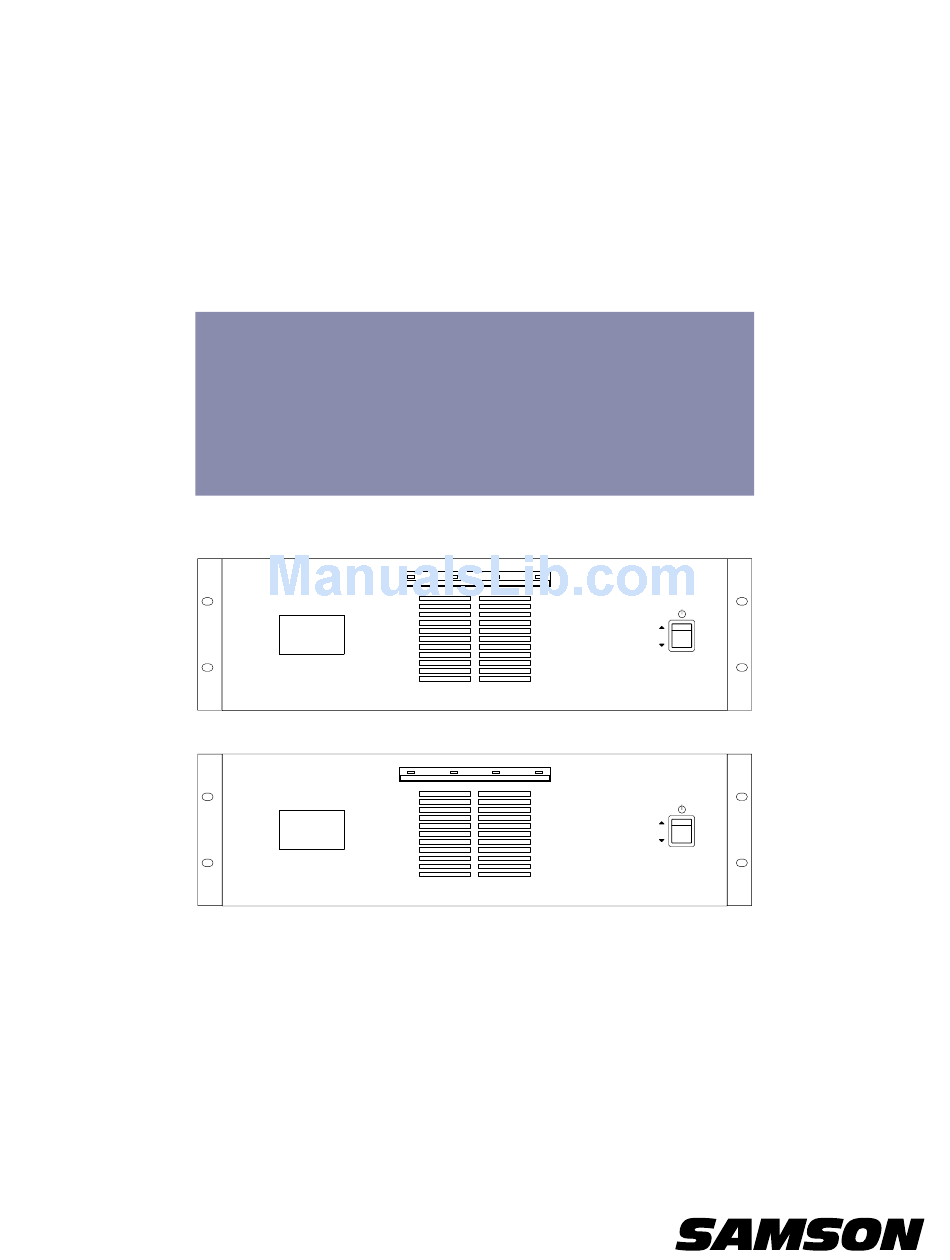

- Page 1 F 1 2 0 0 / F 8 0 0 AMPLIFIER PEAK CH 1 BRIDGE F1200 600W X 2 STEREO F1200 STEREO HIGH PERFORMANCE 1200WATT AMPLIFIER PEAK CH 1 BRIDGE F800 400W X 2 STEREO F800 STEREO HIGH PERFORMANCE 800WATT AMPLIFIER OWNERS MANUAL POWER PEAK CH 2...
-
Page 2: Table Of Contents
Table of Contents Introduction F1200 / F800 Features Controls and Functions Front Panel Rear Panel Setting Up and Using Your F1200 / F800 The F1200 / F800 Protection Circuitry Bridged Mode F1200 / F800 Connections Specifications... -
Page 3: Introduction
PA systems. Fan-cooled for maximum thermal protec- tion, the F1200 delivers 600 watts of power per channel (or, in Bridged mode, 1200 watts), and the F800 provides 400 watts of power per channel (or, in Bridged mode, 800 watts), over the full frequency spec- trum, from 20 Hz to 20 kHz. -
Page 4: F1200 / F800 Features
• The F1200 delivers 600 watts of power per channel into 4 ohms. In the F800 delivers 400 watts of power per channel into 4 ohms. • In Bridged mode (linking both channels) the F1200 provides 1200 watts into 8 ohms and the F800 provides 800 watts into 8 ohms. -
Page 5: Controls And Functions
F1200 600W X 2 STEREO 1: Power switch - Use this to power the F1200 / F800 on or off. 2: Power LED - Lights whenever the F1200 / F800 is powered on. 3: Peak LED (Ch1 Ch2) - The Channel 1 and Channel 2 Peak LEDs light whenever the input signal is about to clip. - Page 6 (again, the Channel 2 input is ignored), but the two power amplifiers are bridged together, providing a full 1200 watts of power into 8 ohms (in the case of the F1200) or a full 800 watts of power into 8 ohms (in the case of the F800).
-
Page 7: Rear Panel
If you encounter difficulty with any aspect of setting up or using your S700 or S1000, contact your local Samson dealer. If purchased in the United States, you can call Samson Technical Support (1-800-372-6766) between 9 AM and 5 PM EST... -
Page 8: The F1200 / F800 Protection Circuitry
• DC voltage detected at speaker output: The most likely cause of this is an inter- nal failure. For further assistance, contact your local Samson dealer. If purchased in the United States, you can call Samson Technical Support (1-800-372-6766) between 9 AM and 5 PM EST. -
Page 9: Bridged Mode
1200 watt output into a single 8 ohm channel (in the case of the F1200) or a true 800 watt output into a single 8 ohm channel (in the case of the F800). -
Page 10: F1200 / F800 Connections
; RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. MADE IN KOREA – LOUDSPEAKER (8 Ohm Min) SAMSON CHANNEL 13/14 CHANNEL 15/16 AUXILIARY RETURNS PL 1602 LINE MIX ER HIGH AUX 1L... -
Page 11: Stereo Mode
(8 ) SERIAL NUMBER AVIS ; RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. MADE IN KOREA – SAMSON CHANNEL 13/14 CHANNEL 15/16 AUXILIARY RETURNS PL 1602 LINE MIX ER AUX 1L HIGH... -
Page 12: Specifications
F1200 1. Input Sensitivity (+0dbm ±1dbm) 2. Rated Power Output Level (1kHz THD 5% / Both CH Drive) 8 Ohm per channel 4 Ohm per channel 8 Ohm Bridged Mono 3. Frequency Response (0db +0.5, -1db) 8 Ohm 1W 4. Total Harmonic Distortion (1/2 Power, THD 0.1% at 20 – 20kHz, Both Ch Drive) 8 Ohm load 4 Ohm load 8 Ohm Bridged... - Page 13 Specifications F800 1. Input Sensitivity (+0dbm ±1dbm) 2. Rated Power Output Level (1kHz THD 5% / Both CH Drive) 3. Frequency Response (0db +0.5, -1db) 4. Total Harmonic Distortion (1/2 Power, THD 0.1% at 20 – 20kHz, Both Ch Drive) 5.
