Page 1

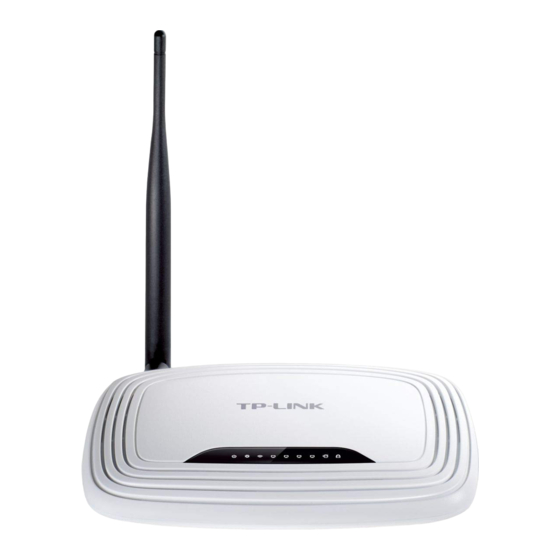

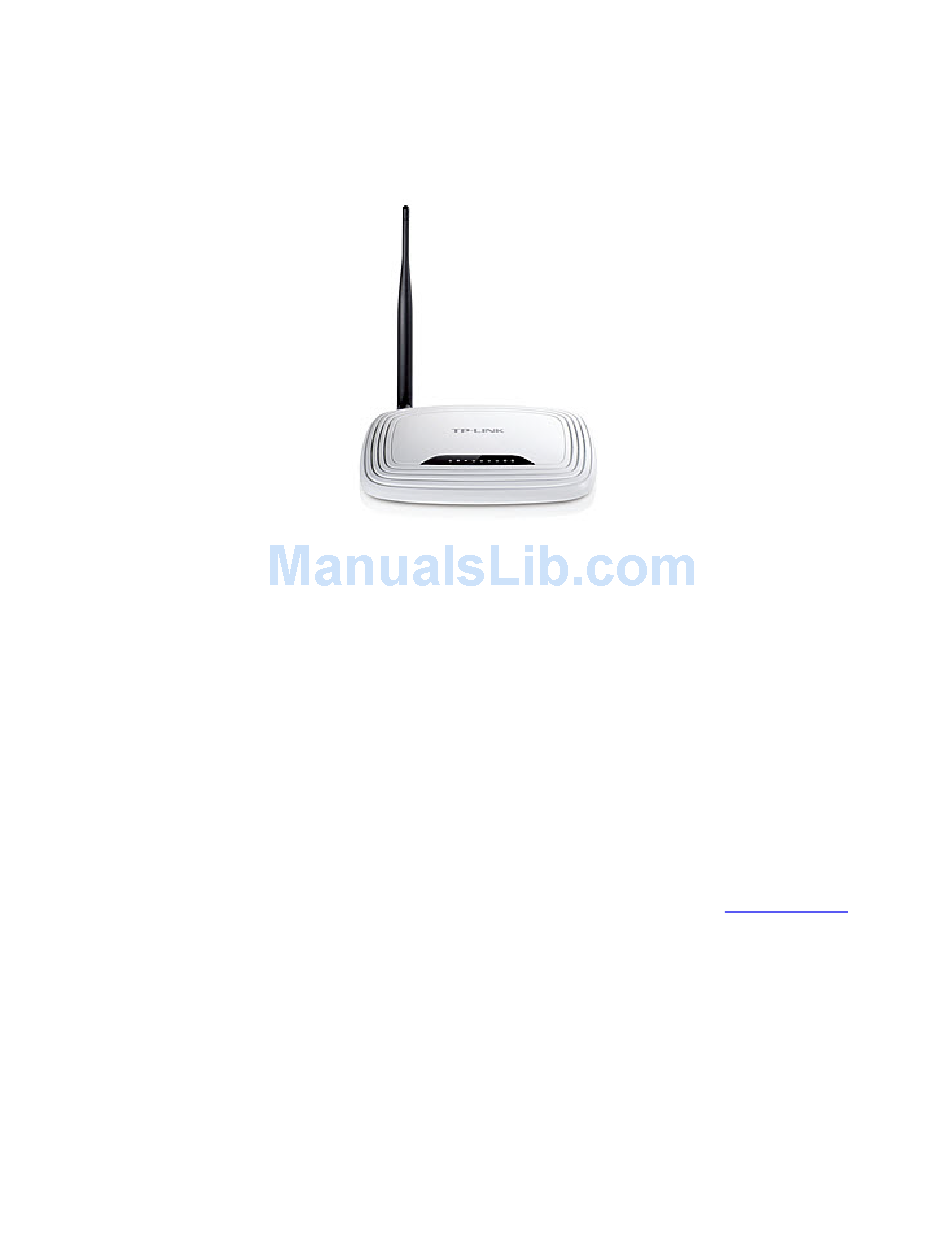

9/18/2015 Untitled Document How to Setup TPLink WR740N Router for WAD Servers TABLE OF CONTENTS 0. Introduction 1. How to setup the TPLink WR740N Router 0. Introduction TPLink WR740N (TPL 740N) is a home router with a builtin DHCP server. It can only work as a router, not as an access point, and it is one of the most economical router in the market today. It is a everyday standard router capable of handling 100 Mbps LAN connection and 802.11n Wireless transmission. It is a perfect unit to pair with WAD104 for home where the logins will be limited to 5 customers or less. For WAD110 and WAD120, the TPL 740N can only be connected when the DHCP server inside the WAD unit is disabled. Nonetheless for the WAD110 or WAD120 units, where many customer logins are expected, TPL 740N is not recommended. For more detail description of the router, please refer to TPLink WR740N. There is no need to change the default configuration of the TPL 740N router for use with WAD units. For changes needed in the WAD110 and WAD120 units, please refer to the USER MANUAL of the WAD units. The TPL 740 is also strickly a NON POE router that comes with its own power adapter. 1. How to setup the ZF 7372 with the DHCP server enabled. Connect the LAN cable from the WAD unit to any one of the four LAN ports in the TPL 740N. Be sure to avoid connecting the WAN port. file:///D:/Old%20Notebook/web20120511%20Go%20Daddy/html/cinet/tplink740n.htm...
Page 2
9/18/2015 Untitled Document For Internet, connect the Internet LAN cable to the WAN port of the TPL 740N. Customers who login to the TPL 740N to listen to the audio will now be able to surf the Internet. For Auto Channel Naming, connect DECA Broadband Connector as follows. Here we demonstrate using the WAD104 and a Switch. file:///D:/Old%20Notebook/web20120511%20Go%20Daddy/html/cinet/tplink740n.htm...
Page 3
9/18/2015 Untitled Document Note that the LAN cable coming from the DECA Broadband Connector to the Switch can be rerouted to connect from the DECA Broadband Connector to any one of the LAN ports in the TPL 740N. file:///D:/Old%20Notebook/web20120511%20Go%20Daddy/html/cinet/tplink740n.htm...
