Crestron Zum Installation Manual

ZUMMESH-NETBRIDGE
Zūm™ Network Bridge
Installation Guide

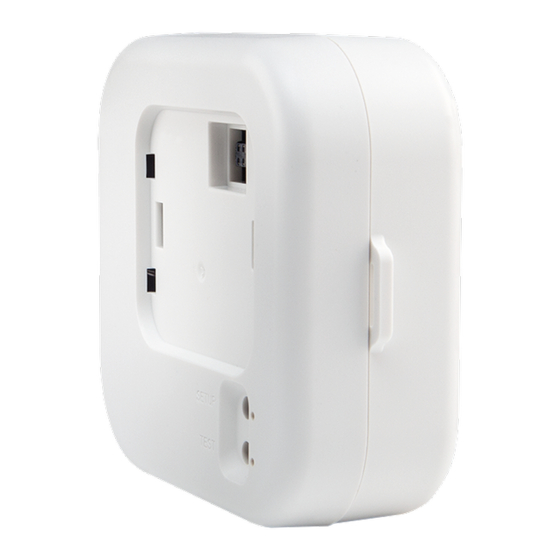

Description
The Crestron ® ZUMMESH NETBRIDGE enables Zūm device setup from a mobile app and
integrates a stand-alone Zūm lighting control system with the Zūm hub (sold separately)
for a centrally managed, enterprise-wide lighting control system. Attach the Network
Bridge to a Zūm J-box device (sold separately) to use the mobile app to set up the Zūm
devices in the room. Adding the Zūm hub to the centrally-managed lighting system
enables all of the network bridges to interface for centralized monitoring, management,
and control of the lighting systems throughout an entire building.
A basic single-room Zūm system consists of Zūm mesh devices, i.e., dimmers, switches,
keypads, and sensors. The Zūm mesh devices in the room communicate directly with each
other without the need for a centralized gateway or processor.
SPECIFICATION
Power Requirements
Average Draw
Peak Draw
Enclosure
Housing
Mounting
Environmental
Temperature
Humidity
Dimensions
Height
Width
Depth
Weight
Additional Resources
Visit the product page on the Crestron website (www.crestron.com)
for additional information. Use a QR reader application on your
mobile device to scan the QR image.
DETAILS
60 mA, 3.3 Volts
250 mA, 3.3 Volts
Power provided via the ZUMMESH-JBOX or
ZUMMESH-JBOX-PSU (sold separately)
Plastic, white
Mounts to a Zū m J-Box Zone Controller or a Zū m
Network Bridge Power Supply (sold separately);
Plenum rated for mounting in air-handling space
32° to 104 °F (0° to 40 °C)
10% to 90% RH (noncondensing)
1.66 in (42 mm)
1.94 in (49 mm)
0.76 in (20 mm)
3 oz (85 g)
Installation
WARNING: To avoid re, shock, or death, turn off the power at the circuit breaker or
fuse and test that the power is off before wiring!
NOTE: Install and use this product in accordance with appropriate electrical codes and
regulations.
NOTE: Ensure that the ZUMMESH-NETBRIDGE is installed within range of the
ZUMNET-GATEWAY.
Mount the ZUMMESH-NETBRIDGE to any J-box device.
1. Use a at-head screwdriver to remove the cover on the J-box device.
2. Align the ports on the ZUMMESH-NETBRIDGE and the J-box device, and then
insert the network bridge into the J-box device. The network bridge snaps into
place.
100-277 Vac power
from breaker
Neutral (white)
Hot (black)
Remove the network bridge.
1. Place your thumb on the side of the network bridge that is nearest the J-box.
2. Press the network bridge away from the J-box. While pressing on the side of the
network bridge, slightly lift your thumb up. The network bridge should easily detach
from the J-box device.
Using the Zūm App
The Zūm app is available for download from the App Store
Zūm app provides quick and easy setup of a Zūm network.
® app in iTunes ® software. The
