- Page 1 (Supplementary operating instructions)
-
Page 2: Footloose And Fancy Free

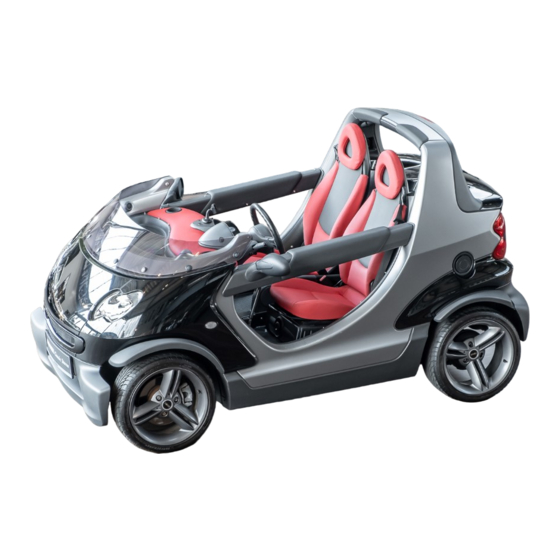

Footloose and fancy free >> Be it the sun, blue sky or the desire to break out of the daily grind, the most uncompromising smart ever built provides pure open air enjoyment with no roof, no doors, and no windscreen. These quick reference operating instructions show you all that the crossblade can do. -
Page 3: Opening And Closing The Crossblade
Opening and closing the crossblade >Note! If the door bar is not properly locked, a warning sound is triggered when you start off. How to open and close the crossblade To open the door bar: >Important! The driver and passenger side door bars Pull the release lever on the underside - Please grease the door bar locks at are opened and closed manually. -
Page 4: Adjusting The Mirrors
Adjusting the mirrors Adjusting the mirrors Ensure that the outside mirrors are correctly set every time before you start driving. Only then can the driver be sure that the view to the rear is unobstructed. >Note! How to adjust the outside mirrors Danger of accident! The adjustment lever is found on the Adjust the outside mirrors by turning... -
Page 5: Centre Console And Cockpit
Centre console and cockpit How to use the hazard warning lights To switch on the hazard warning lights, press the red switch (B). > This causes: - all six turn signal lights to start flashing, - the turn signal indicator light (when the ignition is switched on) - the hazard warning light switch also to flash. - Page 6 Driving Never drive with the wind deflector Danger of accident! open; see page 7. The crossblade and its safety systems are intended for use on Please put all loose objects away in the surfaced roads only. Driving the provided stowage compartments prior crossblade over any other type of terrain to driving.
- Page 7 Driving After driving in the rain - Park the crossblade in a dry and well- ventilated garage. - Also be sure to dry off the covers and the tarpaulin; see page 9. Danger of injury! Always protect the driver-side airbag with the provided cover when the vehicle is exposed to the rain.
- Page 8 Loading What you are permitted to load Danger of injury! Luggage compartment volume: Loaded objects must always be properly tied down. In the event of a > 122 l sudden full application of the brakes or in Gross weight limit: an accident they could penetrate into the >...
-
Page 9: Wind Deflector
Wind deflector Opening the wind deflector Turn the three screw plugs in anti- Closing the wind deflector Using both openings under the wind clockwise direction (90 degrees). Firmly hold the wind deflector with one deflector, you can check the filling >... -
Page 10: Putting On The Tarpaulin
Putting on the tarpaulin 8 - >Important! Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others. - Page 11 Putting on the tarpaulin The tarpaulin serves to protect your Danger of accident! parked crossblade from bad weather. Put the linkage together. The pooling of substantial However, it is not designed to act as a quantities of water in the vehicle could permanent shelter from the rain.
-
Page 12: Stowing The Tarpaulin
Stowing the tarpaulin 10 - >Important! Ensure that you read through the detailed smart operating instructions to ensure that you enjoy your smart to the fullest and that you avoid any dangers to yourself and others. - Page 13 Stowing the tarpaulin How to stow the tarpaulin >Note! Only place a clean and dry tarpaulin back Open the tailgate. into the bag. Take the linkage out of the tarpaulin and place it directly behind your crossblade. Fold in the tarpaulin on the right and left sides.
-
Page 14: Hazard Warning Triangle
Hazard warning triangle Where to find the hazard warning triangle >Note! Open the tailgate. The stamped in information signs on the Press both release buttons (A) on the inside of the storage room do not apply to inside of the tailgate. the crossblade. -
Page 15: Breakdown Set And Battery
Breakdown set and battery Breakdown set Remove the floor mat. Remove the lower section of the This smart original part is either an Undo the velcro strip on the lower footrest. optional extra ex works or can be section of the cover. Unscrew the mounting plate from the retrofitted as an original smart Take the cover out. -
Page 16: Care Instructions
Care instructions All the smartcare products for looking after your car are available at your local smart Center. Exterior Lightly soiled, manual Heavily soiled Specialties Never components washing manual washing Car shampoo concentrate, Car shampoo concentrate, Matte painted Powder coated single- insect remover for insect hard wax, insect remover plastic parts... - Page 17 Care instructions Exterior Lightly soiled, manual Heavily soiled, manual Specialties Never components washing washing Car shampoo concentrate, Car shampoo concentrate, Wind deflector Polycarbonate insect remover for insect insect remover for insect (windshield) remains remains See previous page Damp, clean cloth, light Lukewarm water and car Tarpaulin Nylon...
-
Page 18: Technical Data
Technical data Things you need to know The technical data is valid for all standard equipped vehicles. We recommend that you use original smart parts and accessories. Engine specifications crossblade Rated output (kW) At engine speed (rpm) 5470 Nominal torque (Nm)/overboost At engine speed (rpm) 2200-3500 Number of cylinders... - Page 19 Technical data Fuel consumption in accordance with In practice fuel consumption may lie The fuel consumption values given by the EU directive 1999/100/EU higher than the values determined and EU Directive (1999/100/EU) serve solely The following data were evaluated in cited in the EU guidelines (1999/100/EU), as a means of comparison at certain given accordance with the European Union...
- Page 20 Technical data Tyres and rims - Change your tyres in good time - in - Every smart Center will be more than >Note on smart tyres and rims! autumn - to winter tyres. willing to provide you with details and - Use only rims and tyres approved by - The vehicle operating approval status information concerning the rims and...
- Page 21 Technical data Weights crossblade Curb weight* (kg) Load capacity (kg) of which maximum luggage compartment load capacity (kg) Gross weight limit (kg) Curb weight as under (DIN 70020) including driver (68 kg), baggage (7 kg) and all fluids (tank 90% full). Optional extras will increase the curb weight;...
- Page 22 Technical data Vehicle dimensions crossblade Length (mm) 2,622 Width (mm) 1,618 Height (mm) 1,508 Wheelbase (mm) 1,812 Tread width, front/rear (mm) 1,278/1,392 Storage space (l) Turning circle (m) Useful information when refueling Fuel tank Capacity (l) of which reserve capacity (l) Fuel: Unleaded petrol Petrol engines...
-
Page 23: Engine Oil
Technical data Engine oil smart recommends that you use Mobil Oil quantity 3.2 litres engine oils or smartcare engine oil SAE 10W-40. Fill quantities crossblade Coolant system Coolant capacity (l) Corrosive agent/anti-freeze (l) Tyre fill pressure Summer tyres Winter tyres Front axle (bar) Rear axle (bar) >Important! - Page 24 Masthead Publisher and copyright Micro Compact Car smart GmbH Concept and execution Serco GmbH Layout and typesetting Creative Information Services Carmen Kreinjobst Translation INDUBO GmbH & Co. KG Print Wahl-Druck GmbH smart - a brand of DaimlerChrysler As the scope of the delivery depends on the order placed, the equipment in your vehicle may deviate from that shown in some of the descriptions and illustrations.
