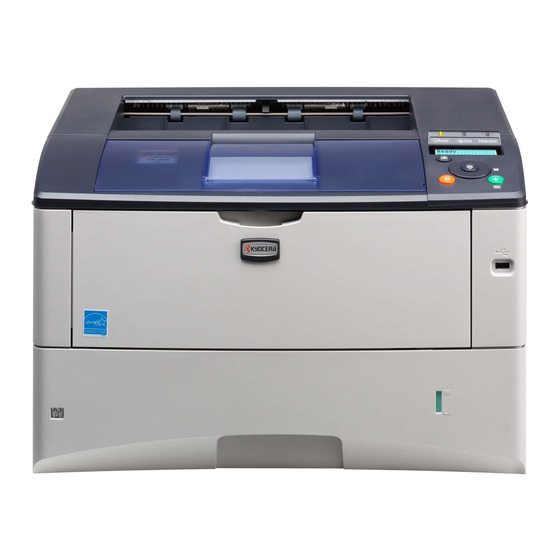

FS-6970DN
SERVICE
MANUAL
Published in March 2009
842J5110
2J5SM060
First Edition

Advertisement

Table of Contents
loading

Related Manuals for Kyocera FS-6970DN

Summary of Contents for Kyocera FS-6970DN

  • Page 1: Service Manual

    FS-6970DN SERVICE MANUAL Published in March 2009 842J5110 2J5SM060 First Edition...
  • Page 2 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. It may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for proper disposal. ATTENTION IL Y A UN RISQUE D’EXPLOSION SI LA BATTERIE EST REMPLACEE PAR UN MODELE DE TYPE INCORRECT.
  • Page 3 Revision history Revision Date Replaced pages Remarks...
  • Page 4 This page is intentionally left blank.

  • Page 5: Safety Precautions

    Safety precautions This booklet provides safety warnings and precautions for our service personnel to ensure the safety of their customers, their machines as well as themselves during maintenance activities. Service personnel are advised to read this booklet carefully to familiarize themselves with the warnings and precautions described here before engaging in maintenance activities.
  • Page 6 Safety warnings and precautions Various symbols are used to protect our service personnel and customers from physical danger and to prevent damage to their property. These symbols are described below: DANGER: High risk of serious bodily injury or death may result from insufficient attention to or incorrect compliance with warning messages using this symbol.

  • Page 7: Installation Precautions

    1.Installation Precautions WARNING • Do not use a power supply with a voltage other than that specified. Avoid multiple connections to one outlet: they may cause fire or electric shock. When using an extension cable, always check that it is adequate for the rated current....................•...

  • Page 8: Specifications 1

    2.Precautions for Maintenance WARNING • Always remove the power plug from the wall outlet before starting machine disassembly....• Always follow the procedures for maintenance described in the service manual and other related brochures............................• Under no circumstances attempt to bypass or disable safety features including safety mechanisms and protective circuits.
  • Page 9 • Do not remove the ozone filter, if any, from the copier except for routine replacement..... • Do not pull on the AC power cord or connector wires on high-voltage components when removing them; always hold the plug itself...................... •...
  • Page 10 This page is intentionally left blank.
  • Page 11 (1) Precautions ............................1-5-1 (2) Drum..............................1-5-1 (3) Toner container ..........................1-5-1 (4) How to tell a genuine Kyocera Mita toner container................1-5-2 1-5-2 Outer covers ............................1-5-3 (1) Detaching and refitting the top cover....................1-5-3 (2) Detaching and refitting the right cover and left cover ................1-5-4 1-5-3 Paper feed section ..........................1-5-5...
  • Page 12 1-5-6 Transfer/separation section ........................1-5-14 (1) Detaching and refitting the transfer roller and separation charger brush unit .........1-5-14 1-5-7 Fuser section ............................1-5-16 (1) Detaching and refitting the fuser unit....................1-5-16 (2) Detaching and refitting the fuser heater lamp M and S ..............1-5-17 (3) Detaching and refitting the heat roller .....................1-5-19 (4) Detaching and refitting the press roller....................1-5-20 (5) Detaching and refitting the fuser thermistor M, fuser thermistor S and thermal cutout ....1-5-21...

  • Page 13: Specifications

    1-1 Specifications 1-1-1 Specifications Printing method....... Semiconductor laser and electrophotography Printing speeds ....... Simplex: A4: 35 ppm A5: 35 ppm A3: 17 ppm Duplex: A4: 24.5 ppm A5-R: 16 ppm A3: 10.5 ppm Paper sizes ........Paper cassette: Ledger, Legal, Letter, A3, A4, B4, A5, JIS B5, A5, A6, Folio, Oficio II, Statement, Envelope C4, Envelope C5, ISO B5, Executive, 8 kai, 16 kai, Custom (148 ×...
  • Page 14 ° ° Operation environment ....Temperature: 10 to 32.5 C/50 to 90.5 Relative humidity: 15 to 80% Altitude: 2,500 m/8,202 ft maximum Illumination: 1,500 lux maximum Dimensions (W × D × H) ....469 × 395 × 285 mm/18 × 15 ×...

  • Page 15: Parts Names 1

    1-1-2 Parts names (1) Overall Figure 1-1-1 Top cover 11. Power switch Paper stopper 12. Waste toner box Top tray 13. USB interface connector Right side cover 14. Network indicators Operation panel 15. Network interface connector USB memory slot 16. Parallel interface connector Paper cassette 17.
  • Page 16 (2) Operation panel Figure 1-1-2 Indicators Message display Cursor keys GO Key Cancel Key OK Key MENU Key 1-1-4...
  • Page 17 1-1-3 Machine cross section Paper path Paper path (optional) Figure 1-1-3 Machine cross section Rear unit MP (Multi-Purpose) tray 10. Fuser unit MP tray paper feed unit 11. Transfer/separation section Toner container 12. Duplex paper conveying section Developer unit 13. Paper cassette Main charger unit 14.
  • Page 18 This page is intentionally left blank. 1-1-6...
  • Page 19 1-2 Installation 1-2-1 Drum unit Note the following when handling or storing the drum (drum unit). Note the following when handling or storing the drum unit. When removing the drum unit, never expose the drum surface to strong direct light. Avoid abrupt changes in temperature and humidity.
  • Page 20 1-2-4 Unpacking and installation (1) Unpacking Figure 1-2-2 Unpacking Printer Plastic bag Outer case 10. Installation guide etc. Bottom pad L 11. Plastic bag Bottom pad R 12. Toner container Machine cover 13. Power cord Top pad L 14. Waste toner box Top pad R 15.
  • Page 21 1-2-5 Installing the expanding memory (optional) <Procedure> 1. Power off the printer and unplug the printer power cord. 2. Open the right side cover. 3. Remove the screw and open the inner cover. Right side cover Inner cover Screw Figure 1-2-3 4.
  • Page 22 1-2-6 Installing the memory card (optional) <Procedure> 1. Turn off the printer and disconnect the power cord and printer cable. 2. Remove two screws and then open the option interface slot cover. 3. Install the memory card into the option inter- face slot.
  • Page 23 1-2-7 Installing the hard disk (optional) <Procedure> 1. Turn off the printer and disconnect the power cord and printer cable. 2. Remove two screws and then open the option interface slot cover. 3. Install the hard disk into the option interface slot.
  • Page 24 This page is intentionally left blank. 1-2-6...

  • Page 25: Maintenance Mode

    1-3 Maintenance Mode 1-3-1 Maintenance mode The printer is equipped with a maintenance function which can be used to maintain and service the machine. (1) Executing a maintenance item Message display Ready Press the MENU key. Report Print > Press the key several times until [Adjust/Maintenance >] is displayed.

  • Page 26: Service Status Page

    (2) Contents of maintenance mode items Maintenance items Description Printing a status page for service purpose Description Prints a status page for service purpose. The status page includes various printing settings >>Print and service cumulative. Status Page Purpose To acquire the current printing environmental parameters and cumulative information. Procedure Enter the maintenance mode [>>Print Status Page].
  • Page 27 Maintenance items Description Service Status Page Printer Firmware Version 2J5_2000.000.000 2009.01.27 [XXXXXXXX] [XXXXXXXX] [XXXXXXXX] [XXXXXXXX] Engine Information NVRAM Version _1F31225_1F31225 MAC Address 00:00:00:00:00:00 100/100 0/0/0/0/0/0/0/ 0/0/0/0/0/0/0/ 0/0/0/0/0/0/0/0/ 0000000/0000000/0000000/0000000/0000000/0000000/0000000/0000000/ 0000000/0000000/0000000/0000000/ F00/U00/0/0/0/0/70/00/00/00/00/abcde/ 0000/0000/0000/0000/0000/0000/0000/0000/0000/0000/0000/0000/0000/0000/0000/ 0000/0000/0000/0000/0000/0000/0000/0000/0000/0000/ 0203040508090A0B0C0D0F101112131415161718191A1B1C1D1E1F202122235E 12345678/11223344/00001234abcd567800001234abcd5678/01234567890123456789012345678901/0008/00/07 XXXXXXXX FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/ FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/ FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/ FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/ FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/ FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/ FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/ FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/FFFFFFFFFFFFFFFF/...
  • Page 28 Maintenance items Description Detail of service status page Items Description Firmware version Engine software version Engine boot version Main ROM version Panel mask version Used memory Local time zone Toner coverage Number of pages printed converted in reference to A4 or Letter size. FRPO settings Machine serial No.
  • Page 29 Maintenance items Description Items Description Machine/MP tray/Printer cassette/Paper feeder 1/Paper feeder 2/ Life counter (The first line) Paper feeder 3/Paper feeder 4/Duplex printing Life counter (The second - / - /Drum unit/Maintenance kit/ line) Operation panel lock status 0: Off 1: Partial lock 2: Full lock USB information...
  • Page 30 Maintenance items Description Items Description Drum status Drum surface potential Drum sensitivity Quantity of light DRT parameter coefficient Optional paper feeder software Paper feeder 1/Paper feeder 2/Paper feeder 3/Paper feeder 4/ - version Optional font version Optional table version Optional message version Optional message version NOTE: Code conversion...
  • Page 31 1. Enter the maintenance mode [>>Print Test Page]. 2. Press the OK key. [>>Print Test Page?] will be displayed. 3. Press the OK key. A sheet of test page will be printed. Completion FS-6970DN SN:SPL8307597 Counter:1135 Figure 1-3-3 Test page...
  • Page 32 Maintenance items Description Counter reset for the maintenance kit Description >>Maintenance The "Install MK" message means that maintenance kit should be replaced at 300,000 pages of printing. The interval counter must be manually reset using this service item. Maintenance kit MK-450 Maintenance kit includes the following units: Drum unit Developer unit...
  • Page 33 Maintenance items Description Automatic drum surface refreshing Description >>DRUM-CTRL The drum surface refreshing operation is normally performed when the power is turned on to the printer or during warm-up when the printer is recovering from the Sleep mode, but even then only at those times that the temperature/humidity sensor detects the drum surface to be in a state of dew condensation.
  • Page 34 Printing an event log (EVENT LOG) Service items Description Printing an event log Printing an event log (EVENT LOG) (EVENT LOG) Description Prints a history list of occurrences of paper jam, self-diagnostics, toner replacements, etc. Purpose To allow machine malfunction analysis based on the frequency of paper misfeeds, self diag- nostic errors and replacements.

  • Page 35: Event Log

    Service items Description Detail of event log Event Log Printer Firmware Version 2J5_2000.000.000 2009.01.27 [XXXXXXXX] [XXXXXXXX] [XXXXXXXX] [XXXXXXXX] Paper Jam Log Service Call Log Count. Event Descriptions Count. Service Code 9999999 10. 01. 88. 01. 01 1111111 00. 0000 8888888 10.
  • Page 36 Service items Description Items Description Paper Count. Event Remembers 1 to 16 of occurrence. If The total page Log code (2 digit, hexadecimal, 6 the occurrence of the previous paper count at the time of categories) jam is less than 16, all of the paper the paper jam.
  • Page 37 Service items Description Items Description Paper Reference 1: cont. Widthwise A4 size and lengthwise A5 are identical in length, however, the fuser tempera- ture differs. Detecting the fuser temperature depending on this temperature difference allows detection of paper misfeed due to a wrong paper size. Reference 2: The DU cover of the duplex paper conveying section is designed to operate as being held against the main unit as the paper cassette is installed.
  • Page 38 Service items Description Items Description Paper Jam Log (b) Detail of paper source (Hexadecimal) cont. 00: MP tray 01: Paper cassette 1 (printer) 02: Paper cassette 2 (paper feeder 1) 03: Paper cassette 3 (paper feeder 2) 04: Paper cassette 4 (paper feeder 3) 05: Paper cassette 5 (paper feeder 4) 06: - 07: -...
  • Page 39 Service items Description Items Description Maintenance Count. Item Remembers 1 to 8 of The total page count at the Code of maintenance replacing occurrence of replace- time of the replacement of item (1 byte, 2 categories) ment. If the occurrence of the toner container.
  • Page 40 This page is intentionally left blank. 1-3-16...

  • Page 41: Paper Misfeed Detection

    1-4 Troubleshooting 1-4-1 Paper misfeed detection (1) Paper misfeed indication When a paper misfeed occurs, the printer immediately stops printing and displays the paper misfeed message on the operation panel. To remove paper misfed in the printer, pull out the paper cassette, pull out the rear unit, remove the devel- oper unit or open the duplex cover.
  • Page 42 1-4-2 Self-diagnostic function (1) Self-diagnostic function This printer is equipped with self-diagnostic function. When a problem is detected, the printer stops printing and display an error message on the operation panel. An error message consists of a message prompting a contact to service personnel, total print count, and a four-digit error code indicating the type of the error.
  • Page 43 Remarks Code Contents Causes Check procedures/corrective measures 0420 Paper feeder communication error Improper installa- Follow installation instruction carefully again. Communication error between engine tion paper feeder. PWB and optional paper feeder. Defective harness Reinsert the connector. Also check for conti- between connect-L nuity within the connector harness.
  • Page 44 Remarks Code Contents Causes Check procedures/corrective measures 4000 Polygon motor (laser scanner unit) Defective harness Reinsert the connector. Also check for conti- error between polygon nuity within the connector harness. If none, POLRDYN signal does not go low within motor and main remedy or replace the harness.
  • Page 45 Remarks Code Contents Causes Check procedures/corrective measures 6000 Broken fuser heater lamp M wire Poor contact in the Reinsert the connector (See page P.1-5-21). ° fuser thermistor M The temperature does not reach 100 ° connector termi- F after the fuser heater lamp M has nals.
  • Page 46 Remarks Code Contents Causes Check procedures/corrective measures 6230 Broken fuser thermistor M wire Poor contact in the Reinsert the connector (See page P.1-5-21). The detected temperature of fuser ther- fuser thermistor M ° ° connector termi- mistor S is 50 C/122 F or more and nals.
  • Page 47 Remarks Code Contents Causes Check procedures/corrective measures 7410 Drum unit non- installing error The drum unit is Install the drum unit (See page P.1-5-12). The drum unit is not installed or not not installed. installed properly. Defective connec- Check the connection of connectors drum The drum PWB EEPROM does not com- tion drum PWB PWB (YC1) and connect-L PWB (YC3).

  • Page 48: Image Formation Problems 1

    1-4-3 Image formation problems (1)Completely blank (2)All-black printout. (3)Dropouts. (4)Black dots. (5)Black horizontal printout. streaks. P.1-4-9 P.1-4-10 P.1-4-11 P.1-4-11 P.1-4-12 (6)Black vertical (7)Unsharpness. (8)Gray background. (9)Dirt on the top (10)Undulated print- streaks. edge or back of the ing at the left edge paper.
  • Page 49 (1) Completely blank printout. Print example Causes Check procedures/corrective measures No trans- Poor contact of engine Check the installation position of the engine PWB. PWB’s transfer bias out- Refer to figure 1-4-3 below. charging. put terminal and printer’s contact (spring). Printer bottom Contact (spring)
  • Page 50 (2) All-black printout. Print example Causes Check procedures/corrective measures No main Defective main charger Replace the main charger unit (See page P.1-5-13). charging. unit. Poor contact of engine Check the installation of the drum (main charger) unit (Refer to PWB’s main charger out- figure 1-4-5 below and P.1-5-12).
  • Page 51 (3) Dropouts. Print example Causes Check procedures/corrective measures Defective developing roller (developer If the defects occur at regular intervals of 39 mm/1 " (See 9/16 unit). page P.2-4-2), the problem may be the damaged developing roller (in the developer unit). Replace developer unit. If a developer unit which is known to work normally is available for check, replace the current developer unit in the printer with the normal one.
  • Page 52 (5) Black horizontal streaks. Print example Causes Check procedures/corrective measures Defective drum unit's ground. Defective drum unit's ground. The contact (spring) in the drum unit and its counter part, the drum grounding terminal in the printer, must be in a good contact. (See page P.1-4-9, refer to figure 1-4-3) Defective drum unit.
  • Page 53 (8) Gray background. Print example Causes Check procedures/corrective measures Print density setting. The print density may be set too high. Try adjusting the print density. For details refer to the printer's operation guide. Defective drum surface potential. If a drum unit which is known to work normally is available for check, replace the current drum unit in the printer with the nor- mal one.

  • Page 54: Electric Problems

    1-4-4 Electric problems Problem Causes Check procedures/corrective measures Defective waste toner sen- Replace the drum unit (See page P.1-5-12). Defective waste sor. toner box detecting. Defective connection Check the connection of connectors between drum PWB (YC1) between drum PWB (YC1) and connect-L PWB (YC3).
  • Page 55 Problem Causes Check procedures/corrective measures Broken power cord. Replace the power cord. Defective message The power cord is not Check the contact between the printer’s AC inlet and the AC displaying (LCD) [2]. plugged in properly. power outlet. No message appears on the message dis- No electricity at the AC Measure the AC input voltage.

  • Page 56: Mechanical Problems

    1-4-5 Mechanical problems Problem Causes/check procedures Corrective measures Check if the surfaces of the following rollers Clean with isopropyl alcohol. No primary paper feed. are dirty with paper powder: pickup roller, paper feed roller, and MP tray feed roller. Check if the pickup roller, paper feed roller Check visually and replace any deformed and MP tray feed roller are deformed.
  • Page 57 1-5 Assembly and Disassembly 1-5-1 Precautions for assembly and disassembly (1) Precautions Be sure to turn the power switch off and disconnect the power plug before starting disassembly. When handling PWBs, do not touch connectors with bare hands or damage the PWB. Do not touch any PWB containing ICs with bare hands or any object prone to static charge.
  • Page 58 A black-colored band when seen through the left side window ( A shiny or gold-colored band when seen through the right side window ( The above will reveal that the toner container is a genuine Kyocera Mita branded toner container, otherwise, it is a coun- terfeit.

  • Page 59: Outer Covers

    1-5-2 Outer covers (1) Detaching and refitting the top cover Procedure 1. Open the top cover. Top cover 2. Remove two screws. 3. Remove the connector and then remove the top cover. Screw Screw Connector Figure 1-5-3 1-5-3...
  • Page 60 (2) Detaching and refitting the right cover and left cover Procedure 1. Remove the paper cassette. 2. Open the MP tray. 3. Open the rear unit. 4. Remove the top cover (See page P.1-5-3). 5. Unlatch three latches and then remove the right cover.
  • Page 61 1-5-3 Paper feed section (1) Detaching and refitting the paper feed assembly (paper feed roller and pickup roller) Procedure 1. Remove the paper cassette. 2. Slide the paper feed roller pin. 3. While pressing the lever and then remove the paper feed roller assembly. 4.
  • Page 62 (2) Detaching and refitting the retard roller Procedure 1. Remove the paper cassette. 2. Push the bottom plate down until it locks. Paper cassette 3. Unlatch two latches and then remove the retard guide. Bottom plate Latch Retard guide Latch Figure 1-5-7 4.
  • Page 63 (3) Detaching and refitting the registration upper and lower roller Procedure 1. Remove the developer unit (See page P.1-5- Spring 11). 2. Remove the spring. 3. Pull the registration upper roller. Registration upper roller Figure 1-5-9 4. Remove the registration upper roller from the bush.
  • Page 64 6. Remove the stopper. 7. Slide the bush. Stopper Bush Registration lower roller Figure 1-5-11 8. Remove the registration lower roller. 9. Remove the gear and three bushes from the Registration lower roller registration lower roller. Gear Bush Bush Bush 10.
  • Page 65 (4) Detaching and refitting the MP tray paper feed roller Procedure 1. Remove the paper cassette. 2. Open the top cover. 3. Remove two holders from the main unit frame. MP tray Main unit frame Main unit frame Holder Holder MP tray MP tray (back side)
  • Page 66 4. Remove two holders from the main unit frame. 5. Remove the MP tray. MP tray MP tray MP tray Holder Holder Main unit frame Main unit frame Figure 1-5-14 6. Pull the MP tray paper feed roller holder. 7. Slide the MP tray paper feed roller holder. MP tray paper 8.

  • Page 67: Developer Section

    1-5-4 Developer section (1) Detaching and refitting the developer unit Procedure 1. Open the top cover. Top cover 2. Open the MP tray. 3. Remove the developer unit. Developer unit 4. Check or replace the developer unit and refit all the removed parts. MP tray Figure 1-5-16 1-5-11...
  • Page 68 1-5-5 Drum section (1) Detaching and refitting the drum unit Procedure 1. Remove the developer unit (See page P.1-5- 11). 2. Open the left side cover and then remove the waste toner box. Left side cover 3. Unlock the drum unit lock and then remove the drum unit.
  • Page 69 (2) Detaching and refitting the main charger unit Procedure 1. Remove the drum unit (See page P.1-5-12). Main charger unit 2. Unlock the lock lever and then remove the main charger unit. 3. Check or replace the main charger unit and Lock lever refit all the removed parts.
  • Page 70 1-5-6 Transfer/separation section (1) Detaching and refitting the transfer roller and separation charger brush unit Procedure 1. Remove the developer unit (See page P.1-5- Paper chute guide 11). 2. Remove the drum unit (See page P.1-5-12). Hook 3. Slide the paper chute guide and unhook the Hook hooks.
  • Page 71 6. Release six latches and then remove the separation charger brush unit. 7. Check or replace the transfer roller and sep- Separation charger aration charger brush unit and refit all the brush unit removed parts. CAUTION: Note the following, when refitting the separation charger brush unit.
  • Page 72 1-5-7 Fuser section (1) Detaching and refitting the fuser unit Procedure Flat-blade 1. Open the rear unit. screwdriver 2. Insert a flat-blade screwdriver to push the fuser lock (gray colored) on the rear unit and the fuser unit is separated from the rear unit Fuser unit (rails).
  • Page 73 (2) Detaching and refitting the fuser heater lamp M and S Procedure 1. Remove the fuser unit (See page P.1-5-16). Screw 2. Remove two screws and then open the fuser unit. NOTE: Screw When fixing the screw again, be careful not to tighten the screw too much because the fuser lower frame is made of resin.
  • Page 74 4. Remove two screws from the fuser heater lamp M and S. Fuser heater lamp M 5. Remove the fuser heater lamp M and S. Screw 6. Check or replace the fuser heater lamp M Screw and S, and refit all the removed parts. Terminal Seat the fuser heater lamp M and S aligning Fuser heater...
  • Page 75 (3) Detaching and refitting the heat roller Procedure 1. Remove the fuser heater lamp M and S (See page P.1-5-17). Heat L bush 2. Remove the heat roller from the fuser upper frame. 3. Remove the heat R bush, heat L bush, heat Heat roller gear Z46 and heat roller ground plate from Heat R bush...
  • Page 76 (4) Detaching and refitting the press roller Procedure 1. Remove the fuser unit (See page P.1-5-16). 2. Open the fuser unit (See page P.1-5-17). 3. Remove the press roller from the fuser lower Bearing frame. 4. Remove two bearings. Press roller 5.
  • Page 77 (5) Detaching and refitting the fuser thermistor M, fuser thermistor S and thermal cutout Procedure 1. Remove the fuser unit (See page P.1-5-16). 2. Turn the fuser unit bottom side up. Cord cover 3. Unlatch two latches and then remove the cord cover.
  • Page 78 8. Remove the screw (nut) and then remove Spacer A Spacer B the fuser thermistor M. Insulating NOTE: sheet Screw Set spacer A so that its insulating sheet Fuser thermistor M faces the fuser thermistor. The number of spacer Bs differs depending on the fuser unit.
  • Page 79 1-5-8 PWBs (1) Detaching and refitting the engine PWB Bottom plate 1 Procedure Screw 1. Remove the developer unit (See page P.1-5- 11). 2. Remove the drum unit (See page P.1-5-12). 3. Remove the top cover (See page P.1-5-3). 4. Remove the left cover (See page P.1-5-4). 5.
  • Page 80 11. Detach the joint. 12. Remove eight screws and then remove the Joint DU base. DU base Screw Screw Screw Screw Screw Screw Screw Screw Figure 1-5-34 13. Remove four snaps. 14. Remove the tab. 15. Remove five connectors. Snap Snap Snap Snap...
  • Page 81 16. Remove four screws. Screw Screw Screw Screw Figure 1-5-36 17. Detach the engine PWB assembly. 18. Remove four connectors. 19. Remove the engine PWB assembly. Connectors Connectors Engine PWB assembly Figure 1-5-37 1-5-25...
  • Page 82 20. Remove the connector. 21. Remove two screws-A and then remove the EEPROM HV plate. 22. Remove two screws-B and then remove the engine R ground plate, engine L ground plate and shield plate. 23. Check or replace the engine PWB and refit all the removed parts.
  • Page 83 (2) Detaching and refitting the main PWB Procedure 1. Remove the top cover (See page P.1-5-3). 2. Remove the right cover (See page P.1-5-4). Connectors 3. Remove six connectors from the main PWB. Connect-R PWB Main PWB 4. Remove thirteen connectors from the con- nect-R WPB.
  • Page 84 7. Open the rear unit. 8. Remove six screws and then remove the controller box (main PWB). Screws Screw Rear unit Screw Controller box Screw Screw Figure 1-5-40 9. Remove five screws and then remove the main PWB from the controller box. Screw 10.
  • Page 85 (3) Detaching and refitting the power source unit Procedure 1. Remove the top cover (See page P.1-5-3). 2. Remove the left cover (See page P.1-5-4). 3. Remove the drum unit (See page P.1-5-12). 4. Remove the connector (YC11) from the con- nect-L PWB.
  • Page 86 7. Remove seven screws-A and then remove Grounding the drum grounding plate and two grounding terminal terminals. 8. Remove the screw-B and then remove the grounding terminal. 9. Remove the AC inlet. Screw-B AC inlet Screw-A (M3) Screw-A Screw-A (M3) Drum grounding plate...
  • Page 87 13. Remove the connector. 14. Remove seven screws and then remove the power source PWB. Screw Screw 15. Check or replace the power source unit and refit all the removed parts. Screw Power source PWB Connector Heat sink plate Screws Power source plate Screws Figure 1-5-45...
  • Page 88 1-5-9 Others (1) Detaching and refitting the paper feed drive unit Procedure Clamp 1. Remove the paper cassette. 2. Remove the developer unit (See page P.1-5- Right fan motor 11). Connect-R PWB 3. Remove the top cover (See page P.1-5-3). 4.
  • Page 89 9. Remove three screws and then remove the paper feed drive unit. 10. Check or replace the paper feed drive unit and refit all the removed parts. 11. To refit the paper feed drive unit, make sure mesh of gears. Screw Screw Gear...
  • Page 90 (2) Detaching and refitting the main drive unit Procedure 1. Remove the top cover (See page P.1-5-3). 2. Remove the right cover (See page P.1-5-4). 3. Remove the controller box (See page P.1-5- 27). 4. Remove two connectors. 5. Remove five screws and then remove the Screw main drive unit.
  • Page 91 (3) Detaching and refitting the laser scanner unit Procedure 1. Remove the top cover (See page P.1-5-3). Main PWB 2. Remove the right cover (See page P.1-5-4). 3. Remove two connectors from the main PWB. Main PWB YC14 YC12 Connectors Figure 1-5-49 4.
  • Page 92 (4) Direction of installing the principal fan motors When detaching or refitting the left fan motor or right fan motor, be careful of the airflow direction (intake or exhaust). Intake Left fan motor (Rating label: Inside) Intake Right fan motor (Rating label: Inside) Figure 1-5-51 1-5-36...

  • Page 93: Downloading Firmware

    1-6 Firmware 1-6-1 Downloading firmware Firmware files are named after the following codes: Firmware file name example Engine firmware D L _ E N G N . 2 J 5 master download file S 2 J 5 _ 1 0 0 0 0 0 0 0 2 4 . x Extention Software ID Product code...
  • Page 94 (1) Downloading the firmware from the USB memory To download data written in a USB memory to the printer, proceed as explained in this section. CAUTION Downloading firmware takes several minutes. Do not turn power off during downloading. If downloading is interrupted by an accidental power failure, etc., the main PWB may have to be replaced.
  • Page 95 (2) Downloading the firmware from the memory card To download data written in a memory card (CompactFlash) to the printer, proceed as explained in this section. CAUTION Downloading firmware takes several minutes. Do not turn power off during downloading. If downloading is interrupted by an accidental power failure, etc., the main PWB may have to be replaced.
  • Page 96 11. Confirm that the printer's power switch is set to off. 12. Insert the memory card into the printer's memory card slot. Memory card slot Memory card Figure 1-6-7 13. Turn printer power on. Power switch: On 14. When message display (1) is displayed to detect firmware in the memory card.

  • Page 97: Paper Feed Section

    2-1 Mechanical Construction 2-1-1 Paper feed section Paper feed section consists of the paper feed unit that feeds paper from the paper cassette and the MP tray paper feed unit that feeds paper from the MP tray, and the paper feed conveying section that conveys the fed paper to the transfer/ separation section.
  • Page 98 (2) MP tray paper feed section The MP tray can contain about 100 pages. Feeding is performed by the rotation of the MP tray feed roller from the MP tray. Function of the MP tray friction pad prevents papers from multiple feeding. Figure 2-1-3 MP tray paper feed section MP tray paper feed roller Bottom plate...
  • Page 99 (3) Paper feed conveying section The conveying section consists of the parts shown in the following illustration and conveys papers from the paper cassette or the MP tray to the transfer/separation section when papers are fed. Paper by feeding or refeeding is conveyed by the middle feed roller to the position where the registration sensor is turned on, and then sent to the transfer/separation sec- tion by the upper registration roller and lower registration roller.
  • Page 100 2-1-2 Drum section (1) Drum section The drum unit includes a photoconductive drum, eraser lamp, cleaning blade and, a main charger unit. The drum unit is removable with the main charger unit. Figure 2-1-7 Drum section Drum Main charger case Charger roller cleaning roller Main charger roller Main high voltage output (DC + AC)

  • Page 101: Expose Section

    2-1-3 Expose section (1) Laser scanner unit The charged surface of the drum is then scanned by the laser beam from the laser scanner unit. The laser beam is dis- persed as the polygon motor revolves to reflect the laser beam over the drum. Various lenses and mirror are housed in the laser scanner unit, adjust the diameter of the laser beam, and focalize it at the drum surface.
  • Page 102 Laser scanner unit POLCLK YC11-5 Polygon POLRDYN YC12-1 motor POLONN YC12-2 PDMASKN YC12-4 Laser Pin-photo beam sensor YC16-2 PD PWB Engine PWB Main PWB Laser diode Drum APC PWB OUTPEN YC12-3 PCONT YC11-12 SAMPLEN1 YC11-10 VDATAP1 YC11-8 VDATAN1 YC11-7 Figure 2-1-10Laser scanner unit block diagram 2-1-6...

  • Page 103: Developing Section

    2-1-4 Developing section (1) Developer unit The developing section consists of the developer unit and the toner container. The developer unit consists of the develop- ing roller where a magnetic brush is formed, the doctor blade and the agitator A and B that agitate the toner. Also, the toner sensor checks whether or not toner remains in the developer unit.
  • Page 104 2-1-5 Transfer/separation section (1) Transfer/separation section The image developed by toner on the drum is transferred onto the paper because of the electrical attraction between the toner itself and the transfer roller. The transfer roller is negatively biased so that the positively charged toner is attracted onto the paper while it is pinched by the drum and the transfer roller.

  • Page 105: Cleaning Section

    2-1-6 Cleaning section After the transferring process, the drum needs to be physically cleaned of toner which is residual after the development process. The cleaning blade is constantly pressed against the drum and scrapes the residual toner off to the cleaning roller.
  • Page 106 2-1-7 Fuser section (1) Fuser unit The fuse section consists of the following parts and fixes the toner that is transferred to the paper at the transfer/separa- tion section. The paper sent from the transfer/separation section is interleaved between the heat roller and the press roller. The heat roller is heated by the fuser heater lamp installed inside, and the toner is fused by heat and pressure and fixed onto the paper because the press roller is pressed by the fuser press spring.
  • Page 107 Fuser unit Power source LIVE Thermal cutout YC102-3 COMMON1 YC102-1 COMMON2 Fuser YC102-5 thermistor S Fuser thermistor THERM2 Fuser Fuser YC506-15 heater THERM1 heater YC506-6 lamp M lamp S Heat EXITPAP roller YC506-4 Paper exit sensor Engine PWB Figure 2-1-18Fuser section block diagram 2-1-11...
  • Page 108 2-1-8 Paper exit section/rear unit (1) Paper exit section/rear unit The paper exit section transports the paper which passed the fuser unit towards the top tray. The paper which passed through the fuser unit turns on the paper exit sensor which is driven by the fuser actuator in the fuser unit, and is led by the guide comprised of the rear cover and the frame, finally reaching the face down upper roller.
  • Page 109 Face down tray paper full sensor Connect-L HPAP FDPFULN YC503-6 OUTA1 YC9-11 OUTA3 YC9-10 OUTB1 YC9-9 OUTB3 YC9-8 Connect-R Switch back motor Engine PWB Paper exit section Exit fan EXITFAN YC502-9 motor FDDRN YC506-8 FUDRN YC506-10 Face up/down solenoid Rear unit Duplex YC6-4 sensor...

  • Page 110: Duplex Conveying Section

    2-1-9 Duplex conveying section (1) Duplex conveying section Figure 2-1-21Duplex conveying section DU roller Duplex jam sensor DU feed pulley (actuator) DU base DU roller DU lower guide DU feed pulley DU roller (10) Feed upper guide DU feed pulley Connect-R Engine PWB Duplex jam...

  • Page 111: Electrical Parts Layout

    2-2 Electrical Parts Layout 2-2-1 Electrical parts layout (1) Electrical parts layout Drum unit Fuser unit Developer unit Figure 2-2-1 Electrical parts layout Main PWB ............ Controls the software such as the print data processing and provides theinterface with computers. Engine PWB..........
  • Page 112 Connect-R PWB........... Interconnects the engine PWB and the electrical parts. Connect-L PWB ........... Interconnects the engine PWB and the electrical parts. Drum PWB ........... Relays wirings from electrical components on the drum unit. Drum indi- vidual information in EEPROM storage. Developer PWB ...........

  • Page 113: Power Source Unit

    2-3 Operation of the PWBs 2-3-1 Power source unit Power source unit MP tray paper feed sensor HANDSN ZCROSS Zero cross signal circuit SWSLEEPN Power switch Switching AC input regulator +5V1 circuit +24V1 Fuser Interlock heater switch lamp M HEATONN1 TRA51 Fuser heater lamp M control...
  • Page 114 YC102 Figure 2-3-2Power source unit silk-screen diagram Connector Pin No. Signal Voltage Description YC101 LIVE 220 - 240 V AC AC power input Connected NEUTRAL 220 - 240 V AC AC power input to the AC inlet YC102 COMMON1 220 - 240 V AC Fuser heater lamp M Connected N.C.

  • Page 115: Paper Feeder

    2-3-2 Engine PWB Right fan Fuser unit MP tray paper Duplex Developer Registration Middle feed Paper feed motor switch feed solenoid clutch solenoid clutch clutch clutch Connect-R PWB Operation Polygon panel PWB APC PWB PD PWB motor Exit fan Switchback motor motor Main motor...
  • Page 116 YC11 Figure 2-3-4Engine PWB silk-screen diagram 2-3-4...
  • Page 117 Connector Signal Voltage Description OPSDO 0/5 V DC (pulse) Paper feeder serial communication data output signal Connected +24V2 24 V DC 24 V DC power source (via interlock switch) to the con- +24V2 24 V DC 24 V DC power source (via interlock switch) nect-L PWB Ground (YC7)
  • Page 118 Connector Signal Voltage Description YC506 +5V1 5 V DC 5 V DC power source Connected THERM3 Analog Fuser unit detection voltage to the fuser +5V2 5 V DC 5 V DC power source unit EXITPAP 0/5 V DC Paper exit sensor: On/Off Ground THERM1 Analog...
  • Page 119 Connector Signal Voltage Description YC15 +5V1 5 V DC 5 V DC power source Connected FFANDRN 0/2.5/5 V DC Feed fan motor: Full speed/Half speed/Off to the feed fan motor 2-3-7...
  • Page 120 This page is intentionally left blank. 2-3-8...
  • Page 121 2-4 Appendixes (1) Wiring diagram 2-4-1...
  • Page 122 (2) Repetitive defects gauge First occurrence of defect 36 mm ( 1 " [Upper registration roller] 7/16 38.5 mm ( 1 " [Main charger roller] 39 mm ( 1 " [Developing roller] 9/16 52 mm ( 2 " [Lower registration roller] 1/16 55 mm ( 2 "...
  • Page 123 (3) Maintenance parts list Maintenance part name Alternative Fig. Part No. Ref. No. part No. Name used in service Name used in parts list Maintenance kit MK-450 MK-450/MAINTENANCE KIT (OPTION) 1702J58EU0 072J58EU Separation charger DC BRUSH ASSY Transfer roller ROLLER TRANSFER ASSY SP Paper feed assembly FEED HOLDER ASSY Retard roller...
  • Page 124 This page is intentionally left blank. 2-4-4...
