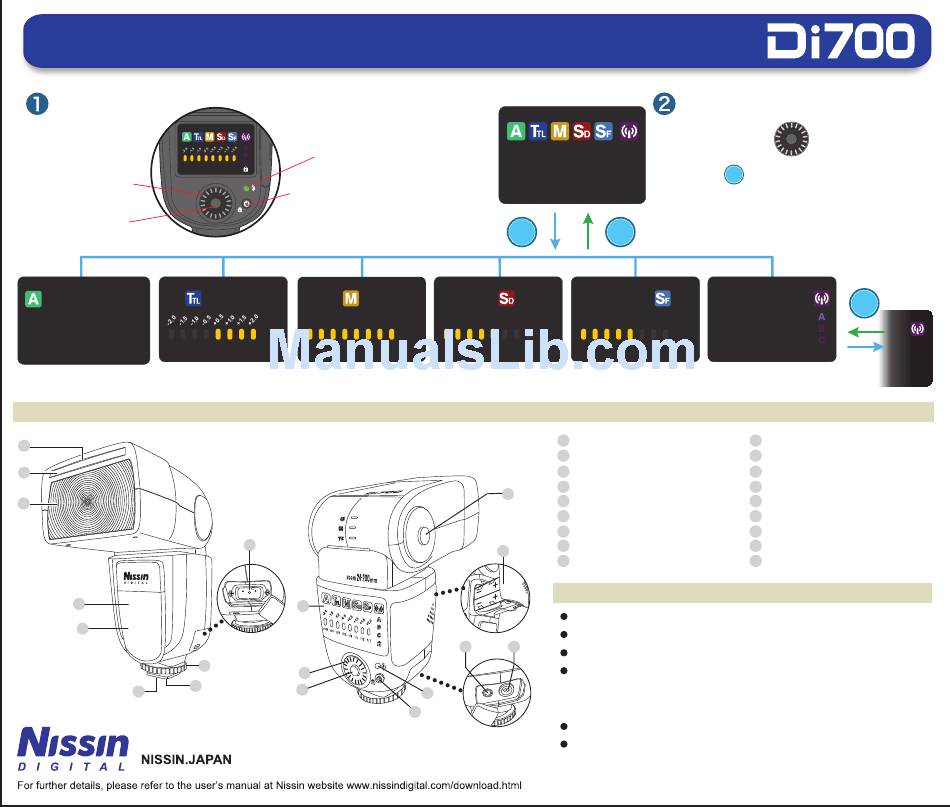

Quick Manual
POWER ON
Press on/ off
1/128 1/64 1/32 1/16 1/ 8 1/ 4 1/ 2 1/ 1
Function
Set
1/128 1/64 1/32 1/16 1/ 8 1/ 4 1/ 2 1/ 1
1/128 1/64 1/32 1/16 1/ 8 1/ 4 1/ 2 1/ 1
Auto
TTL
Nomenclature
1
2
3
4
5
7
6
for Canon/ Nikon
Pilot Button
On/ Off switch (System lock button)
Set
1/128 1/64 1/32 1/16 1/ 8 1/ 4 1/ 2 1/ 1
Manual
9
10
8
11
12
1/128 1/64 1/32 1/16 1/ 8 1/ 4 1/ 2 1/ 1
Set
or wait 8 sec.
1/128 1/64 1/32 1/16 1/ 8 1/ 4 1/ 2 1/ 1 1/128 1/64 1/32 1/16 1/ 8 1/ 4 1/ 2 1/ 1
SF
SD
1 Fill-in reflector
2 Light diffusing panel
3 Flash head
4 Remote/ Slave sensor
18
5 AF-assist light
6 Mounting foot
7 Hotshoe contacts
8 Lock ring
17
9 Power Pack socket
Turn on the flash unit
Press the on/ off switch. Screen A appears, and the mode A is set.
The pilot button blinks red showing the unit is charging.
16
15
In a few seconds, the pilot button turns green.
The display screen automatically turns off in about 2 mintues (in A/ TTL/
M mode) or about 5 mintues (in SD/ SF/ Wireless TTL Slave mode) after
13
the setting job is terminated.
14
For a test-flash, press the pilot button.
To turn off the flash unit manually, press the on/ off switch and hold it for
1 seconds.
FUNCTION SET
Rotate the dial
Set
Press Set to confirm
Set
1/128 1/64 1/32 1/16 1/ 8 1/ 4 1/ 2 1/ 1
Wireless TTL Slave
10 Display screen
11 Selector dial
12 Set button
13 Pilot button (Test flash button)
14 On/ Off switch (System lock button)
15 3.5mm sync socket
16 X-terminal
17 Battery magazine BM-02
18 Rotate lock
to select function
Set
A
B
C
