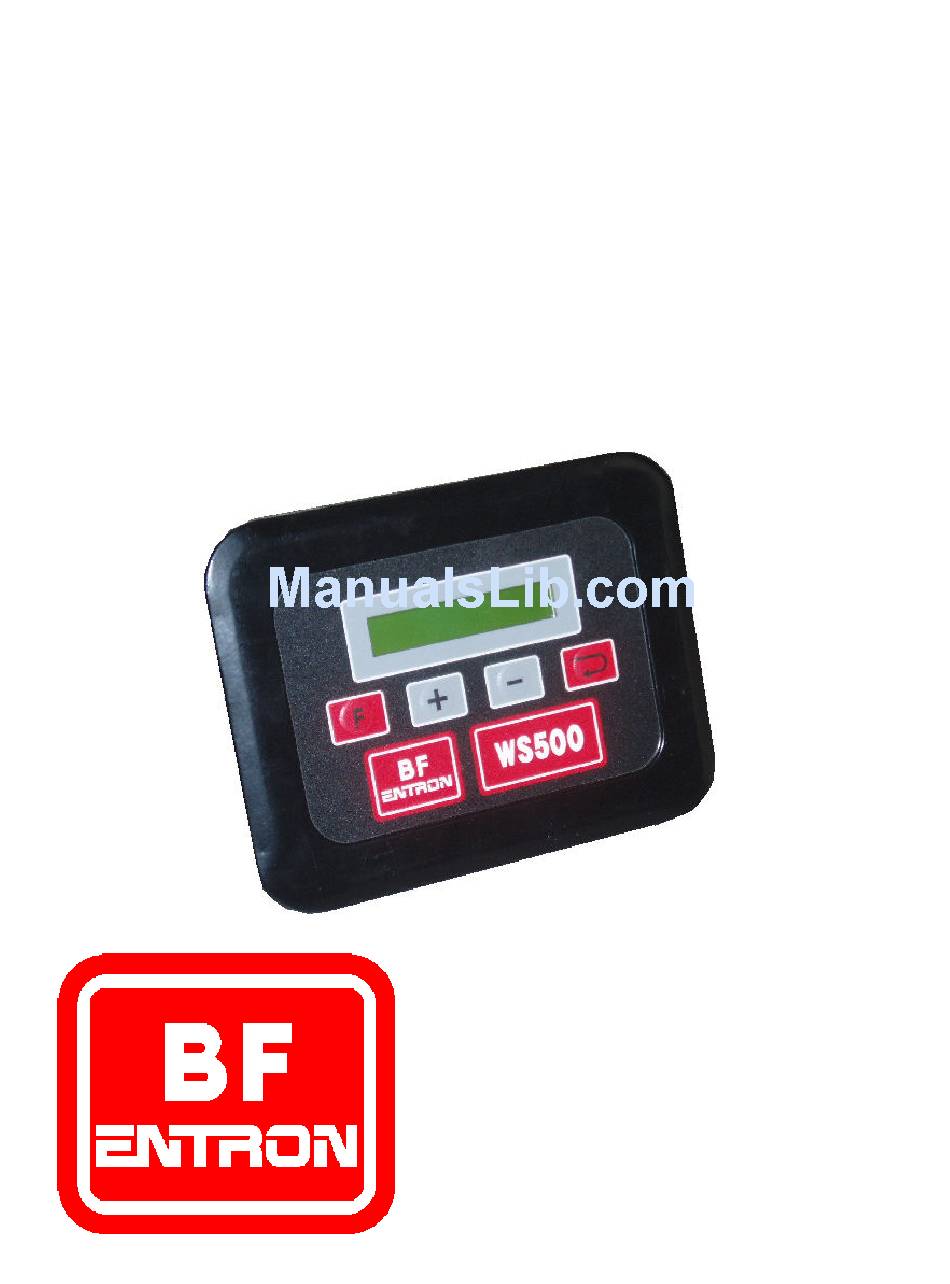

- Page 1 WS500 Manual For Timer firmware Version 1.09 BF ENTRON Ltd. Castle Mill Works Birmingham New Road Dudley West Midlands DY1 4DA Tel: 01384 455401 Fax: 01384 455551...
-
Page 3: Table Of Contents
Connections Configuring the WS500 Configuration Parameters Programming the WS500 Programme parameters Seam Welding Current Profiles Seam Welding Current Profiles Welding with the WS500 Selecting a Weld Programme Starting a Weld Second Stage Start End of Sequence Output Further Functions Counter... - Page 4 WS500 Manual Contents...
-
Page 5: Introduction
Programming is quick and simple, as is operation of the control. Installation is also easy. The WS500 has four mounting studs and sixteen connections on a plug- in connector block. -
Page 6: Specifications
WS500 Manual Specifications Specifications Supply voltage: 24 V DC Supply current: < 500mA (no outputs on) Synch. signal: 27 V AC @ 1 VA Mains frequency: 50 or 60 Hz Number of digital inputs: Input requirement: 24 V DC, < 10mA... -
Page 7: Connections
WS500 Manual Connections Connections +24V Users 24V DC Power supply: 0.5 amps required by timer, plus current drawn by loads connected to outputs. Note: The functions assigned to the inputs and outputs depend on the timer configuration. See section on Configuration. -
Page 8: Configuring The Ws500
External or Ring Config Type The WS500 has 13 modes of operation, numbered as “Types” 0 to 12. Each Type offers different features, different numbers of weld programmes and may use the input and output connections in different ways. The following table gives a brief description of what each Type does, and shows the number of weld programmes available for that option. - Page 9 WS500 Manual Configuring the WS500 Spot/repeat with retract Spot welding with single or repeated weld sequences with an input and output for controlling the “open” and “working” positions of the welding gun. Spot/repeat with counter Spot welding with single or repeated weld sequences with a counter that gives an output when the programmed number of welds has been reached.
- Page 10 WS500 Manual Configuring the WS500 Input Allocations Config Type Input 1 Input 2 Input 3 Input 4 (Pin 13) (Pin 14) (Pin 15) (Pin 16) Start Prog. sel. bit 1 Prog. sel. bit 2 Prog. sel. bit 4 Start Prog. sel. bit 1 Prog.
- Page 11 Select frequency of mains supply. Interlock Select Interlock ON for machines where the electrodes are controlled by the WS500’s weld air valve output. In this mode, when a weld sequence has progressed beyond the Squeeze time, the sequence continues to completion, regardless of the Start signal.
-
Page 12: Programming The Ws500
Then press again to move onto the next parameter. At any point can be pressed to exit programming weld parameters. If the WS500 is in a mode that uses a counter, the COUNTER display will read . This is programmed in the same way. -
Page 13: Programme Parameters
WS500 Manual Programming the WS500 Programme parameters Mode Selects either Single Sequence or Repeat Sequence operation. Single Sequence operation performs one weld sequence when the timer is initiated. Repeat Sequence performs successive weld sequences for the duration of the Start signal. -
Page 14: Seam Welding Current Profiles
WS500 Manual Programming the WS500 Seam Welding Current Profiles In seam welding mode (Configuration mode 12) there are two weld pulses and two cool times available. These can be used to give a number of weld current profiles, as shown below. - Page 15 WS500 Manual Programming the WS500 Example settings: Weld 1 = Current Cool 1 = Weld 2 = Cool 2 = Heat 1 = Heat 2 = Example settings: Time Weld 1 = Current Cool 1 = Weld 2 = Cool 2 =...
-
Page 16: Welding With The Ws500
“Configuration”). Having been configured, the timer must be programmed with the weld parameters for the job in hand. Several sets of weld parameters can be held in the WS500. Each set of parameters is called a “Programme”. (See section “Programming the WS500”.) -
Page 17: Starting A Weld
Input 4 Using timer keypad (only applicable to software versions v1.03 and higher) Press until the WS500 displays READY. Press . The display will show either a programme number or External Select. Press either to get the required programme number, then press Press to return to normal mode. -
Page 18: End Of Sequence Output
WS500 Manual Welding with the WS500 End of Sequence Output (Applicable to all modes except 7, 11 and 12) In Single Spot operation, at the end of the weld sequence the End of Sequence output switches on. If the Start signal is still present, the End of Sequence signal remains on until the Start signal is removed. - Page 19 WS500 Manual Welding with the WS500 In Repeat Spot operation the End of Sequence output switches on for the Off time between sequences, and for the time entered in the timer configuration as EOS Duration, after the final sequence. Start Signal Weld Sequence End of Seq.
-
Page 20: Further Functions
When the number of welds completed equals the number of welds programmed as “End Count” the Count Output switches on. If “Stop at End” has been programmed, the WS500 will ignore Start inputs when this stage has been reached. If “Continue at End” has been programmed, welding will continue. -
Page 21: Cross Interlock
A cross interlock is an arrangement of welding controls that ensures no more than one control is welding at any time. This is to ensure that the mains supply is not over-loaded. WS500 offers a choice of two cross-interlocking schemes, called EXTernal and RING. EXTernal cross-interlock. -
Page 22: Glossary Of Terms
WS500 Manual Glossary of Terms Glossary of Terms Automatic Voltage Compensation Constant current regulation. See Constant Current Const I Constant current Constant current Closed loop control of weld current resulting in weld current being regulated to a programmed value. The current achieved by this method of control is independent of external influences. - Page 23 WS500 Manual Glossary of Terms current and the electrodes opening. This time allows the molten material created by the weld process, to solidify. Hold time The time period following the last weld pulse, prior to the electrodes opening. This period allows the molten material to solidify. –...
- Page 24 WS500 Manual Glossary of Terms weld timer). Prog Sel See Programme Select i/p Programme Select I/P An input, usually one of several, giving a binary number to select the weld programme to be used. Proportional valve A device for regulating air-line pressure. Controlled by 0 – 10 v DC or 4 –...
- Page 25 WS500 Manual Glossary of Terms cable must pass through the toroid. Upslope A linear increase in current from an initial value to the welding value. Upslope time Time taken for current to increase from an initial value to the welding value.
