NETGEAR WN2000RPT Installation Manual

Installation Guide

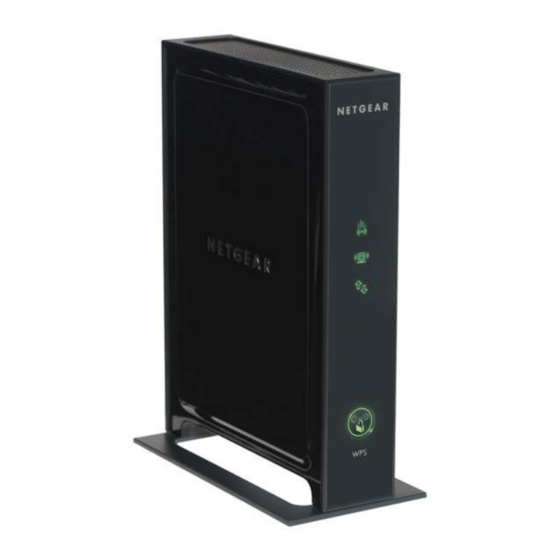

Universal WiFi Range Extender
WN2000RPT
Package Contents
N E
T G
E A
R
Extender LED Activity
Link Rate Status (router to Extender connection)*
Connection to router is poor.
Connection to router is good.
Connection to router is optimum.
Extender Status
The Extender is powered on.
PC to Extender Connection Status
The Extender is connected to the PC.
*To determine the Mbps throughput rate of the Extender when used with your router, see the User Manual .
Setting Up Your Extender
When the Extender has been integrated into your wireless network, it will extend
the wireless network to include the area outside the range of your existing router.
Step 1:
First, place your Extender equal distance between your router and
the wireless computer located outside the range of your existing router.
WiFi Range
DO
Extender
Computer outside
existing router range.
Ideal location of the Extender–
equal distance between the
computer and the router.
DON'T
Extender Range
Router Range
Existing router.
Step 2:
Plug in the power adapter and turn on
the Extender, and wait for one minute.
The
Extender Status LED will turn green. If you have trouble
completing this step, please refer to Question 2 in the
FAQ on the back.
Step 3:
Wirelessly connect to the Extender network by
connecting to NETGEAR_EXT.
Make sure the
computer you're using is outside the range of the router.
When connected, the PC to Extender Connection Status
LED will turn green. If you have trouble completing this
step, please refer to Question 3 in the FAQ on the back.
Step 4:
Open a browser window
from the same computer,
and it will automatically take you to the Smart Wizard to
connect the Extender to the existing network.
If you have trouble completing this step, please refer to
Question 10 in the Frequently Asked Questions on the
back.
Extender Status LED
Front Panel
PC to Extender LED
Front Panel
www.mywifiext.net
w w w . m y w i f i e x t . n e t
Laptop or Desktop
Computer
