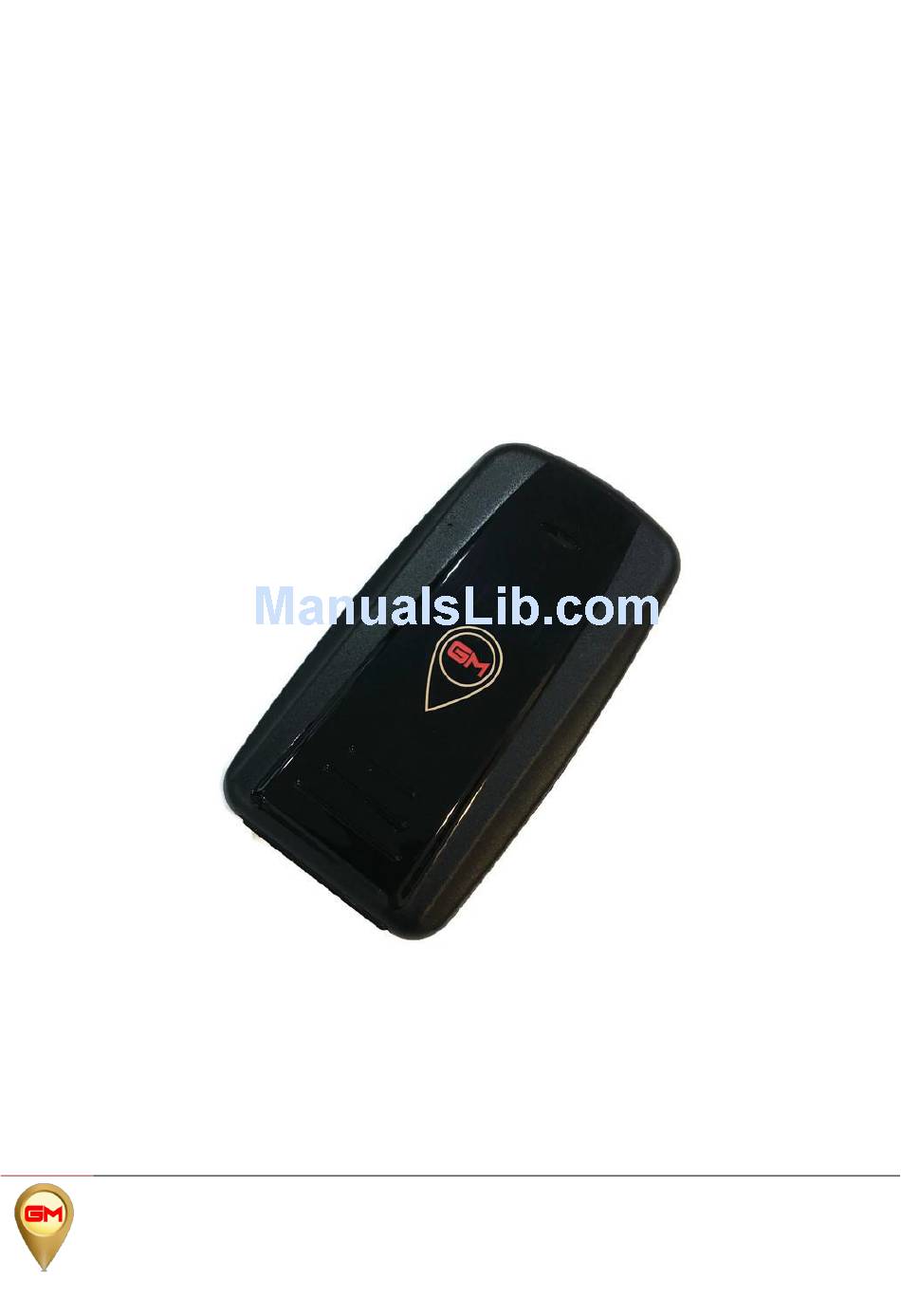

- Page 1 GPSM006 Power Magnetic GPS Tracker Manual (GSM+GPS+GPRS+SMS) [MAGNETIC GPS CAR TRACKER] GMGPS Tracker GM SAFETY TRAINING SDN BHD (1173191-T)
-
Page 2: Led Lights
LED Lights Blue LED light is for the GPS. Blinking means it’s connected and constantly means it’s searching for satellites. Green LED light is for the GSM. Blinking means it’s connected and constantly means it’s searching or that the GPRS setting are incorrect/not set. Quick Start Guide Installing the SIM card Sim card slot... - Page 3 Content Specs. Content Specs. 115mm x 60mm x 25mm Dim. 204g Weight GSM/GPRS Network 850/900/1800/1900Mhz Band UBLOX GPS chip GPS sensitivity -159dBm GPS accuracy Cold status 35-80s Time To First Fix Warm status 35s Hot status 1s 12—24V input Car charger 5V output 110－220V input Wall charger...
- Page 4 Startup Put the SIM card and battery in place. Turn on the unit outdoors by pressing the “on/off” button until the indicator is on. Eg: Step 1. pw,123456,zx,016*******#(GPS SIM Card Number) Step 2. admin 123456+space+your phone number Step 3.
-
Page 5: Change The Password
Change the password Set Password: Send sms: “password+old password+space+new password” to the unit to change the password. For Example, pls send sms: “ password123456 000000” to terminal device, it will reply sms: “password OK”. New password 000000 changed in success. Be keep the new password in mind,you have to upload the software to restore the original setting in case of losing the new password. -
Page 6: Single Locating
Single Locating If there is no authorized number, when any number dials up the unit, it will report a Geo- info; If there is already an authorized number, then it will not respond when an unauthorized number calls it up. Single message inquires the latitude and longitude information, any telephone number can send instruction “where”... -
Page 7: Movement Alert
Geo-fence Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district. Set up: When the unit stays immobile in a place for 3-10 minutes, the user can Send SMS: “stockade+password+space+latitude,longitude;... -
Page 8: Overspeed Alert
Overspeed alert: Set up: Send SMS: “speed+password+space+050” to the unit (suppose the speed is 50km/h), and it will reply “speed ok!”. When the target moves exceeding 50 km/h, the unit will send SMS :”speed ALARM !+ Latitude and longitude” to the authorized numbers every 5 minutes. Cancel: Send SMS “nospeed+password”... -
Page 9: Sleeping Power-Save Mode
Sleeping power-save mode On normal status, when the unit stoped over 10minutes, it will change to sleeping mode, on this mode, the power consumption is 4mah/h only. When it get any command or been moved, it will start GPS locating automatically. -
Page 10: Gprs Setting
GPRS setting User must send SMS via cell phone to set up IP, port and APN before starting GPRS. Setting up APN APN standards for Access Point Name and differs from country to country. For more information about the local APN, inquire with your local GPRS network operator. Text the tracker a SMS “apn+password + Space + your local APN”... -
Page 11: Shock Alert
Shock alert Note: It is e uthorized number ffective sending by a Send SMS command“shock+password”, the unit will reply “shock ok ” Cancel: Send SMS command “noshock+password”, the unit will reply “noshock ok ” Faults & The Solutions Faults Solution Startup Fail Check the battery and see if it is fully charged or correctly installed. - Page 12 apn123456+space+local Apn ok apn content Addjz=1 Open LBS Addjz=0 Close LBS GPRS gprs123456 Gprs ok nogprs123456 Nogprs ok Time Zone Timezone123456+space+8 Timezone ok Timezone123456+ Timezone ok space+-8 Restore factory farmat No replay setting upload123456+time Upload ok Upload frequency(10-180s) Sleep working mode sleep123456+space+time Sleep time ok Wake up by...
- Page 13 Webplatform and GMGPS app If you wish to use the web platform or GMGPS application you’ll need the server and port settings to be able to connect to them. Below you can find the default server settings: Server URL Sever IP Port www.gm63gps.com 101.1.16.228 7700...
- Page 14 Functionalities in the GMGPS APP Real-time Follow the selected tracker on a map Historical See all previous location updates Geofence Manually set a safezone Issue Command Send commands to the tracker by SMS or GPRS Device Info View and edit the tracker information Device (message) This is where you can view all given alert message Alarm Setting...
- Page 15 Login/登陆 GMGPS Tracker GM SAFETY TRAINING SDN BHD (1173191-T)
- Page 16 Realtime/实时跟踪 Historical/历史轨迹 GMGPS Tracker GM SAFETY TRAINING SDN BHD (1173191-T)
- Page 17 Geofence/ 电子栅栏 GMGPS Tracker GM SAFETY TRAINING SDN BHD (1173191-T)
- Page 18 Issue Command /命令下发 GMGPS Tracker GM SAFETY TRAINING SDN BHD (1173191-T)
- Page 19 Command/ 常用指令 Set Master number/ 设置主控号码 GMGPS Tracker GM SAFETY TRAINING SDN BHD (1173191-T)
- Page 20 Set SOS number/ 设置亲情号码 Set Move Alarm/ 开启移位报警 GMGPS Tracker GM SAFETY TRAINING SDN BHD (1173191-T)
- Page 21 Set OverSpeed alarm/ 开启超速报警 General/ 普通指令 GMGPS Tracker GM SAFETY TRAINING SDN BHD (1173191-T)
- Page 22 SOS alarm/ SOS 报警 Language/ 语言选择 GMGPS Tracker GM SAFETY TRAINING SDN BHD (1173191-T)
- Page 23 Device info/ 设备信息 Alarm setting/ 报警提醒 GMGPS Tracker GM SAFETY TRAINING SDN BHD (1173191-T)
- Page 24 Functionalities on www.gm63gps.com web platform In the top area we have the following functionalities: Monitor This is where you can view all your trackers on a map and see their current/last known position. Statistics Statistics gives you insight of the usage, like the amount of kilometres made in a certain period GMGPS Tracker GM SAFETY TRAINING SDN BHD (1173191-T)
-
Page 25: Change Password
Device For an overview of all the trackers you can use device page. It shows you all your trackers and their status. You can edit them straight away from here. Your profile The name shown after the “Hello!” is a clickable link which grands you access to your profile. You can edit your preference and contact information. -
Page 26: Gps Position
Geo-Fence This gives you the possibility to setup geo-fences with a given name. GPS Position When your car is stolen or if you wish to track your car real-time for a certain period this option gives you the possibility. Please keep in mind using this option reduces the battery lifetime. So please keep in mind when using this option to turn it off after you found your car or when your done using real time tracking. - Page 27 FAQ (Problems solving) 1. The tracker is on but I don’t see any location information on the webplatform/app Please make sure the device is connected to the GSM/GPRS network. If the green LED light is not blinking this means it is trying to connect to the GSM/GPRS network. This could indicate you have set the wrong APN settings.
- Page 28 Start up Setting / 简易设置 Step 1 *Tracker setting / 定位器设置* pw,123456,zx,01********# (GPS Device SIM Card Number) Step 2 * APN setting / APN 设置* apn123456,****** ( local apn content ) Step 3 *Server IP / IP 设置* adminip123456,101.1.16.228.7700 #Apn for telco in Malaysia /APN 对应表： 1.Digi = diginet 2.Maxis = unet 3.Celcom = celcom3g...
