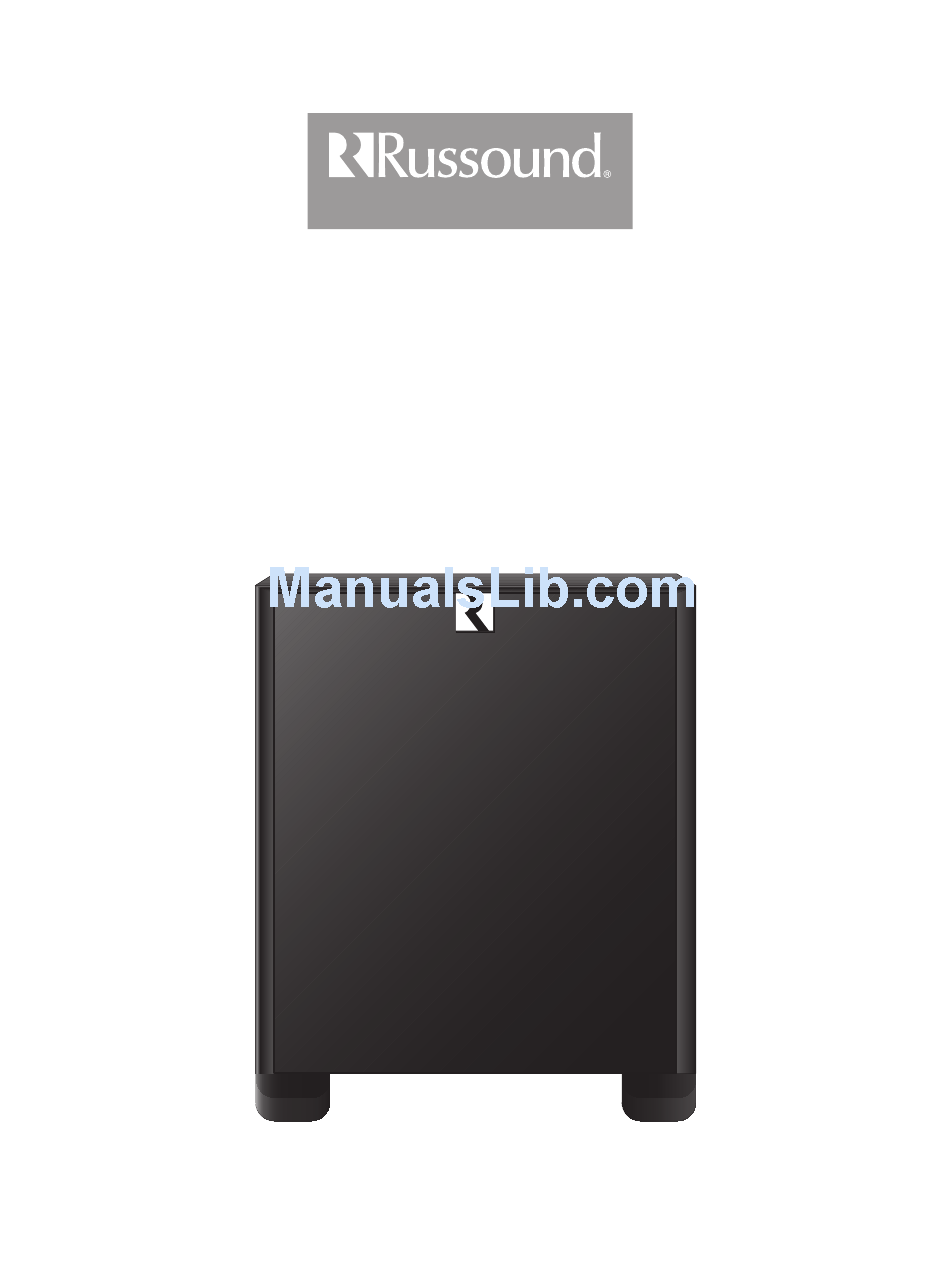

- Page 1 Complement Series R12DT 12” Powered Subwoofer User’s Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS “WARNING” TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. “CAUTION” TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALI- FIED SERVICE PERSONNEL. - Page 3 INTRODUCTION The Russound R12DT active subwoofer delivers the chest-thumping deep bass sound you want for a super- sonic listening experience. Whether it’s the asteroids breaking apart in your favorite sci-fi movie or the in-your- face concert experience of a classic rock band perform- ance, the R12DT keeps up its end of the deal in your home theater or audio system.
- Page 4 R12DT SUBWOOFER Speaker Level Input: (with passthrough) Binding post terminals will accept up to 12 gauge speaker wire or banana jacks. Allows input connections to be sourced from an amplified speaker signal such as the Left and Right output from an amplifier/receiver.
-
Page 5: Connection Options
CONNECTION OPTIONS Note: Choose Method A, Method B or Method C con- nection option. DO NOT combine them; choose only one. Method A (Most desirable) This configuration will have the best result for a home theater system. If your preamp receiver or processor has a subwoofer or LFE (low frequency effect) output jack that is variably controlled by the master volume con- trol, use a single RCA audio cable to connect that output... - Page 6 LFE inputs are used, as in Method A or B. Connect speaker wire from the amplifier/receiver’s main Left and Right outputs to the speaker level input on the subwoofer. Using the same size speaker wire, connect the speaker level outputs from the subwoofer to the main Left and Right speakers.
-
Page 7: Specifications
