Summary of Contents for Runco CR-40HD

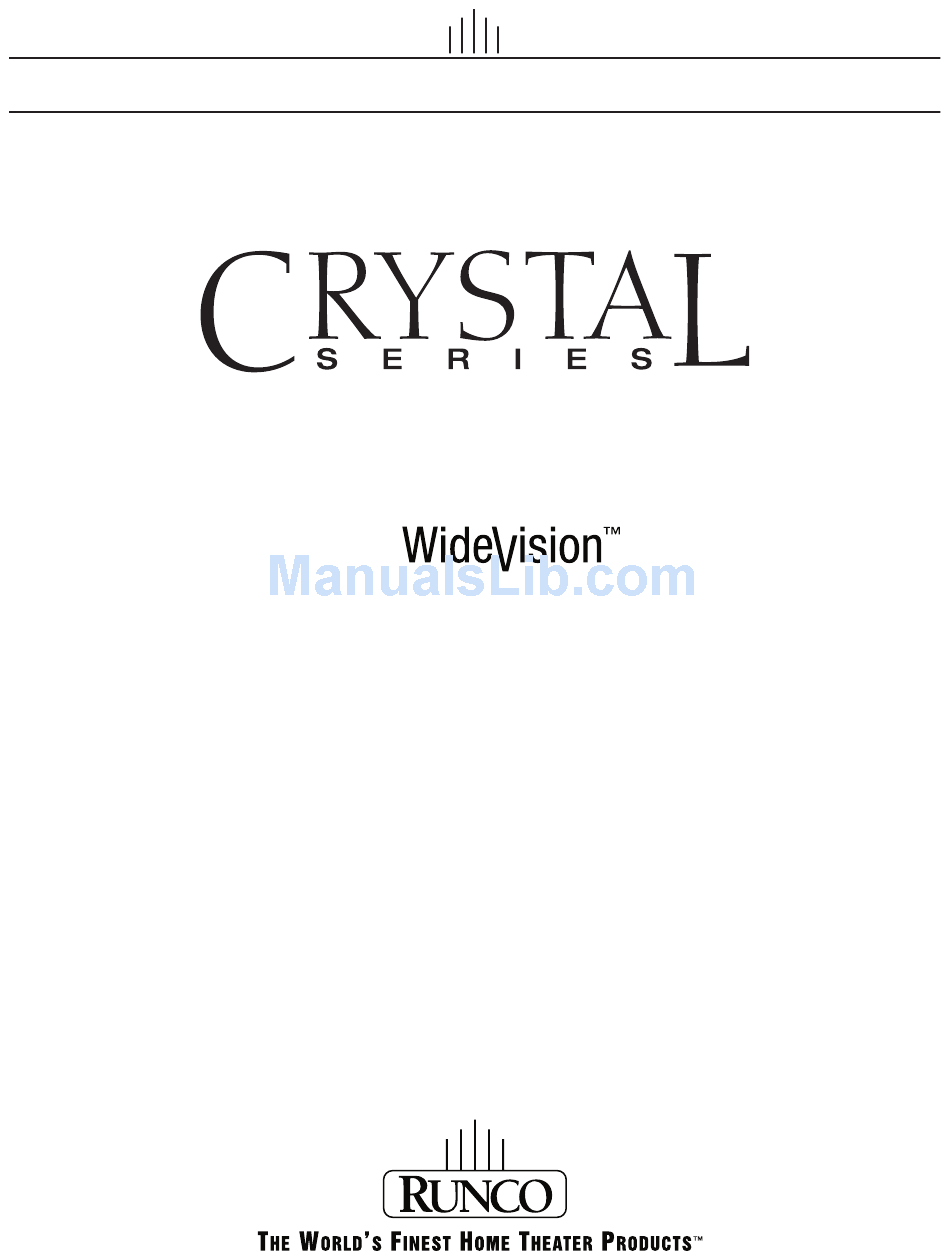

- Page 1 ’ W N E R P E R A T I N G A N U A L C R -32 HD / C R-4 0HD with Crystal Series™ LCD Displays...
-
Page 2: Table Of Contents
Setup CR-32HD and CR-40HD Front View ... 9 CR-32HD Rear View and Input Panel ... 10 CR-40HD Rear View and Input Panel ... 11 Remote Control ... 12 Connecting an Antenna or Cable ... 13 Connecting to the Video or S-Video Input (INPUT1 or INPUT2) ... 13 Using the MONITOR OUT feature ... - Page 3 ISF Calibration (Service) Picture Adjust ... 25 White Balance ... 25 Blue Enable ... 26 DNR ... 26 Gamma ... 26 Baud Rate ... 26 Command ACK ... 26 Factory Reset ... 26 Splash Duration ... 26 Picture in Picture (PIP) Displaying the Picture in Picture (PIP) ...
-
Page 4: One Year Limited Warranty
(1) year from the effective date of delivery to the end user. PARTS: Runco will provide new or rebuilt replacement parts for the parts that fail due to defects in materials or workmanship for a period of one (1) year from the effective date of delivery to the end user. - Page 5 IMPORTANT - WARRANTY REGISTRATION: Please fill out and mail your warranty registration card. It is imperative that Runco knows how to reach you promptly if we should discover a safety problem or product update for which you must be notified.
- Page 6 ADDITIONAL INFORMATION: To locate the name and address of the nearest Runco Authorized Service Center, or for additional information about this Limited Warranty, please call or write: Attn: Customer Service Department RUNCO VIDEO PRODUCT INFORMATION RETAIN THIS INFORMATION FOR YOUR RECORDS...
-
Page 7: Introduction
Also included are discrete source, aspect ratio and power selection and an RS-232 interface for whole house or automated control system integration. The Crystal Series™ CR-32HD and CR-40HD are multimedia ready, with simple computer connections making gaming, internet browsing and other computer activities quick and easy. -
Page 8: Precautions
Runco Dealer for a replacement cord. · Do not remove the cover of the LCD display for any reason. If any problems arise with the unit, please contact a Runco Dealer or Runco International for service. Removing the covers will void the warranty. -
Page 9: Control Panels
3 Volume Adjustment Buttons 4 Channel Selection Buttons 5 Remote Control Sensor 6 Power Button 7 Power Indicator 8 Speakers Power Indicator Status Indicator Status Stand-by Green Power on Green blinking Remote control Control Panels CR-32HD and CR-40HD Front View... -
Page 10: Cr-32Hd Rear View And Input Panel
Control Panels CR-32HD Rear View and Input Panel Right Side S-VIDEO Audio VIDEO Bottom Side INPUT2 S-Video Input INPUT2 Audio Input INPUT2 Video Input Headphone Jack RGB Input Connector (PC) DVI-D Input Connector (PC) Audio Input (PC) INPUT3 Video Input (DTV/DVD) INPUT3 Video Input (VIDEO) INPUT3 Audio Input (DTV/DVD) INPUT4 Video Input (DTV/DVD) -
Page 11: Cr-40Hd Rear View And Input Panel
INPUT3 Audio Input (DTV/DVD) INPUT4 Video Input (DTV/DVD) INPUT4 Video Input (VIDEO) INPUT4 Audio Input (DTV/DVD) INPUT1 Video Input INPUT1 Audio Input INPUT1 S-Video Input MONITOR-OUT (Video) MONITOR-OUT (Audio) SERVICE Port (For RS-232 Control) Control Panels CR-40HD Rear View and Input Panel... -
Page 12: Remote Control
Control Panels Remote Control OFF Button To turn off the unit. ON Button Hold down this button for one second to turn on the unit. NUMERIC Buttons To select channel and to enter pass codes. The “100” button is to select channels over 100. -
Page 13: Connections
2. If the external equipment has mono audio output, connect it only to left jack of the Audio Input/Output. Connections Connecting an Antenna or Cable (Not applicable on the CR-40HD) Rear of the TV Cable Television Network Connecting to the Video... -
Page 14: Using The Monitor Out Feature
Connections You can choose the Main or PIP screen to record. Refer to page 24 for more Using the MONITOR information. feature Rear of the display • Your display has a monitor out feature which can be used by a second VCR, or other Rear of the display Connecting to a DVD or DTV Set-Top Box INPUT... -
Page 15: Connecting To A Pc
To use the display as a PC Monitor 1. Turn the PC on. 2. Depending on the connection, press the DVI or RGB HD button on the remote control. 3. Set up the PC Properties. (See page 16) 4. Adjust the screen in PC Mode. (See page 22) Rear of the Display 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24... -
Page 16: Setting The Pc Properties
Connections 1. First, click on Settings on the Windows Start menu and click on “Control Panel”. Setting the PC Properties 2. Double click on the Display icon. 3. Click on the Settings tab on the display dialog-box. 4. Adjust the resolution to 1024x768 pixels. 5. -
Page 17: Basic Operations
• You can select TV, Input 1, Input 2, Input 3, Input 4, DVI or RGB. 4. Press the MENU button to return to the previous menu. You can also select the Source directly from the remote control using discrete source buttons. Runco CR-32HD Source > TV Input 1... -
Page 18: Selecting An Aspect Ratio
Thus a 4:3 image is transformed into a 16:9 image with minimal distortion. button. the ENTER or ► button. • You can select Anamorphic, Standard, Letterbox or VirtualWide. Runco CR-32HD Source Aspect Ratio > Anamorphic Standard... -
Page 19: Selecting Picture Adjust
► button. 3. Press the ▲▼ button to select Brightness, Contrast, Color, Tint, Sharpness, Color Temp., Backlight, Save Settings or Restore Settings. 4. Press the MENU button to return to the previous menu. Runco CR-32HD Picture Adjust Brightness Source... -
Page 20: Selecting Audio
2. Press the ▲▼ buttons to select Channel and then press the ENTER or ► button. (For the CR-32HD only) 3. Press the ▲▼ buttons to select TV/CATV, Auto Tuning, Add/Erase, 4. Press the MENU button to return to the previous menu. Runco CR-32HD Source Aspect Ratio Picture Adjust... -
Page 21: Selecting Timer
2. Press the ▲▼ buttons to select Timer and then press the ENTER or ► button. 3. Press the ▲▼ buttons to select Timer, On Timer, Off Timer or Sleep Timer. 4. Press the MENU button to return to the previous menu. Runco CR-32HD Source Aspect Ratio... -
Page 22: Setup
1. Press the ▲▼ buttons to select PC Mode Adjust and then press the ENTER or 2. Press the ▲▼ buttons to make the selection. 3. Press the ◄ ► buttons to make the adjustments. Control, Letterbox Mode, Input Selection, Monitor Out or Overscan. Runco CR-32HD Source Setup OSD Language... -
Page 23: Caption
Caption Setup OSD Language PC Mode Adjust Caption Display Mode Parental Control CC On Mute Letterbox Mode Input Selection Monitor Out Overscan 1. Press the ▲▼ buttons to select Caption and then press the ENTER or ► button. 2. Press the ▲▼ buttons to make the selection. 3. -
Page 24: Input Selection
Setup Input Selection Setup 1. Press the ▲▼ buttons to select Input Selection and then press the ENTER or ► 2. Press the ▲▼ buttons to highlight Input1, Input2, Input3 or Input4 and press 3. Press the ► button to toggle the selection. Monitor Out Setup 1. -
Page 25: Isf Calibration (Service) Picture Adjust
Custom menu location under Color Temp. ISF Calibration (Service) ISF Calibration To be used by a Runco Service Technician or an ISF Certified personnel. A pass code is required to access the ISF... -
Page 26: Blue Enable
ISF Calibration (Service) Blue Enable ISF Calibration Gamma ISF Calibration Command Ack ISF Calibration Splash Duration ISF Calibration DNR (Digital Noise Reduction) ISF Calibration Picture Adjust Picture Adjust White Balance White Balance Blue Enable Blue Enable Enable > Disable Gamma Gamma Baud Rate Baud Rate... -
Page 27: Displaying The Picture In Picture (Pip)
1. Press the PIP ( ) button. There are 2 modes of PIP window : Small, Twin. Whenever you press this button, PIP window mode will be changed. The PIP window are changed in the following order : Small ➞ Twin ➞ Off 2. -
Page 28: Picture In Picture (Pip)
Mode in the PIP Note: Both the ISF Day and ISF Night memory can be customized in the ISF Calibration Menu for each input. (To be performed by a Certified Runco Technician) ) button on the remote control. 4-positions whenever you press this button. -
Page 29: Swapping The Main & Sub-Picture
1. Press the ( ) button on the remote control. • The Main image and PIP image will switch with each other whenever you press this button. 1. Press the ( ) button on the remote control. • The Main sound and PIP sound will switch with each other whenever you press this button. -
Page 30: Changing The Pip Aspect Ratio
Picture in Picture (PIP) 1. Press the ( Changing the PIP Aspect Ratio STANDARD 4:3 mode The image is displayed at a Standard 4:3 aspect ratio. The input signal will be scaled to fit in the center of the 16:9 screen. -
Page 31: Stereo Sound / Sap
Depending on the particular program being broadcast, you can listen to stereo, mono, or a Secondary Audio Program. (SAP audio usually a foreign-language translation. Sometimes SAP has unrelated information like news or weather.) 1. You can select sound options (Mono, Stereo, SAP, Mono+ SAP) depending on the broadcast signal by pressing the ( button on the remote control. -
Page 32: Rs-232 Configurations
RS-232 Configurations RS-232C Configurations Note: • All commands are in ASCII format For an added convenience, an RJ-11 to DB9 (Male) adaptor is provided but is not required. If the adapter is used, use a null-modem cable. The pin configuration on the adaptor is as follows: No. -
Page 33: Serial Protocol
Command from host ‘[‘ COMMAND (3 byte) Ack from monitor ‘]‘ RETURN (4 byte) ‘[‘ + ‘S3A’ + ‘000#’ Set audio volume to ### (=000~100) Example: [ S3A000075 sets volume to 75 ‘[‘ + ‘+3A’ Audio volume up ‘[‘ + ‘- 3A Audio volume down ‘[‘... - Page 34 RS-232 Configurations The following serial commands are meant to emulate buttons on the remote control. Each button has its own serial command, so effectively it is as if you were using the IR remote only you’ll be doing so via serial commands. Using these commands will provide active OSD responses just like the IR remote.
-
Page 35: Signals Supported
If the signal from the system equals the standard signal mode, the screen will adjust automatically. If the signal from the system does not equal the standard signal, adjust the display mode as shown below referring to your video card instructions. Otherwise there may be no picture. -
Page 36: Pin Configuration (Pc/Dvi)
Pin Configuration (PC/DVI) PC Input Connector (D-Sub 15Pin) DVI-D Connector PC IN Red (R) Green (G) Blue (B) Ground Ground (DDC) Red (R) Ground Green (G) Ground 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Signal Assignment T.M.D.S. -
Page 37: Troubleshooting
No picture or sound. • Make sure the display is plugged in. • Make sure the power cord is connected correctly. • Check for power failure. Screen is black. • Make sure the correct source is selected. • Press the TV/AV button to change to TV. Picture is OK but •... -
Page 38: For Monitor
Troubleshooting “No signal” message For Monitor “Out of range” message Picture rolls down vertically. A shadowed area appears on the screen. The image is too large or too small. Horizontal or vertical bars appear on the screen. The power indicator light blinks green. -
Page 39: Specifications
Height: 23 1/2 in. (597 mm) Height w/stand: 25 1/8 in. (638 mm) Weight w/stand: 68.34 lbs. (31 kg) Complies with FCC, CE, C-Tick (1) One year parts and labor from the date of delivery to the end user. Specifications CR-40HD... -
Page 40: Dimensions
(495 mm) 21.75 in. 32 in. (813 mm) (552 mm) 31.375 in. (797 mm) 38.125 in. (968 mm) 9.85 in. (250 mm) CR-40HD 4.5 in. (114.3 mm) 23.5 in. (597 mm) 25.125 in. 40 in. (1016 mm) (638 mm) 39 in. (991 mm) 45.75 in. - Page 41 SERIA L NUM BE R RUMA-011095 7-13-05 Runco International • 2900 Faber Street • Union City, CA 94587 • Ph (510) 324-7777 / (800) 23RUNCO / Fax (510) 324-9300 www.runco.com...
