Inmarsat IsatPhone 2 Quick Connect Manual

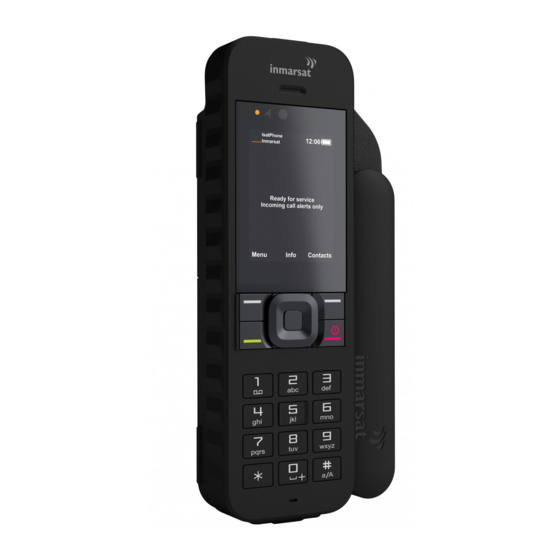

IsatPhone 2
Quick Connect Guide
Signal Strength
Registration
Left Soft Key
Navigation Keys
Send Key
Satphone antenna must have a clear view of the sky.
Rotate antenna 45 degrees to the top of the satphone.
Proper positioning is the "10 o'clock" or "2 o'clock" position.
Wait for satphone to obtain a GPS fix and register.
Initially, the display will indicate "searching satellite", followed by
"Acquiring GPS fix" with a bar graph showing GPS satellites in view.
Once a GPS fix is obtained, the display will indicate "Registering with
network". Once registered, the display will indicate "Ready for service"
and an ascending tone will sound. If display indicates "Point antenna
towards satellite" point antenna to the center of the coverage circle
you are located in (see map below), and press "Search" (right soft key).
IMPORTANT!
place a call without a new GPS fix, registration and
Optimal signal strength is 3 bars or more, shown in the upper left corner
Please go outside.
Power on satphone.
Press "Power/End" key.
Antenna must deployed (rotated up).
The IsatPhone WILL NOT WORK/
signal bars. Please be patient.
of the display.
www.explorersatellite.com
Programmable SOS Button
Battery Strength
Tracking Button
Volume Up
Volume Down
Right Soft Key
Power/End Key
