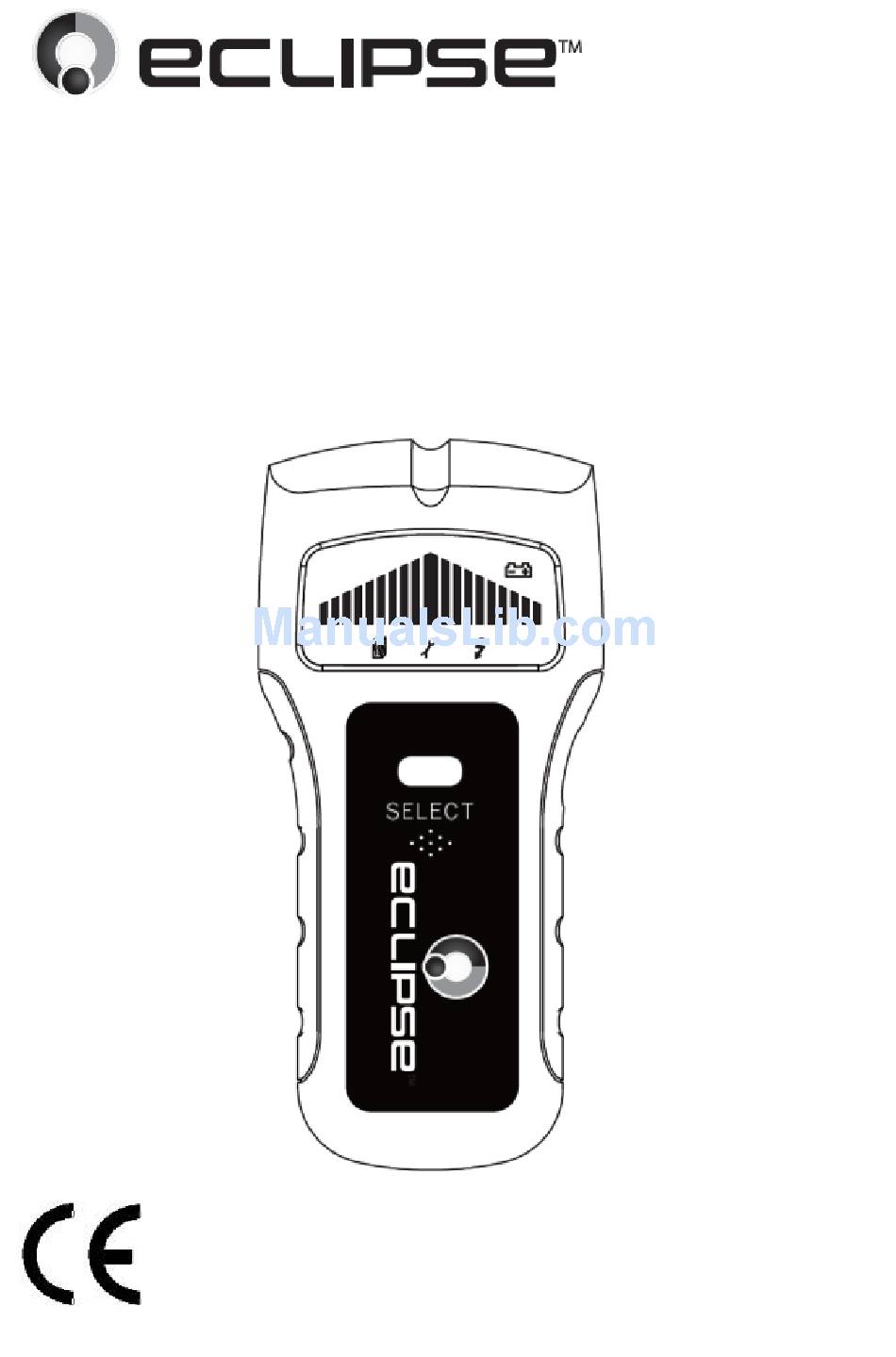

- Page 1 Part# 902-592 Metal/Voltage/Stud Detector Owner's Manual...
-
Page 2: Function Description
Please read the instruction manual carefully before use. Know Your Apparatus This unit is a 3 in 1 Metal/Voltage/Stud Detector. It uses electronic signals to locate the exact position of studs, ceiling joists, AC wires and metal through drywall, concrete and other common wall materials. Once the edge of a stud has been detected, it emits audio and visual signals (LCD Display) that allow you to easily pinpoint its center position. -
Page 3: Panel Description
Panel Description Edge groove SELECT TEST Button Button SELECT Bar chart Center Bar Low Battery Metal scan A/C scan Stud scan Note: Center bar is the longest central one in bar chart. - Page 4 Operation instruction I Install battery (1) Open battery door at the back of the unit. (2) Attach a 9 Volt battery to the connector. (3) Put the battery into the compartment (4) Close battery compartment door. II Calibration & Detection: (1) After installing battery, the unit will sound a long beep.
- Page 5 (6) When the center bars on the LCD, it means you have found the edge of the hidden object. Stop moving and mark this spot at the edge groove. Please hold the TEST button at this time to eliminate the Beep sound while you are marking the location.
- Page 6 The unit is designed to detect 110 and 220 volts AC in live electrical wires. It will also detect the presence of live wires having greater than 220 volts. Cautions on Operating You should always use caution when nailing, cutting or drilling in walls, ceilings and floors that may contain wiring or pipes near the surface.
-
Page 7: Specification
stability. The device detects the edge of these double studs and solid headers, emits and holds an audio signal when completely across them. Surface Differences Wallpaper-There is no difference in the function on surfaces covered with wallpaper or fabric, unless the covering contains metallic foil or fibers. - Page 8 AC Live Wires: AC 90~250V live wire (2.0”), frequency at 50~60 Hz Operating temp & humidity: -7ºC ~ 40ºC, <75% Storage temp & humidity: -20ºC ~ 50ºC, <85% Size: 6.1”(L)*3”(W)*1.1”(H) Weight: about .38 lb (including battery)
