DVD Audio using the Coax digital inputs (optional) – your receiver allows for an option to connect a 5.1 DVD
Audio or other 5.1 surround format device, to the receiver's DVD Audio input when NO coax digital inputs are to
be used. This option calls for the setting of a push button switch internal to the unit. Please contact B&K
customer service for further details if this option is desired.

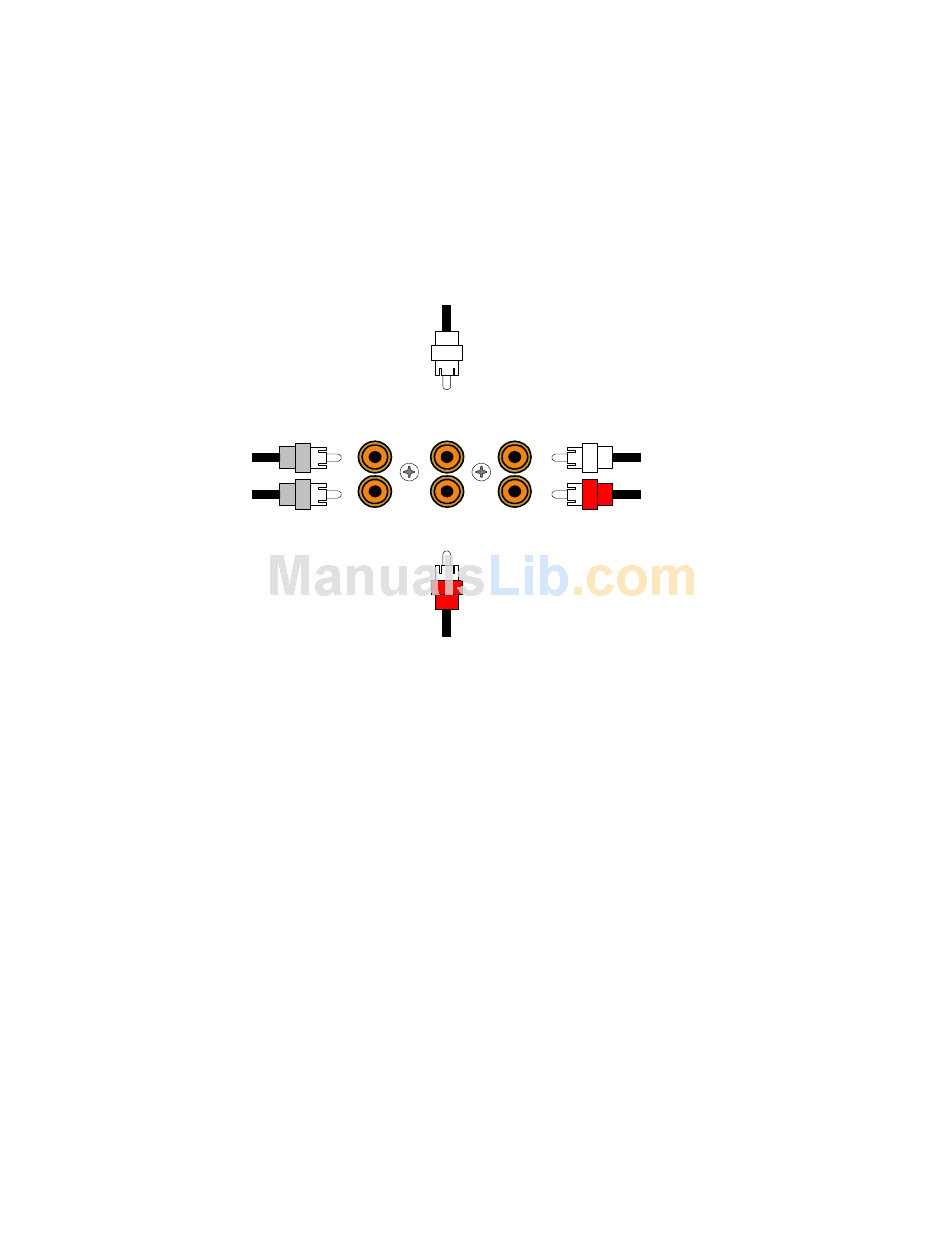

Attach one end of an audio interconnect cable to the center output on the DVD Audio source device, then attach
the other end to the Center (TV-V3) DVD Audio input on the receiver. Repeat for the Left surround (V2) and Left
front (V1) audio connection. Attach one end of an audio interconnect cable to the sub output on the DVD Audio
source device, then attach the other end to the SUB (SAT) DVD Audio input on the receiver. Repeat for the Right
surround (CD) and Right front (DVD/VLD) audio connection.
C onnect to the D V D audio
player C enter output
C onnect to the D V D audio
player S ubw oofer output
C onnect to the D VD audio
player Left Surround output
(TV-V3) (V2) (V 1)
C EN TER Ls Lf
S U B R s R f
(S AT) (C D ) (D V D /VLD )
C onnect to the D V D audio
player R ight S urround output
15
C onnect to the D VD audio
player Left Front output
C onnect to the D VD audio
player R ight Front output
