TP-Link TL-WN8200ND Quick Installation Manual

Quick

Installation Guide

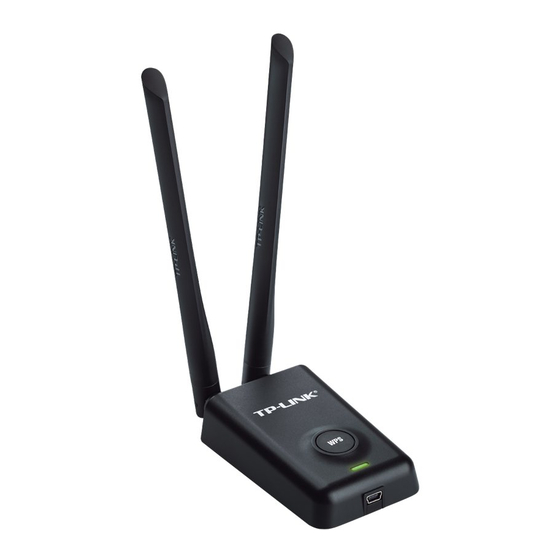

300Mbps High Power Wireless USB Adapter
MODEL NO. TL-WN8200ND
Connect to a Computer
Insert the adapter into a USB port on your computer using the USB cable provided.

Install Driver and Utility

You can also download the driver and utility at www.tp-link.com
Insert the CD and run the Autorun.exe from the pop-up
1
Autoplay window.
Note: In some operating systems, the CD screen will pop up automatically.
Otherwise, run the CD manually.

Join a Wireless Network

Option 1: Via TP-LINK Utility
Select your preferred wireless network from the pop-up utility window
and click Connect. The symbol
Status WPS Network
Network Name(SSID) Security
TP-LINK_A
WPA/WPA2-Personal
Connect automatically
34567_TEST
WPA/WPA2-Personal
abcdef_0903 None
AAAAAA None
Option 3: Via Windows Wireless Utility
With the TP-LINK Utility closed, you can use the Windows built-in Wireless Utility to join a wireless network.
Note: For Windows Vista, TP-LINK Utility is not supported, please use the Windows built-in Wireless Utility to join a network.
indicates a successful connection.
Profile Advanced
Network Na
Channel Signal
TP-LINK_A
6 (2.4G)
Connect
34567_TEST
2 (2.4G)
9 (2.4G)
5 (2.4G)
Note: In Windows XP, a Found New Hardware Wizard window will appear when the adapter is
detected. Please click Cancel.
Select TL-WN8200ND and click Install Driver&Utility, then follow the
2
InstallShield Wizard to complete the installation.
TL-WN7200ND TL-WN8200ND
Install Driver&Utility
User Guide
Option 2: Via Wi-Fi Protected Setup (WPS)
A: Press the WPS button on your router.
B: Within 2 minutes, press and hold the WPS button on the adapter until the
following screen appears.
B
C: When you are prompted "Successfully connected to the network by
WPS!", click OK.
For more information, please visit our website
http://www.tp-link.com
7106505994 REV2.0.0
Setup Wizard
TL-WR841HP
Browse CD EXIT
Configuring the wireless network.
Connecting to the network...
©2016 TP-LINK
