Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property damage!
VFD Controller
General Safety Information
Only qualified personnel should install this unit.
Personnel should have a clear understanding of these
instructions and should be aware of general safety
precautions. Improper installation can result in electric
shock, possible injury due to coming in contact with
moving parts, as well as other potential hazards. Other
considerations may be required if high winds or seismic
activity are present. If more information is needed,
contact a licensed professional engineer before moving
forward.
1. Follow all local electrical and safety codes, as well as
the National Electrical Code (NEC), the National Fire
Protection Agency (NFPA), where applicable. Follow
the Canadian Electrical Code (CEC) in Canada.
2. Do not allow the power cable to kink or come in
contact with oil, grease, hot surfaces, or chemicals.
Replace cord immediately if damaged.
3. Verify the power source is compatible with the
equipment.
DANGER
Always disconnect power before working on or
near a unit. Lock and tag the disconnect switch or
breaker to prevent accidental power up.
CAUTION
When servicing the unit, variable frequency drives
(VFD) may be hot enough to cause pain or injury.
Allow motor to cool before servicing.
®
with Variable Geometry Nozzle (VGN) Technology
Nozzle Controller
Vektor
Electrical Controls Information
Table of Contents
General Safety Information . . . . . . . . . . . . . . . . . . . . . . 1
Receiving, Handling and Storage . . . . . . . . . . . . . . . . . 2
Component Checklist - Electrical . . . . . . . . . . . . . . . 2
System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Wiring Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Set Point and Minimum Variables . . . . . . . . . . . . . . . 4
Defined Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
VGN Technology Control Flow Chart . . . . . . . . . . . . 5
Set Point and Minimum Variables . . . . . . . . . . . . . . . 6
Defined Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
VGN Technology Control Flow Chart . . . . . . . . . . . . 8
Set Point and Minimum Variables . . . . . . . . . . . . . . . 9
Defined Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
VGN Technology Control Flow Chart . . . . . . . . . . . 11
Factory-Supplied Variable Frequency Drive
System Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Start-Up Procedure - Electrical Controls . . . . . . . . . . 15
System Test and Balance for VGN . . . . . . . . . . . . . . . 16
Nozzle Velocity Adjustment . . . . . . . . . . . . . . . . . . . . . 16
Customer-Supplied Variable Frequency Drive
System Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
VGN Nozzle Controller Intro. and Tutorial . . . . . . . 20-22
Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Start-Up Procedure - Electrical Controls . . . . . . . . . . 24
System Test and Balance for VGN . . . . . . . . . . . . . . . 25
Nozzle Velocity Adjustment . . . . . . . . . . . . . . . . . . . . . 25
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Electrical Replacement Parts . . . . . . . . . . . . . . . . . . . 27
Our Commitment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Document 476072
®
Laboratory Exhaust
VGN Technology
1
Advertisement
Chapters
Table of Contents
Related Manuals for Greenheck Vektor
Summary of Contents for Greenheck Vektor
-
Page 1: Table Of Contents

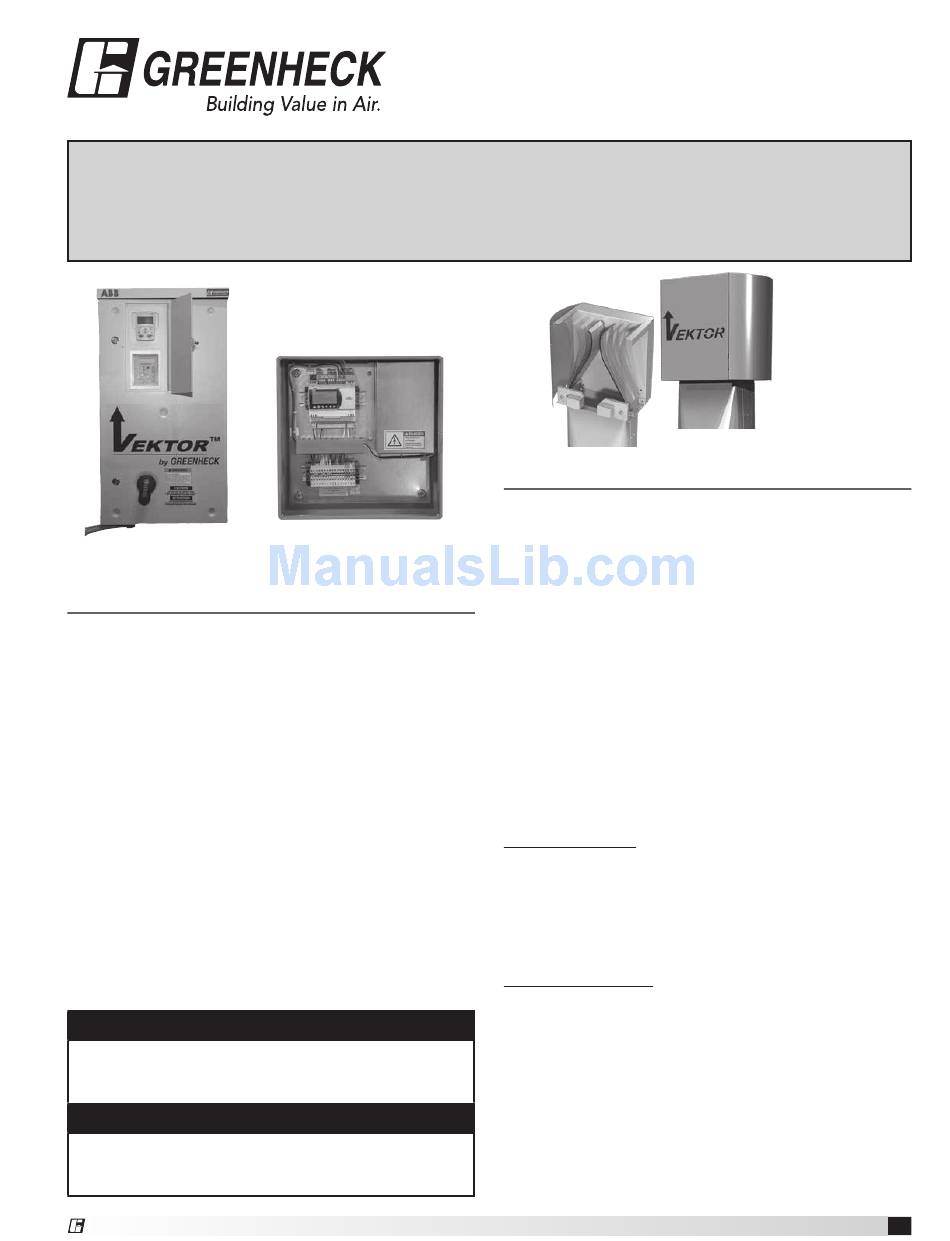

Document 476072 Vektor ® Laboratory Exhaust with Variable Geometry Nozzle (VGN) Technology ® Electrical Controls Information Installation, Operation and Maintenance Manual Please read and save these instructions for future reference. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. -
Page 2: Receiving, Handling And Storage
Greenheck Representative. all walls should be provided to permit air circulation and Any physical damage to the unit after acceptance is not space for inspection. the responsibility of Greenheck Fan Corporation. Inspection and Maintenance during Component Checklist - Electrical Storage Check off the following system components to verify all While in storage, inspect equipment once per month. -
Page 3: System Components
General Electrical Controls Information System Components Wiring Installation NOTE System Components (supplied by Greenheck) Quantity Description All field installation and wiring of electrical equipment must be done to meet NEC and local Pressure transducer with adjustable pressure range and VDC signal codes. -
Page 4: Fan Operation - Single Fan Set Point And Minimum Variables
General Electrical Controls Information Fan Operation - Single Fan Set point and minimum variables Mode #3: Occupied; some or all lab hoods being used. Defined as people in the lab(s), lab hood sashes 1. System will maintain a minimum of 3000 fpm velocity being used. -
Page 5: Vgn Technology Control Flow Chart
General Electrical Controls Information VGN Technology Control Flow Chart - Single Fan Positive Pressure Fault BMS Control Negative Pressure Fault Drive Fault Alarm Drive Fault Bypass Mode Max. VFD Monitor Time Static Pressure Valve Static Fan at Pressure = Full Speed Setpoint Above Setpoint Below Setpoint... -
Page 6: Fan Operation - Multiple Fans, No Staging
General Electrical Controls Information Fan Operation - Multiple Fans, No Staging Set point and minimum variables Definition of typical operation modes: 1. System will maintain a minimum of 3000 fpm velocity Mode #1: Unoccupied. Defined as no one inside the (factory default) at the outlet of each fan, based on lab(s), all lab hoods are closed. - Page 7 General Electrical Controls Information B. Sashes closing in the lab 1. Fan(s) will operate at BMS required speed and nozzle will modulate as necessary to achieve the required velocity. Typical system response should be to decrease fan(s) speed and decrease nozzle open area.
-
Page 8: Vgn Technology Control Flow Chart
General Electrical Controls Information VGN Technology Control Flow Chart - Multiple Fans, No Staging Positive Pressure Fault Control Negative Pressure Fault Drive Fault Alarm Drive Fault Bypass Mode Fan Stall Monitor Time Fan(s) in Time Stall Mode Period Reset by Max. -
Page 9: Fan Operation - Multiple Fans, With Staging
General Electrical Controls Information Fan Operation - Multiple Fans, With Staging Set point and minimum variables e. When more than one fan is in operation and any of the fans run in the surge area for a set time period, 1. -
Page 10: Defined Modes
General Electrical Controls Information Fan Operation - Multiple Fans, With Staging - continued Definition of typical operation modes: B. Sashes closing in the lab 1. Fan(s) will operate at BMS required speed and Mode #1: Unoccupied. Defined as no one inside the nozzle will modulate as necessary to achieve the lab(s), all lab hoods are closed. -
Page 11: Vgn Technology Control Flow Chart
General Electrical Controls Information VGN Technology Control Flow Chart - Multiple Fans, With Staging Positive Pressure Fault Control Negative Pressure Fault Drive Fault Alarm Deadband Range Fan On/Off Cycling Drive Fault Bypass Mode Fan Stall Monitor Time Fan(s) in Time Period Stall Mode Met? Reset by... -
Page 12: System Diagram
Electrical Controls Information for Factory-Supplied Variable Frequency Drive System Diagram VGN Technology ®... -
Page 13: Wiring Diagram
ACTUATOR 2 FACTORY WIRING NOZZLE ACTUATOR 1 FIELD WIRING ACTUATOR 3,4,5 ADDITIONAL NOZZLE ACTUATORS QTY. DEPENDENT ON UNIT SIZE DRAWN BY DATE ENG. REF. PODJASKI P.O.BOX 410 SCHOFIELD, WISCONSIN 54476-0410 VGN Technology SYSTEM ® SUPERSEDES TITLE VEKTOR FAN WITH 01-12-12 WIRING... -
Page 14: Communication Bacnet® And Lonworks® Protocol
It is also suggested to follow the manufacturers other languages available, but are not supported by recommendations for communication cable type and Greenheck, however, it may be supported by the VFD maximum lead length for LonWorks. The recommended manufacturer. Please contact the VFD factory support if cable is different for each protocol. -
Page 15: Start-Up Procedure - Electrical Controls
Electrical Controls Information for Factory-Supplied Variable Frequency Drive Start-Up Procedure - Electrical Controls The following start-up procedure is to be completed Electrical System Start-Up for VGN in order to verify that the fan is in working order. Use appropriate electrical safety gear as required. It does not cover the details for test and balance, ... -
Page 16: System Test And Balance For Vgn
#1502 at the VFD keypad. The factory default setting from Greenheck is specific to every Option #2 is put the VFD in ‘HAND’ mode; this will fan; note the parameter setting prior to changing the give you speed adjustment from minimum speed to full value and record below for future reference. - Page 17 This page is intentionally blank. VGN Technology ®...
-
Page 18: System Diagram
Electrical Controls Information for Customer-Supplied Variable Frequency Drive System Diagram VGN Technology ®... -
Page 19: Wiring Diagram
Electrical Controls Information for Customer-Supplied Variable Frequency Drive Wiring Diagram NOZZLE CONTROLLER TRANSFORMERS ID2 GND Y2 Y4 GND NOZZLE CONTROLLER BMS SYSTEM G GO B1 GND C1 NO1 SUPPLIED BY OTHERS FAN RUN BMS COMMUNICATIONS (STD) CONTACT(S) - ANALOG SIGNAL(S) FROM VFD - ON/OFF CONTACT(S) BY OTHERS... -
Page 20: Vgn Nozzle Controller Intro. And Tutorial
Program Pressing the Program button allows the user to enter the Main Program Menu. Example of Parameter Adjustment GREENHECK VGN The cursor always begins in the upper left corner of the display and will be SYSTEM SETTINGS blinking. Press the button to move the cursor down for parameter adjustment. - Page 21 The nozzle controller consists of five menu screens to operate the VGN system. The following information describes the menu screens in detail. The following value ranges are specific to the Air Flow menu screen. GREENHECK VGN AIR FLOW Flow Active reading calculated by the Sure-Aire system.
-
Page 22: Greenheck Vgn
Electrical Controls Information for Customer-Supplied Variable Frequency Drive The following value ranges are specific to the Diagnostic menu screen. The menu GREENHECK VGN will tell the controls electrician who is troubleshooting the system what the status DIAGNOSTIC is of each Input or Output of the controller. -
Page 23: Communication
Electrical Controls Information for Customer-Supplied Variable Frequency Drive Communication The VGN Nozzle Controller uses digital and analog signal(s) that need to be wired to the BMS system. The electrical installer can reference the “Nozzle Controller” wiring diagram for specific hookup locations and information. -
Page 24: Start-Up Procedure - Electrical Controls
Electrical Controls Information for Customer-Supplied Variable Frequency Drive Start-Up Procedure - Electrical Controls The following start-up procedure is to be completed Nozzle Controller (factory-supplied) in order to verify that the fan is in working order. Make sure feeder breaker for the nozzle controller is It does not cover the details for test and balance, in the “OFF”... -
Page 25: System Test And Balance For Vgn
Electrical Controls Information for Customer-Supplied Variable Frequency Drive System Test and Balance for VGN Nozzle Velocity Adjustment The VGN Technology control system needs to be set The VGN Nozzle Controller is shipped from the factory up at a desired fixed fan speed and nozzle area. If the to output an average 3000 fpm (912 mpm) nozzle following is not done, it will be difficult to do the test velocity. -
Page 26: Troubleshooting
General Electrical Controls Information Troubleshooting General Issue Possible Cause Recommended Action Check power at isolation damper and determine Fan is running but no Isolation damper not open. if it is open. pressure is being created in the duct. Bypass damper maybe open. Verify bypass damper is closed. -
Page 27: Maintenance
General Electrical Controls Information VGN Technology Maintenance VGN Technology Electrical Replacement Parts WARNING Manufacturer Disconnect all electrical power and secure to the Description Mfg. Part Number “OFF” position prior to inspection or servicing. Failure to comply with this safety precaution could Variable Frequency Drive Consult Factory result in serious injury or death. -
Page 28: Our Commitment
Our Commitment As a result of our commitment to continuous improvement, Greenheck reserves the right to change specifications without notice. Specific Greenheck product warranties are located on greenheck.com within the product area tabs and in the Library under Warranties. Greenheck VGN Technology catalog provides additional...
