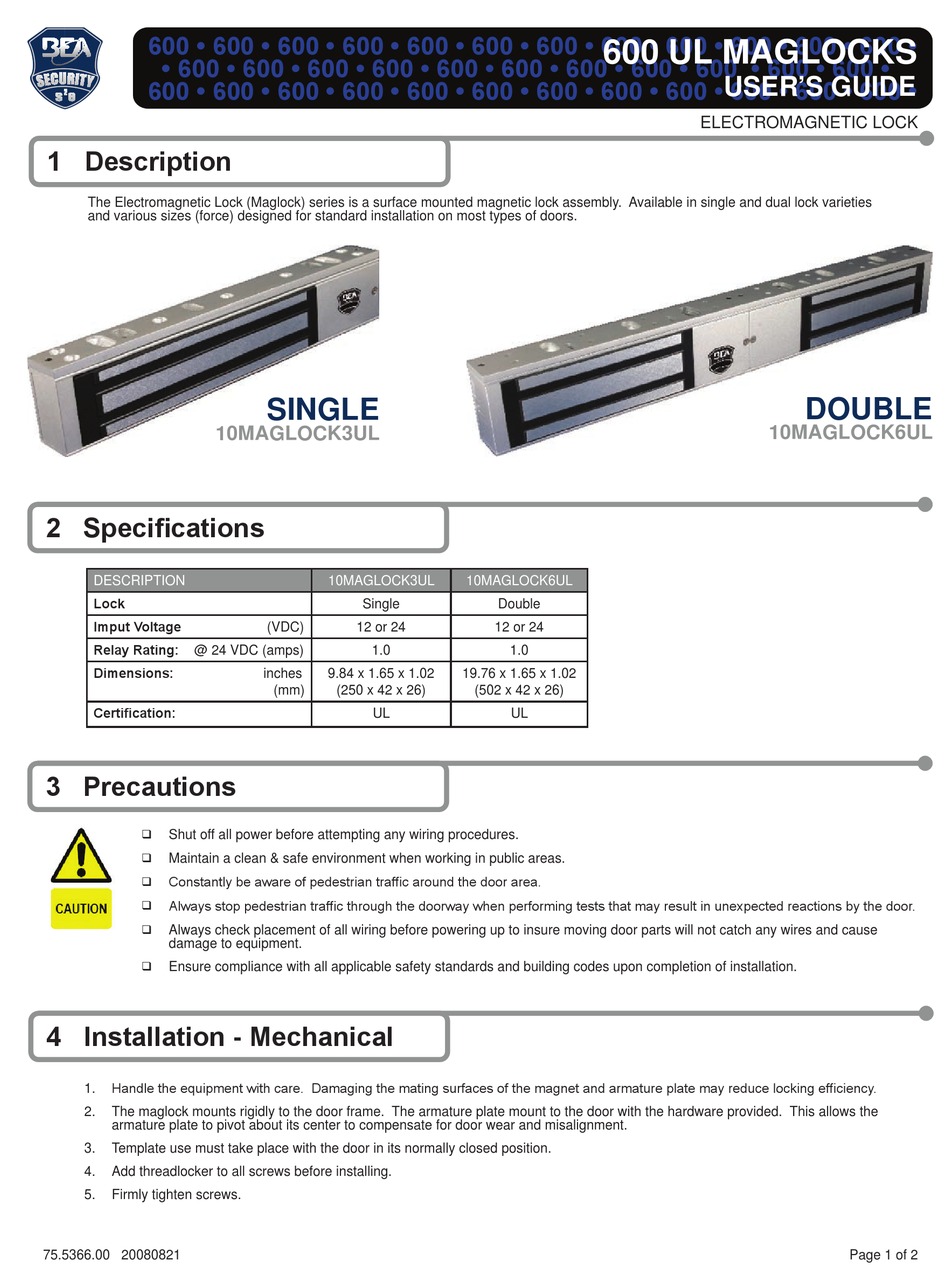

1 Description
The Electromagnetic Lock (Maglock) series is a surface mounted magnetic lock assembly. Available in single and dual lock varieties
and various sizes (force) designed for standard installation on most types of doors.
10MAGLOCK3UL
2 Specifi cations
DESCRIPTION
Lock
Imput Voltage
Relay Rating:
@ 24 VDC (amps)
Dimensions:
Certifi cation:
3 Precautions

Shut off all power before attempting any wiring procedures.

Maintain a clean & safe environment when working in public areas.
Constantly be aware of pedestrian traffi c around the door area.

Always stop pedestrian traffi c through the doorway when performing tests that may result in unexpected reactions by the door.


Always check placement of all wiring before powering up to insure moving door parts will not catch any wires and cause
damage to equipment.

Ensure compliance with all applicable safety standards and building codes upon completion of installation.
4 Installation - Mechanical
Handle the equipment with care. Damaging the mating surfaces of the magnet and armature plate may reduce locking effi ciency.
1.
2. The maglock mounts rigidly to the door frame. The armature plate mount to the door with the hardware provided. This allows the
armature plate to pivot about its center to compensate for door wear and misalignment.
3. Template use must take place with the door in its normally closed position.
4. Add threadlocker to all screws before installing.
5. Firmly tighten screws.
75.5366.00 20080821
SINGLE
10MAGLOCK3UL
Single
(VDC) 12 or 24
1.0
inches 9.84 x 1.65 x 1.02
(mm) (250 x 42 x 26)
UL
600 UL MAGLOCKS

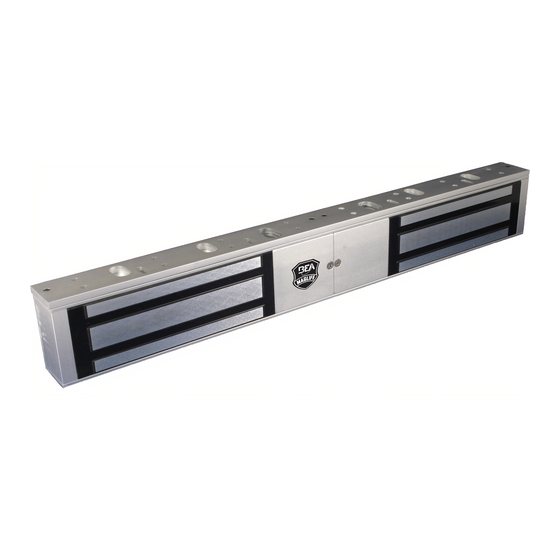

10MAGLOCK6UL
Double
12 or 24
1.0
19.76 x 1.65 x 1.02
(502 x 42 x 26)
UL
USER'S GUIDE
ELECTROMAGNETIC LOCK
DOUBLE
10MAGLOCK6UL
Page 1 of 2
