INSTALLATION INSTRUCTIONS
RF 20 ROOM SENSOR

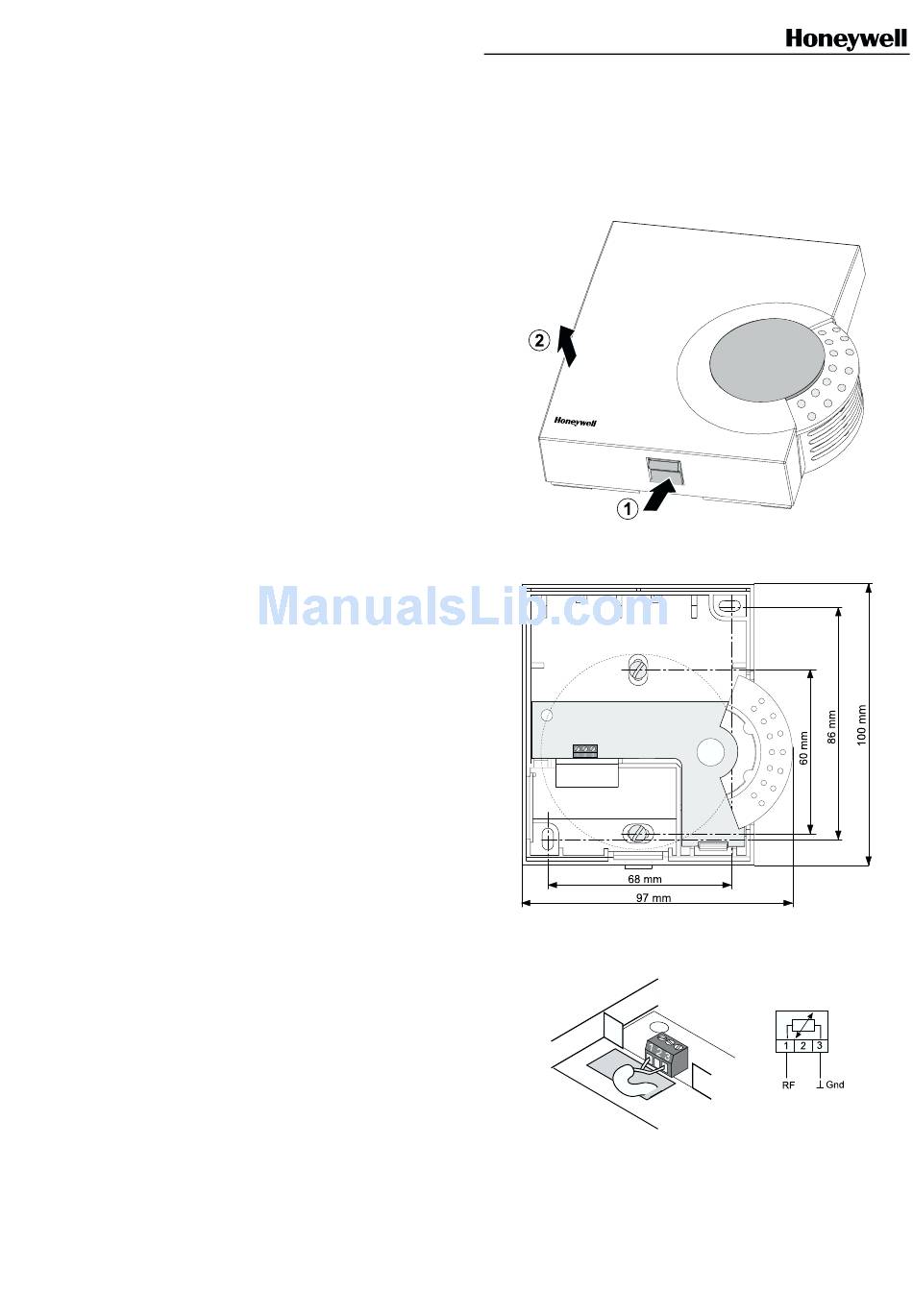

1.
Open housing of the room sensor by pressing the snap-on
locks and remove housing cover.
Figure 1: Removing housing cover
2.
Screw room sensor to the flush distribution box.
Figure 2: Installation onto flush distribution box
3. Connect cable coming from controller.
Figure 3: Terminals
Connection to terminals:
1 = Room temperature sensor (1 is left)
2 = not used
3 = GND
EN1H-0133 GE51R0104
Advertisement
Related Manuals for Honeywell RF 20
Summary of Contents for Honeywell RF 20
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS RF 20 ROOM SENSOR Open housing of the room sensor by pressing the snap-on locks and remove housing cover. Figure 1: Removing housing cover Screw room sensor to the flush distribution box. Figure 2: Installation onto flush distribution box 3. - Page 2 4. Return cover to housing by placing top edge against back plate and snap lower part of cover onto housing. Figure 4: Replacing of housing cover Subject to change without notice. Printed in Germany Manufacturing location certified to EN1H-0133 GE51R0101...
