Description

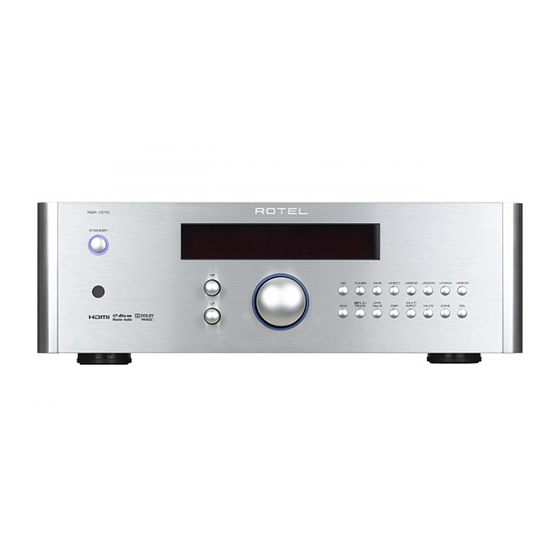

For those who desire the ultimate performance and maximum flexibility from their home theater, the RSP-1570 is the surround preamp/
processor to own. All of Rotel's renowned audio experience has been poured into this design to provide you with the very best in audio
and video reproduction. The RSP-1570 features HDMI 1.3 connections with 1080p / 24 Hertz compliance and processing for the new
"Deep Color" and xvYCC options. This superbly designed component is easy to set up and use and is a custom installer's friend with
rear panel bi-directional RS-232 ports, assignable 12-volt triggers and multiple IR connections. The RSP-1570 can also be used as a
"whole house" audio system with its additional multiroom audio outputs.
Specifications
THD (20-20,000Hz)
IM Distortion
Frequency Response (+/-1 dB)
Analogue Bypass
Digital Input
S/N Ratio (IHF A)
Analogue Bypass
Digital Input
Input Sens. / Impedance
Contour (LF/HF)
Preamp Output Levels
Decodable Digital Input Signal
7.1 Home Theater Surround Processor / Preamplifier
<0.05%
<0.05%
10Hz-120kHz, +/- 0.3 dB
10Hz-95kHz, +/- 0.3 dB
95 dB
92 dB
Line Level: 200 mV / 100 k ohms
+/- 6 dB at 50 Hz / 15kHz
1.0 V / 1 k ohm
Dolby Digital, Dolby Digital EX,
Dolby Prologic IIx, DTS, DTS_ES,
DTS96/24, LPCM (up to 192K),
Dolby TrueHD, DTS HD
Master Audio
The Rotel Co. Ltd.
10-10 Shinsen-Cho
Shibuya-Ku,
Tokyo 150, Japan
Video
Frequency Response
3 Hz - 10MHz, +/- 3 dB (Composite, S-Video)
3 Hz - 100MHz, +/- 3 dB (Component Video)
S/N Ratio
45 dB
Digital Input Impedance
75 ohms
Digital Output Impedance
75 ohms
Digital Output Level
1.0 volt
Power Consumption
60 watts, Standby 5.5 watts
Power Requirements
120 volts, 60Hz (USA version)
230 volts, 50Hz (CE version)
Weight (net)
9.6 kg / 22 lbs.
Dimensions
431 x 144 x 335 mm
Dimensions inches
17 x 5 5/8 x 13 2/8 in
Front Panel Height
3U / 132.6mm / 5 2/8 in
Rotel of America
54 Concord St.
N. Reading, MA 01864
USA
T +1 978 664 3820
F +1 978 664 4109
RSP-1570
www.rotel.com
Rotel Europe
Dale Road
Worthing
West Sussex BN11 2BH, UK
T +44 (0) 1903 221 763
F +44 (0) 1903 221 525
