Summary of Contents for A&D EK-300EP

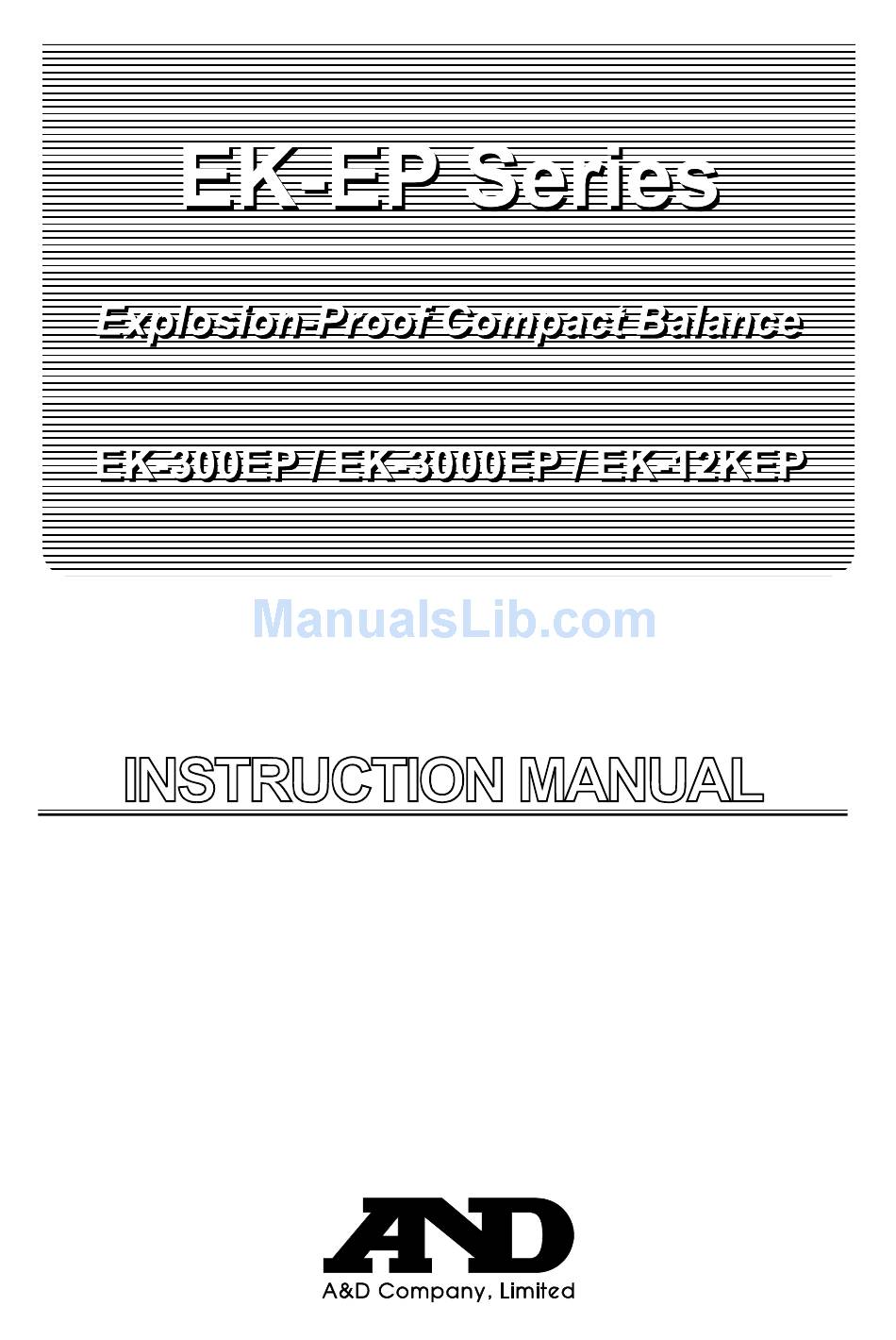

- Page 1 1WMPD4003076 2015.05.11...
- Page 2 This Manual and Marks All safety messages are identified by the following, “DANGER”, “WARNING” or “CAUTION”, of ANSI Z535.4 (American National Standard Institute: Product Safety Signs and Labels). The meanings are as follows: An imminently hazardous situation which, if not avoided, will result in death or serious injury.
-
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION ......................3 2. UNPACKING ........................3 3. PRECAUTIONS.......................4 3-1. Precautions on Explosion-Proof Structure ..............4 3-2. Precautions on Installation..................4 3-2. Precautions on Power Source ...................5 4. SETTING UP ........................6 4-1. Setting up Your Balance ....................6 4-2. Installing/Replacing the Batteries ................6 4-3. - Page 4 12-2. Error Codes ......................26 13. SPECIFICATIONS .......................28 13-1. Specifications......................28 13-2. Option........................28 13-3. External Dimensions....................28 13-4. Other Weighing Units.....................29 GRAVITY ACCELERATION MAP ..................30...
-
Page 5: Introduction
When unpacking, check whether all of the following items are included: Weighing pan Weighing pan Pan support Main unit Main unit EK-300EP EK-3000EP EK-12KEP Instruction Manual Allen wrench (nominal 2.5 mm) Keep the packing material to be used for transporting the balance in the future. -
Page 6: Precautions
3. PRECAUTIONS 3-1. Precautions on Explosion-Proof Structure Do not disassemble or modify the balance. When determining the installation site, take the following into consideration. Will explosive gases be generated? How often will they be generated? Refer to “5. CONFORMING STANDARDS.” ... -
Page 7: Precautions On Power Source
3-2. Precautions on Power Source As a power source, only the four “AA”, “LR6” or “AM3” alkaline 1.5 V batteries listed below can be used. DURACELL MN1500, ENERGIZER E91, Panasonic LR6(XJ) The explosion-proof performance of the EK-EP series balance is guaranteed by using the batteries described above. -
Page 8: Setting Up
Read “3. PRECAUTIONS” carefully and install the balance as described below. 4-1. Setting up Your Balance 1. Set up the balance as shown below. EK-300EP: Install the pan support and the weighing pan on the main unit. EK-3000EP/EK-12KEP: Install the weighing pan on the main unit. Weighing pan... -
Page 9: When Weighing Objects That Are Prone To Static Electricity
Four batteries (AA, LR6 or AM3 size) Battery cover Battery cover securing screws 4. Attach the battery cover and secure it to the balance using the battery cover securing screws. During use, the battery indicator changes as the battery voltage decreases, as shown below. -
Page 10: Conforming Standards
5. CONFORMING STANDARDS 5-1. IECEx Ex ia B T3 Ga Ex Component Type of Protection B: Gas Classification Temperature Class Equipment Protection Level 5-2. ATEX 1G Ex ia B T3 Ga Ex Component Type of Protection B: Gas Classification Temperature Class Equipment Protection Level 5-3. -
Page 11: Part Names And Functions
6. PART NAMES AND FUNCTIONS Weighing pan SAMPLE key (EK-300EP: round pan) Bubble spirit level Rating plate ZERO ON:OFF Battery compartment Bubble spirit level MODE key TARE key Leveling foot ENTER key Calibration switch cover Grounding screw hole Battery indicator ACAI indicator... -
Page 12: Operation
For details, refer to the function setting “ltUp” of “10-5. Function List.” d=minimum display division, refer to “13. SPECIFICATIONS.” e.g.: “d” for the EK-300EP is 0.01 g. Therefore, 4d is 0.04 g. -
Page 13: Units
7-3. Units The most common unit of weight used around the world is the gram, but there is often a need to shift to alternative units specific to the country where the balance is used or to select modes such as counting or percent. The units and the order they appear in the display are as follows: Troy ounce Pound... -
Page 14: Selecting A Weighing Unit
7-4. Selecting a Weighing Unit Press the MODE key to select a unit. Each pressing switches the units available in the order The following sections are a description of the described on the previous page. three common units: g (gram mode), pcs (counting mode), and % (percent mode). -
Page 15: Counting Mode (Pcs)
7-6. Counting Mode (pcs) The balance weighs the sample pieces and calculates the unit weight. Using the sample unit weight, the balance counts the number of objects in the sample. As for the minimum unit weight acceptable, refer to the function setting “Umin” of “10-5. - Page 16 If the balance judges that the sample weight is too light to acquire accurate weighing data, it 50 - displays an error prompting the addition of more samples to the specified number. The displayed number Add the specified number of samples and press will be stored as the the ENTER key.
-
Page 17: Percent Mode (%)
7-7. Percent Mode (%) Displays the weight value in percentage compared to the 100% reference weight. Selecting the percent mode 0. 0 1. Press the MODE key to select %. (%: percent) Storing the 100% reference weight 2. Press the SAMPLE key to enter the 100% reference weight storing mode. -
Page 18: Comparator
Compares stable data except those near zero (stable data greater than +5d or less than -5d). d = minimum display division. e.g.: “d” for the EK-300EP is 0.01 g. Therefore, 5d is 0.05 g. The minimum display for the counting mode is 1 piece, for the percent mode, 0.1%. - Page 19 Press 4. Press the TARE key several times to display several times 5. Press the ENER key to store the setting. Cp Hi appears after end To store Entering the upper and lower limit values 6. With Cp Hi displayed, press the ENTER key. Cp Hi Enter the upper limit value using the following keys.
-
Page 20: Calibration
9. CALIBRATION This function adjusts the balance for accurate weighing. Perform calibration in the following cases. When the balance is first used. When the balance has been moved. When the ambient environment has changed. For regular calibration. Press and slide the calibration Calibration (CAL) switch cover down. - Page 21 Weighing 5. With Cal 0 displayed, press the ENTER key to calibrate the zero point. Do not touch the pan during zero calibration. When zero calibration has been completed, the balance displays the calibration weight value. With nothing on the pan ...
-
Page 22: Gravity Acceleration Correction
9-2. Gravity Acceleration Correction When the balance is first used or has been moved to a different place, it should be calibrated using a calibration weight. But if a calibration weight is not available, the gravity acceleration correction will compensate the balance. Change the gravity acceleration value of the balance to the value of the area where the balance will be used. -
Page 23: Functions
10. FUNCTIONS 10-1. Key Operation Cancels the operation and turns the balance OFF. Item key Selects a class and an item. In the weighing mode, press and hold the key to enter the function setting mode. Enter key Proceeds to the selected class. Stores the settings per class and proceeds to the next class. -
Page 24: Setting Example
10-3. Setting Example To set the auto power-off function to “Disabled”, and the ACAI function to “Disabled.” 1. Press and hold the SAMPLE key to display func Press and hold func 2. Press the ENTER key to display poff 1 . poff 1 3. -
Page 25: Storing Weighing Units
10-4. Storing Weighing Units It is possible to store the weighing units that will actually be used from the units available. For the units available, Refer to “7-3. Units.” Select and store the weighing units as described below: 1. Press and hold the SAMPLE key to display func Press and hold func... -
Page 26: Function List
10-5. Function List Class Item Parameter Description poff Auto power-off disabled Turns the power OFF automatically func Auto power-off 1 Auto power-off enabled Cond Fast / sensitive Good environment/ Response Target weighing 2 Slow / stable Priority on stability st-b Conditions to turn Stable when within ±... -
Page 27: Option
11. OPTION As an option, a carrying case (EJ-12) is available for carrying the balance by hand. Please note that the balances are precision equipment and they, even placed in the case, will not be able to withstand excessive shock, such as being dropped. Therefore, use much care when carrying the balance. -
Page 28: Maintenance
12. MAINTENANCE 12-1. Notes on Maintenance Do not disassemble the balance. . Use the original packing material for transportation. Do not use organic solvents to clean the balance. Use a lint free cloth moistened with warm water and a mild detergent. 12-2. - Page 29 CAL errors Calibration has been canceled because the calibration Cal e weight is too heavy. Calibration has been canceled because the calibration -Cal e weight is too light. Check the weighing pan and the calibration weight. To return to the weighing mode, press the MODE key. Low battery error The batteries are exhausted.
-
Page 30: Specifications
13. SPECIFICATIONS 13-1. Specifications MODEL EK-300EP EK-3000EP EK-12KEP Explosion-proof structure Ex ia IIB T3 Ambient temperature range -25°C to 40°C / -13°F to 104°F Weighing capacity 300 g 3000 g 12 kg Minimum display “d” 0.01 g 0.1 g Repeatability 0.01 g... -
Page 31: Other Weighing Units
13-4. Other Weighing Units MODEL EK-300EP EK-3000EP EK-12KEP Weighing capacity 10.935 109.35 423.3 Minimum display 0.001 0.01 Weighing capacity 0.6834 6.834 26.46 Minimum display 0.0001 0.001 0.01 Weighing capacity 9.967 99.67 385.8 Minimum display 0.001 0.01 Weighing capacity 1500.00... -
Page 32: Gravity Acceleration Map
GRAVITY ACCELERATION MAP Values of Gravity at Various Locations Amsterdam 9.813 m/s Manila 9.784 m/s Athens 9.807 m/s Melbourne 9.800 m/s Auckland NZ 9.799 m/s Mexico City 9.779 m/s Bangkok 9.783 m/s Milan 9.806 m/s Birmingham 9.813 m/s New York 9.802 m/s Brussels 9.811 m/s... - Page 33 World Map...
- Page 34 MEMO...
- Page 36 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013, JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-6148 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131, U.S.A. Telephone: [1] (408) 263-5333 Fax: [1] (408)263-0119 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D AUSTRALASIA PTY LTD...
