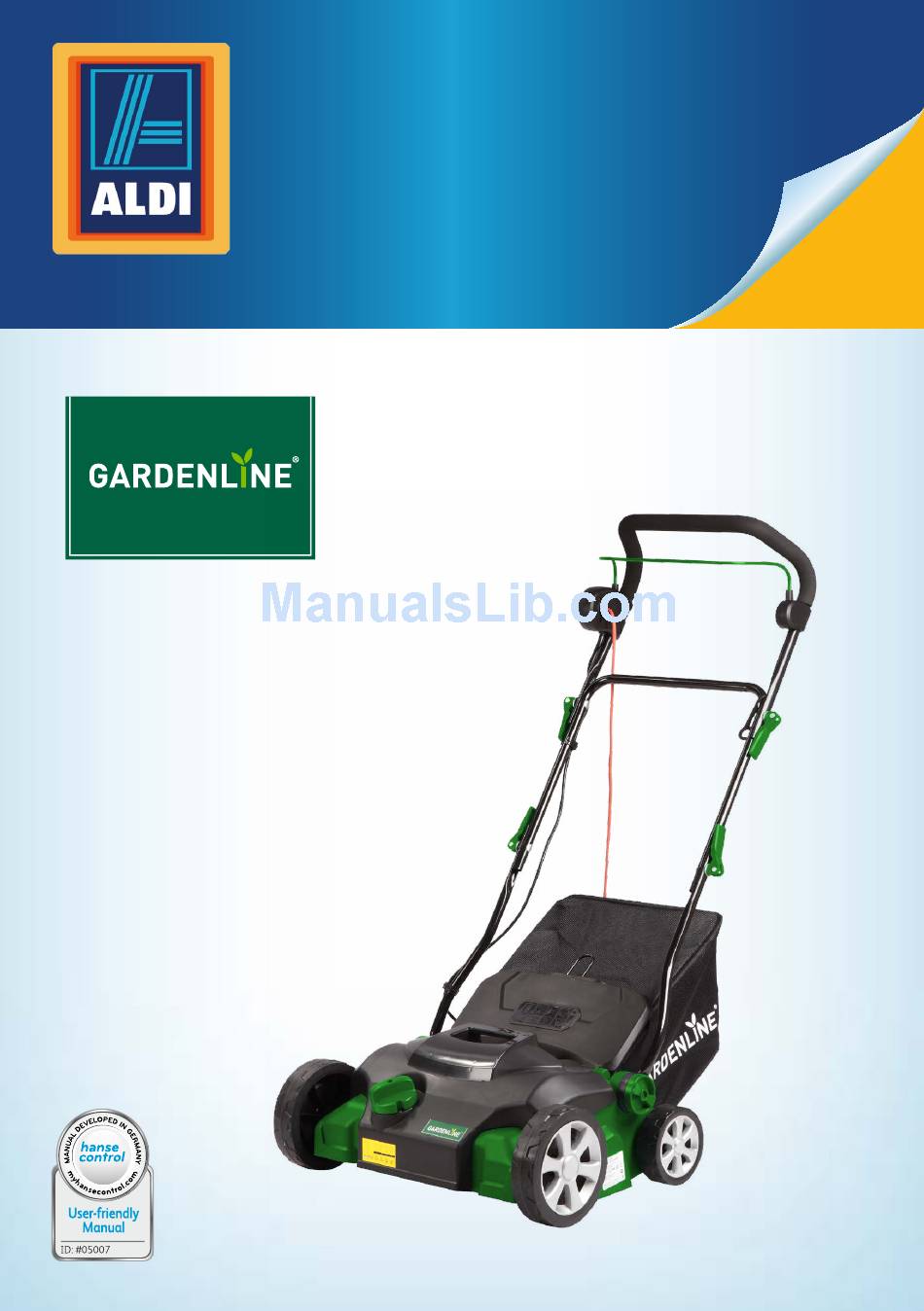

- Page 1 User Manual WITH QUICK START Spend a little Live a lot GUIDE 1500W Rake & Scarifier GLS 36K...
-
Page 2: Table Of Contents
Contents Product images and parts list ..............6 General information................7 Reading and storing the instruction manual........7 Explanation of symbols................7 Safety.......................11 Proper use....................11 Safety notes....................11 Checking the scarifier and product contents..........15 Assembly....................16 Mounting the handlebar.................16 Mounting the collector bag..............17 Operation....................18 Adjusting the height................20 Adjusting the handlebar................20 Replacing a roller..................21 Turning the scarifier on................22... - Page 3 Product images and parts list Inhaltsverzeichnis...
- Page 4 Product images and parts list...
- Page 5 Product images and parts list...
-
Page 6: Product Images And Parts List
Product images and parts list Handlebar Safety switch bar Screw, 4x Washer, 4x Connecting tube Quick release unit, 4x Brace, 2x Fixture, 2x Adjusting screw, 2x Lock washer, 2x Aerator roller Hanger assembly Dowels, 3x Screw for the hanger assembly, 3x Scarifier roller Height adjustment Cover cap (visible in Fig. -
Page 7: General Information
General information 1500W Rake and Scarifier Reading and storing the instruction manual This instruction manual accompanies this scarifier. It contains important information on start-up and hand- ling. Before using the scarifier, read the instruction manual carefully. This particularly applies for the safe- ty notes. - Page 8 General information 1500W Rake and Scarifier mation regarding assembly or operation. Declaration of conformity (see chapter “Declaration of conformity”): Products marked with this symbol fulfil the requirements of the CE directive. Wear protective gloves when inserting the roller to pre- vent injury.
- Page 9 General information 1500W Rake and Scarifier Pay attention to the sharp blades. Even after you switch off the device, they will continue to rotate for a while. Wait until the roller has come to a full stop before perfor- ming maintenance and cleaning. Be absolutely sure to pull the mains plug out of the so- cket before performing maintenance on the scarifier.
- Page 10 General information 1500W Rake and Scarifier This figure shows the proper depth for scarification. The rol- ler should cut 3 to 5 mm into the ground. If the roller cuts too deep, the ground may be damaged. The scarifier has the following safety mechanism: If you would like to start the scarifier, pull the safety switch bar towards the handlebar and briefly push the start but- ton.
-
Page 11: Safety
Safety 1500W Rake and Scarifier Proper use The scarifier is only designed for scarifying. It is only intended for private use and is not suitable for commercial use. Only use the scarifier as described in this instruction manual. Any other use is deemed improper and may result in damage to property or even personal injury. - Page 12 Safety 1500W Rake and Scarifier −Do not operate the scarifier if it is visibly damaged or if the mains connection is defective. −Do not use the scarifier with a defective extension cord. −Do not change the motor settings. −Do not overload the motor. −Do not submerge the scarifier, the extension cord and the mains plug in water or other liquids.
- Page 13 Safety 1500W Rake and Scarifier −Never lift or carry the scarifier when the motor is running. −Keep in mind that as the operator, you are responsible for acci- dents or risks associated with other persons or their property. −Make sure that all nuts, bolts and screws have been tightened so that the scarifier is in safe working order.
- Page 14 Safety 1500W Rake and Scarifier WARNING! DANGER OF EXPLOSION! The roller of the scarifier or projected objects could pro- duce sparks when they come into contact with metal. These sparks may ignite flammable liquids, gases or dust. −Do not use the scarifier in environments where there is a risk of explosion due to flammable liquids, gases or dust.
-
Page 15: Checking The Scarifier And Product Contents
Checking the scarifier and product contentse 1500W Rake and Scarifier NOTICE! RISK OF DAMAGE! Improper handling of the scarifier may result in damage to the scarifier. −Ensure that the mains cord does not come into contact with hot parts. −Never expose the scarifier to high temperatures (heaters etc.) or to effects of the weather (rain etc.). -
Page 16: Assembly
Assembly 1500W Rake and Scarifier case, do not use the scarifier. Contact the manufacturer at the service address specified on the warranty card. 2. Check to make sure that the delivery is complete (see fig. A). Assembly Mounting the handlebar 1. -
Page 17: Mounting The Collector Bag
Assembly 1500W Rake and Scarifier 10. Attach the cord safety holder to the handlebar 11. Hold the handlebar against the connecting tube so that the holes line up. 12. Connect the handlebar to the connecting tube by screwing two screws with nuts and quick release units in place. 13. -
Page 18: Operation
Operation 1500W Rake and Scarifier Operation WARNING! RISK OF INJURY! The scarifier uses a fast rotating roller with sharp blades. If used incautiously, you could injure yourself or other persons. The rotating roller could project small objects (rocks, sticks, wires, bones or similar) away. You could severely injure yourself or other persons as a result. - Page 19 Operation 1500W Rake and Scarifier −Always work perpendicular to the slope and never work up or down a slope. −Be especially careful when changing the direction of travel on the slope. −Never work on excessively steep slopes. −Switch the scarifier off and pull the mains plug. −Wait until the roller has come to a full stop before you remove any blockages or obstructions in the discharge opening.
-
Page 20: Adjusting The Height
Operation 1500W Rake and Scarifier Adjusting the height NOTICE! Risk of damage to property! If the scarifier is set incorrectly, the roller or the ground may be damaged as a result. −Before each use, check the set depth to avoid any da- mage to the ground. -
Page 21: Replacing A Roller
Operation 1500W Rake and Scarifier Replacing a roller Two rollers are contained in the product contents: −The aerator roller is ideal if you would like to rake leaves, moss and weeds out of your grass and amass them in the coll- ector bag. -
Page 22: Turning The Scarifier On
Operation 1500W Rake and Scarifier Turning the scarifier on 10. Take an extension cord and connect it with the mains connec- of the scarifier (see fig. G). tion 11. Secure the extension cord with the cord safety holder (see fig. G). 12. -
Page 23: Cleaning
Cleaning 1500W Rake and Scarifier Cleaning WARNING! RISK OF SHORT CIRCUIT! Water that has penetrated the scarifier may cause a short circuit and an electric shock. You could injury your- self if you come into contact with the scarifier then. −Make sure that no water penetrates the housing of the scarifier. -
Page 24: Maintenance
Maintenance 1500W Rake and Scarifier Maintenance WARNING! RISK OF INJURY! A faulty electrical installation or excessive mains voltage may result in an electric shock. −Do not open the housing; instead, have a qualified professional perform the repairs. −Contact a qualified workshop for this. −Liability and warranty claims are waived in the event of repairs performed by the user, improper connection of the device or incorrect operation. - Page 25 Maintenance 1500W Rake and Scarifier IMPORTANT: The wires in the mains lead are coloured in ac- cordance with the following code: Blue – Neutral Brown – Live As the colours of the wire in the mains lead of this product may not correspond with the coloured marking identifying the termi- nals in your plug, proceed as follows.
-
Page 26: Troubleshooting
Troubleshooting 1500W Rake and Scarifier Troubleshooting Fault Possible cause Solution The mains connec- Check the line and tion is defective. fuse. The mains cord is Check the mains defective. cord. The switch plug Call customer ser- combination is de- The motor does not vice. -
Page 27: Storage And Transport
Storage and transport 1500W Rake and Scarifier Storage and transport WARNING! RISK OF INJURY! Incorrect storage could cause damage to the scarifier. Children could also be injured. −Make sure that the scarifier is stored so that it is not accessible for children, unauthorised persons and animals. -
Page 28: Hanging Up The Scarifier
Disposal 1500W Rake and Scarifier Hanging up the scarifier If you prefer not to fold up the scarifier, but to hang it up, use the enclosed hanger assembly. 1. Select a suitable location for the hanger assembly . It should be dry and well ventilated. 2. -
Page 29: Technical Data
Technical data 1500W Rake and Scarifier Technical data GLS 36K Type: 91979 Article number: 230V ~,50Hz Supply voltage: 1500 W Output: 3500 rounds per minute Engine idle speed: Protection class: 18 kg including packaging Weight: 36 cm Working width: -12, -9, -6, -3, +10... -
Page 30: Eu Declaration Of Conformity
1500W Rake and Scarifier EU Declaration of conformity Merotec GmbH Hanns-Martin-Schleyer-Str. 18a, 47877 Willich, Germany Hereby declare that our product: 1500W Rake and Scarifier Model number: GLS 36K The following standards complies MD Directive 2006/42/EC EN60335-1：2002+A1+A11+A12+A2+A13+A14+A15; EN60335-2-92：2005; EN 13684_A2：2009 2011/65/EC... - Page 31 Importer: MEROTEC GmbH Hanns-Martin-Schleyer-Straße 18a 47877 Willich, Germany Email: support@coreservice.co.uk AFTER SALES SUPPORT +44 (0)1904 727501 www.coreservice.co.uk +353 (0) 19022605 YEARS WARRANTY MODEL: GLS 36K, 08/2015, 91979...
-
Page 32: Warranty Card
Description of malfunction : AFTER SALES SUPPORT Return your completed warranty card together with the faulty product to: +44 (0)1904 727501 www.coreservice.co.uk +353 (0) 19022605 Unit A&B MODEL: GLS 36K, 08/2015, 91979 Escrick Business Park Escrick York Phone lines available YO19 6FD Monday to Friday. -
Page 33: Warranty Conditions
Warranty conditions Dear Customer, The ALDI warranty offers you extensive benefits compared to the statutory obligation arising from a warranty: Warranty period: 3 years from date of purchase Costs: Free repair/exchange or refund. No transport costs. Hotline: Free hotline ADVICE: Please contact our service hotline by phone, e-mail or fax before sending in the device.
