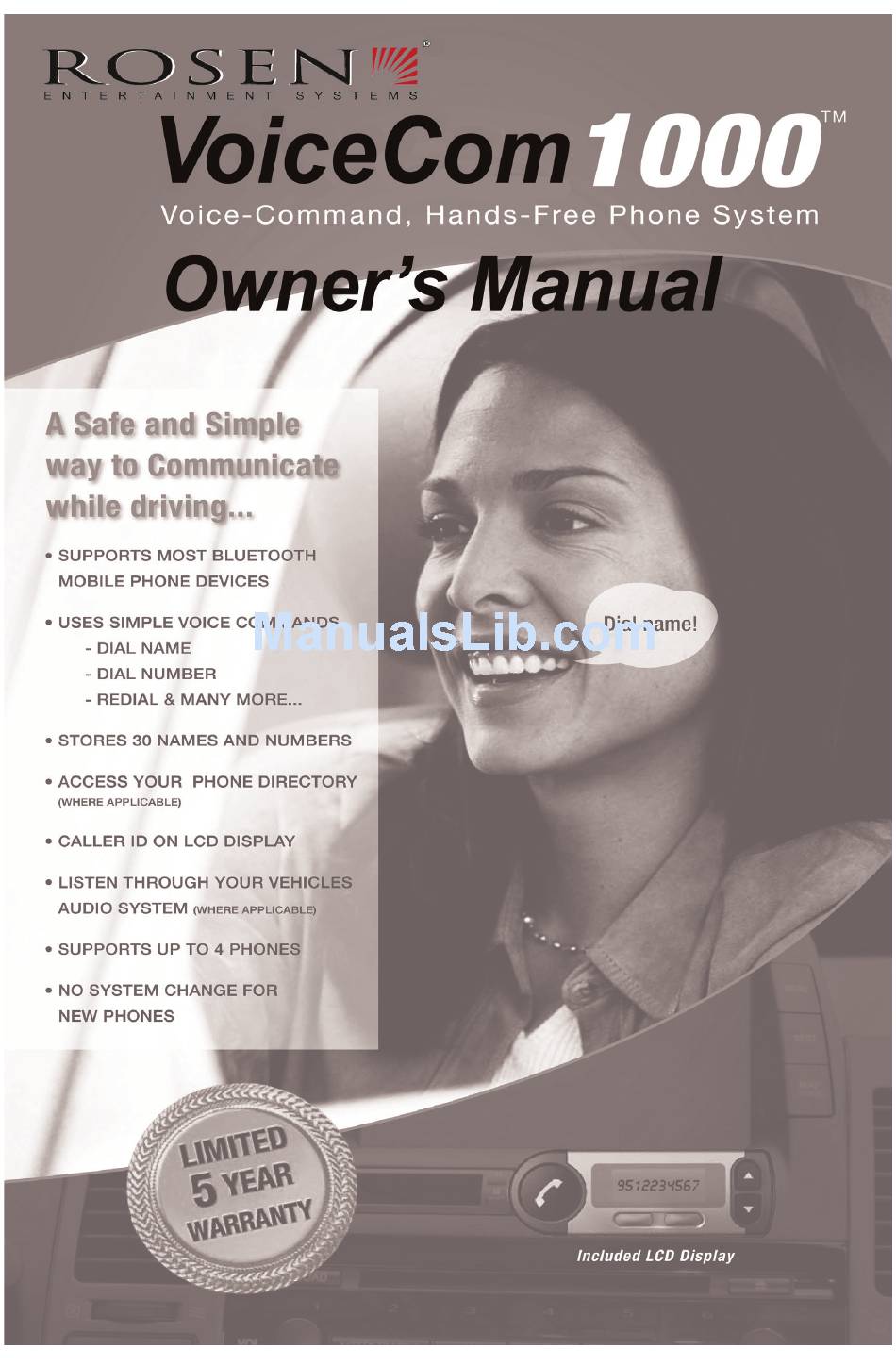

Rosen viocecom 1000 Owner's Manual

Voice-command, hands-free phone system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Rosen viocecom 1000

Summary of Contents for Rosen viocecom 1000

  • Page 2 ROSEN ENTERTAINMENT SYSTEMS, LLC 1120 California Avenue Corona, CA 92505, USA T: +1 951 898-9808 F: +1 951 898-9897 www.rosenentertainment.com Sales, Service and Support: Customer Service: +1 866 467-6736 Technical Support: +1 888 883-2790 info@rosenentertainment.com techelp@rosenentertainment.com...

  • Page 3: Table Of Contents

    -Connection ... 17 Making a call ...…... 18 Volume Control ...…... 18 DTMF tone generation Transferring a call from the hands-free system to the telephone ... 19 Ready to use your VoiceCom 1000™ ...…………... 19 Support ...…... 20 Warranty ...……... 20 Certifications ...……...
  • Page 4 VoiceCom 1000™ Welcome Thank you very much for purchasing the VoiceCom 1000™ from ROSEN ENTERTAINMENT SYSTEMS (ROSEN). This universal hands-free mobile phone car kit is an important contribution to road safety and the convenient hands-free use of your mobile phone while driving. To increase operating convenience the VoiceCom 1000™...

  • Page 5: Introduction

    VoiceCom 1000™ Introduction Introduction This Operating Manual for the VoiceCom 1000™ contains all necessary information required to get you familiar with the operation of the VoiceCom 1000™ system installed in your car. Your VoiceCom 1000™ system should have been installed by a professional installer in order to be covered under ROSEN Limited Warranty.

  • Page 6: Getting Started

    Getting Started VoiceCom 1000™ Negative Effects on Road Safety: You are now the proud owner of the most advanced hands-free mobile phone system and will have a safe and very convenient way of operating your mobile phone in your car, however, talking on the phone while driving reduces your concentration! This may cause dangerous situations on the road.

  • Page 7: Interactive Voice Control

    "telephone book" of the system, which is speaker dependent. The "telephone book" may be programmed with 30 names and is independent of the names and numbers stored in the phone directory of your mobile phone.

  • Page 8: Dial Number

    Interactive Voice Control Note: As a precondition for some voice commands a Bluetooth has to be paired and connected with the VoiceCom 1000™. "Dial Number" After speaking the command NUMBER PLEASE?" You may now speak the number either in single digits, in groups of digits or the entire number in one continuous way.
  • Page 9 VoiceCom 1000™ speaker-dependent, so in general the system will only recognize the voice of the speaker, who has programmed the phonebook of the VoiceCom 1000™ system. When the system responds with the name you entered, i.e. "JOHN," you say "Dial" and the system responds with "THE NUMBER IS DIALED," and the connection will be made.
  • Page 10 Interactive Voice Control say, "THE PHONEBOOK IS FULL" and will not accept your command for a new entry. Should you make an error while inputting the phone number to a name you can say "Delete" and the system will delete the last digit entry and repeat the previous numbers entered, or you can delete the entire previously entered numbers by saying "Delete All"...
  • Page 11 VoiceCom 1000™ the system's response is "CANCEL" and it exits this dialog. If you say a name and the system responds with "ENTRY NOT FOUND", "THE NAME PLEASE", you may repeat the name entry more clearly, however it may also be the case that the name you try to remove is not stored in the phone-directory.

  • Page 12: Operating The System With A Bluetooth ® Enabled Phone

    Operating the System "Store Emergency Number" NOT ATTEMPT TO PERFORM THE PROCEDURE WHILE DRIVING THE CAR! STOP THE CAR AND THE ENGINE A ND PARK I N A SECURE PLACE BEFORE PROGRAMMING DIALOG! You can store a random number in a reserved location within the VoiceCom 1000™...

  • Page 13: Display And Control Elements

    VoiceCom 1000™ ® Bluetooth Technology ® Bluetooth technology is radio technology and therefore allows wireless communication. Data and voice can be transmitted simultaneously. This does not require any line-of-sight connection between the participating devices. The typical radio range in a free sound field is 10m (appr. 30ft.). However, interference from other electrical devices or obstructions may reduce the range.

  • Page 14: The Menus

    Operating the System strength of the signals received by the phone and the phone‘s remaining storage battery capacity. Various status messages are shown in the middle of the display. Pairing Connection set-up No call active If there is a Bluetooth® connection with a paired phone, the name of the phone or of the service provider can be seen here.
  • Page 15 VoiceCom 1000™ Settings • Language Select the menu language you wish. Choose "auto" so that the menu language will correspond to the voice-command control version in the control unit. • Display brightness Regulate the brightness in the display to the level which suits you best. •...

  • Page 16: Device Pairing

    Operating the System • < > The points marked with < > are placeholders for phones not yet paired and they cannot be selected therefore. • "< Device name >" The name of a paired phone. You can only select this menu item if the adapter is not connected via Bluetooth moment.

  • Page 17: Bluetooth ® Connection

    VoiceCom 1000™ The phone then starts device recognition. In the list of the devices found by your phone, select " VoiceCom 1000™". In the course of the procedure of pairing your phone you will be asked to input your PIN or code (also passkey). Please enter the digit sequence "1234"...

  • Page 18: Making A Call

    Operating the System VoiceCom 1000™ Making a call Depending on the phone you have, some functions might not be available when you use the headset profile. If there is no connection, then the hands-free ® functions cannot be used. Please therefore be sure the Bluetooth connection is established.

  • Page 19: Transferring A Call From The Hands-Free System To The Telephone

    Transferring a call from the hands-free system to the VoiceCom You can transfer an active call from the hands-free system to the telephone in order to avoid third parties listening in, for example. To do this, press the left key for more than half a second.

  • Page 20: Support

    Support VoiceCom 1000™ Support Customer support product assistance available e-mail: techelp@rosenentertainment.com. If you would like to speak to a ROSEN technical support representative, please call on weekdays between 8 am and 5 pm pacific time ROSEN hotline: (888) 883-2790. One of our technical support representatives will be glad to assist you.

  • Page 21: Troubleshooting

    VoiceCom 1000™ Troubleshooting Should you experience problems with the operation of your new VoiceCom 1000™, please try the troubleshooting suggestions below: Problem The VoiceCom 1000™ blue doesn't turn on with the ignition turned When using the VoiceCom 1000™ system for a phone call, the person on the other end cannot hear you.
  • Page 22 Troubleshooting Problem The paired phone is not connected when the ignition is turned on. ® This Bluetooth product is identical to the Bluetooth B01585. VoiceCom 1000™ Solution Bring the phone within range of the Remote Control. ® Switch Bluetooth phone (the" automatic" option is not enough).
  • Page 23 Visit us at www.rosenentertainment.com © ROSEN. All rights reserved. ROSEN and VoiceCom 1000™ are trademarks of ROSEN. P/N 9100586...

This manual is also suitable for:

Voicecom 1000
