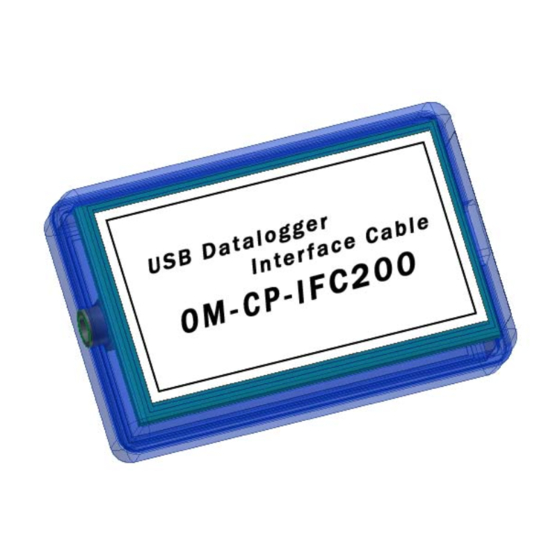

Omega OM-CP-IFC200 Quick Installation Manual

USB Datalogger Interface
Quick Installation Guide
Package Contents
•
USB Interface Device
•
USB Cable
•
3.5mm Audio cable
•
Data Recorder Software
CD-ROM
•
Quick Installation Guide
Model No. OM-CP-IFC200 For Win 2000/XP
IMPORTANT: Do not connect the OM-CP-IFC200 to
your PC until instructed to do so or the setup will not
work.
1
Set up USB Datalogger Interface
A
Insert the OM-CP Data Logging
Software CD-ROM into your CD-
ROM drive. The CD should run
automatically, and the CD
Contents screen should appear. If
it does not, click the Start button
and choose Run. In the field that
appears, enter D:\autorun.exe
(If "D" is the letter of your CD-
ROM drive).
A
B
Click on the Install Omega
2.00.63 or later link on the CD
Contents screen to start the install
of the Data Recorder Software. A
new window will appear. Follow
the on screen prompts to complete
the software installation. See the
Software Manual or visit us online
at www.omega.com additional
information.
B
C
To install the OM-CP-IFC200, click
the Install USB Interface
Drivers link on the CD Contents
screen. A new window will appear
prompting for a directory and to
start the installation.
If you choose to change the
directory where the drivers will be
C
stored, do so here by clicking
Browse. When the directory is
set to the correct location, click the
Install button to start the
installation.
D
When using Windows XP, a screen
may appear indicating the software
®
has not passed Windows Logo
Testing. This software has been
tested and works properly with D
Windows XP. Click the Continue
Anyway button to resume with the
installation. When finished, a
message will display indicating that
the installation was successful.
All the necessary drivers for the
OM-CP-IFC200 to work correctly
should now be pre-installed onto
your PC. Click the OK button to
close the Pre-Installer window. In
the CD Contents window, click the
D
Exit CD Browser link to exit the
autorun program.
2
Connect the USB Datalogger Interface
For Windows 2000
A
Warning:
Remove the warning label to
Install driver before
expose the USB connector.
Connecting this device.
Connect one end of the included
A
USB cable to the USB port of
the OM-CP-IFC200.
B
Connect the other end to a USB
port on your PC. When the
OM-CP-IFC200 is plugged in,
B
the Found New Hardware
window will display. Windows
2000 will automatically install
the proper software drivers for
the OM-CP-IFC200 as long as
step one was completed.
B
Allow the PC to complete the
installation. Once finished, the
Found New Hardware window
will disappear and the blue
Power LED on the OM-CP-
B
IFC200 will light up. Once this
occurs, you can skip ahead to
step three, Test USB Datalogger
For Windows XP
A
Warning:
Remove the warning label to
Install driver before
expose the USB connector.
Connecting this device.
Connect one end of the
A
included USB cable to the USB
port of the OM-CP-IFC200.
