ENFORCER SK-983A Installation Manual

A. To program the keypad for Quick Code:
3 2 8 9 *
The keypad is now in the programming mode, ready to receive new data.
4 2 #
Set the relay to latch ON when the Quick Code is inputted.
*
Exit the programming mode.
B. Now the relay will be latched ON when the first 2 digits of the User Code are inputted. The relay will be deactivated
when the entire User Code is inputted:
8 3 #
Relay output is latched ON (activated).
8 3 2 1 #
Relay output is latched OFF (deactivated).
DAP JUMPER (SYSTEM RESET)
If the personal master code is forgotten, use the DAP
jumper to override the forgotten code and permit
direct entry into the programming mode as follows:
1. Disconnect the power supply.
2. Switch the DAP jumper from OFF to ON.
3. Reconnect the power supply. The keypad will start
beeping.
SPECIFICA SPECIFICA TIONS TIONS TIONS: : : : :
SPECIFICA SPECIFICA SPECIFICATIONS TIONS
Operation voltage — 12VDC (10~14VDC). Operation voltage Operation voltage Operation voltage Operation voltage
Current drain Current drain — 10-60mA. Current drain
Current drain Current drain
Duress output — Transistor ground (-), 100mA, Duress output Duress output Duress output Duress output
25VDC max.
Codes available Codes available
Codes available — Master, user, duress, and quick. Codes available Codes available
Code combinations Code combinations Code combinations Code combinations — 111,111,100 possibilities. Code combinations
INSTALLA INST INST INST INST ALLA ALLATION DIA ALLA ALLA TION DIA TION DIA TION DIAGRAM* TION DIA GRAM* GRAM* GRAM* GRAM*
Important:
! Leave unused terminals open.
! Connect the included diode
1N4004 across the electric latch.
! N.C. = Normally Closed
N.O. = Normally Open
! Use a regulated power supply only.
This will help prevent lockouts.
! The 1N4004 diode must
24-hour
be used to help prevent
N.C. zone
possible lockouts.
N.O. zone /
telephone dialer
* This sample installation
Common
assumes the relay is
Ground
programmed for N.O.
operation.
WARRANTY:
ENFORCER access keypads are warranted against defects in material and
workmanship while used in normal service for a period of one (1) year from the date of sale to
the original customer. Our obligation is limited to the repair or replacement of any defective part
if the unit is returned, transportation pre-paid, to SECO-LARM.
SECO-LARM's policy is one of continual development and improvement. For this reason, SECO-LARM reserves
the right to change specifications without notice.
Copyright © 2003 SECO-LARM U.S.A., Inc. All rights reserved.
®
SECO-LARM SECO-LARM U.S.A., Inc. U.S.A., Inc.
SECO-LARM SECO-LARM SECO-LARM U.S.A., Inc. U.S.A., Inc. U.S.A., Inc.
®
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
4. Switch the DAP jumper back to the OFF position.
The keypad will stop beeping.
5. The keypad is now in the programming mode,
ready to receive new data.
6. Re-program the keypad as shown above, starting
with the personal master code.
Relay output Relay output
Relay output Relay output — 5A, dry contact, programmable Relay output
N.O. or N.C., 30VDC max.
Dimensions (keypad with back box) — 4 Dimensions (keypad with back box) Dimensions (keypad with back box) Dimensions (keypad with back box) Dimensions (keypad with back box) / " x 2
5
8
x 1 7 / " (117 x 74 x 48 mm).
8
W W W W W eight (keypad with back box) eight (keypad with back box) — approx. 6.2 oz eight (keypad with back box) eight (keypad with back box)
eight (keypad with back box)
(175g) net), 7.9 oz (225g) gross.
+
Regulated
12VDC
- power
power
supply supply
Egress button
(Inside the
N.O.
premises)
Diode 1N4004
- +
Electric Latch/Lock
Website: www.seco-larm.com
®
E-mail: sales@seco-larm.com
MT_983Ah.pmd
Installation Manual
ENFORCER
SK-983A
Digital Access Keypad
Also available:
SK-983A100
INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION

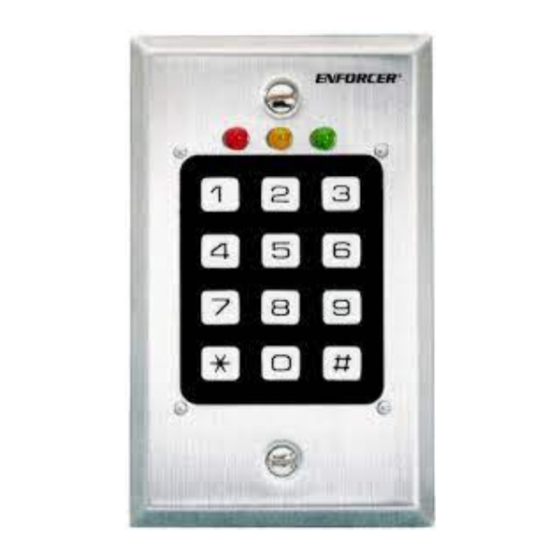

The SK-983A is the ideal keypad for office and home security installations. It is a self-contained security keypad with a built-in
5A relay for electric door strike and other security and access control applications. With its EEPROM memory, the keypad's
programmed data is saved in case of power failure. Security is assured with over 100 million possible combinations for the
master, user, duress, and quick codes. Other security features include duress output and a built-in tamper switch. For
convenience, the SK-983A also supports egress input (a push-button switch inside the protected area for easy exit when one-
way security is sufficient).
TERMINALS TERMINALS TERMINALS
TERMINALS TERMINALS
/ "
7
8
! 12VDC IN — Connect to the (+) and (-) terminals of a 12VDC power supply. The keypad's (-) terminal is the
grounding point for the keypad. Important — Connect to a
regulated power supply only.
! DU OUT (Duress Output) — Outputs a transistor ground when the
Duress Code is entered. Connect to activate an alarm control
panel or telephone dialer. Output: Ground (-) output, 100mA,
25VDC max.
! EG IN (Egress Input) — Connect to the 12VDC IN (-) terminal via
a momentary push-button switch. Allows user to bypass the
security code by pushing the push-button switch. This switch is
normally put inside the protected premises near the door to allow
those inside the protected premises to exit without keying in the
code. Leave this terminal open if it is not used.
! O/P RELAY — 5A N.O. dry relay contact for connection to a door
striker. Programmable N.O. or N.C. Important — Connect
the included 1N4004 diode in parallel to the electric
strike or magnetic lock (see page 4).
! N.C. TAMPER — N.C. contact when the keypad is secured on the
back box. The contact opens when the keypad is separated from
the box. Connect to the 24-hour zone of an alarm system if
necessary.
VISIBLE AND A VISIBLE AND A VISIBLE AND A VISIBLE AND A VISIBLE AND AUDIBLE INDICA
! RED — Lights ON when the first digit of the entry code is pressed. Remains on for 10 seconds, during which time the
entire code must be entered. If the entire code is not entered while the red LED is on, the entire code is canceled, and
must be entered again from the first digit.
! AMBER — Program status indicator. Synchronized with the built-in buzzer's tone (see Figure 1).
! GREEN — Lights ON when the 5A relay makes contact.
PIHAK1
- 110 User Keypad
with 2 Relay Outputs
UDIBLE INDICAT T T T T ORS UDIBLE INDICA UDIBLE INDICA UDIBLE INDICA ORS ORS ORS ORS
®
12VDC input
Duress output
Egress input
Relay
N.C. tamper
Tamper
switch
DAP
jumper
Wire
jumper
