  • Page 1: Instruction Manual

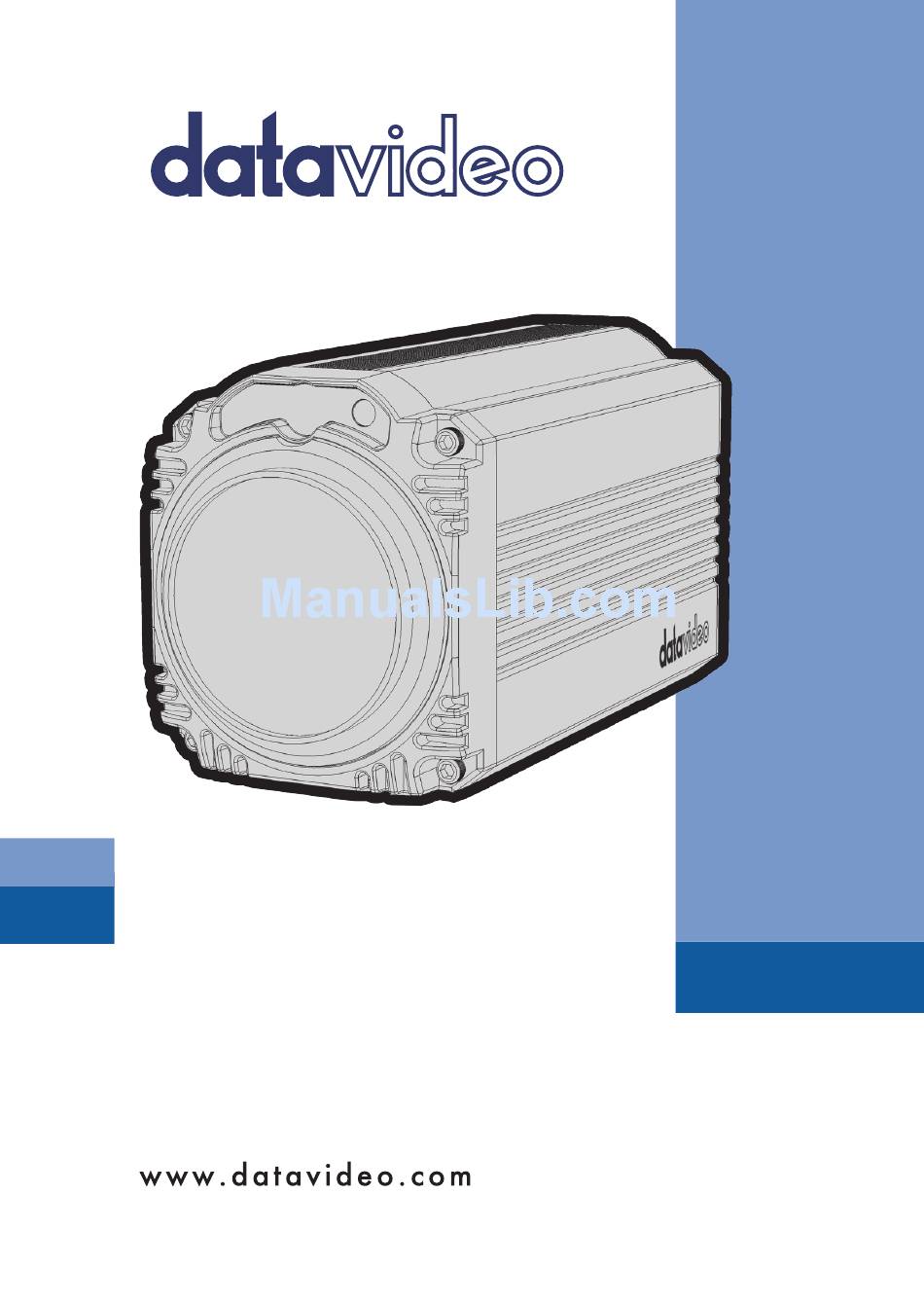

    BLOCK CAMERA BC-50 Instruction Manual...

  • Page 2: Table Of Contents

    4. OSD MENU OPTIONS ..........15 5. EQUIPMENT SETUP AND INTERNET CONNECTION ... 24 5.1. O ........24 PERATING NVIRONMENT 5.2. E ........24 QUIPMENT NSTALLATION 5.3. I ........... 24 NTERNET ONNECTION 6. VISIT AND CONTROL THE BC-50 BY LAN ....26...
  • Page 3 6.1. S IP A .......... 26 ETUP THE DDRESS 6.2. C IP A ........27 HANGE THE DDRESS 6.3. V BC-50 ........29 ISIT CCESS THE 6.4 VLC S TREAM EDIA LAYER ONITORING OR DECODING RTSP S )..........32 TREAMING 6.5.
  • Page 4 Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information.

  • Page 5: Fcc Compliance Statement

    This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 6: Warranty

    Datavideo office.  All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty from the date of purchase.  Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.

  • Page 7: Three Year Warranty

    Lighting, Non-PCIe Card and third party provided PC components are covered for 1 year.  The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

  • Page 8: Disposal

    Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 9: Introduction

    1. Introduction The BC-50 is a cost-effective Full HD block camera which equips high quality super telephoto lens with 20X optical zoom and 16X digital zoom. The BC-50 Block Camera is a small HD camera that can deliver compressed video signals such as H.264, H.265 and MJPEG. The BC-50 block camera is made with sturdy and durable metal case which is suitable for HD camera applications in different environments.

  • Page 10: System Diagram

    2. System Diagram...

  • Page 11: Connections

    3. Connections Front View Tally Light This tally LED is used to receive the tally signal by the 3.5mm wire from the tally box connected to the switcher. If the switcher transmits a PGM signal to the camera, the tally LED will light on in red.

  • Page 12: Rear Panel

    Rear Panel...
  • Page 13 3G-SDI Output Video output(Type A) connected to SDI port of the monitor. RS-485 Control Control port using the RS- Port 485 control protocol. The max. distance is 1200m 12V DC Power IN DC in socket connects the supplied 12V PSU. The connection can be secured by screwing the outer fastening ring of the DC In...
  • Page 14 Zoom- OSD: Out function when the Up=Zoom In camera is in normal Down=Zoom Out operation. If the BC-50 is set at manual Focus in If the BC-50 is advance and the BC-50 is set at Manual in normal operation, the...

  • Page 15: Osd Menu Options

    On-Screen Menu allows the user to change various camera settings such as shooting conditions and the system setup. Press MENU button on the rear panel of the BC-50 to enter the on-screen menu as shown below. The BC-50 HD camera provides five keys on the rear panel including MENU, Up, Down, Left side and Right side for users to control the camera.
  • Page 16 Noise Exposure Color Image Focus Reduction 1.D-Zoom 1.Mode 1.WB Mode 1.Luminance 1.2D NR Limit 2.ExpCompMod 2.AF 2.AWB Sens 2.Contrast 2.3D NR Sensitivity 3.Auto 3. ExpComp 3.RG Tuning 3.Sharpness 3.Return Focus 4. GainLimit 4.BG Tuning 4.Flip-H 4.Return 5. Backlight 5.Saturation 5.Flip-V 6.
  • Page 17 Restore Setting Information Exit Default 1.Language 1.Version 1.Yes 2.Protocol 2.Model 2.No 3.VISCA Address 3.Date 3.Return 4.Baudrate 4.AF Version 5.Video Format 5.IP 6.Lens 6.Gateway 7.Return 7.Netmask 8.Return...
  • Page 18 Layer Main Layer Sub- Layer Options Options Parameter Auto Bright Iris Priority 1.Mode Shutter Priority Manual 2.ExpCompMod 3.ExpComp 1.Exposure 4.Gain Limit...
  • Page 19 5.Backlight 6.DRC Strength 50Hz 60Hz 7.Anti Flicker 8.Return Auto 3000K/Indoor 4000K 5000K/Outdoor 1.WB Mode 6500K-1 6500K-2 6500K-3 One Push Manual 2.AWB Sens Middle High 2.Color 3.RG Tuning -10~10 4.BG Tuning -10~10 5.Saturation 100% 180% 110% 120% 130%...
  • Page 20 140% 150% 160% 170% 180% 190% 200% 6.Hue 7.Return 1.Luminance 3.Image 2.Contrast...
  • Page 21 3.Sharpness 4.Flip-H 5.Flip-V default 0.45 6.Gamma 0.56 0.63 Norm Clarity(LED) 7.Style Soft...
  • Page 22 Bright Clarity 8.Return 1.D-Zoom Limit 4.Focus 2.AF Sensitivity Middle High 3.Auto Focus 4.Return 1. 2D NR Close Auto 5.Noise Reduction 2. 3D NR Close 3.Return English 1.Language Traditional Chinese Simplified Chinese VISCA 6. Setting 2.Protocol PELCO-P PELCO-D 3.Address 0~31 Addr ress...
  • Page 23 ress 38400 19200 4.Baud Rate 9600(default) 4800 2400 1080P25 1080P30 1080P50 5.Video Format 1080P60 1080I60 1080I50 720P50 720P60 6.Lens Type2 7.Return 1.Version 2.Model 7.Information 3.Date 4.AF Version 5.IP 6.Gateway 7.Netmask 8.Return 1.Yes 8.Restore 2.No Default 3.Return 9.Return...

  • Page 24: Equipment Setup And Internet Connection

    (1) Connect BC-50 directly to your internet or to your PC through Ethernet cable. (2) Connect the BC-50 camera with the DC 12V power cable. After the DC 12V power is connected, the power LED below the DC 12V power connector will flash.
  • Page 25 Figure1. Internet connection between the BC-50 and PC through Ethernet cable Figure2. Internet connection between the BC-50 and PC through router/interchanger...

  • Page 26: Visit And Control The Bc-50 By Lan

    “192.168.100.99”. For users who do not know the BC-50 IP address, please follow following steps for finding the BC-50 default IP address. Finding IP address by OSD: Connect the BC-50 Full HD block camera to a monitor or TV. After that, please press the MENU key on the rear panel of the camera.

  • Page 27: Change The Ip Address

    “192.168.100.99”, and a window will pop-up and ask you to input the user name and password. The default user name & password is “admin”. 5. And then you can see the web control page of the BC-50 Full HD block camera.
  • Page 28 7. After that, input new IP address in the blank of the IP address item as shown as following. 8. Click “Apply” 9. After that, please go to System>Reboot to reboot the BC-50. And then, please click the Apply button for rebooting it.

  • Page 29: Visit /Access The Bc-50

    Upgrade software can be downloaded from Datavideo official website https://www.datavideo.com/product/BC-50 Note: The default IP address of the BC-50 Full HD block camera is “192.168.100.99”, and the default user/password is “admin”. After the IP address is modified, the BC-50 Full HD block camera will be restarted.
  • Page 31 3. After entering into the web control page, the screen will be shown as following. Note: For users who want to use the BC-50 Full HD block camera through the Internet for the first time (for new user Only), the VLC player software must be installed.

  • Page 32: Vlc Stream Media Player Monitoring (For Decoding The Rtsp Streaming)

    50 web UI control interface and click Video ->First Stream for setting related parameters. For the setting of the second stream video parameters, please go to the BC-50 web UI control interface and click Video->Second Stream for setting related parameters.
  • Page 33  rtsp://ip: port number/2 (Second stream).
  • Page 34 Please pay attention that the First stream encoding and Second stream encoding related parameters of the RTSP streaming must be set in Video First stream/Second Stream in the Web UI. Note: The default RTSP port number is 554.

  • Page 35: Parameter Setting

    VLC video viewing window. This VLC video viewing window is used for real-time monitoring of the RTSP streaming of the BC-50. The resolution of the video viewing window must be the same as the video resolution. Higher resolution achieves larger playing area. If you want to enlarge the video viewing window to full-screen size, please double-click the viewing window.

  • Page 36: Homepage Control User Interface

    Chinese, traditional Chinese and Russian. 6.6.2 Live The “Live” option is the first option on the left column of the BC-50 network control interface which is shown as follows. In this “Live” option, if the VLC player is installed, user can see that there is an embedded real- time monitoring video that is decoded by the VLC player.
  • Page 37 The “Live” option is used for live-monitoring the video of the BC-50. After the “Live” interface is shown, users can click the drop-down menu on the right side. After that, users can see two items including VLC and IE. The VLC option in the “Live” menu allows for embedded VLC decoding.
  • Page 38 Step 4. Please enter the real-monitoring streaming URL into the blank of the “Open Media” window. The default format of the link is rtsp://ip address: port No/1. In this example, the default IP address of the BC-50 block camera is 192.168.100.99. The default port No. of the rtsp...
  • Page 39 “ rtsp://192.168.100.99:554/1” which is shown as following diagram and then please press the “Play” button. Step 5. After the play button is pressed, users can see the live- monitoring screen through the VLC player which is shown as following.  IE: If this IE live-monitoring option is selected, users must download the VLC plug-in for real-monitoring (Not available yet).

  • Page 40: Video

    6.6.3 Video The “Video” option is the second option on the left column of the BC-50 network control interface which is shown as follows. Please see following paragraphs for details of each item in the Video option.  Video Format: The Video Format option supports for three formats including 50Hz, 60Hz and OSD (The OSD frequencies are set by the OSD options).
  • Page 41 BC-50 is set successfully. The 50Hz/60/Hz/OSD means that users can set the BC-50 video format to be 50Hz,60Hz or the same as the OSD frequency as your monitor.
  • Page 42 Step 3. Please choose your desired H.264 encode level and then press the Apply button on the bottom of the interface and then the encode level of the BC-50 video is set successfully. Step 4. Please go back to the “system” menu and then click the “Reboot”...
  • Page 43 Step 3. Please choose your desired Encode Protocol and then press the Apply button on the bottom of the interface and then the encode protocol of the BC-50 video is set successfully. Step 4. Please go back to the “system” menu and then click the “Reboot”...
  • Page 44 Step 2. Users can see there are several resolutions depending on the selected video format. Step 3. Please choose your desired resolution and then press the Apply button on the bottom of the interface and then the resolution of the BC-50 video is set successfully.
  • Page 45 . Finally, please click the “Apply” button again and the new setting will be effective.  Bit Rate: Users can set the bit rate of the BC-50 video by this option which is shown as follows. Generally speaking, higher bit rate achieves clearer image. However, it depends on network bandwidth situation.
  • Page 46 Please follow following steps for setting your desired Frame Rate for the BC-50 video. Step 1. Please click the Frame Rate option to show the drop-down menu which is shown as follows.
  • Page 47 Step 3. Please select your desired frame rate from the drop-down menu and then press the Apply button on the bottom of the interface and then the frame rate of the BC-50 video is set successfully. Step 4. Please go back to the “system” menu and then click the “Reboot”...
  • Page 48 Rate Control option which is shown as follows. Step 2. After the desired bit rate control method is selected, please press the Apply button on the bottom of the interface and then the bit rate control method of the BC-50 video is set successfully.
  • Page 49 Step 2. Users can see there are six fluctuate levels from 1 to 6 in the drop-down menu. Step 3.Please select your desired fluctuate level from the drop-down menu and then press the Apply button on the bottom of the interface and then the fluctuate level of the BC-50 video is set successfully.
  • Page 50 Step 2. After the On or Off is selected, please press the Apply button on the bottom of the interface and then the On/Off of the Slice Split function of the BC-50 video is set successfully. Step 3. Please go back to the “system” menu and then click the “Reboot”...
  • Page 51 Step 2. After the desired split mode is selected, please press the Apply button on the bottom of the interface and then the split mode of the BC-50 video is set successfully. Step 3. Please go back to the “system” menu and then click the “Reboot”...
  • Page 52 Step 3. Please go back to the “system” menu and then click the “Reboot” button . Finally, please click the “Apply” button again and the new setting will be effective. Please pay attention that the setting items in the Video option for the first stream and second stream are the same.

  • Page 53: Image

    6.6.4 Image The “Image” option is the third option on the left column of the BC-50 network control interface which is shown as follows. The items in this “Image option” is used for users to set some image related parameters for the BC-50 video such as Brightness, Saturation, Contrast, Sharpness and Hue.
  • Page 54  Hue: This option allows users to adjust the hue of the BC-50 video. The higher value enhances the hue of the video and the lower value reduces the hue of the video.
  • Page 55 Step 3. After the adjustment is done, please press the Apply button on the bottom of the interface and then the image option related parameters of the BC-50 video are set successfully.  Flip: The Flip check box is used for users to flip the video of the BC-50 vertically.

  • Page 56: Audio

    6.6.5 Audio The “Audio” option is the fourth option on the left column of the BC-50 network control interface which is shown as follows. Please see following paragraphs for details of each item in the Audio...
  • Page 57  Audio Switch: This option allows users to switch On/Off the input audio source. Please follow following steps for setting the Audio Switch for the BC-50 video. Step 1. Please click the Audio Switch option to show the drop-down menu which is shown as follows.
  • Page 58 Input Vol L & Input Vol R: If the Line-in is Stereo, this option allows users to adjust the volume of the left channel and the right channel. Please follow following steps for adjusting the volume of the left channel and the right channel for the BC-50 Line-in.
  • Page 59 If there is no need for the ADTS, please keep the option Off. Please follow following steps for setting the ADTS option for the BC-50 input audio. Step 1. Please click the ADTS Option drop-down menu which is shown as follows.

  • Page 60: System

    6.6.6 System The “System” option is the fifth option on the left column of the BC-50 network control interface which is shown as follows. Please see following paragraphs for details of each item in the System option.  Reboot: The reboot button is used to reboot the BC-50 camera, please follow following steps for rebooting the BC-50.
  • Page 61 Step 1. Please click the reboot button Step 2. After the reboot button is pressed, please press the Apply button on the bottom of the interface and then the BC-50 will reboot automatically.  UserName & Password for users: This option is for users to set the login user name and password for the BC-50 camera network control interface.

  • Page 62: Network

    BC-50 camera. 6.6.7 Network The “Network” option is the sixth option on the left column of the BC-50 network control interface which is shown as follows. Please pay attention that each time the network setting is changed, the BC-50 must...
  • Page 63  IP Configuration Type: This option is used for users to set the IP configuration type. The BC-50 provides two types including Fixed IP address and Dynamic IP address. Please follow following steps for setting the IP configuration type of the BC-50.
  • Page 64 However, if the existing BC-50s can not be found from the network, users can press the MENU button on the rear panel of the BC-50 to enter the OSD for looking for the network information. Moreover, users can also press and hold the menu...
  • Page 65  If the “Dynamic IP Address” option is selected, all related parameters including IP address, subnet mask, Gateway and DNS address will be set by the system automatically. Please follow following steps for setting the IP configuration type to be Dynamic IP Address.
  • Page 66 RTSP Port Number is 554. It’s no need for users to modify the port number.  PTZ Port: The BC-50 Full HD block camera supports PTZ port. The default port is “5678”. It’s no need for users to modify the port number.
  • Page 67 Step 1. Please connect a RS-485 to USB adapter cable from the rear panel of the BC-50 to the USB interface of your PC/Laptop. Step 2. Please set your desired VISCA address from the BC-50 homepage control page. Step 3. After the desired VISCA address is entered, please press the Apply button on the bottom of the interface.
  • Page 68 Down button and the next option button Step 6. After that, users can control the BC-50 by the VISCA commands by related PTZ camera control softwares/hardwares. For example, if the VISCA addresses in the BC-50 homepage control interface and the “VISCA addr”...
  • Page 69 Step 2. After the “On” option for the RTSP Auth is selected, please press the Apply button on the bottom of the interface to set the RTSP Auth option for the BC-50 camera. Step 3. Please go back to the “system” menu and then click the “Reboot”...
  • Page 70 Step 5. Please click the “Open Network Stream” option by clicking the Media drop-down menu. Step 6. After the network setting window is shown, please enter the RTSP streaming URL into the blank and then please press the “Play” button.
  • Page 71 Step 7. After that, a dialogue window is shown for users to enter the Username and Password. Please enter the default user name “admin” and default password “admin” into the blanks. Finally, please press the “OK” button. Step 8. Users can see the RTSP streaming screen from the VLC media player.
  • Page 72  ONVIF: The ONVIF (Open Network Video Interface Forum) is a global open standard for developing the standard network interface of the internet video products such as IP cameras and PTZ cameras. Please follow following steps for setting the ONVIF settings. Step 1.
  • Page 73 Step 4. Please download the free software “ONVIF Device Manager” from the website https://sourceforge.net/projects/onvifdm/?source=typ_redirect Step 5. After the download is finished, please double-click the installation file to install this software.
  • Page 74 Step 6. After the installation is finished, please open the software and then enter the User name “admin” and the password “admin” into the blanks. After that, please click the log in button. Step 7. After the login is completed, users can see address and firmware information on the left side of the screen.
  • Page 75 Step 9. After that, Please click the Live video option from the NVT section and then users can see the BC-50 live video.  ONVIF Auth: This option is used to turn on/off the ONVIF authority. Please follow following steps for setting the ONVIF Auth.
  • Page 76 Step 3. Please go back to the “system” menu and then click the “Reboot” button . Finally, please click the “Apply” button again and the new setting will be effective.  Multicast: Multicast option is used for users to turn on/off the multicast function.
  • Page 77 System option and then please press the Apply button rebooting the BC-50. Step 4. After the BC-50 is rebooted, please open the VLC media player and then please click “Open Network Stream” from the “Media” drop- down menu.
  • Page 78 Step 5. Please enter the default multicast address in the format of “rtp://224.1.2.3:6688”. After that, please click the “Play” button for playing the multicast image.
  • Page 79  NTP time sync: The NTP time sync is used for the automatic Network Time Precision Setting. Please follow following steps for setting the NTP time sync option. Step 1. Click the NTP “On” or “Off” option. Step 2. After the “On”, “Off” is selected, please press the Apply button to “set the NTP time sync option.
  • Page 80 Please follow following steps for setting the main time position. Step 1. Please enter your desired X and Y values into the blanks for the Position option. The range of the value must be within 0~100. Step 2. After the desired X and Y values are entered, please press the Apply button to “set the Main time show on/off and main time position.
  • Page 81 Step 2. After the desired X and Y values are entered, please press the Apply button to “set the Sub time show on/off and main time position. Step 3. Please go back to the “system” menu and then click the “Reboot”...

  • Page 82: Information

    6.6.8 Information The “Information” option is the seventh option on the left column of the BC-50 network control interface which is shown as follows. There are four items will be shown in the information option including Device ID, Software Version, Device Type and Webware Version. However, the Device ID is the only item that can be changed by users.

  • Page 83: Control Buttons On The Left Column Of The Network Control Interface

    Menu(confirm), Up, Down, Next Option, Previous Option, Zoom In, Zoom Out, Focus In, Focus Out, Set and Call buttons. The functions of the Home, Up, Down, Next option and Previous option are equal to buttons on the rear panel of the BC-50 camera. Button Function This is the MENU/confirm button.
  • Page 84  Zoom Speed: This option is used to set the Zoom Speed of the BC- 50 camera. Higher value means faster speed and lower value means slower speed. Please select your desired Zoom speed from the Zoom Speed drop-down menu. After the speed is selected, the new setting is effective. ...
  • Page 85  Focus Out: This Focus Out button helps users for focusing out.  Preset: Users can set the desired Zoom In/Zoom Out and Focus In/Focus Out point in advance. After that, users can set those desired Zoom and Focus points as presets. Once a pre-saved preset is set, users can call it out if it is needed.

  • Page 86: Download The Network Upgrade Program86

    6.6.10 Download the Network Upgrade Program The latest version firmware and software are already uploaded to the Datavideo official website. Please visit the Datavideo official website https://www.datavideo.com/product/BC-50 for downloading the latest firmware and software of the BC-50 block camera.

  • Page 87: How To Live-Stream Bc-50'S Video On Live-Streaming Platform-Take Facebook As An Example

    DHCP mode. If the IP address is set in DHCP mode, then you can skip this paragraph, if the IP address is set in manual mode, what you have to do is to set the BC-50 and your PC or laptop in the same Local Area Network(LAN).
  • Page 88 4. After entering the option, users can see the default IP address of the BC-50. 5. Please open your web browser and input BC-50’s IP address” in the address bar to enter BC-50’s web-page control interface. 6. A pop-up window will appear and ask you to input the user name and password.
  • Page 89 7. Please select the “Network” option. 8. In the LAN Setting section, please select the option “Dynamic IP Address” in the drop-down menu of IP Configuration Type.
  • Page 90 WAN port of the router. 11. After that, please connect the Ethernet cables that are connected to the BC-50 and the PC to your routers. 12. On the desktop of the Windows computer, please select the “Network Connections” option as shown in following diagram.
  • Page 91 13. Please select the Ethernet option. 14. Select the item “Change adapter options”.
  • Page 92 15. Select the Ethernet icon, click mouse’s right button and then select “Properties” 16. Please select the “(TCP/IPV4)”, and then press “Properties”...
  • Page 93 17. Please select “Obtain an IP address automatically”, and then press 18. Please unplug and then re-plug the power cable of the BC-50 to resume the BC-50.
  • Page 94 19. Please press the “MENU” key on the rear panel of the BC-50 to show the main menu and select the “Information” option to enter into it and to check the IP address of the BC-50.
  • Page 95 20. Please open the web browser and then input the BC-50 default IP address in the address bar. 21. A pop-up window will appear and ask users to input the user name and password. Please enter the default user name “admin” and the default password “admin”...
  • Page 96 22. Please get the “streaming server address” and “streaming name/key” in advance from the live-streaming platform that you want to live-stream. 23. Take Facebook as an example. Please follow the steps below.  Step1. Please go to the websitehttps://www.facebook.com/live/create.  Step2.
  • Page 97  Step3. Please choose where you want your live stream to appear including your timeline, a friend’s timeline, in a group or in an event and then click “Next”.  Step4. Please copy the server URL and the stream key from the screen as shown as follows.
  • Page 98  Step5. Please paste the server URL and the stream key into the MRL of the first stream in the BC-50 web-page control interface as shown as follows. And please remember to select the “On” option. Moreover, the “Audio” and “Video” options for the first stream must be ticked.
  • Page 99 BC-50.  After the BC-50 reboot, you can see the live-stream preview screen as shown as follows. Just click the “Go Live” button, then the real-time video of the BC-50 can be live-streamed to your Facebook page as you wish.

  • Page 100: Maintenance & Warnings

     Maintenance of the BC-50 Full HD Block Camera If the BC-50 Full HD block camera is not used for a long time, please remember to disconnect the power cable from the BC- 50, so that the BC-50 can be turned off completely for safety consideration.
  • Page 101  Do Not Use the BC-50 near Facilities with High Power Radio Waves Please remember that the BC-50 Full HD Block camera can not be used near facilities that will generate high power radio waves such as television station and radio transmitter, etc.

  • Page 102: Failures & Troubleshooting

    8. Failures & Troubleshooting Image Failures Troubleshooting Steps 1. Check whether the camera power supply is connected correctly 2. Check whether the supply voltage is correct Display shows no image 3. Check whether the power light is lit. 4. Check whether the SDI cables are connected correctly.

  • Page 103: Dimensions

    9. Dimensions All measurements in millimeters (mm)

  • Page 104: Frequently-Asked Questions

    10. Frequently-Asked Questions This section describes problems that you may encounter while using the BC-50. If you have questions, please refer to related sections and follow all the suggested solutions. If problem still exists, please contact your distributor or the service center.
  • Page 105 How many frame delay does the There are 3 frame delays BC-50 have for its SDI output? for the BC-50 When users preview the The recommended streaming by the Google Chrome browser for the Web UI web browser, the warning “This is the Internet Explorer plug-in is not supported”...
  • Page 106 IP CAM mode. How to find the network related Those network related information can be information in BC-50 OSD? found in BC-50 MENU. At first, please make sure all Ethernet and power related cables are connected correctly.

  • Page 107: Specifications

    11. Specifications Video Image Pickup Element 1/2.7" CMOS Sensor Effective Picture Approx. 2.07 Mega pixels Elements 1080p60/50/30/25 Signal System 1080i60/50/ 720p60/50/ Scanning Mode Progressive Lens Lens Type 20x Optical Zoom, f = 4.42 mm (WIDE) to 88.5 mm (TELE) F1.8 to F2.8 Digital Zoom 16x (optional) Angle of View...
  • Page 108 Angle of View 34.1 degrees to 1.89 degrees (Vertical) Filter M52.0 x 0.75 Thread with UV Protection RoHS Compliant Min. Illumination 0.05 Lux @ (F1.8, AGC ON) Shutter 1/30s ~ 1/10000s Auto, 3000K/Indoor, 4000K, White Balance 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual Digital Noise 2D,3D digital noise reduction Reduction...
  • Page 109 First Stream 1920x1080, 1280x720, 1024x576, Resolution 960x540, 640x480, 640x360 Second Stream 1280x720, 1024x576, 720x576, 720x408, Resolution 640x360, 480x270, 320x240, 320x180 Video Bit Rate 32Kbps ~ 20480Kbps Bit Rate Type Variable Rate, Fixed Rate Frame Rate 50Hz: 1fps ~ 50fps 60Hz: 1fps ~ 60fps Audio Compression Format Audio Bit Rate...
  • Page 110 Communication 1xRS-485, Max. Distance: 1200m interface Protocol VISCA / Pelco-D/Pelco-P Others Power Connector DC Jack w/Lock Reset Button Supported (Web UI) Input Voltage DC 12V Current Consumption 0.5A (Max) Operating 0°C ~ 40°C (32°F ~ 104°F) Temperature Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F) Power Consumption 6W (Max) Ceiling Installation...
  • Page 111 Size of Screw Hole for Use cold shoe mount Tripod...

  • Page 112: Service And Support

    Jun-0 8 .2018 Ver:E4...
