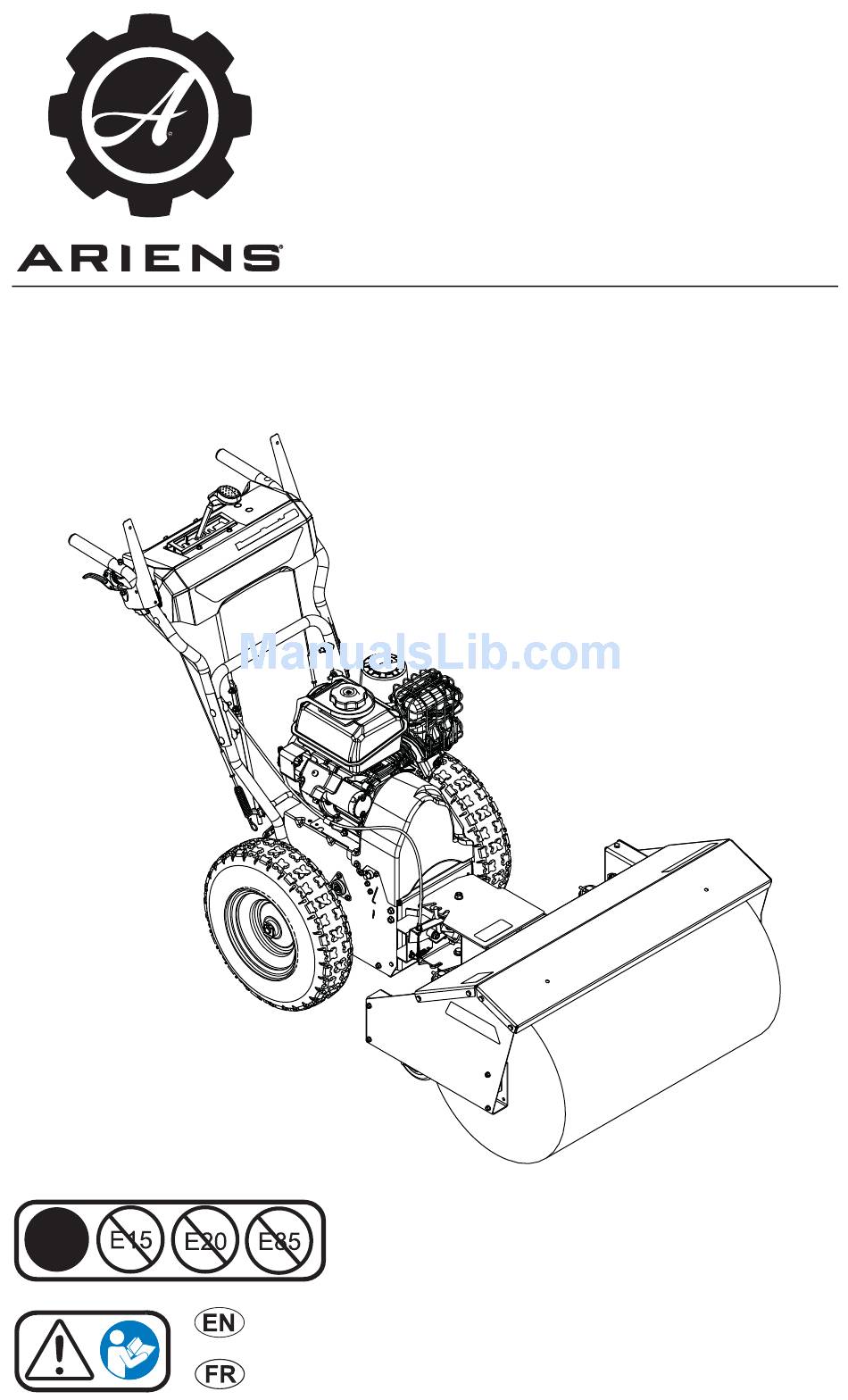

Model
921056 – Power Brush 28
(SN 000101 +)
E10
Power Brush 28
Operator's Manual
Manuel du Utilisateur
ENGLISH
FRANÇAIS
•
05175100
11/17
Printed in USA

Advertisement

Table of Contents
loading

Related Manuals for Ariens 921056

Summary of Contents for Ariens 921056

  • Page 1 Power Brush 28 Operator’s Manual Manuel du Utilisateur Model 921056 – Power Brush 28 (SN 000101 +) ENGLISH • 05175100 11/17 FRANÇAIS Printed in USA...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WELCOME ..... . 1 Set Brush Angle....12 Transport Unit .

  • Page 3: Welcome

    WELCOME Congratulations on your purchase and welcome to the Ariens family! Every power brush in the Ariens lineup is designed for long-lasting and unsurpassed performance. We are confident your machine will be part of your family for many years to come.

  • Page 4: Safety

    Emission controls and components manual. Read and understand all safety can only be adjusted by an Ariens Company messages. dealer or an authorized engine manufacturer's service center. Contact your 1.

  • Page 5: Safety Decals

    5. Important Safety Decal Descriptions IMPORTANT: Indicates general reference 1. WARNING! information worthy of special attention. SAFETY DECALS The safety decals on your unit are visual WARNING! reminders of the important safety information in this manual. All messages on your unit must be fully understood and carefully followed.

  • Page 6: Safety Rules

    SAFETY RULES 3. DANGER! The following safety instructions are based on the B71.3 specifications of the American National Standards Institute in effect at the DANGER! time of production. Training Read, understand and follow all instructions on the unit and in the manual(s) before operating this unit.
  • Page 7 Handle fuel with care; it is highly flammable. DO NOT touch parts which might be hot from operation. Allow parts to cool before • Use an approved fuel container. attempting to maintain, adjust or service. • NEVER add fuel to a running engine or hot engine.
  • Page 8 Disengage attachment when not in use and Keep unit free of ice or other debris. Clean when traveling from one work area to up oil or fuel spills. another. ALWAYS keep protective structures, guards, Disengage power to the attachment when and panels in good repair and secured in unit is transported or not in use.
  • Page 9 NOT transport unit while engine is running. Fuel Accessories Remove fuel before separating brush Use only Ariens Company-recommended attachment from frame. Ensure unit is attachments or accessories that are secure and will not tip during maintenance. designed for your unit and that are DO NOT run engine in an enclosed area.

  • Page 10: Controls & Features

    CONTROLS & FEATURES Figure 3 1. Traction Drive Clutch Lever 11. Recoil Starter Handle 2. Attachment Clutch Lever 12. Choke Control Lever 3. Speed Selector Lever 13. Throttle Control Lever 4. Brush Lock Trigger 14. Fuel Valve 5. Brush Guard 15.

  • Page 11: Engine Key

    CHOKE CONTROL LEVER WARNING: Read and See Figure 6. understand the Safety section Controls airflow to the engine. before proceeding. See Figure 3 for all controls and features locations. ENGINE KEY See Figure 4. Controls power to the engine. The key cannot be removed when in run position.

  • Page 12: Attachment Clutch Lever (Right Side)

    87. DO NOT use E85 blended fuels; the engine is not E20 / E30 / E85 compatible. The maximum recommended ethanol content is 10%. Ariens recommends using a quality fuel stabilizer in all fuel. See Short Term on page 25.

  • Page 13: Start The Engine

    START THE ENGINE SET BRUSH HEIGHT 1. Electric Start Models: Connect power cord to starter and then into 120V 3-wire CAUTION: AVOID INJURY. If grounded outlet. brush height is too low, brush IMPORTANT: Use a power cord that is UL can drive machine rearward listed or CSA certified, rated for a minimum of when attachment clutch is...

  • Page 14: Set Brush Angle

    2. Raise brush: a. Remove lynch pins from caster shaft tops. b. Remove desired amount of height adjuster clips from caster shaft tops and install onto lower caster shaft ends. c. Turn height adjuster clips so they DO NOT align with flat side of caster shafts.

  • Page 15: Adjust Engine Air Cleaner

    ADJUST ENGINE AIR CLEANER Normal Position 1. Pull down latches and move tabs away from base to release air cleaner cover. See Figure 15. Winter/Cold Weather Position Figure 15 2. Rotate cover to the winter/cold-weather position or summer position. See Figure 16.

  • Page 16: Maintenance

    MAINTENANCE WARNING: Read and understand the Safety section before proceeding. Your Ariens dealer can provide service and adjustments to keep your unit operating at peak efficiency. Contact an authorized engine manufacturer’s service center for engine service. SERVICE POSITION WARNING: AVOID INJURY.
  • Page 17 1. Tapping Screw 2. Mount Rod 1. Machine Screw 3. Mount Bracket 2. Lock Washer Figure 20 3. Brush Lock Trigger Figure 19 See Figure 21. CAUTION: AVOID ENGINE WARNING: ALWAYS support DAMAGE. Do not leave unit in unit frame and brush attachment service position for longer than when loosening hardware 30 minutes.

  • Page 18: Return Unit To Operating Position

    3.2 mm (1/8") Figure 22 1. Bottom Cover 9. Reinstall belt cover and tighten hardware. 2. Engine Sheave 10. Reinstall brush lock trigger onto 3. Engine handlebars and route brush lock cable Figure 21 through J-clamp on engine mount. 11. Adjust attachment clutch / brake. See RETURN UNIT TO OPERATING Adjust Attachment Clutch &...

  • Page 19: Maintenance Schedule

    SERVICE PARTS • DO NOT stand in front of tire See your Ariens dealer to purchase service assembly when inflating. Use parts for your unit. a clip-on chuck and extension hose long enough to allow you Description Part No.

  • Page 20: Lubricate Unit

    (heavy loads, high ambient temperatures, dusty conditions or airborne debris). LUBRICATE UNIT Ariens recommends using Ariens Hi-Temp Grease or equivalent (see Service Parts on page 17) to lubricate fittings. Lubricate each season or every 25 hours of operation.

  • Page 21: Adjustments

    6. Connect pivot pin to speed selector arm with hardware removed in step 2 and check forward and reverse speeds. a. Start unit, position speed selector lever in the first forward position and engage traction drive clutch. Unit should move forward. b.
  • Page 22 IMPORTANT: DO NOT completely remove Check Attachment Idler Arm Roller hardware from unit. Clearance 4. Loosen jam nut on cable adjustment See Figure 30. barrel, and then turn the adjustment 1. Place unit in service position and remove barrel down to shorten cable and remove bottom cover.

  • Page 23: Adjust Traction Drive Clutch

    Check Attachment Brake Check Belt Finger Clearance See Figure 31. See Figure 32. 1. Place unit in service position and remove With the attachment clutch engaged, the belt bottom cover. See Service Position on finger located opposite the belt idler must be page 14.
  • Page 24 1. Traction Drive Clutch Cable 2. Cable Adjustment Barrel 3. Jam Nut Figure 33 See Figure 34. 4. With traction clutch disengaged, check that swing gate tab touches the front edge of stop hole. IMPORTANT: Swing gate tab MUST touch stop hole edge.

  • Page 25: Troubleshooting

    (flooded). and reattempt starting. See Start The Engine on page 11. Engine is faulty. See your Ariens dealer or authorized engine manufacturer’s service center. Fuel mixture is too rich. Turn choke control knob to off position. See Choke Control Lever on page 9.
  • Page 26 TROUBLESHOOTING Problem Probable Cause Correction Attachment clutch / brake is not See Adjust Attachment Clutch & Brake on adjusted correctly. page 19. Debris is caught in brush. Stop engine and wait for all moving parts to stop and for hot parts to cool. Remove obstruction before restarting.

  • Page 27: Storage

    ACCESSORIES SHORT TERM 1. Tighten all hardware to correct See your Ariens dealer for a complete list of specifications. compatible accessories and attachments for 2. Inspect unit for visible signs of wear or your unit.

  • Page 28: Specifications

    SPECIFICATIONS Model Number 921056 Engine Engine Model Kohler CH255 177 (10.8) Displacement – cm Maximum RPM – No Load 3750 ± 100 Starter 120V Electric and Recoil Fuel See Engine Manual Tank Capacity – L (qt) 2.9 (3.1) Brush Clearing Width – cm (in) 71.2 (28)

  • Page 29: Warranty

    ® , Sno-Tek ® Finishing Tool Equipment Limited Warranty Warranty Ariens Company (Ariens) warrants to the original purchaser that Ariens, Gravely, Parker, and Countax ® ® brand chore-performing equipment (including Sno-Thro and Sno-Tek equipment) purchased on or after 1/1/2016 will be free from defects in material and workmanship for the time period noted in the chart below.
  • Page 30 Register the product immediately at the time of sale. If the dealer does not register the product, the customer must complete the product registration card in the literature package and return it to Ariens Company, or register the unit online at www.ariens.com, www.gravely.com, www.countax.com or www.parkersweeper.com.
  • Page 31 Exclusions – Items Not Covered by This Warranty • Parts that are not genuine Ariens, Gravely, Parker or Countax service parts are not covered by this warranty and may void the warranty. • Damages resulting from the installation or use of any part, accessory, or attachment which is not approved by the Ariens Company for use with product(s) identified herein are not covered by this warranty.
  • Page 32 655 West Ryan Street Brillion, WI 54110 ariensstore.com ariens.custhelp.com parts.ariens.com...
