Summary of Contents for Thunder 1220

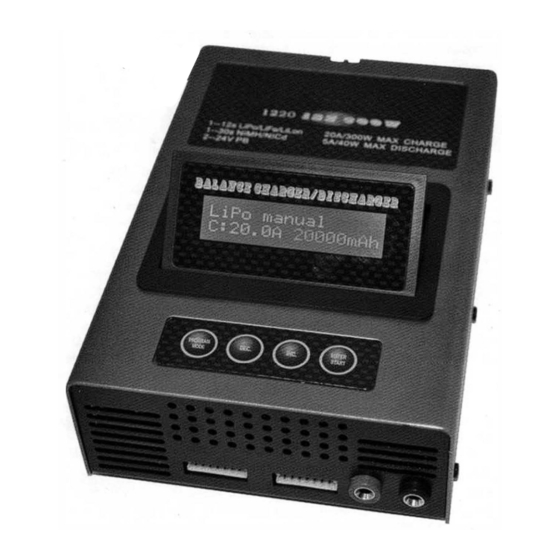

- Page 1 Operating Manual BALANCE CHARGER/DISCHARGER FOR NICD/NIMH/LITHIUM/PB BATTERIES...
-
Page 3: Warnings And Safety Notes
• Connect the charger 12DC Input directly to the car battery using the original cables and connectors supplied. The ca'r' s engine must be stopped all the time the 1220 is connected to the car's O:> not recharge the car battery at any time when the 1220 is connected to it. -
Page 4: General Notes On Using The Charger
However, a transmitter battery protected in this way can only be charged by the 1220 if the diode is by-passed. Please read your transmitter operating instructions for information on how to do this. The stated maximum charge current for the transmitter battery must �... - Page 5 �· . · 4. Charger c��trols Ushig. the charger Starting the proce�� _ .. Connectors for 12 ... 15V DC power supply or_ car battery Screen EH-BALANCER CONNECTOR for Graupner LIPo power input battery ,.BATTERY" 0 eratin buttons All the charger's functions are controlled by means of just four buttons. T he - I DEC and+/ INC buttons are used to change the current and voltage values.
- Page 6 5. Charge and discharge programs · '. The various facilities of the charger are divided up into four program groups which you can select by holding the MODE button pressed in for two seconds. The sequence is shown in the flow chart below.
- Page 8 � · 9. $tarting the charge discharge process �.. . · � For charging discharging, or conditioning a pack, select 3 sec. the desired program as described below, and then set suitable values. LiPo manual If the battery does have a balancer connector, connect the C:2 .
- Page 11 NiCd-Delta-Peak (-A Peak) trigger voltage The automatic charge termination N ied delta -peak circuit (battery full detection) works on volt •lOmV/cell the proven Delta Peak principle (also known as the Delta-V process), which is already in use in millions of chargers. This process analyses the voltage peak of the charge curve, which indicates with great accuracy when the maximum charge capacity is reached.
- Page 12 Ni-MH manual program �ii Select this program when you simply wish to recharge a i M H man u a 1 battery using the set charge current. You can adjust the c : 2 • 5 A charge current using the INC DEC buttons, but only i%, •.
- Page 13 Ni-MH discharge balancing program The discharge balancing program does discharge and balance up to 6 cells of a battery pack. The final discharge voltage for the balancer can be set NiMH balance cut within the range 1.20 ... 1.30 V using the INC or DEC 1 .
- Page 15 Lithium manual program This program charges the battery using the capacity '.Li Po inanu a 1 (charge current) which you set. Before you initiate the actual program you must set the charging current (range 0.1 A ... 20.0A, left of the screen) and the capacity of the pack (range 50 ...
-
Page 17: Pb Discharge Program
The charge program constantly monitors the battery's voltage, and limits the current in order to prevent excessive gassing of the battery. The 1220 now charges the battery using the maximum possible current until its voltage rises to around 2.3 to 2.35 Volts per cell. The charger then switches to a lower current to bring the battery gently up to full charge;... -
Page 18: Measuring Process
15. On-screen monitor displays The 1220 incorporates a wide range of protective and monitoring systems designed to check the charger's functions and monitor the state of its electronics. If any of the unit's critical limit values is exceeded, the charge process is switched off. -
Page 20: Error Messages And Warnings
16. Error messages and warnings The 1220 incorporates a wide range of protective and monitoring systems designed to check the charger's functions and monitor the state of its electronics. If any of the unit's limit values are exceeded, the charger responds accordingly: in some cases the unit's settings are automatically reduced (e.g. - Page 21 If the charger detects an excessive cell voltage at the * * * * * * * * * * * E R R O R balancer input, this error message appears. bal . volt too hi . The error message appears at the following voltages: liPo 4.3 V, Lilo 4.2 V, LiFe...
-
Page 22: Cleaning And Maintenance
17. Cleaning and maintenance The charger is entirely maintenance-free in use, and requires no servicing of any kind. However, it is in your own interests to protect the unit from dust, dirt and damp. To clean the charger, disconnect it from the car battery and any other battery, and wipe it clean with a dry cloth (don't use cleaning agents!). - Page 23 19. Specification Battery: Charge currents power 100 mA to 20.0 A max. 300 W with external 12 ... 1 SV DC power supply Discharge currents power 100 mA to 5 A max. 40 W Ni-Cd & Ni-MH batteries: Cell count 1 - 30 cells Capacity min.
- Page 24 CE�! Printed in China...
