Serene Renew DB-100 User Manual

ReNew™ Dryer & Freshener User's Guide
(Hearing Aid Dryer & Battery Tester)
Thank you for your purchase of ReNew Dryer &
Freshener; please read this user's guide carefully
before use and keep it for future reference.
IMPORTANT SAFETY INSTRUCTIONS
WARNING – When using electric appliances, basic
precautions should always be followed, including the
following:
1. Read all the instructions before using the appliance.
2. To reduce the risk of injury, close supervision is
necessary when an appliance is used near children.
3. Do not look directly at the two UV lights located on
the front corners of the drying chamber.
4. Only use attachments recommended or sold by the
manufacturer.
5. Do not use outdoors. Do not use near water.
6. To disconnect, turn all controls to the off position,
then remove plug from outlet.
7. Do not unplug by pulling on cord. To unplug, grasp
the plug, not the cord.
8. Unplug from outlet when not in use and before
servicing or cleaning.
9. Do not operate any appliance with a damaged cord
or plug, or after the appliance malfunctions or is
dropped or damaged in any manner. Return
appliance to the nearest authorized service facility
for examination, repair, or electrical or mechanical
adjustment.
5. Both indicators turn off automatically at the end of
the drying cycle.
(Note: Ultra-Violet (UV) light inhibits bacteria growth.
"REFRESH" button controls the two UV lights in the
chamber.)
6. Remove hearing aids and wipe off any dried wax.
Battery Test:

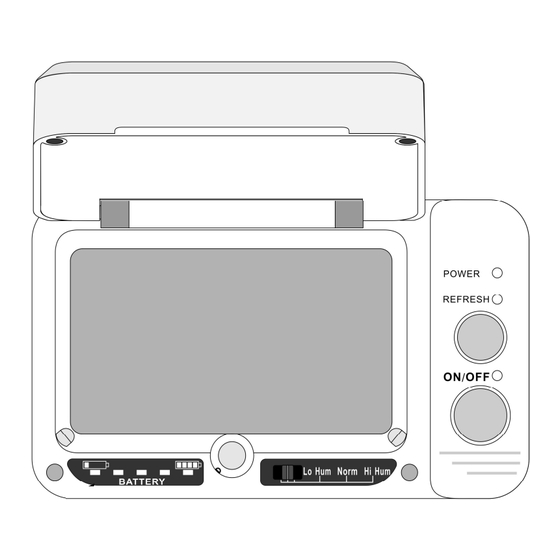

1. Place a battery against battery tester terminals.
Battery
Make sure the smaller round battery contact (-) is
Battery Tester
Indicators
placed on the gold disc.
Terminals
2. Press the battery so that its body (+) is pressed
against the vertical gold terminal.
Drying Cycle:
3. Battery capacity is indicated by the number of
1. Plug AC adapter into the unit and wall outlet. Verify
indicators that light up. 4 or 5 indicators means the
Power indicator is ON.
battery has good capacity remaining. 1 or 2
2. Set Room Humidity switch for the following drying
indicators means the battery has marginal capacity
times:
and should be replaced soon.
"Low Humidity" = 2 hrs.
4. Before testing a new battery, remove battery tab
"Normal Humidity" = 4 hrs.
and wait two minutes for the battery voltage to
"High Humidity" = 8 hrs.
stabilize.
3. Open hearing aid battery cover to expose the
battery for drying also. Place hearing aids in the
chamber and close the cover.
4. Press ON / OFF button to start the drying cycle.
Both ON / OFF and REFRESH indicators light up.
Caution: Do not look directly at the two UV
lights on the front corners of the chamber.
Room Humidity
Switch
5. Both indicators turn off automatically at the end of
the drying cycle.
(Note: Ultra-Violet (UV) light inhibits bacteria growth.
"REFRESH" button controls the two UV lights in the
chamber.)
6. Remove hearing aids and wipe off any dried wax.
Battery Test:
1. Place a battery against battery tester terminals.
Battery
Battery Tester
Make sure the smaller round battery contact (-) is
Indicators
Terminals
placed on the gold disc.
2. Press the battery so that its body (+) is pressed
Drying Cycle:
against the vertical gold terminal.
1. Plug AC adapter into the unit and wall outlet. Verify
3. Battery capacity is indicated by the number of
Power indicator is ON.
indicators that light up. 4 or 5 indicators means the
battery has good capacity remaining. 1 or 2
2. Set Room Humidity switch for the following drying
indicators means the battery has marginal capacity
times:
and should be replaced soon.
"Low Humidity" = 2 hrs.
4. Before testing a new battery, remove battery tab
"Normal Humidity" = 4 hrs.
and wait two minutes for the battery voltage to
"High Humidity" = 8 hrs.
stabilize.
3. Open hearing aid battery cover to expose the
battery for drying also. Place hearing aids in the
chamber and close the cover.
4. Press ON / OFF button to start the drying cycle.
Both ON / OFF and REFRESH indicators light up.
Caution: Do not look directly at the two UV
lights on the front corners of the chamber.
ReNew Specifications @ 25°C ambient:
1 Chamber temp (measured @5
mm above center)
2 UV light
3 Drying cycle timer
4 Moisture evaporation rate
(tested with water in a 2 mm
diameter plastic tube)
5 Battery voltage indicators
6 Switching AC adapter input
7 Switching AC adapter output
8 Redundant over-temp control
9 Operating temp
10 Storage Temp
10 Size (mm)
11 Weight (gm)
Warranty Service Information
ReNew comes with one-year limited warranty. We warrant during this
warranty period, from the date of purchase, to the original consumer,
ReNew to be free from defects in materials and workmanship under
intended home use. In the event that ReNew fails to function properly
within one year of original purchase due to defects in materials or
workmanship, return the unit (freight prepaid) with proof of purchase
(sales receipt or packing slip, no exceptions) to Serene Innovations.
Serene Innovations will either repair or replace the unit (with a
refurbished unit or unit of equal condition) and return it to you (using
UPS/USPS ground shipping) at no cost to you if the unit is returned
within 30 days of purchase. If the unit is returned after 30days of
purchase but within the warranty period, there will be a warranty
handling charge of $9.95 for each return.
This Warranty gives you specific legal rights, and you may also have
other legal rights that vary from state to state.
ReNew™ is a trade mark of Serene Innovations, Inc.
Serene Innovations, Inc.
14615 Carmenita Road, Norwalk, CA
Tel: 562 407 5400 www.sereneinnovations.com
Room Humidity
Switch
45 +/- 5°C
385 nm; < 100mw
2 hr, 4hr, 8hr
³
Evaporate 18 mm of
water after 4 hours of
drying at 60% R.H.
5
100 to 240 VAC, 50 / 60 Hz
12VDC, 1000MA
PTC and thermostat
0 to 40°C
-10 to 50°C
148x89x51 (5.8"x3.5"x2")
430 (15 Oz)
