DM-MD6X4/DM-MD6X6
Connections
1

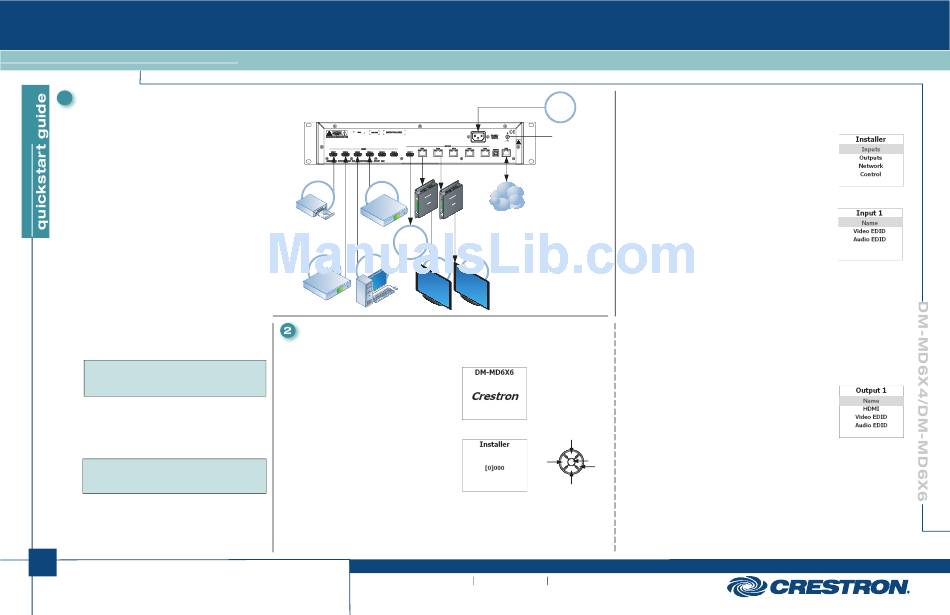

To connect the DM-MD6X4/DM-MD6X6, refer to the
information below and to the illustration to the right
(DM-MD6X6 shown).
HDMI ® Input Connections
Using HDMI ® cables (not supplied), connect up to six
HDMI digital video/audio input devices to the HDMI input
connectors (HDMI 1 to HDMI 6).
HDMI Output Connection
Using an HDMI cable (not supplied), connect an HDMI
digital video/audio output device to the HDMI output
connector (HDMI 1).
DM 8G+™ Output Connections
Connect up to three (DM-MD6X4) or five (DM-MD6X6)
DigitalMedia 8G+™ receivers/room controllers to the
DM 8G+™ output connectors (DM 2 to DM 4 on the
DM-MD6X4 or DM 2 to DM 6 on the DM-MD6X6).
(The illustration to the right shows connection to
DM-RMC-100-C devices.)
For DM 8G+ wiring up to 330 feet (100 meters) between
devices, use any of the following cables (sold separately):
● Crestron ® DM-CBL-8G DigitalMedia 8G™ cable
● Crestron DM-CBL DigitalMedia™ cable
● Crestron DM-CBL-D DigitalMedia D cable
● Generic CAT5e (or better) UTP or STP cable
NOTE: Shielded cable and connectors are
recommended to safeguard against unpredictable
environmental electrical noise which may impact
performance at resolutions above 1080p.
LAN Connection
Using an RJ-45 cable (not supplied), connect the 8-pin
LAN port to the 10BASE-T/100BASE-TX Ethernet
network.
AC Power Connection
NOTE: The DM-MD6X4/DM-MD6X6 does not have a
power switch. Power is applied to the unit when the
supplied AC power cord is connected to the AC power
source.
Connect one end of the supplied AC power cord to the
DM-MD6X4/DM-MD6X6 and the other end to the AC
power source.
1
For details, refer to the latest version of the DM-MD6X4/DM-MD6X6
Operations & Installation Guide, Doc. 7196.
QUICKSTART DOC. 7218A (2031226)
DigitalMedia™ Distribution Center
DM-MD6X6
BLU-RAY HD CABLE
I OUT
HDM
GND
TX COM
RX RTS
CTS
S 1 IR
G 2
S S
LAN
PROCISE
SURROUND
SYSTEM
COMPUTER
HD CABLE
Configuration
Configure the DM-MD6X4/DM-MD6X6 using the front panel controls.
A. Access Installer Mode
1. Ensure that the home screen is
displayed. If it is not displayed, press
the HOME button. The home screen
is shown to the right.
2. Press the BACK button.
The Installer password screen
appears.
3. Enter the four-digit password (the
default password is 1234). To enter a
digit, do either of the following:
● If the digit ranges from 1-6, press
the appropriate INPUT/OUTPUT
button that corresponds to the digit
to be entered.
● If the digit is 0 or ranges from 7-9, use the navigation pad as follows.
Press the Up/Down navigation button as necessary until the desired
digit appears between the brackets, and then press the Select button.
After the fourth digit is entered, the Installer menu appears.
www.crestron.com
09.11
Specifications subject to
change without notice.
AC POWER
Ground
DM IN
DM IN
LAN
RES ET
RES ET
C
C-1 00- LLE R P C
-RM NT RO SETU I OUT C-1 00- LLE R P
DM CO HDM -RM RO SETU
RO OM DM CO NT
DM RO OM
V 24 MAX GND DM
0.75A TX COM V 24
RX RTS 0.75A MAX
CTS
S 1 IR
2 G
S S
DM-RMC-100-C
LAN
DISPLAY DISPLAY
Home Screen
(DM-MD6X6 Shown)
After 30 seconds of inactivity,
the DM-MD6X4/DM-MD6X6
times out and returns to the
home screen while also
dimming the LCD.
Installer Password
Navigation Pad
Screen
Up
Select
Left
Right
Down
888.273.7876 201.767.3400
B. (Optional) Set Input and Output Names
For inputs 1-6, the default names are Input 1, Input 2, and so on.
For outputs 1-4 (DM-MD6X4) or outputs 1-6 (DM-MD6X6), the default names
are Output 1, Output 2, and so on.
To change an input name:
1. In the Installer menu, navigate to Inputs if it
is not already highlighted and then press the
Select button on the navigation pad.
The Input submenu appears for the currently
selected input. The name of the input
is shown at the top of the Input submenu.
(The LED of the currently selected input is lit.)
2. Select the desired input by pressing the
appropriate INPUT button (1-6).
The LED of the selected input lights, and
the name of the input appears at the top of the
Input submenu.
3. Navigate to Name if it is not already highlighted, and then press the
Select button.
A scrollable list of predefined source names appears for the input.
4. Navigate to the desired source name in the list, and then press the
Select button.
The selected name appears at the top of the Input submenu for the
selected input.
To change an output name:
1. In the Installer menu, navigate to Outputs and then press the
Select button.
The Output submenu appears for the currently
selected output. The name of the output
is shown at the top of the Output submenu.
(The LED of the currently selected output is lit.)
2. Select the desired output by pressing the
appropriate OUTPUT button (1-4 on the
DM-MD6X4 or 1-6 on the DM-MD6X6).
The LED of the selected output lights, and
the name of the output appears at the top of the
Output submenu.
3. Navigate to Name if it is not already highlighted, and then press the
Select button.
A scrollable list of predefined room names appears for the output.
4. Navigate to the desired room name in the list, and then press the
Select button.
The selected name appears at the top of the Output submenu for the
selected output.
Installer Menu
Input Submenu
(Input 1 Shown)
Output Submenu
(Output 1 Shown)
