Linear 831 Series Instructions

831 COMMERCIAL RECEIVER INSTRUCTIONS
INSTALLER: Leave this manual with your customer upon completion of the installation.
PRODUCT FEATURES

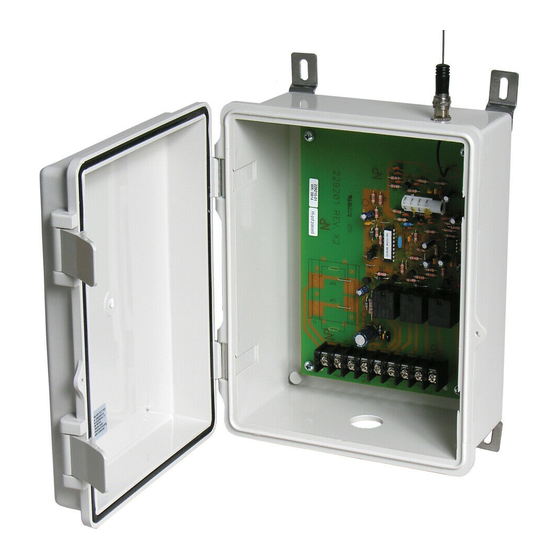

This Receiver is designed to work with most commercial door operators. Programming the receiver to accept the
transmitter signal is a matter of pushing the "LEARN" button on the receiver body and activating the transmitter.
The receiver is connected to the commercial operator in the same manner as a 3-button station and provides full
open, close, and stop functionality via radio control. The receiver is powered from the operator's 24 VAC
transformer. The antenna is removable and may be relocated (using coaxial cable, not included) for better RF
reception.
IMPORTANT INSTALLATION NOTES
TO REDUCE THE RISK OF SEVERE INJURY OR DEATH:
READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS!
WARNING
•
THIS RECEIVER IS INTENDED FOR USE WITH
COMMERCIAL DOOR OPERATORS ONLY. DO
NOT USE FOR ANY OTHER PURPOSE. DO NOT
MODIFY IN ANY MANNER.
•
CHECK LOCAL BUILDING AND ELECTRICAL
CODES FOR MANDATORY INSTALLATION
AND WIRING REQUIREMENTS.
•
CONNECT POWER CORDS ONLY TO A
PROPERLY GROUNDED OUTLET.
PERMANENT WIRING IS REQUIRED
CODES, DISCONNECT POWER AT FUSE BOX
OR CIRCUIT BREAKER BEFORE ATTEMPTING
ANY WIRING CONNECTIONS.
•
DO NOT WEAR RINGS, WATCHES OR LOOSE
C LOTHING WHILE INS TALLING
SERVICING GARAGE DOOR OPENERS. WEAR
SAFETY GOGGLES OR OTHER PROTECTIVE
EYEWEAR.
•
AN UNBALANCED DOOR OR ONE THAT
STICKS OR BINDS MAY CAUSE INJURY OR
DEATH. ENSURE DOOR IS PROPERLY
BALANCED AND ELIMINATE ANY STICKING
OR BINDING.
DO NOT USE RADIO CONTROLS ON COMMERCIAL DOOR
OPERATORS UNLESS PROPER ENTRAPMENT PROTECTION
DEVICES ARE INSTALLED. CONSULT THE MANUFACTURER OF
    
 
YOUR OPERATOR FOR MORE DETAILS.
USA & Canada
For more information:
(800) 421-1587 & (800) 392-0123
www.devancocanada.com
(760) 438-7000
or call toll free at 855-931-3334
Toll Free FAX (800) 468-1340
www.linearcorp.com
•
YOUR GARAGE DOOR IS A LARGE MOVING
OBJECT. THE SPRINGS, PULLEYS, CABLES
AND MOUNTING HARDWARE UTILIZED TO
BALANCE ITS OPERATION
EXTREME TENSION AT ALL TIMES AND CAN
CAUSE SERIOUS PERSONAL INJURY, EVEN
DEATH, IF DISTURBED. ONLY A QUALIFIED
SERVICE PERSON SHOULD MOVE, LOOSEN OR
ADJUST DOOR SPRINGS OR HARDWARE.
•
IF LOCATE CONTROL PUSHBUTTONS WITHIN
BY
SIGHT OF THE DOOR AND AWAY FROM THE
MOVING PARTS OF THE DOOR.
ENTRAPMENT WARNING LABEL NEXT TO
THE CONTROL PUSHBUTTON
PROMINENT LOCATION.
•
REMOVE ALL ROPES AND REMOVE OR MAKE
OR
INOPERATIVE ALL LOCKS CONNECTED TO
THE GARAGE DOOR.
•
THE IMPORTANT SAFEGUARDS
INSTRUCTIONS IN THIS MANUAL CANNOT
COVER ALL POSSIBLE CONDITIONS AND
SITUATIONS. IT MUST BE UNDERSTOOD
THAT COMMON SENSE AND CAUTION MUST
BE EXERCISED BY THE
INSTALLING, MAINTAINING AND OPERATING
THIS EQUIPMENT.
RECEIVER WIRING INSTRUCTIONS
   
    
 
   
      
The receiver functions as a 3-button station. Three sets of isolated
contacts are provided; normally open contacts for the OPEN
PUSHBUTTON (Terminal 3 & 4); normally open contacts for the
CLOSE PUSHBUTTON (Terminals 5 & 6); normally closed
contacts for the STOP PUSHBUTTON (Terminal 7 & 8). Refer to
Figure 2. For special STOP circuit applications, normally open
contacts are available (Terminals 8 & 9).
CAUTION
24 VOLTS
AC ONLY
ARE UNDER
Figure 2
Typical 4-wire 3-button stations are wired as shown in
Figure 3. Number 18 gauge wire or heavier must be used for
wiring the control stations and the receiver to the door
operator. Smaller gauge wire may cause operational
problems, especially when multiple 3-button stations are
used. For typical installations the receiver is mounted near
the door operator, away from any high voltage conduits or
INSTALL
steel support beams. For wiring, follow the steps below and
refer to Figure 4.
IN A
1. In the door operator control panel, locate the wire
connecting the door operator to the 3-button station
COMMON. Note its location and remove.
2. Connect Terminal 8 from the receiver to the wire just
removed from the pushbutton COMMON.
AND
3. Connect the following wires from the receiver to the
operator 3-button COMMON (as shown in Figure 4):
Terminal 4 (OPEN)
Terminal 6 (CLOSE)
PERSON(S) Terminal 7 (STOP)
4. Connect Terminal 5 in the receiver to the CLOSE
pushbutton terminal in the door operator control panel.
5. Connect Terminal 3 in the receiver orange wire to the
OPEN pushbutton terminal in the door operator control panel.
6. Finish the wiring by connecting 24 VAC to
Terminals 1 & 2 of the receiver.
IMPROPER WIRING COULD CAUSE ELECTROCUTION OR
   
DAMAGE TO CIRCUITRY. FOLLOW LOCAL BUILDING AND
ELECTRICAL CODES.
TO PREVENT ELECTROCUTION DISCONNECT POWER AT
   
FUSE BOX AND DOOR OPENER BEFORE WIRING
PERMANENTLY.
RADIO RECEIVER TERMINAL STRIP
1 2 3 4 5 6 7 8 9
POWER OPEN CLOSE STOP
TO RECEIVER
TO RECEIVER
Page 2 of 4
Figure 1
WALL PUSHBUTTON STATION
WITH MODIFIED WIRING
SPLICE
TERMINAL #7
OPEN
TERMINAL #8
CLOSE
STOP
TO RECEIVER
TERMINAL #5
Figure 3
TO RECEIVER
TERMINAL #3
BEFORE APPLYING
POWER, CHECK ALL
CONNECTIONS AND
THE ANTENNA
INSTALL
