Nvidia Quadro K6000 Installation Manual

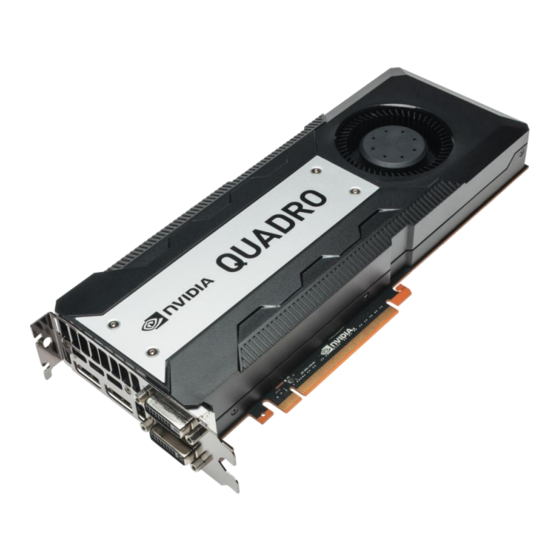

NVIDIA Quadro K6000
Graphics Card
Installation instructions for HPE
WS460c Graphics Expansion Blade
and HPE servers
© Copyright 2014, 2015 Hewlett Packard Enterprise Development LP
The information contained herein is subject to change without notice. The
only warranties for Hewlett Packard Enterprise products and services are set
forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional
warranty. Hewlett Packard Enterprise shall not be liable for technical or
editorial errors or omissions contained herein.
Part Number: 734583-002
November 2015
Edition: 2
Overview
This document provides instructions for installing an NVIDIA Quadro
K6000 graphics card into the HPE ProLiant WS460c Gen8 Graphics
Expansion Blade.
For software installation information, see the Microsoft Windows on
ProLiant WS460c Gen8 Workstation Blade with WS460c Graphics
Expansion Blade Administrator Guide.
Kit contents
• NVIDIA Quadro K6000 graphics card (225W)
• PCI expansion bracket
• Double-wide retention bracket
• Screws
• This document
Additional requirements
You can add more ProLiant servers for future support. For
requirements specific to each individual server, see the individual
hardware documentation.
Replacing NVIDIA Quadro 5000
and 6000 graphics cards
IMPORTANT: This procedure is for replacing NVIDIA
Quadro 5000 and 6000 graphics cards only on the Gen8
graphics expansion blade. Earlier generations do not
support this card.
Required tools for this procedure:
• T-10/T-15 Torx screwdriver (provided inside the server)
• HPE Insight Diagnostics software

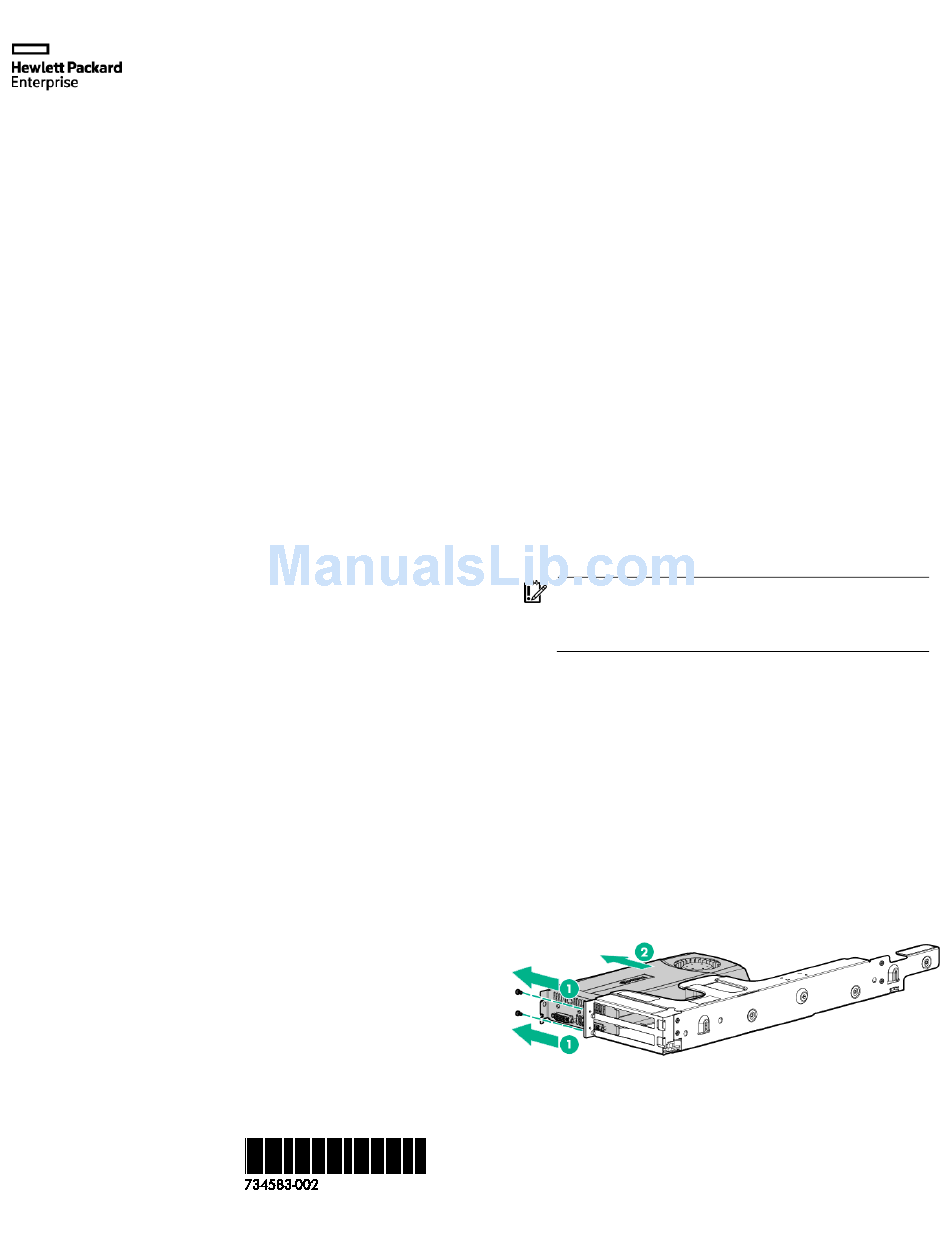

To remove the graphics card from the graphics expansion blade:
1. Power down the WS460c Gen8 Expansion Blade.
2. Remove the WS460c Gen8 Expansion Blade.
3. Remove the WS460c Graphics Expansion Blade access panel.
4. Remove the WS460c Graphics Expansion Blade PCIe card
cage.
5. Disconnect any power cables from the graphics card,
disconnect the retaining screws, and then remove the graphics
card from the card cage.
6. Insert the NVIDIA Quadro K6000 graphics card into the card
cage.
7. Install two screws at the I/O connector panel to secure graphics
card to the card cage.
8. Install the card cage to the WS460c Gen8 Expansion Blade.
9. Install power cables to the graphics card power connector
located at the end with cooling fan.
