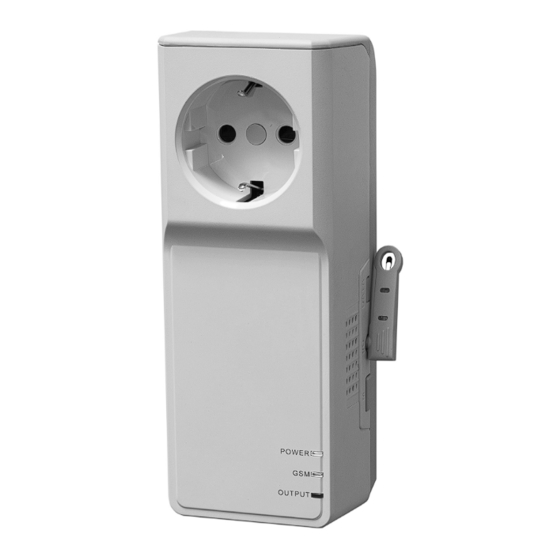

- Page 1 GSM POWER SOCKET USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS CONTENTS Thank you for purchasing the GSM power socket. Important Information ………………………………………………………………05 Safety Recommendations …………………………………………………………06 The GSM power socket is a remotely controlled power socket using any 2G Pay Disclaimer Notice …………………………………………………………………07 as you Go SIM (Not Three as they are purely a 3G Network). The power supply output of the socket can be turned on or off remotely by SMS (Short Message CHAPTER 1 - FEATURES AND ACCESSORIES System) command or locally controlled by its function buttons. -
Page 3: Important Information
CONTENTS CONTINUED INFORMATION CONTENTS IMPORTANT INFORMATION Controlling the Output by Temperature ……………………………………21 3.5.1 Turning ON the Control Output by Temperature Function ………21 3.5.2 Setting the Temperature Range to Control the Output …………22 3.5.3 Turning OFF the Control Output by Temperature Function………23 SMS Notification Upon the Socket Output Changing ……………………23 Checking the Socket Status…………………………………………………24 PLEASE READ THIS IMPORTANT INFORMATION... -
Page 4: Safety Recommendations
SAFETY RECOMMENDATIONS DISCLAIMER NOTICE SAFETY RECOMMENDATIONS DISCLAIMER NOTICE • This socket is designed for business or domestic use for any appliance not • We operate a policy of continuous development and therefore we reserve the exceeding 13 Amps for UK version and 16 Amps for Schuko version or 3 Kw right to make changes and improvements to the design, functionally or any output part of the socket as described in this document without prior notice... -
Page 5: Chapter 1 Features And Accessories
CHAPTER 1 FEATURES AND ACCESSORIES CHAPTER 1 FEATURES AND ACCESSORIES CHAPTER 1 FEATURES AND ACCESSORIES 1.1 MAIN FUNCTIONS • The GSM power socket uses a PAYG SIM card • The GSM power socket is operated remotely by SMS command 1.1 MAIN FUNCTIONALITY •... -
Page 6: Schematic Drawings
CHAPTER 1 FEATURES AND ACCESSORIES CHAPTER 1 FEATURES AND ACCESSORIES 1.3 SCHEMATIC DRAWINGS 1.4 TEMPERATURE SENSOR DRAWING Figure 2: Temperature Sensor Drawing 1.5 LED LIGHT INDICATORS (KEY) Indicator Action Status No Light No Mains Power Available Power Light (Green LED) Constant Light Mains Power Available No GSM Signal / Socket Switched... -
Page 7: Chapter 2 Quick Start
CHAPTER 2 QUICK START CHAPTER 2 QUICK START CHAPTER 2 QUICK START 2.1 INSTALLING THE SIM CARD AND TEMPERATURE SENSOR 1. The power switch should be in the “OFF” position (See 7 on Figure 1) (please make sure the power socket is off before inserting the SIM Card) 2.1 INSTALL THE SIM CARD AND TEMPERATURE SENSOR 2. -
Page 8: User Authorisation Levels
CHAPTER 2 QUICK START CHAPTER 2 QUICK START 2.3 USER AUTHORISATION LEVEL 2.5 SETTING THE DATE/TIME (GMT) All settings can be adjusted via SMS command’s. The GSM power socket Important note has two levels of control. If the power socket is being used for the first time, or it has been reset, the master user must set the socket time according to the current time of the Master User: SMS centre. -
Page 9: Notification Of Power Supply Loss
CHAPTER 2 QUICK START CHAPTER 3 ADVANCED SETTINGS CHAPTER 3 ADVANCED SETTINGS 2.7 NOTIFICATION OF POWER SUPPLY LOSS External power supply lost If the GSM power socket is disconnected from external AC power or a loss 3.1 DEFINING THE USERS of the AC power occurs, all functions of the socket are deactivated 3.1.1 Changing the Master Number... -
Page 10: Changing The Master Number
CHAPTER 3 ADVANCED SETTINGS CHAPTER 3 ADVANCED SETTINGS 3.1 DEFINING THE USERS 3.2 CONTROLLING THE OUTPUT BY CALLING If the master user calls the GSM power socket, the socket output will be 3.1.1 CHANGING THE MASTER NUMBER switched on / off automatically when the user hears the ring tone in the To change the master number please send the following SMS command phone. -
Page 11: Controlling The Output By Time / Date
CHAPTER 3 ADVANCED SETTINGS CHAPTER 3 ADVANCED SETTINGS Successful SMS reply ‘StartTime’ and ‘EndTime’: Consists of 4 digits (hh.mm) and works on a 24 The socket power output is cut off now, will switch on after – minutes hour clock, the ‘StartTime’ and ‘EndTime’ should be in the same day, and The socket power output is switch on now, will cut off after –... -
Page 12: Setting The Temperature Range To Control The Output
CHAPTER 3 ADVANCED SETTINGS CHAPTER 3 ADVANCED SETTINGS Successful SMS reply (Cooling) To set the temperature control parameters the master user sends the Auto-controlled by external temperature sensor activated following SMS command: #159#1#MinimumTempValue#MaximumTempValue# 3.5.2 SETTING THE TEMPERATURE RANGE TO CONTROL I.E. -
Page 13: Checking The Socket Status
CHAPTER 3 ADVANCED SETTINGS CHAPTER 3 ADVANCED SETTINGS 3.7 CHECKING THE SOCKET STATUS 3.8 RESETTING THE SOCKET To check the socket’s operating status the master user sends following This function resets all programmed settings to their original parameters, SMS command: #07# including deleting all additional users/numbers, timing parameters and temperature parameters. -
Page 14: Chapter 4 - Maintenance
CHAPTER 4 MAINTENANCE CHAPTER 5 GENERAL TROUBLESHOOTING CHAPTER 4 MAINTENANCE CHAPTER 5 GENERAL TROUBLESHOOTING General Trouble Possible Reason Solution The power LED has The socket has no power Check that there is turned off supply external power available The GSM LED light has The socket can’t find or The SIM card is not turned off... -
Page 15: Chapter 6 Main Technical
CHAPTER 6 MAIN TECHNICAL APPENDIX SMS COMMANDS LIST CHAPTER 6 MAIN TECHNICAL APPENDIX SMS COMMANDS LIST Category Function Command Input Power Socket 110 – 250v / 50hZ Time Set the socket time #152# Add a master number #00# Output Power Socket Relay Max 13 Amp Change the master number #14#NewMasterNumber#... - Page 16 APPENDIX SMS COMMANDS LIST APPENDIX SMS COMMANDS LIST Category Function Command Enable auto-control time / date #128#1# function Timing Set the time period for the output #129#WorkDay#StartTime Control control to switch ON / OFF #EndTime# Disable auto-control time / date #128#0# function (Default) Enable auto-control temperature...
