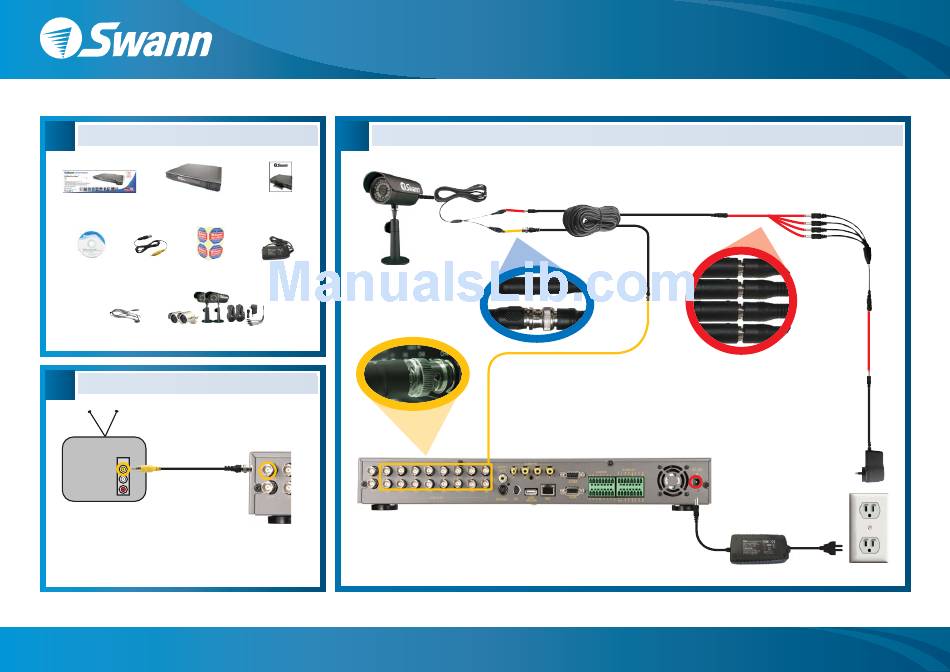

Swann DVR8-8600 Easy Setup Manual

A
Package Contents
Packaging 8CH or 16CH 8600 Plus
Swann DVD BNC to Security
RCA Cable Stickers
Power Adapter Cameras and Accessories Optional
Cable
C
Connecting the DVR to TV
1
Connect the yellow
RCA cable to an INPUT
on the back of your TV
Back of TV
INPUT
3
2
Tune your TV to the
correct INPUT - this is
sometimes labelled A/V,
input, source, L1, L2, etc.
- consult TV manual for details
Swann Communications • Toll Free Technical Support: USA - 1-800-627-2799, Australia - 1300 13 8324 • Email: tech@swannsecurity.com
DVR16-8600 / DVR8-8600 - Easy Setup Guide
B
User Manual
User Manual
DVR Power
Cameras Optional
Adapter
Back of DVR
Connect the BNC end
of the cable to the top
VIDEO INPUT on DVR
1
Connect the camera
cables to the Extension
Cables
2
Connect BNC Extension
to back of DVR in ports
marked Video Input
DVR16-8600 Rear Panel
Camera Connections
3
Connect all power ends
of Extension cables to
the Power Splitters
4
Connect Power
Splitter to Camera
Power Adapters
5
Plug in Camera Power
Adpaters and DVR
Adapter to outlets
